10.3 Skeletal structure
9 min read•august 19, 2024
The human skeleton forms the foundation of our physical structure, providing support and enabling movement. Understanding its intricacies is crucial for artists aiming to create realistic figure drawings. From the skull to the pelvis, each bone plays a vital role in shaping our appearance and capabilities.
Joints connect bones, allowing for various types of movement. By grasping the mechanics of different joint types and their range of motion, artists can depict natural, anatomically correct poses. This knowledge, combined with an understanding of skeletal proportions and landmarks, enables the creation of believable and dynamic figure drawings.
Bones of the body
- The human skeleton provides the underlying structure and support for the body, enabling movement and protecting vital organs
- Bones also serve as a reservoir for minerals like calcium and phosphorus and play a role in blood cell production in the bone marrow
- Understanding the major bones and their anatomical relationships is essential for accurately drawing the human figure

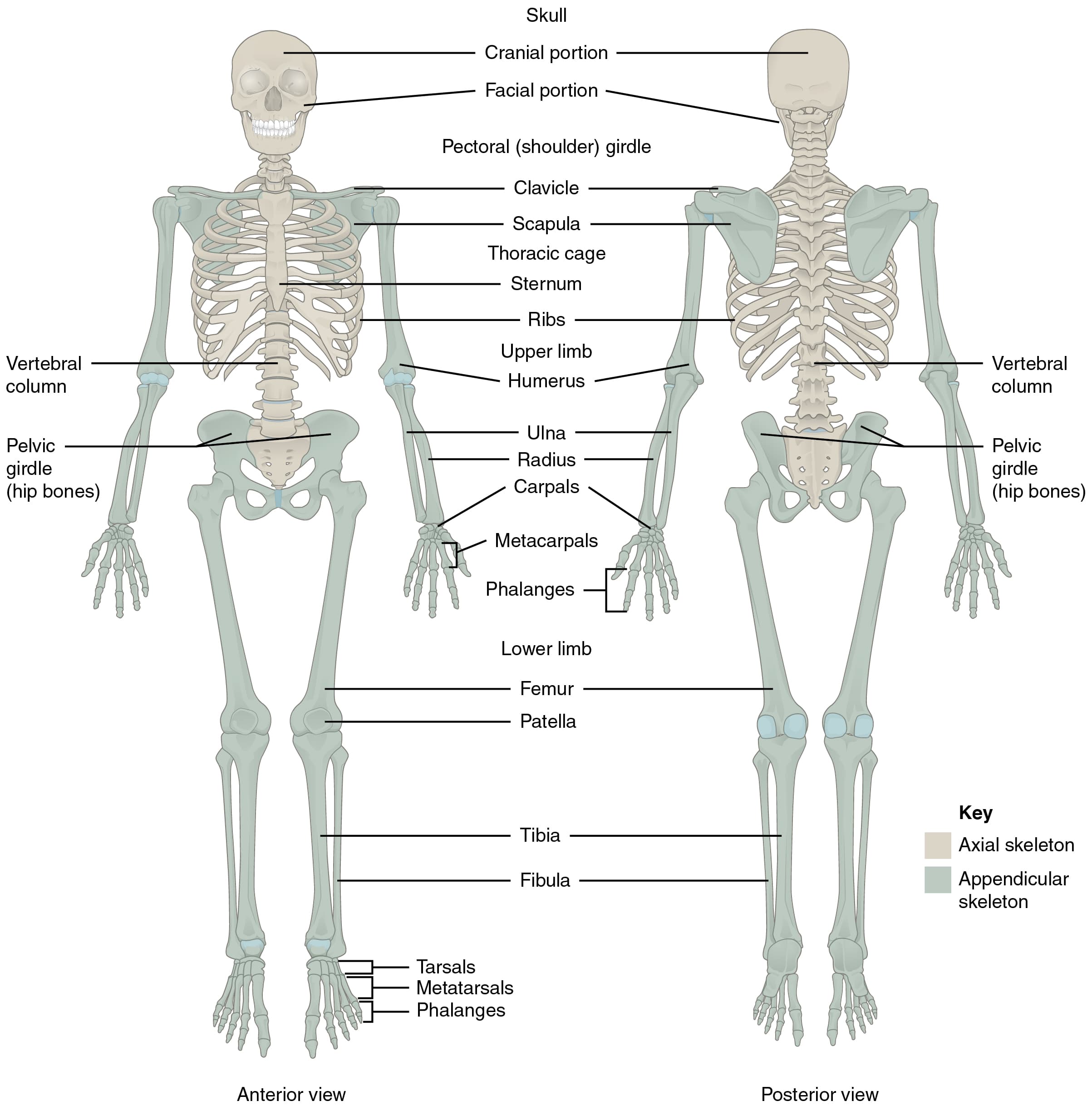

Axial vs appendicular skeleton
Top images from around the web for Axial vs appendicular skeleton
The appendicular skeleton | Human Anatomy and Physiology Lab (BSB 141) View original
Is this image relevant?
Divisions of the Skeletal System · Anatomy and Physiology View original
Is this image relevant?
The Axial Skeleton | Human Anatomy and Physiology Lab (BSB 141) View original
Is this image relevant?
The appendicular skeleton | Human Anatomy and Physiology Lab (BSB 141) View original
Is this image relevant?
Divisions of the Skeletal System · Anatomy and Physiology View original
Is this image relevant?
1 of 3
Top images from around the web for Axial vs appendicular skeleton
The appendicular skeleton | Human Anatomy and Physiology Lab (BSB 141) View original
Is this image relevant?
Divisions of the Skeletal System · Anatomy and Physiology View original
Is this image relevant?
The Axial Skeleton | Human Anatomy and Physiology Lab (BSB 141) View original
Is this image relevant?
The appendicular skeleton | Human Anatomy and Physiology Lab (BSB 141) View original
Is this image relevant?
Divisions of the Skeletal System · Anatomy and Physiology View original
Is this image relevant?
1 of 3
- The axial skeleton forms the central axis of the body and includes the skull, vertebral column, ribs, and sternum
- The appendicular skeleton consists of the bones of the limbs and the structures that connect them to the axial skeleton (shoulder and pelvic girdles)
- The axial skeleton provides stability and protection, while the appendicular skeleton enables locomotion and manipulation
Skull and facial bones
- The skull is composed of the cranium, which houses and protects the brain, and the facial bones, which support the structures of the face
- Key bones include the frontal, parietal, temporal, occipital, zygomatic (cheekbone), maxilla, and mandible
- The skull's proportions and features vary among individuals and are important for capturing likeness in portraiture
Vertebral column and ribs
- The vertebral column, or spine, consists of 33 vertebrae divided into five regions: , , , , and
- The 12 pairs of ribs attach to the thoracic vertebrae and protect the organs of the chest cavity
- The spine's natural curvatures (cervical lordosis, thoracic kyphosis, lumbar lordosis) and flexibility are important considerations in figure drawing
Pelvis and sacrum
- The pelvis is a basin-shaped structure formed by the hip bones (ilium, ischium, and pubis) and the sacrum
- It connects the vertebral column to the lower limbs and supports the weight of the upper body
- The pelvis differs in shape and proportions between males and females, affecting the overall appearance of the hips and waist in figure drawing
Joints and articulations
- Joints are the points of between bones, allowing for various degrees and types of movement
- Understanding joint structure and function is crucial for depicting natural, anatomically correct poses in figure drawing
- The type of joint determines the range and nature of movement possible between the connected bones
Types of joint movement
- Flexion: decreasing the angle between two bones (bending)
- Extension: increasing the angle between two bones (straightening)
- Abduction: moving a limb away from the body's midline
- Adduction: moving a limb toward the body's midline
- Rotation: turning a bone around its longitudinal axis
Ball-and-socket vs hinge joints
- Ball-and-socket joints, such as the shoulder and hip, allow for the greatest range of motion in multiple planes
- Hinge joints, like the elbow and knee, permit movement primarily in one plane, similar to a door hinge
- The structure of these joints affects the types of poses and movements that can be realistically depicted in figure drawing
Pivot and gliding joints
- Pivot joints, such as the atlantoaxial joint between the first two cervical vertebrae, enable rotation around a central axis
- Gliding (plane) joints, found between the carpal and tarsal bones of the wrists and ankles, allow for limited sliding movements
- These joint types contribute to the subtle articulations and gestures of the hands, feet, and head
Ligaments and tendons
- Ligaments are tough, elastic bands of connective tissue that bind bones together at joints, providing stability and preventing excessive movement
- Tendons are dense, fibrous cords of tissue that attach muscles to bones, transmitting the force generated by muscle contraction
- While not typically visible on the surface, understanding the role of ligaments and tendons can inform the depiction of anatomical limitations and the interplay between bones and muscles
Anatomical landmarks
- Anatomical landmarks are specific, identifiable features on the surface of the body that correspond to underlying bony structures
- These landmarks serve as reference points for understanding the location and orientation of bones and muscles beneath the skin
- Identifying and emphasizing key landmarks can help to create a sense of structure and volume in figure drawing
Bony protrusions and depressions
- Bony protrusions, such as the elbow () and knee (), create visible landmarks on the body's surface
- Depressions, like the (jugular notch) and the , indicate the presence of underlying bony structures
- Observing and accurately depicting these protrusions and depressions can add a sense of realism and anatomical accuracy to figure drawings
Spine of the scapula
- The spine of the is a prominent ridge running across the posterior surface of the shoulder blade
- It serves as an attachment point for muscles of the shoulder and upper back, such as the trapezius and deltoid
- The spine of the scapula is visible as a diagonal line on the upper back, particularly when the arm is raised or the shoulder blade is rotated
Greater trochanter of femur
- The is a large, bony projection at the top of the (thigh bone), located on the outer aspect of the hip
- It serves as an attachment point for several muscles of the hip and buttocks, including the gluteus medius and minimus
- The greater trochanter is palpable as a prominent bump on the side of the hip and influences the surface contours of the upper thigh
Acromion process of scapula
- The is a bony projection that forms the highest point of the shoulder blade
- It articulates with the clavicle (collarbone) to form the acromioclavicular joint and provides attachment for the deltoid muscle
- The acromion is visible as a bony landmark on the top of the shoulder and influences the shape and contours of the deltoid muscle
Skeletal proportions
- Skeletal proportions refer to the relative sizes and ratios of different parts of the skeleton
- Understanding common proportional relationships and variations among individuals is essential for creating anatomically sound and visually balanced figure drawings
- Artists often use the head as a unit of measurement to establish the overall proportions of the figure
Adult vs child proportions
- Children have proportionally larger heads and shorter limbs compared to adults, giving them a distinctive appearance
- As children grow, their limbs lengthen and their body proportions gradually approach those of adults
- Depicting the proportional differences between adults and children is important for capturing the essence of different ages in figure drawing
Male vs female differences
- Male and female skeletons exhibit several proportional differences due to the influence of hormones and evolutionary adaptations
- Males tend to have broader shoulders, narrower hips, and more pronounced bony landmarks, while females typically have wider hips, narrower waists, and smoother, more rounded contours
- Understanding these differences is crucial for accurately portraying male and female figures in art
Variations among individuals
- Skeletal proportions can vary significantly among individuals based on factors such as genetics, age, and overall body type
- Some people may have longer or shorter limbs, wider or narrower hips, or more or less pronounced bony landmarks compared to the average
- Observing and incorporating these individual variations can help to create unique, believable characters in figure drawing
Ideal proportions in art
- Throughout history, artists have sought to establish for the human figure based on aesthetic principles and mathematical ratios
- The ancient Greek sculptor Polykleitos proposed a system of ideal proportions based on the ratio of 1:7, with the head serving as the basic unit of measurement
- While these idealized proportions can serve as a useful starting point, it is important for artists to understand and depict the natural variations that exist among individuals
Skeletal mechanics
- Skeletal mechanics refers to the ways in which bones, joints, and muscles work together to produce movement and maintain posture
- Understanding the basic principles of skeletal mechanics can help artists to create figure drawings that appear structurally sound and biomechanically plausible
- By considering the forces acting on the skeleton and the limitations imposed by joint structure, artists can depict poses and movements that feel natural and dynamic
Levers and fulcrums
- Many bones in the body act as levers, with joints serving as fulcrums (pivots) and muscles providing the force to generate movement
- The three classes of levers (first, second, and third) are determined by the relative positions of the fulcrum, load, and effort
- Understanding how bones and joints function as levers can inform the depiction of weight distribution, balance, and force in figure drawing
Origins and insertions of muscles
- Muscles attach to bones at specific points called origins and insertions
- The origin is the attachment point that remains relatively fixed during muscle contraction, while the insertion is the attachment point that moves
- Knowing the origins and insertions of major muscle groups can help artists to understand and accurately depict the pull and stretch of muscles in various poses
Range of motion limitations
- Each joint in the body has a specific range of motion determined by its structure and the arrangement of surrounding bones, muscles, and connective tissues
- For example, the knee joint primarily allows for flexion and extension, while the shoulder joint permits a much wider range of movements
- Depicting poses that respect the natural range of motion of joints can help to create figure drawings that appear anatomically correct and believable
Posture and alignment
- Posture refers to the position and orientation of the body in space, while alignment describes the relationship between different body parts
- Good posture and alignment involve maintaining a balance between the forces of gravity and the muscular effort required to support the body
- Understanding the principles of posture and alignment can help artists to create figure drawings that convey a sense of stability, balance, and dynamism
Drawing the skeleton
- Drawing the skeleton is a fundamental skill for figure artists, as it provides a foundation for understanding the structure and proportions of the human body
- By developing a strong grasp of skeletal anatomy, artists can create figure drawings that are both anatomically accurate and visually compelling
- Practicing skeletal drawing regularly can help artists to internalize the underlying structure of the body and improve their ability to depict the figure from various angles and in different poses
Gesture and basic shapes
- involves capturing the essence of a pose or movement with quick, expressive lines
- When drawing the skeleton, using simple shapes like circles, ovals, and rectangles can help to establish the basic proportions and relationships between body parts
- Combining gesture and basic shapes can create a dynamic, structured foundation for a more detailed skeletal drawing
Foreshortening and perspective
- Foreshortening refers to the visual compression of an object or body part when it is oriented towards or away from the viewer
- Understanding the principles of perspective, such as convergence and diminution, is essential for accurately depicting foreshortened limbs and torsos in skeletal drawings
- Practicing foreshortening and perspective in skeletal studies can improve an artist's ability to create convincing, spatially correct figure drawings
Landmarks and bony contours
- Emphasizing key anatomical landmarks and bony contours can help to create a sense of structure and volume in skeletal drawings
- Paying attention to the shapes and protrusions of bones, such as the curve of the ribs or the angle of the pelvis, can add a level of realism and detail to the drawing
- Highlighting these landmarks and contours can also serve as a guide for the placement of overlying muscles and surface features in later stages of figure drawing
Skeletal anatomy for figure drawing
- A strong understanding of skeletal anatomy is essential for creating figure drawings that are both anatomically accurate and visually appealing
- By studying the bones and joints of the body in detail, artists can develop a deeper understanding of how the underlying structure influences the surface forms and movements of the figure
- Incorporating skeletal anatomy into figure drawing practice can help artists to create poses that feel natural, dynamic, and true to the mechanics of the human body
Key Terms to Review (32)
Acromion process: The acromion process is a bony projection on the scapula (shoulder blade) that forms the highest point of the shoulder. It plays a crucial role in connecting the arm to the body and serves as an important site for muscle attachment, particularly for the deltoid and trapezius muscles, which are essential for shoulder movement and stability.
Andreas Vesalius: Andreas Vesalius was a 16th-century anatomist and physician who is often referred to as the father of modern anatomy. He challenged long-held beliefs about human anatomy by conducting detailed dissections and producing accurate illustrations, which laid the groundwork for future advancements in medicine and art.
Articulation: Articulation refers to the way in which different parts of a skeletal structure connect and move together, allowing for a range of motion and flexibility. It plays a crucial role in how figures are represented and how they convey movement and stability. The arrangement and interaction of joints within a skeletal structure directly affect the overall form and function of the figure being depicted.
Ball-and-socket joint: A ball-and-socket joint is a type of synovial joint that allows for a wide range of movement in multiple directions, characterized by a spherical head fitting into a cup-like socket. This joint structure enables rotational movement as well as flexion, extension, abduction, and adduction. The most notable examples in the human body are the shoulder and hip joints, which play crucial roles in overall mobility and stability.
Bone remodeling: Bone remodeling is the ongoing process by which old bone tissue is replaced by new bone tissue, ensuring the skeleton remains strong and healthy. This dynamic process involves the coordinated action of osteoblasts, which build new bone, and osteoclasts, which break down old bone, allowing for the maintenance of bone density and structural integrity throughout life.
Cervical: Cervical refers to the region of the neck in humans and other vertebrates, specifically associated with the first seven vertebrae in the spine, known as the cervical vertebrae. These vertebrae are crucial for supporting the skull, facilitating head movement, and protecting the spinal cord. The cervical region is integral to the skeletal structure as it connects the head to the rest of the body, allowing for mobility and stability.
Coccygeal: Coccygeal refers to anything related to the coccyx, which is the small, triangular bone at the base of the vertebral column in humans, commonly known as the tailbone. This bone consists of three to five fused vertebrae and serves as an attachment point for various muscles, tendons, and ligaments, playing a key role in supporting pelvic organs and maintaining posture while sitting.
Compact Bone: Compact bone is a dense and hard form of bone tissue that provides strength and support to the skeletal structure. It is composed of tightly packed osteons or Haversian systems, which are the functional units that facilitate the exchange of nutrients and waste, as well as support the overall architecture of the bone. This type of bone primarily forms the outer layer of bones, protecting the inner spongy bone and playing a critical role in maintaining the structural integrity of the skeleton.
Distal: Distal refers to a position that is further away from the center of the body or from a point of attachment. In skeletal structure, understanding the term distal is essential for identifying the orientation and relative positions of bones and joints, particularly when comparing limbs to the torso or other limbs. It helps to differentiate between various parts of the skeleton, especially in terms of movements and anatomical relationships.
Femur: The femur, also known as the thigh bone, is the longest and strongest bone in the human body, connecting the hip to the knee. This bone plays a critical role in supporting body weight and facilitating movement, while also serving as an attachment point for several muscles involved in locomotion and stability.
Flat bones: Flat bones are thin, flattened, and usually curved bones that provide protection to internal organs and serve as a surface for muscle attachment. They are an essential component of the skeletal system, contributing to the overall structure and function of the body. These bones include major parts like the skull, ribs, and sternum, which not only protect vital organs but also support the body’s shape and facilitate movement.
Gesture Drawing: Gesture drawing is a technique used to capture the essence and movement of a subject quickly, focusing on the overall form rather than intricate details. This approach emphasizes fluidity and spontaneity, allowing artists to convey the energy and dynamics of the subject, whether it’s a figure in motion or an arrangement of objects. It's an essential skill for understanding how forms interact within space, laying the groundwork for more detailed studies.
Greater trochanter: The greater trochanter is a large, bony prominence located on the femur, which is the thigh bone. This structure serves as an important site for muscle attachment, playing a key role in the movement and stability of the hip joint. It is situated on the lateral side of the femur, providing leverage for muscles that facilitate hip rotation and abduction.
Head proportions: Head proportions refer to the established measurements and ratios that define the structure and dimensions of the human head. Understanding these proportions is crucial for accurately depicting the human face in drawing and other forms of art, as they help artists achieve a sense of realism and balance in their work.
Hematopoiesis: Hematopoiesis is the biological process by which all blood cells are formed, originating from hematopoietic stem cells in the bone marrow. This complex process involves differentiation and maturation of stem cells into various types of blood cells, including red blood cells, white blood cells, and platelets, playing a crucial role in maintaining the body's overall health and immune function.
Hinge joint: A hinge joint is a type of synovial joint that allows movement predominantly in one plane, enabling flexion and extension. This structure is essential for movements in various parts of the body, such as the elbows and knees, where it facilitates the bending and straightening of limbs.
Ideal proportions: Ideal proportions refer to the concept of achieving a balanced and aesthetically pleasing representation of the human body, often based on classical standards and measurements. These proportions are typically used as a guideline in drawing and sculpture to create figures that appear harmonious and realistic, helping artists capture the essence of human anatomy while emphasizing beauty and symmetry.
Iliac crest: The iliac crest is the superior border of the ilium, which is the largest bone of the pelvis. This bony ridge can be easily felt on the sides of the lower back and plays a crucial role in providing attachment points for various muscles and ligaments. Its prominence is essential in anatomical studies as it serves as a landmark for various medical procedures and assessments.
Leonardo da Vinci: Leonardo da Vinci was a quintessential Renaissance artist and polymath, renowned for his contributions to art, science, and engineering. His exploration of human anatomy, light, and perspective laid foundational principles for drawing and painting that are still relevant today.
Long bones: Long bones are a type of bone characterized by their elongated shape and are primarily found in the limbs. They are crucial for facilitating movement and supporting the weight of the body, as they act as levers during physical activities. Each long bone consists of a diaphysis, or shaft, which is surrounded by a layer of compact bone, and two ends called epiphyses that are typically made up of spongy bone.
Lumbar: Lumbar refers to the lower region of the spine, specifically comprising the five vertebrae (L1 to L5) that are located between the thoracic vertebrae and the sacrum. This area is crucial for providing support to the upper body, allowing for flexibility and movement, and protecting the spinal cord while bearing significant weight during various activities.
Male vs Female Differences: Male vs female differences refer to the distinct anatomical and physiological characteristics that differentiate male and female skeletal structures. These differences are crucial for understanding human anatomy, as they influence overall body shape, weight distribution, and movement dynamics, impacting fields like art, medicine, and anthropology.
Olecranon process: The olecranon process is a prominent bony projection located at the upper end of the ulna, forming the point of the elbow. It serves as an attachment site for muscles and ligaments and plays a crucial role in the movement of the arm, particularly in flexion and extension. This structure helps to stabilize the elbow joint and allows for the functional range of motion needed for various activities involving the arm.
Ossification: Ossification is the process of bone formation in which cartilage or other connective tissues are replaced by bone tissue. This vital process occurs during the development of the skeletal system and continues through childhood into early adulthood, playing a crucial role in the growth and maintenance of bones, as well as in healing after fractures.
Patella: The patella, commonly known as the kneecap, is a small, flat, triangular bone located at the front of the knee joint. It serves to protect the knee and improves the leverage of the thigh muscles when extending the leg. The patella plays a crucial role in the function of the knee by facilitating movement and providing stability.
Proportional Measurement: Proportional measurement refers to the technique of using ratios and comparisons to determine the sizes and relationships of various parts within a drawing or structure. This method is essential for accurately capturing the essence of form, scale, and space, allowing artists to create a coherent representation that reflects real-life proportions. Understanding proportional measurement is crucial when depicting complex structures like the human skeleton, as it helps in achieving a realistic portrayal of anatomy.
Proximal: Proximal refers to a position that is closer to the center of the body or the point of attachment. In the context of anatomy, this term is often used to describe the location of bones and joints relative to each other, especially in the limbs. Understanding the concept of proximal is essential for identifying relationships between different parts of the skeletal structure and for understanding how movement occurs within the body.
Sacral: Sacral refers to the sacrum, a large, triangular bone at the base of the spine, formed by the fusion of five vertebrae. This bone plays a crucial role in the skeletal structure, connecting the spine to the pelvis and providing stability for the upper body while supporting weight during standing and movement.
Scapula: The scapula, commonly known as the shoulder blade, is a flat, triangular bone located on the posterior side of the ribcage. It connects the humerus (upper arm bone) with the clavicle (collarbone) and plays a crucial role in shoulder mobility and stability, allowing for a wide range of arm movements.
Spongy bone: Spongy bone, also known as cancellous bone, is a type of bone tissue characterized by a porous, lattice-like structure that provides strength and support while minimizing weight. This unique architecture allows spongy bone to efficiently absorb shock and distribute stress, making it crucial in areas of high impact within the skeletal system.
Suprasternal notch: The suprasternal notch is a prominent anatomical feature located at the superior aspect of the sternum, specifically at the junction where the clavicles meet the manubrium. This notch serves as an important landmark for various anatomical structures and helps in identifying the underlying anatomy in medical examinations and art.
Thoracic: The term thoracic refers to the region of the body located between the neck and the abdomen, specifically relating to the thorax or chest area. This area contains vital structures such as the heart, lungs, and major blood vessels, all encased within the rib cage, which provides protection and support. The thoracic region plays a crucial role in respiration and circulation, making it essential for overall body function.
