Linear perspective is a system for creating the illusion of three-dimensional depth on a flat drawing surface. It relies on the observation that objects appear smaller as they get farther away, and that parallel lines seem to converge toward a shared point in the distance. Once you understand how this system works, you can draw everything from a simple hallway to a complex cityscape with convincing spatial depth.
Types of Linear Perspective
Each type of linear perspective uses a different number of vanishing points, and the one you choose depends on the angle from which the viewer sees the scene.
One-point perspective
One-point perspective uses a single vanishing point placed on the horizon line. All lines moving away from the viewer converge toward that one point, while horizontal and vertical lines stay parallel to the edges of the paper. This is the go-to choice when you're drawing something viewed straight-on, like looking down a long hallway, a road stretching into the distance, or the interior of a room.
Two-point perspective
Two-point perspective uses two vanishing points, both sitting on the horizon line, usually near the left and right edges of your drawing. You'll use this when an object is turned at an angle to the viewer, so two sets of receding edges are visible. Think of standing at the corner of a building: one face angles off to the left vanishing point, the other angles off to the right. This is the most common perspective setup for drawing architecture and street scenes.
Three-point perspective
Three-point perspective adds a third vanishing point above or below the horizon line. The two horizon-line vanishing points handle the horizontal recession (just like two-point), and the third handles vertical convergence. Place the third point above the horizon for a "worm's eye view" (looking up at a skyscraper), or below the horizon for a "bird's eye view" (looking down from a rooftop). This creates dramatic, dynamic compositions.
Zero-point (parallel) perspective
Zero-point perspective, also called parallel perspective, doesn't use vanishing points at all. Parallel lines stay parallel and never converge. The result looks flat and diagrammatic, which is why it's used for architectural plans, elevations, and technical drawings rather than for creating a sense of depth.
Elements of Linear Perspective
Four core elements make up every perspective drawing. Getting comfortable with these is the foundation for everything else.
Horizon line
The horizon line represents your eye level as the viewer. It's where the sky would meet the ground if you could see to infinity. A high horizon line makes it feel like you're looking down on the scene; a low horizon line makes it feel like you're looking up.
Vanishing points
Vanishing points are specific spots on the horizon line (or off it, in three-point perspective) where parallel lines appear to meet. The number of vanishing points you use determines which type of perspective you're working in.
Orthogonal lines
Orthogonal lines are the lines that recede into the picture, moving away from the viewer toward a vanishing point. They represent edges of objects that are perpendicular to the picture plane, like the side walls of a hallway in one-point perspective.
Transversal lines
Transversal lines run parallel to the picture plane and perpendicular to the orthogonals. They represent horizontal features like the top and bottom edges of a window, the front edge of a table, or the rungs of a ladder. These lines do not converge toward any vanishing point.

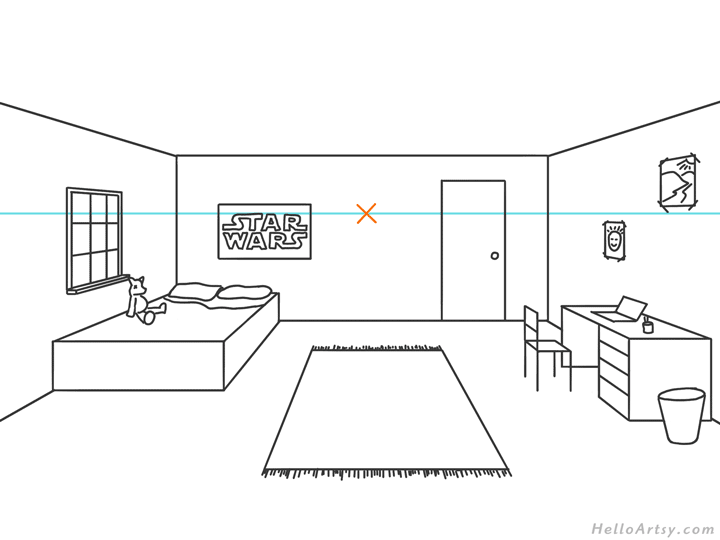

Constructing One-Point Perspective
Here's how to build a basic one-point perspective drawing step by step:
- Draw the horizon line. Place a horizontal line across your paper at the height that represents the viewer's eye level. A centered horizon gives a neutral viewpoint.
- Mark the vanishing point. Place a single point on the horizon line. Centering it creates a symmetrical composition, but you can shift it left or right for a more dynamic view.
- Draw orthogonal lines. From the corners and edges of your foreground shapes, draw straight lines back to the vanishing point. These define the receding surfaces of your objects.
- Add transversal lines. Draw horizontal lines connecting the orthogonals to define the back edges, tops, and bottoms of objects. Keep these parallel to the horizon line.
- Apply foreshortening. Objects shrink as they approach the vanishing point. A square table top, for example, will look like a trapezoid because its far edge is shorter than its near edge. Use your orthogonals and transversals to keep proportions consistent.
Constructing Two-Point Perspective
- Draw the horizon line. Same as before: a horizontal line at the viewer's eye level.
- Place two vanishing points. Set them on the horizon line, spread apart toward the edges of your paper. Placing them too close together will make objects look unnaturally wide-angled and distorted.
- Draw a vertical leading edge. Start with a vertical line where the nearest corner of your object sits. This is the edge closest to the viewer.
- Draw orthogonal lines to both vanishing points. From the top and bottom of that vertical edge, draw lines receding to the left vanishing point and to the right vanishing point. These define the two visible faces of the object.
- Add vertical and transversal lines. Close off the shapes with vertical lines for far edges and horizontal connections where needed. Each set of parallel receding lines should aim at its own vanishing point.
- Check foreshortening. Both visible faces of the object will foreshorten. The face angled more sharply away from the viewer will appear narrower.
Constructing Three-Point Perspective
- Draw the horizon line and place two vanishing points on it, just as in two-point perspective.
- Add a third vanishing point above the horizon (for a looking-up view) or below it (for a looking-down view). Place it far enough away to avoid extreme distortion.
- Draw orthogonal lines to all three vanishing points. Horizontal edges converge toward the two horizon vanishing points. Vertical edges converge toward the third point instead of staying perfectly vertical.
- Add connecting lines to close off shapes, keeping each set of parallel edges aimed at its respective vanishing point.
- Expect strong foreshortening. Tall structures will visibly taper as they rise (or descend). The vertical vanishing point is what creates that dramatic convergence you see in drawings of skyscrapers.
Common Mistakes in Linear Perspective
Knowing what goes wrong most often will save you a lot of erasing.
- Vanishing points placed off the horizon line (when they shouldn't be). In one- and two-point perspective, vanishing points must sit on the horizon line. If they drift above or below, the whole drawing will look tilted or warped.
- Orthogonal lines that miss the vanishing point. Every receding line in a given set must aim at the same vanishing point. Even small inconsistencies make a drawing feel "off" without the viewer knowing why. Use a straightedge and check frequently.
- Incorrect foreshortening. If objects don't shrink proportionally as they recede, they'll look stretched or compressed. Your orthogonal and transversal framework is there to prevent this, so trust the construction lines.
- Transversal lines that aren't parallel to the picture plane. If a transversal tilts when it should be horizontal, it breaks the spatial logic of the drawing and creates visual confusion.
Applications of Linear Perspective
Architectural structures
Linear perspective is essential for drawing buildings with accurate proportions. One-point works well for frontal views of a facade; two-point is better when you're showing a building from its corner.
Interior spaces
One-point perspective is the classic choice for interiors. Furniture, doorways, and floor tiles all recede toward a single vanishing point, making it straightforward to place objects at convincing depths within a room.
Exterior scenes
Outdoor scenes often call for two-point or three-point perspective. Combining linear perspective with atmospheric perspective (where distant objects become lighter, less detailed, and cooler in color) strengthens the sense of deep space.
Combining Perspective with Other Techniques
Atmospheric perspective
Atmospheric perspective simulates how the atmosphere affects distant objects. Colors fade, contrast drops, and details blur with distance. Layering this on top of your linear perspective construction makes depth far more convincing.
Shading
Adding light and shadow to objects drawn in perspective reinforces their three-dimensional form. Shading turns flat geometric shapes into solid-looking volumes.
Color theory
Warm colors (reds, oranges, yellows) tend to appear closer, while cool colors (blues, greens, purples) tend to recede. Using this principle alongside linear perspective adds another layer of spatial depth to your drawings.
Historical Development of Linear Perspective
Renaissance origins
The formal rules of linear perspective were developed during the Italian Renaissance. Filippo Brunelleschi demonstrated the system around 1415 through a famous mirror experiment in Florence. Leon Battista Alberti then wrote down the theory in his 1435 treatise De Pictura. Early masterworks that showcase these principles include Masaccio's The Holy Trinity and Raphael's The School of Athens.
Influence on Western art
Once perspective was codified, it became a core skill for Western artists for centuries. It shaped movements from the Baroque period through Neoclassicism and Realism, and it remains a foundational drawing skill today.
Contemporary Uses of Linear Perspective
Digital art
Most digital painting and illustration software includes built-in perspective grids. The underlying principles are the same ones Brunelleschi worked out; the tools just make construction faster.
Graphic design
Designers use perspective to add depth to layouts, packaging, and advertising. Even subtle perspective cues can create visual hierarchy and draw the viewer's eye into a composition.
Film and animation
Storyboard artists, set designers, and 3D animators all rely on linear perspective to build believable environments. Whether it's a hand-drawn storyboard or a CGI cityscape, the vanishing points and orthogonals are doing the same work they do on paper.
