Optical instruments enhance our visual capabilities, allowing us to explore the microscopic and cosmic realms. From the human eye to telescopes, these tools manipulate light to magnify, focus, and resolve images beyond our natural abilities.
Understanding optical instruments involves key concepts like magnification, resolution, and image formation. These principles apply across various devices, from simple magnifiers to complex microscopes and telescopes, each designed to overcome specific visual limitations.
Human Eye Function and Defects
Optical System and Image Formation
Top images from around the web for Optical System and Image Formation
How We See | Introduction to Psychology View original
Is this image relevant?
11.1 Physics of the Eye and the Lens Equation – Douglas College Physics 1207 View original
Is this image relevant?
How We See | Introduction to Psychology View original
Is this image relevant?
11.1 Physics of the Eye and the Lens Equation – Douglas College Physics 1207 View original
Is this image relevant?
1 of 2
Top images from around the web for Optical System and Image Formation
How We See | Introduction to Psychology View original
Is this image relevant?
11.1 Physics of the Eye and the Lens Equation – Douglas College Physics 1207 View original
Is this image relevant?
How We See | Introduction to Psychology View original
Is this image relevant?
11.1 Physics of the Eye and the Lens Equation – Douglas College Physics 1207 View original
Is this image relevant?
1 of 2

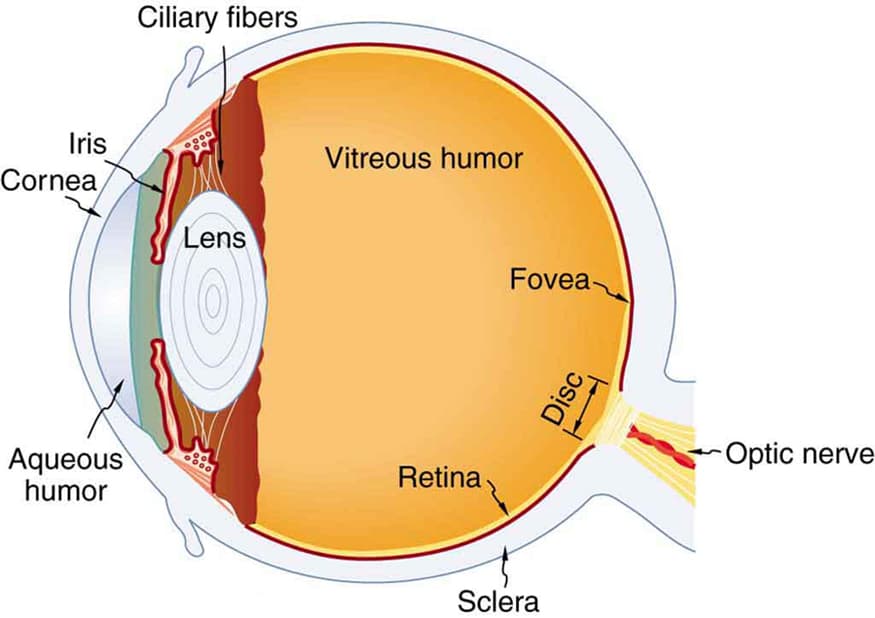

- Human eye functions as a complex optical system
- Cornea and lens act as refractive elements to focus light onto the retina
- Accommodation process allows lens to change shape for focusing on objects at different distances
- Controlled by ciliary muscles
- Retina contains photoreceptor cells that convert light into electrical signals
- Rods responsible for low-light vision
- Cones responsible for color vision and detailed perception
- Brain processes electrical signals from retina to form images
- Visual cortex interprets signals and constructs visual perception
Common Eye Defects and Corrections
- Myopia (nearsightedness) results from elongated eyeball or overly curved cornea
- Distant objects appear blurry
- Corrected with concave lenses
- Hyperopia (farsightedness) caused by shortened eyeball or flattened cornea
- Near objects appear blurry
- Corrected with convex lenses
- Astigmatism stems from irregularly shaped cornea or lens
- Objects appear distorted at all distances
- Corrected with cylindrical lenses
- Presbyopia develops with age as lens loses flexibility
- Difficulty focusing on near objects
- Corrected with bifocal or progressive lenses
- Corrective measures compensate for refractive errors
- Glasses alter light path before entering eye
- Contact lenses placed directly on cornea
- Laser eye surgery reshapes cornea (LASIK)
Simple and Compound Microscopes
Simple Magnifiers
- Magnifying glass consists of a convex lens
- Produces enlarged virtual image when object placed closer than focal length
- Angular magnification determined by ratio of image angle to object angle at unaided eye
- Where f is the focal length of the lens
- Applications include reading small print (jeweler's loupe) and examining specimens (hand lens)
Compound Microscopes
- Utilize two or more lenses in series for higher magnification
- Objective lens forms real, inverted image
- Eyepiece magnifies objective's image to produce final virtual image
- Total magnification calculated as product of objective and eyepiece magnifications
- Resolving power limited by light wavelength and numerical aperture of objective lens
- Described by Rayleigh criterion:
- Where λ is wavelength and D is diameter of aperture
- Advanced techniques improve resolution (phase contrast, fluorescence microscopy)
Telescope Construction and Operation
Refracting and Reflecting Telescopes
- Refracting telescopes use lenses as primary optical elements
- Objective lens gathers light and forms real image
- Eyepiece magnifies objective's image
- Reflecting telescopes use mirrors instead of lenses
- Primary mirror collects light and forms real image
- Secondary mirror directs light to eyepiece or detector
- Angular magnification given by ratio of objective to eyepiece focal lengths
- Negative sign indicates inverted image
Advanced Telescope Designs
- Catadioptric telescopes combine lenses and mirrors
- Reduce optical aberrations (Schmidt-Cassegrain, Maksutov-Cassegrain)
- Achieve compact designs for portability
- Large astronomical telescopes employ adaptive optics
- Correct for atmospheric distortions
- Use deformable mirrors controlled by computers
- Improve image quality for ground-based observations
- Radio telescopes detect long-wavelength radiation
- Use large dish antennas or arrays of smaller antennas
- Enable observations of cosmic phenomena invisible to optical telescopes
Magnification and Resolution of Optical Instruments
Magnification Calculations
- Simple magnifier:
- Compound microscope:
- Telescope:
- Angular magnification:
- Trade-offs between magnification and field of view
- Higher magnification reduces area visible at once
Resolution and Optical Limits
- Resolving power determined by Rayleigh criterion
- Minimum resolvable angular separation
- Numerical aperture (NA) characterizes light acceptance range
- Where n is refractive index and θ is half-angle of maximum cone of light
- F-number (f/#) relates focal length to entrance pupil diameter
- Affects light-gathering ability and depth of field
- Diffraction limits ultimate resolution
- Diffraction-limited spot size:
- Considerations for instrument design and selection
- Balance between magnification, field of view, and resolution
- Application-specific requirements (astronomy, microscopy, photography)
