11.3 Phonons and Lattice Vibrations

Phonons and Lattice Vibrations

Phonons are quantized vibrations in crystal lattices that explain how materials behave at the atomic level. They're central to understanding thermal and electrical properties in solids, including heat capacity, thermal conductivity, and even superconductivity.

This section covers how phonons arise from lattice vibrations, the distinction between acoustic and optical modes, how dispersion relations describe phonon behavior, and the role phonons play in determining material properties.

Phonons and Lattice Vibrations

Fundamental Concepts of Phonons

A phonon is a quantized collective excitation of atoms vibrating in a crystal lattice. The idea is analogous to photons in electromagnetic radiation: just as light energy comes in discrete packets (photons), vibrational energy in a lattice comes in discrete packets called phonons.

Phonons carry both energy and crystal momentum through the lattice. Their behavior is described by a dispersion relation, which connects a phonon's frequency $\omega$ to its wavevector $\mathbf{k}$. This relationship encodes most of what you need to know about how vibrations propagate through a given material.

Why do phonons matter so much? They contribute directly to:

• Heat capacity and thermal conductivity of solids
• Thermal expansion (through anharmonic effects)
• Electrical conductivity, since electron-phonon interactions are a primary source of resistance in metals
• Superconductivity, where phonon-mediated electron pairing (Cooper pairs) is the foundation of BCS theory

Phonon Behavior in Crystal Structures

Phonons exhibit wave-like behavior in periodic crystal lattices. Their vibrations come in two polarization types:

• Longitudinal: atoms oscillate parallel to the direction of wave propagation
• Transverse: atoms oscillate perpendicular to the direction of wave propagation

The allowed vibrations, called normal modes, are determined by the crystal's symmetry and the strength of interatomic forces. Phonon wavelengths can't be shorter than twice the lattice spacing (this limit corresponds to the edge of the Brillouin zone). Typical phonon frequencies fall in the terahertz range.

At long wavelengths (small $\mathbf{k}$), phonons behave like classical sound waves in a continuous medium. As wavelengths shrink toward the lattice spacing, the discrete atomic structure becomes important and the behavior departs from the continuum picture.

Applications and Experimental Techniques

Several experimental techniques probe phonon behavior directly:

• Raman spectroscopy measures optical phonon frequencies by detecting inelastically scattered light
• Inelastic neutron scattering maps out full phonon dispersion relations, since neutrons have wavelengths and energies well-matched to phonons
• Ultrafast spectroscopy can generate and detect coherent phonons on femtosecond timescales

On the engineering side, phonons are increasingly being manipulated by design. Phononic crystals are artificial structures that create band gaps for phonons, blocking certain frequencies of vibration from propagating. This principle is used in acoustic metamaterials and in nanoscale thermal management, where controlling phonon transport is critical for thermoelectric devices and thermal barrier coatings. Phonon-based quantum information processing is also an active area of research.

Acoustic vs Optical Phonons

Characteristics of Acoustic Phonons

Acoustic phonons are the low-frequency modes where atoms in the unit cell vibrate roughly in phase with each other. They resemble sound waves, and in fact, the speed of sound in a solid is determined by the slope of the acoustic phonon dispersion near $\mathbf{k} = 0$.

Key features:

• The dispersion relation is linear near the Brillouin zone center: $\omega \approx v_s |\mathbf{k}|$, where $v_s$ is the speed of sound
• In 3D crystals, there are three acoustic branches: one longitudinal acoustic (LA) and two transverse acoustic (TA)
• Acoustic phonons are the dominant heat carriers in insulators and semiconductors
• They also participate in electron-phonon scattering, contributing to electrical resistivity in metals

Characteristics of Optical Phonons

Optical phonons are higher-frequency modes where adjacent atoms within the unit cell vibrate out of phase. The name "optical" comes from the fact that these modes can interact directly with light in polar materials (through infrared absorption and Raman scattering).

Key features:

• They have non-zero frequency at the zone center ($\mathbf{k} = 0$), unlike acoustic phonons which go to zero
• In polar crystals, optical modes split into longitudinal optical (LO) and transverse optical (TO) branches. The LO-TO splitting arises from long-range Coulomb interactions between ions
• Optical phonons couple strongly with electromagnetic radiation in polar materials, forming mixed modes called polaritons
• They contribute to the dielectric properties of materials

Comparison and Coexistence

Whether a crystal supports optical phonons depends on its unit cell. A monatomic lattice (one atom per unit cell) has only acoustic modes. Once you have two or more atoms per unit cell, optical branches appear. For a unit cell with $p$ atoms, you get $3$ acoustic branches and $3(p-1)$ optical branches.

Both types contribute to specific heat, but with different temperature dependencies. At low temperatures, acoustic phonons dominate because their low-energy states are excited first. Acoustic and optical phonons can also interact with each other through anharmonic processes (phonon-phonon scattering), which is the main mechanism limiting thermal conductivity at high temperatures.

At material interfaces, hybrid modes such as surface phonon polaritons can form, combining features of both phonon types with electromagnetic fields.

Phonon Dispersion Relations

Fundamentals of Phonon Dispersion

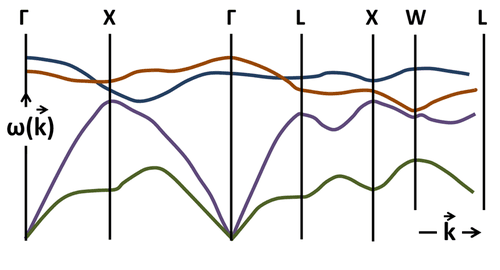

The phonon dispersion relation $\omega(\mathbf{k})$ is plotted in reciprocal space (k-space) and tells you the allowed frequencies for each wavevector. All unique phonon modes are contained within the first Brillouin zone, which is the Wigner-Seitz cell of the reciprocal lattice.

Two quantities you can extract directly from the dispersion curve:

• Phase velocity: $v_p = \omega / k$
• Group velocity: $v_g = d\omega / dk$, which gives the speed at which energy (or a wave packet) propagates

The group velocity is what matters for thermal transport. Flat regions in the dispersion curve mean low group velocity, which reduces thermal conductivity.

Dispersion in Different Crystal Structures

The simplest model is the 1D monatomic chain, where identical atoms of mass $m$ are connected by springs with force constant $\kappa$. The dispersion relation is:

$\omega(k) = 2\sqrt{\frac{\kappa}{m}} \left|\sin\left(\frac{ka}{2}\right)\right|$

where $a$ is the lattice constant. This gives a single acoustic branch with a sinusoidal shape, reaching a maximum frequency at the zone boundary.

For a 1D diatomic chain (two different masses $m_1$ and $m_2$), you get two branches:

• A lower acoustic branch (in-phase motion)
• An upper optical branch (out-of-phase motion)
• A frequency gap between them where no phonon modes exist

In 3D crystals, the picture gets more complex. Each branch splits into longitudinal and transverse polarizations, and the dispersion depends on the direction of $\mathbf{k}$ through the Brillouin zone. Common crystal structures each have characteristic features:

• FCC crystals (e.g., Al, Cu): relatively flat transverse acoustic branches along certain symmetry directions
• BCC crystals (e.g., Fe, W): distinct crossings in the longitudinal acoustic branch
• HCP structures (e.g., Zn, Ti): anisotropic dispersion reflecting the lower symmetry
• Complex structures (perovskites, layered materials): many branches with rich features including soft modes

Analysis and Interpretation

Several features of dispersion curves carry physical significance:

• The slope near the zone center for acoustic branches gives the speed of sound
• Flat regions correspond to high phonon density of states (Van Hove singularities), which strongly affect thermal properties
• Avoided crossings (anti-crossings) indicate mode coupling and hybridization between branches
• Soft modes, where a phonon frequency drops toward zero, signal an approaching structural phase transition. The lattice is becoming unstable against that particular distortion
• Negative slope regions (backward-propagating waves) can occur in certain structures

Modern dispersion relations are calculated using density functional perturbation theory (DFPT) and measured experimentally with inelastic neutron or X-ray scattering.

Phonons in Materials Properties

Thermal Properties and Phonons

Phonons are the primary heat carriers in electrical insulators and semiconductors (in metals, electrons also contribute significantly). Thermal conductivity depends on how far phonons travel before scattering, described by the phonon mean free path $\ell$.

The main scattering mechanisms that limit thermal conductivity are:

• Phonon-phonon scattering (Umklapp processes dominate at high temperatures)
• Phonon-defect scattering (point defects, grain boundaries, isotope disorder)
• Phonon-boundary scattering (important in nanostructures where dimensions approach $\ell$)

For heat capacity, two models capture the phonon contribution:

• The Debye model works well at low temperatures, predicting $C_V \propto T^3$ behavior. It treats phonons with a linear dispersion up to a cutoff frequency characterized by the Debye temperature $\Theta_D$
• At high temperatures ($T \gg \Theta_D$), heat capacity saturates at the classical Dulong-Petit limit of $3Nk_B$ per mole of atoms

Thermal expansion arises because real interatomic potentials are anharmonic: the potential well is not perfectly symmetric, so the average atomic position shifts outward as vibrational amplitude increases with temperature.

Electrical Properties and Phonon Interactions

Electron-phonon interactions are responsible for much of the temperature-dependent electrical behavior in solids:

• In metals, phonon scattering of electrons is the dominant source of electrical resistivity above the Debye temperature. The temperature dependence is described by the Bloch-Grüneisen formula, which predicts $\rho \propto T$ at high $T$ and $\rho \propto T^5$ at low $T$
• In BCS superconductivity, phonons mediate an attractive interaction between electrons, forming Cooper pairs. Below the critical temperature, these pairs condense into a superconducting state with zero resistance
• In semiconductors, phonons cause the band gap to shift with temperature (typically shrinking as $T$ increases)
• Polar optical phonon scattering is a major factor limiting electron mobility in polar semiconductors like GaAs at room temperature
• Phonon-assisted processes enable indirect optical transitions in materials like silicon, where a phonon supplies the momentum difference between the conduction band minimum and valence band maximum

Advanced Applications and Phenomena

Thermoelectric materials aim to convert heat into electricity efficiently. The figure of merit is:

$ZT = \frac{S^2 \sigma T}{\kappa}$

where $S$ is the Seebeck coefficient, $\sigma$ is electrical conductivity, and $\kappa$ is thermal conductivity. Phonon engineering reduces $\kappa$ (specifically the lattice contribution $\kappa_L$) while preserving $\sigma$, boosting $ZT$.

Other active areas involving phonon physics:

• Phonon confinement in nanostructures (quantum dots, nanowires) modifies the phonon density of states and dispersion, altering thermal and optical properties
• Phononic crystals create band gaps for acoustic waves, enabling control over sound and heat propagation at designed frequencies
• Surface acoustic wave (SAW) devices exploit phonon propagation along surfaces for signal processing in telecommunications
• Phonon-polaritons in polar materials (like hexagonal boron nitride) combine phonon and photon character, enabling sub-diffraction infrared optics and novel thermal management strategies
