3.4 Polarization of Electromagnetic Waves

Polarization of Electromagnetic Waves

Polarization describes the orientation of an electromagnetic wave's electric field as the wave travels through space. Understanding polarization is essential because it governs how light interacts with materials, surfaces, and optical devices. This topic covers the types of polarization, how to produce and detect polarized light, and the material phenomena that affect polarization state.

Fundamental Concepts of Polarization

In any electromagnetic wave, the electric field oscillates perpendicular to the direction the wave travels. Polarization refers to the specific direction (or pattern) of that oscillation. The magnetic field is always perpendicular to both the electric field and the propagation direction, so once you know the electric field's behavior, the magnetic field follows.

Most natural light sources (like the sun or a light bulb) are unpolarized, meaning the electric field oscillates in random directions that change rapidly over time. Polarized light, by contrast, has an electric field that oscillates in a well-defined, predictable pattern.

Polarization state can be modified using optical elements like polarizers and wave plates. This makes it useful across a wide range of applications: optical communications, imaging systems, materials characterization, 3D cinema, and glare reduction.

Significance and Applications

• Glare reduction: Polarizing filters selectively block reflected light, improving contrast in photography and LCD displays.
• 3D cinema: Each eye receives a differently polarized image through polarized glasses, creating the perception of depth.
• Fiber optic communications: Managing polarization reduces signal degradation from polarization mode dispersion.
• Stress analysis (photoelasticity): Stressed transparent materials change the polarization of transmitted light, revealing internal stress patterns without damaging the sample.
• Polarimetry: Measuring changes in polarization state reveals information about molecular structures and material properties.

Polarization Types: Linear vs. Circular vs. Elliptical

The type of polarization depends on the relative amplitude and phase of two orthogonal components of the electric field. Every polarization state falls into one of three categories.

Linear Polarization

The electric field oscillates back and forth along a single fixed direction (a single plane) as the wave propagates. This is the simplest case.

You can produce linearly polarized light by passing unpolarized light through a linear polarizer, such as a wire-grid polarizer or a dichroic film (like a Polaroid sheet). The polarizer transmits only the component of the electric field aligned with its transmission axis and absorbs the rest.

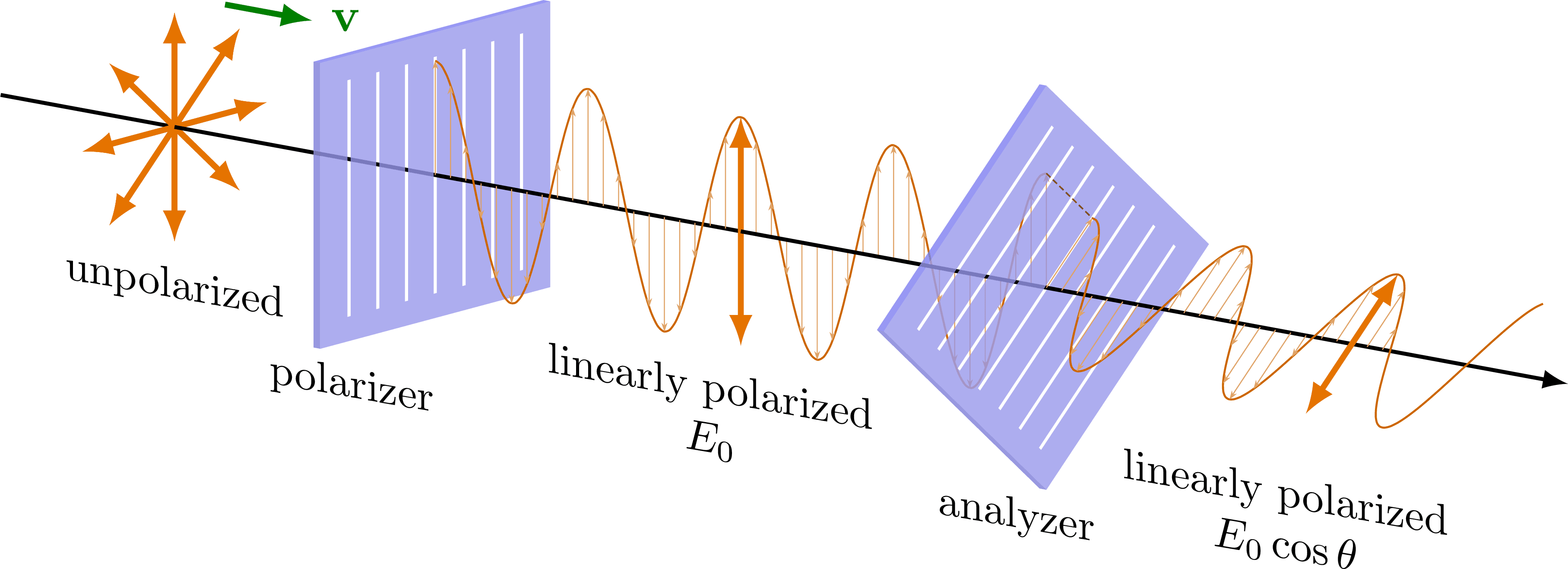

When linearly polarized light passes through a second polarizer (called an analyzer), the transmitted intensity follows Malus's Law:

$I = I_0 \cos^2 \theta$

• $I_0$ is the intensity of the incident polarized light.
• $\theta$ is the angle between the light's polarization direction and the analyzer's transmission axis.

If the two polarizers are aligned ($\theta = 0°$), all the light gets through. If they're crossed ($\theta = 90°$), no light gets through.

Circular and Elliptical Polarization

Circular polarization occurs when two equal-amplitude, orthogonal electric field components are 90° out of phase. The tip of the electric field vector traces out a circle as the wave propagates.

• Right-handed circular polarization (RHCP): The electric field rotates clockwise when you look along the direction the wave is traveling.
• Left-handed circular polarization (LHCP): The electric field rotates counterclockwise from the same viewpoint.

Elliptical polarization is the most general case. The electric field traces an ellipse. This happens when the two orthogonal components differ in amplitude, or their phase difference is something other than 0° or 90°. Linear and circular polarization are really just special cases of elliptical polarization.

Polarization states can be represented mathematically using Jones vectors (for fully polarized light) or Stokes parameters (which can also describe partially polarized and unpolarized light).

Producing and Detecting Polarized Waves

Polarizers and Wave Plates

Polarizers transmit light with one specific polarization and block the orthogonal polarization. A wire-grid polarizer, for example, absorbs the electric field component parallel to its wires and transmits the perpendicular component.

Wave plates (also called retarders) don't block light. Instead, they shift the phase between the two orthogonal components of the electric field, changing the polarization state:

• A quarter-wave plate introduces a 90° phase shift. It converts linearly polarized light into circularly polarized light (and vice versa), provided the input polarization is oriented at 45° to the plate's axes.
• A half-wave plate introduces a 180° phase shift. It rotates the plane of linearly polarized light by twice the angle between the input polarization and the plate's fast axis.

Wave plates are made from birefringent materials like calcite or quartz. These materials have different refractive indices for different polarization directions, so one component travels faster than the other, creating the phase shift.

Detection and Measurement

To detect polarization, you place an analyzer (a second polarizer) in the beam path and rotate it. The variation in transmitted intensity tells you the polarization state.

For linearly polarized light, the transmitted intensity through an analyzer follows Malus's Law:

$I = I_0 \cos^2 \theta$

More complete characterization uses Stokes parameters, a set of four values ($S_0, S_1, S_2, S_3$) determined from intensity measurements at different analyzer orientations. Stokes parameters can describe any polarization state, including partially polarized light.

Polarimetry refers to the broader set of techniques that measure how a sample changes the polarization of light passing through it. This is widely used in chemistry, biology, and materials science.

Electromagnetic Waves and Polarizing Materials

Reflection and Refraction Effects

When light hits an interface between two materials, reflection and refraction can change its polarization state. At most angles, reflected light becomes partially polarized.

At one special angle called Brewster's angle, the reflected light is completely linearly polarized (with the electric field parallel to the surface). Brewster's angle is given by:

$\tan \theta_B = \frac{n_2}{n_1}$

• $\theta_B$ is Brewster's angle.
• $n_1$ is the refractive index of the medium the light is coming from.
• $n_2$ is the refractive index of the medium the light is entering.

At Brewster's angle, the reflected and refracted rays are perpendicular to each other. This is the principle behind polarizing sunglasses: glare from horizontal surfaces (roads, water) is partially polarized horizontally, so a vertical polarizer cuts it out.

Total internal reflection can also alter polarization state, introducing phase shifts between the two polarization components. This effect is exploited in certain prism-based polarizers and in optical fiber design.

Material-Specific Polarization Phenomena

Several material properties interact with polarization in distinct ways:

Birefringence occurs in anisotropic crystals (like calcite) that have different refractive indices along different crystal axes. An incident beam splits into two orthogonally polarized beams traveling at different speeds. This is the physical basis for wave plates and polarization beam splitters.

Optical activity is the rotation of the polarization plane of linearly polarized light as it passes through certain materials. Chiral materials (like quartz crystals or sugar solutions) exhibit this effect. The rotation angle depends on the path length and the concentration of the optically active substance, which is why polarimetry can measure sugar concentration.

Faraday effect is a magnetically induced rotation of the polarization plane. When linearly polarized light travels through a material in the presence of a magnetic field parallel to the propagation direction, the polarization rotates by:

$\beta = VBd$

• $\beta$ is the rotation angle.
• $V$ is the Verdet constant (a material property).
• $B$ is the magnetic field strength.
• $d$ is the path length through the material.

Unlike optical activity, the Faraday effect is non-reciprocal: the rotation direction depends on the magnetic field, not the light's travel direction. This property is used in optical isolators.

Stress-induced birefringence (photoelasticity) appears in normally isotropic transparent materials (like glass or plastic) when they're under mechanical stress. The stress creates birefringence, and viewing the material between crossed polarizers reveals colorful fringe patterns that map the internal stress distribution.

Polarization-dependent scattering also plays a role in everyday life. Rayleigh scattering (scattering by particles much smaller than the wavelength) is polarization-dependent. This is why the sky is partially polarized, with the strongest polarization at 90° from the sun.
