11.1 Conditions for Equilibrium

Forces and Torques in Equilibrium

Equilibrium describes the conditions that keep objects stable, whether they're sitting still or moving at a constant velocity. Understanding these conditions lets you analyze real-world systems like bridges, cranes, and even the forces in your own joints. The core idea: for an object to be in equilibrium, both the net force and the net torque acting on it must equal zero.

Conditions for Equilibrium

Equilibrium is the state where an object has no linear acceleration and no rotational acceleration. That means it's either staying perfectly still or moving/rotating at a constant rate with no change.

There are two types worth distinguishing:

• Static equilibrium means the object is at rest and stays at rest. A bridge sitting motionless over a river is in static equilibrium.
• Dynamic equilibrium means the object is moving, but with constant velocity and constant angular velocity (no acceleration of either kind). A satellite in a stable circular orbit at constant speed is an example.

Both types require the same two conditions to be satisfied: zero net force and zero net torque.

Two Equilibrium Requirements

1. Translational equilibrium (net force = zero)

The vector sum of all external forces on the object must be zero:

$\sum \vec{F} = 0$

This applies in every direction independently. In component form:

$\sum F_x = 0, \quad \sum F_y = 0, \quad \sum F_z = 0$

If the net force weren't zero, the object would accelerate linearly (Newton's second law).

2. Rotational equilibrium (net torque = zero)

The vector sum of all external torques on the object must also be zero:

$\sum \vec{\tau} = 0$

If the net torque weren't zero, the object would start to spin faster or slower (angular acceleration).

A key point: if an object is truly in static equilibrium, the torque condition holds about any axis you choose. This means you get to pick whichever axis makes your math easiest. A smart choice of axis can eliminate unknown forces from the torque equation entirely.

Equilibrium Problem-Solving Techniques

Here's a reliable process for solving equilibrium problems:

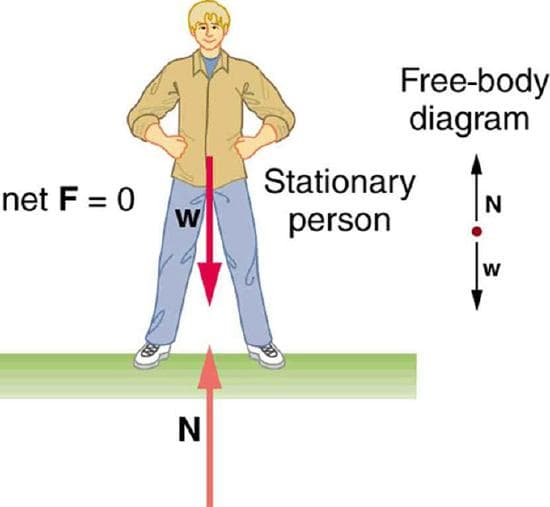

1. Draw a free-body diagram. Show the object isolated from its surroundings, with every external force drawn at its actual point of application. Common forces include gravity (acting at the center of mass), normal forces, tension, and friction.

2. Choose a coordinate system. Align your axes with the object's geometry. For a horizontal beam, use horizontal and vertical axes. For a ramp, you might tilt your axes along and perpendicular to the surface.

3. Apply the force equations. Write out $\sum F_x = 0$ and $\sum F_y = 0$ (and $\sum F_z = 0$ for 3D problems). Break angled forces into components.

4. Choose a rotation axis. Pick a point where an unknown force acts. That force produces zero torque about that point (since $r = 0$), which removes it from the torque equation and simplifies your algebra.

5. Apply the torque equation. Write $\sum \tau = 0$ using $\tau = rF\sin\theta$, where $r$ is the distance from the axis to the point where the force is applied, and $\theta$ is the angle between the $\vec{r}$ and $\vec{F}$ vectors. Assign a sign convention (e.g., counterclockwise = positive).

6. Solve the system of equations. You'll often have two or three equations and two or three unknowns. Solve them simultaneously.

Common mistakes to watch for:

• Forgetting to include the weight of the object itself (gravity acts at the center of mass)
• Using the wrong distance for torque calculations, such as measuring from the wrong point
• Mixing up sign conventions partway through a problem
• Ignoring that forces at the chosen pivot still appear in the force equations, even though they drop out of the torque equation

If the object has symmetry, use it. A uniform beam supported at its center has equal support forces on each side, which can save you a lot of work.

Real-World Equilibrium Applications

These principles show up everywhere in engineering and biology:

• Bridges: Engineers calculate how loads distribute across supports. Each pier or abutment exerts a reaction force, and equilibrium equations determine those forces for any given load placement.
• Cranes: The counterweight must produce enough torque to balance the load on the boom. As the boom angle changes or the load increases, the equilibrium conditions shift, which is why cranes have strict load capacity charts.
• Buildings: A skyscraper's center of gravity must remain over its base to prevent tipping. Wind loads and seismic forces create additional torques that the structure must resist.
• Human body mechanics: When you hold a weight in your outstretched hand, your bicep must exert a much larger force than the weight itself because it acts at a much shorter lever arm from the elbow joint. Equilibrium analysis explains why small loads can create large internal forces.
• Everyday objects: A bookshelf tips when the torque from its weight (shifted forward by heavy books on top) exceeds the restoring torque from the base. Anchoring it to the wall adds a force that keeps the net torque at zero.

In all these cases, the approach is the same: identify every force, find where each one acts, and confirm that both $\sum \vec{F} = 0$ and $\sum \vec{\tau} = 0$ are satisfied. For real engineering applications, safety factors are built in so that structures remain in equilibrium even under loads well beyond their expected maximum.
