5.3 Dynamics of Connected Objects

Forces and Motion in Connected Systems

Connected systems involve objects linked by ropes, pulleys, or direct contact. These setups transmit forces between components, and by applying Newton's laws to each object separately, you can predict the motion of the whole system.

This matters because real engineering problems (elevators, cranes, towing vehicles) all involve connected objects. The core skill here is breaking a complex system into individual free-body diagrams and then solving the resulting equations simultaneously.

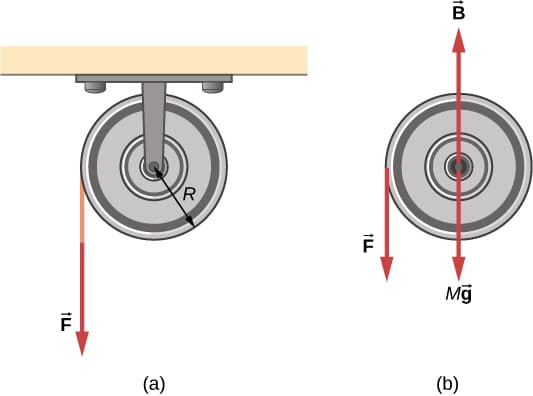

Forces on Connected Objects

Several forces show up repeatedly in connected systems:

• Tension acts along a string or rope, pulling on whatever is attached at each end.
• Normal force acts perpendicular to a contact surface, preventing objects from passing through each other.
• Friction opposes the direction of motion (or attempted motion) along a surface.
• Gravity pulls each object downward with force $W = mg$.

Most problems in this course use ideal strings and pulleys. An ideal string is massless and inextensible, meaning it doesn't stretch. This has two important consequences: the tension is the same everywhere along the string, and connected objects share the same magnitude of acceleration. An ideal (frictionless, massless) pulley simply redirects the tension force without changing its magnitude.

Applying Newton's Laws to Connected Systems

The general strategy for any connected-object problem follows these steps:

1. Draw a separate free-body diagram for each object. Show every force acting on that object alone. Don't include forces the object exerts on something else.
2. Choose a consistent coordinate system. For each object, pick axes that simplify the math. For objects on a flat surface, use horizontal/vertical. For objects on an incline, use parallel/perpendicular to the surface. For hanging masses, positive-down can sometimes reduce the number of negative signs.
3. Write Newton's second law for each object: $\sum F_x = ma_x$ and $\sum F_y = ma_y$.
4. Identify constraint relationships. Objects connected by an ideal string share the same acceleration magnitude. If one moves 2 cm, the other moves 2 cm. (The directions may differ, which is why choosing sign conventions carefully matters.)
5. Solve the system of equations for unknowns like acceleration and tension.

Newton's Third Law plays a key role here. The rope pulls on block A with some tension $T$, and block A pulls back on the rope with the same force $T$ in the opposite direction. In a tug-of-war, both sides experience equal tension. The side that wins is the one that pushes harder against the ground with friction.

Classic Example: Atwood Machine

An Atwood machine is two masses ($m_1$ and $m_2$) connected by a string over a single pulley. Suppose $m_1 > m_2$.

For $m_1$ (choosing down as positive since it accelerates downward):

$m_1 g - T = m_1 a$

For $m_2$ (choosing up as positive since it accelerates upward):

$T - m_2 g = m_2 a$

Add the two equations to eliminate $T$:

$a = \frac{(m_1 - m_2)}{(m_1 + m_2)} g$

Then substitute back to find tension:

$T = \frac{2 m_1 m_2}{m_1 + m_2} g$

Notice that if $m_1 = m_2$, acceleration is zero and tension equals the weight of either mass. This is a good sanity check.

Mechanical Advantage in Simple Machines

Mechanical advantage (MA) is the ratio of output force to input force. Simple machines don't create energy from nothing; they trade force for distance. A larger MA means you apply less force, but you must pull the rope through a greater distance.

• Single fixed pulley (MA = 1): Changes the direction of your pull but doesn't multiply force. You pull down to lift something up.
• Single movable pulley (MA = 2): Two segments of rope support the load, so each carries half the weight. You pull with half the force, but you must pull twice the length of rope.
• Compound (block and tackle) systems: MA increases with the number of rope segments supporting the load. A system with 4 supporting segments gives MA = 4.

Real machines always have some friction and rope/pulley mass, so the actual MA is lower than the ideal value. Efficiency measures how close a real machine gets to its ideal performance.

Equilibrium of Connected Systems

When a connected system is stationary or moving at constant velocity, it's in equilibrium. The conditions are:

• $\sum F = 0$ (translational equilibrium: no net force)
• $\sum \tau = 0$ (rotational equilibrium: no net torque)

For a balanced seesaw, for example, you'd set the sum of torques about the pivot to zero. A 30 kg child sitting 2 m from the pivot balances a 20 kg child sitting 3 m from the other side, because $30 \times 2 = 20 \times 3 = 60 \text{ N·m}$.

The same free-body diagram approach applies in equilibrium problems. The only difference is that you set $a = 0$ in Newton's second law, which turns your equations into $\sum F = 0$ instead of $\sum F = ma$. In real-world equilibrium problems, friction often must be included, and it typically means you need a larger input force than the ideal calculation suggests.
