12.3 Orbital Motion and Kepler's Laws

Kepler's Laws and Planetary Motion

Kepler's three laws describe how planets orbit the Sun: they follow elliptical paths, speed up and slow down at predictable points, and have orbital periods tied to their distance from the Sun. Newton later showed that all three laws follow directly from universal gravitation, turning Kepler's observational rules into consequences of a deeper physical theory.

These same principles govern the motion of moons, artificial satellites, and spacecraft. Understanding them lets you calculate orbital velocities, periods, and the escape speed needed to leave a planet's gravitational pull.

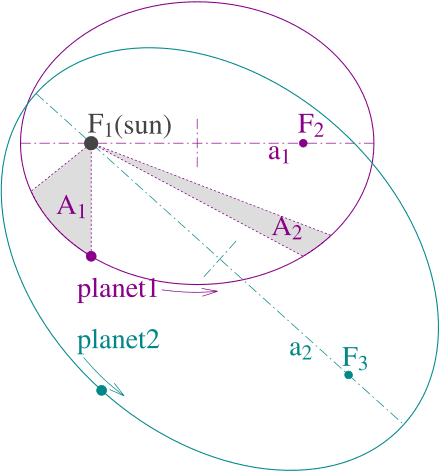

Kepler's Laws of Planetary Motion

Kepler's First Law (Law of Ellipses): Every planet orbits the Sun along an elliptical path, with the Sun located at one of the two foci of the ellipse. This means a planet's distance from the Sun changes throughout its orbit. This was a major departure from the ancient assumption that orbits had to be perfect circles.

Kepler's Second Law (Law of Equal Areas): A line drawn from the Sun to a planet sweeps out equal areas in equal time intervals. The practical consequence: a planet moves faster when it's closer to the Sun (at perihelion) and slower when it's farther away (at aphelion). For example, Mercury's orbital speed varies noticeably between perihelion and aphelion because its orbit is relatively eccentric.

Kepler's Third Law (Law of Periods): The square of a planet's orbital period is proportional to the cube of its semi-major axis:

$T^2 \propto a^3$

Planets farther from the Sun take longer to complete an orbit, and this law quantifies exactly how much longer. Historically, this relationship even helped predict the existence and location of Neptune before it was directly observed.

Derivation of Kepler's Third Law

For a circular orbit (a good approximation for many planets), you can derive Kepler's Third Law from Newton's gravitation. Here's the step-by-step process:

Step 1: Write Newton's law of universal gravitation for the force between a central body of mass $M$ and an orbiting body of mass $m$:

$F = G\frac{Mm}{r^2}$

where $G = 6.67 \times 10^{-11} \; \text{N} \cdot \text{m}^2/\text{kg}^2$.

Step 2: For circular motion, this gravitational force provides the centripetal force:

$G\frac{Mm}{r^2} = \frac{mv^2}{r}$

Step 3: Cancel $m$ from both sides (the orbiting mass drops out, which is why all objects at the same radius orbit at the same speed regardless of their mass):

$G\frac{M}{r^2} = \frac{v^2}{r}$

Step 4: Express the orbital speed in terms of the period $T$ and radius $r$. One full orbit covers a circumference of $2\pi r$:

$v = \frac{2\pi r}{T}$

Step 5: Substitute this into the equation from Step 3:

$G\frac{M}{r^2} = \frac{(2\pi r / T)^2}{r} = \frac{4\pi^2 r}{T^2}$

Step 6: Solve for $T^2$:

$T^2 = \frac{4\pi^2}{GM} r^3$

This is Kepler's Third Law in its full Newtonian form. The constant $K = \frac{4\pi^2}{GM}$ depends only on the mass of the central body. That's why all planets orbiting the Sun share the same value of $K$, while satellites orbiting Earth use a different $K$ based on Earth's mass.

Orbital Mechanics

Circular Orbits in Planetary Systems

In a circular orbit, an object moves at constant speed, but its velocity is always changing direction. The centripetal acceleration points inward toward the center of the orbit, and gravity is what provides that acceleration. Gravity continuously pulls the object inward just enough to curve its path into a circle, balancing the object's tendency (inertia) to fly off in a straight line.

Orbital velocity for a circular orbit is:

$v = \sqrt{\frac{GM}{r}}$

Notice that $v$ is inversely proportional to $\sqrt{r}$: objects in lower orbits move faster. The International Space Station (orbiting at about 408 km altitude) travels at roughly 7.66 km/s, while a geostationary satellite (at about 35,786 km altitude) moves at only about 3.07 km/s.

Escape velocity is the minimum speed an object needs to completely escape a body's gravitational pull (reaching infinitely far away with zero remaining speed):

$v_{\text{escape}} = \sqrt{\frac{2GM}{r}}$

This is exactly $\sqrt{2}$ times the circular orbital velocity at the same radius. For Earth's surface, escape velocity is about 11.2 km/s.

Geosynchronous orbits have a period that matches Earth's rotation (23 hours, 56 minutes). A satellite in a circular geosynchronous orbit above the equator (called geostationary) appears to hover over one spot on Earth, making it ideal for communication satellites.

Calculations for Circular Orbits

Three key equations let you solve most circular orbit problems. They all come from the derivation above:

• Orbital velocity: $v = \sqrt{\frac{GM}{r}}$
• Orbital period: $T = 2\pi\sqrt{\frac{r^3}{GM}}$
• Orbital radius (given period): $r = \sqrt[3]{\frac{GMT^2}{4\pi^2}}$

These are connected by $v = \frac{2\pi r}{T}$, so if you know any two of $v$, $T$, and $r$, you can find the third.

When applying these equations, use the mass $M$ of whatever body is at the center of the orbit. For a planet orbiting the Sun, $M$ is the Sun's mass. For a satellite orbiting Earth, $M$ is Earth's mass. This flexibility is why the same equations work across the entire solar system and beyond, including for predicting the orbital periods of newly discovered exoplanets.
