A gyroscope is a spinning object whose spin axis can change direction. Because of angular momentum conservation, a rapidly spinning gyroscope resists changes to its orientation. When an external torque is applied, the spin axis doesn't just tip over. Instead, it traces out a slow rotation called precession. This behavior shows up everywhere, from bicycle wheels to spacecraft navigation.

Motion and Stability of Gyroscopes

A gyroscope spins rapidly around its spin axis, and it's typically mounted in a frame that allows rotation in multiple directions (degrees of freedom). The key property is that a spinning gyroscope resists being tilted or reoriented. This resistance comes directly from the conservation of angular momentum: the angular momentum vector $\vec{L}$ points along the spin axis and won't change direction unless an external torque acts on the system.

Several factors determine how stable a gyroscope is:

Angular momentum magnitude $L = I\omega$ : A larger $L$ means greater resistance to orientation changes. You increase $L$ by increasing mass, radius (which raises $I$ ), or spin rate $\omega$ .
Rotational speed: Faster spin is the most direct way to boost stability. A slowly spinning top wobbles and falls; a fast one stays upright.
Mounting configuration: The number of degrees of freedom in the frame (gimbals) determines which directions the spin axis is free to move.

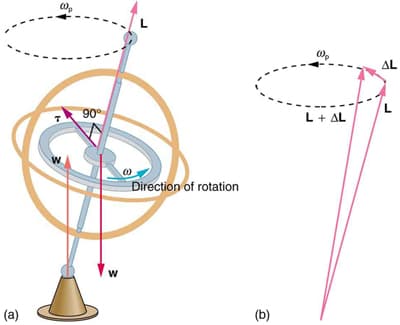

Motion and stability of gyroscopes, Gyroscopic Effects: Vector Aspects of Angular Momentum | Physics

Precession and Torque Relationship

When you apply an external torque to a spinning gyroscope, something counterintuitive happens: the spin axis doesn't rotate in the direction you'd expect. Instead, it rotates perpendicular to the applied torque. This slow, sweeping rotation of the spin axis is called precession.

Here's why it works that way. Torque changes angular momentum according to $\vec{\tau} = \frac{d\vec{L}}{dt}$ . Because $\vec{\tau}$ is perpendicular to $\vec{L}$ (for example, gravity pulling down on a tilted gyroscope creates a horizontal torque), the direction of $\vec{L}$ changes while its magnitude stays roughly constant. The tip of the $\vec{L}$ vector traces out a circle, and that circular motion of the spin axis is precession.

Two important proportionalities govern the precession rate:

Directly proportional to torque: More torque means faster precession.
Inversely proportional to angular momentum: A faster-spinning gyroscope precesses more slowly, which is why a spinning top stays upright longer as you spin it harder.

Calculations and Applications

Calculating Precessional Velocity

The precessional angular velocity $\omega_p$ tells you how fast the spin axis sweeps around. Here's how to find it:

Find the torque $\tau$ . For a gyroscope of mass $m$ tilted so its center of mass is a distance $r$ from the pivot, gravity produces a torque: $\tau = mgr$ More generally, $\tau = rF\sin\theta$ , where $\theta$ is the angle between $\vec{r}$ and $\vec{F}$ .
Find the angular momentum $L$ . Calculate the moment of inertia $I$ for the spinning object (for a uniform disk, $I = \frac{1}{2}MR^2$ ), then multiply by the spin angular velocity: $L = I\omega$
Divide torque by angular momentum: $\omega_p = \frac{\tau}{L}$

For example, a horizontal bicycle wheel (mass 2 kg, radius 0.3 m) spinning at 20 rad/s is held at one end of its axle, 0.15 m from the center. The torque from gravity is $\tau = mgr = (2)(9.8)(0.15) = 2.94 \text{ N·m}$ . The moment of inertia is $I = \frac{1}{2}(2)(0.3)^2 = 0.09 \text{ kg·m}^2$ , so $L = 0.09 \times 20 = 1.8 \text{ kg·m}^2/\text{s}$ . The precession rate is $\omega_p = 2.94 / 1.8 = 1.63 \text{ rad/s}$ .

Notice that if you double the spin speed, the precession rate drops by half.

Applications of Gyroscopic Motion

Navigation: Gyrocompasses use a spinning rotor to find true north without magnetic interference. Inertial navigation systems (used in aircraft and submarines) track orientation changes using gyroscopes, allowing positioning without GPS.
Stabilization: Ship stabilizers use large gyroscopes to counteract rolling from waves. Camera gimbals (like Steadicam systems) exploit gyroscopic resistance to keep footage smooth.
Transportation: A spinning bicycle or motorcycle wheel resists tipping, which contributes to stability at speed. Aircraft attitude indicators (the "artificial horizon" on a cockpit display) use gyroscopes to show the plane's orientation relative to the ground.
Space technology: Reaction wheels on satellites are gyroscopes spun up or slowed down to rotate the spacecraft without using fuel. The Hubble Space Telescope uses gyroscopes for precise pointing.
Sports and projectiles: A football's spiral spin stabilizes its flight path through the air. Frisbees stay level for the same reason. In each case, the angular momentum resists tumbling.
