5.1 Uniform Circular Motion

Uniform Circular Motion

Circular motion shows up everywhere: planets orbiting the sun, cars rounding curves, electrons in magnetic fields. In all these cases, an object travels along a circular path at constant speed while its direction continuously changes. Understanding the forces and acceleration involved is essential for applying Newton's laws beyond straight-line motion.

Uniform Circular Motion Fundamentals

Defining Uniform Circular Motion

An object is in uniform circular motion when it moves along a circular path at constant speed. The speed doesn't change, but the direction of motion changes at every instant, which means the velocity vector is always changing.

A few defining features:

• The velocity vector always points tangent to the circle. Its magnitude stays the same, but its direction rotates continuously.
• The object stays at a fixed radius $r$ from the center of the circle at all times.
• Because direction is changing, the object is accelerating even though its speed is constant. This is a point that trips people up: constant speed does not mean zero acceleration.

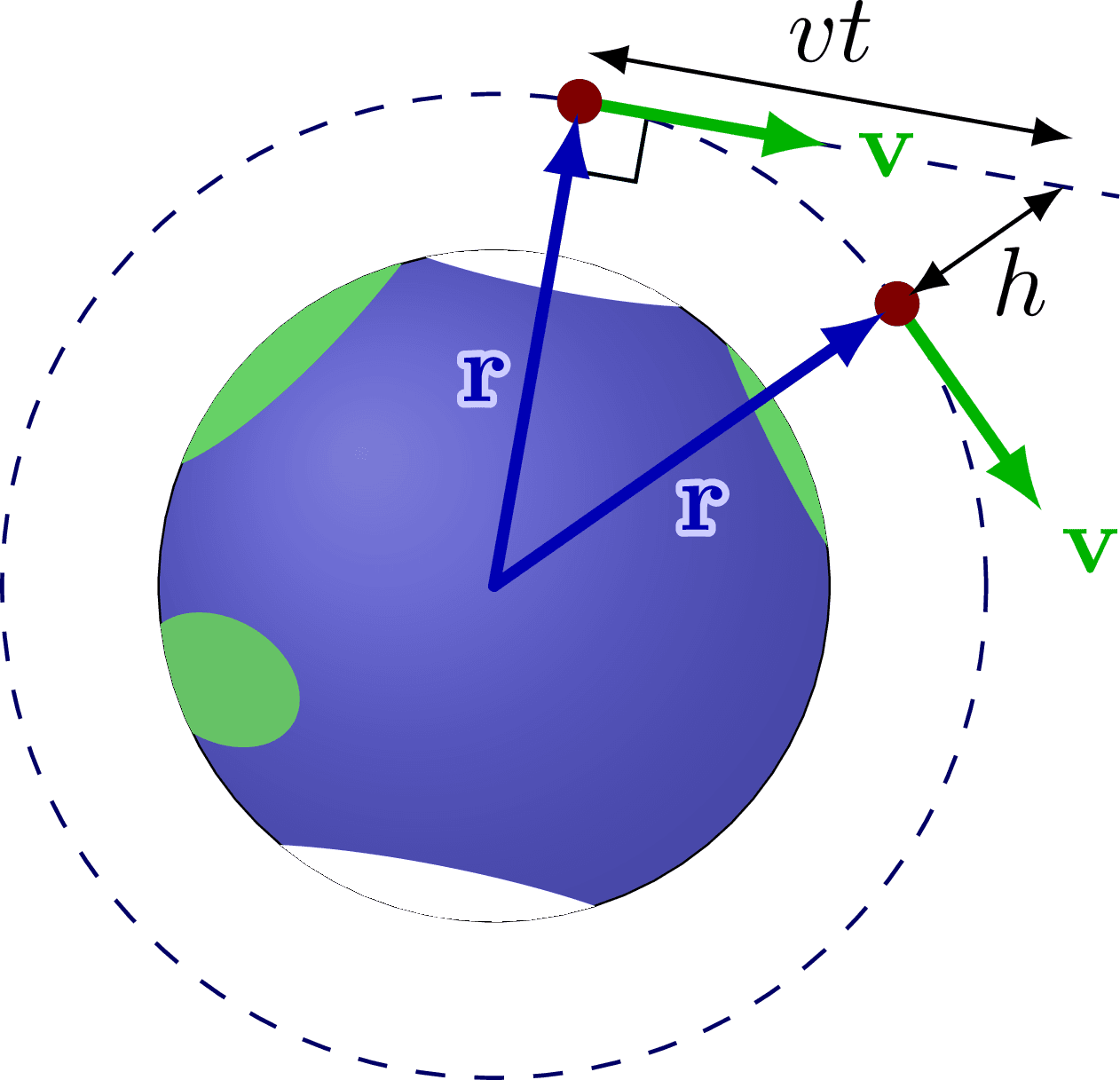

Think of a satellite orbiting Earth at a steady altitude, or a ball on a string being swung in a horizontal circle. Both maintain constant speed while their direction of travel continuously shifts.

Linear Velocity and Angular Velocity

There are two ways to describe how fast something moves in a circle: linear (tangential) velocity and angular velocity. They measure the same motion from different perspectives.

• Linear velocity ($v$) is the tangential speed of the object, measured in m/s. It tells you how fast the object moves along the arc of the circle.
• Angular velocity ($\omega$) is how quickly the angular position changes, measured in rad/s. It tells you how fast the object sweeps through an angle.

The two are connected by:

$v = r\omega$

where $r$ is the radius of the circular path. A larger radius means a greater linear speed for the same angular velocity. This is why the outer edge of a spinning wheel moves faster than a point near the hub, even though both complete one rotation in the same time.

You can also express linear velocity in terms of the period $T$ (the time for one full revolution):

$v = \frac{2\pi r}{T}$

To convert between the two velocities, rearrange: $\omega = v/r$.

Forces and Acceleration in Uniform Circular Motion

Centripetal Acceleration

Since the velocity direction changes continuously in circular motion, there must be an acceleration. This is centripetal acceleration, and it has two key properties:

• It always points toward the center of the circular path.
• It is always perpendicular to the velocity vector.

Because the acceleration is perpendicular to the velocity, it changes the direction of motion without changing the speed. Its magnitude is:

$a_c = \frac{v^2}{r} = r\omega^2$

Notice that centripetal acceleration depends on the square of the speed. Doubling your speed around a curve quadruples the required centripetal acceleration. It's also inversely proportional to the radius: a tighter circle (smaller $r$) means greater acceleration at the same speed.

Centripetal Force

By Newton's second law, if there's centripetal acceleration, there must be a net force causing it. Centripetal force is not a new type of force. It's just the name for whatever net force points toward the center and keeps the object on its circular path.

$F_c = ma_c = \frac{mv^2}{r} = mr\omega^2$

The actual source of this force depends on the situation:

• Tension in a string (a ball on a string swung in a circle)
• Friction between tires and road (a car turning a corner)
• Gravity (the Moon orbiting Earth)
• Normal force (a roller coaster car in a loop)

The centripetal force is always perpendicular to the object's velocity, so it does no work and doesn't change the object's kinetic energy.

Vertical Circular Motion

When an object moves in a vertical circle, the analysis gets more involved because gravity doesn't always point in the same direction relative to the circular path. The force providing centripetal acceleration changes with position.

At every point, gravity pulls downward with $F_g = mg$. The other force (tension, normal force, etc.) adjusts depending on where the object is in the loop. Taking inward (toward center) as positive:

• At the bottom: Both the supporting force and gravity act in opposite directions relative to the center. The supporting force must overcome gravity and provide centripetal force: $T - mg = \frac{mv^2}{r} \quad \Rightarrow \quad T = \frac{mv^2}{r} + mg$

• At the top: Gravity and the supporting force both point toward the center: $T + mg = \frac{mv^2}{r} \quad \Rightarrow \quad T = \frac{mv^2}{r} - mg$

• At the sides: Gravity acts perpendicular to the radial direction, so only the supporting force provides centripetal acceleration, while gravity acts tangentially to change the speed.

The tension or normal force is greatest at the bottom and smallest at the top. At the top, there's a minimum speed needed to maintain the circular path. Setting the supporting force to zero (the object barely stays on the path):

$v_{min} = \sqrt{gr}$

If the speed drops below this at the top, the object falls out of its circular path. This is why roller coaster loops are designed so that cars move fast enough at the top to keep riders safely pressed into their seats.
