4.4 Friction and Drag Forces

Understanding Friction

Friction is the force that opposes motion between surfaces in contact. Without it, you couldn't walk, drive, or even pick up a pencil. Understanding how friction works is essential for analyzing real-world motion using Newton's laws.

Nature and Effects of Friction

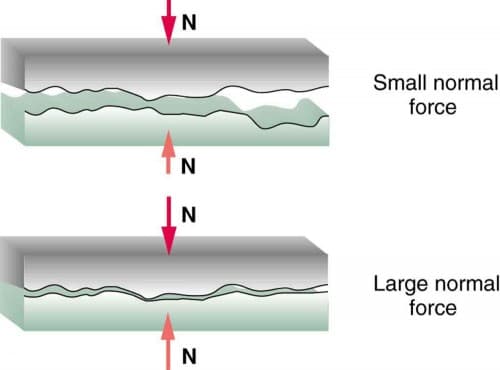

Friction arises from electromagnetic interactions between the atoms on two surfaces that are in contact. Even surfaces that look smooth have microscopic bumps and ridges that catch on each other.

A few key properties of friction:

• It always acts parallel to the contact surface and opposite to the direction of motion (or attempted motion)
• It can slow moving objects, prevent stationary objects from starting to move, or both
• It converts kinetic energy into thermal energy (that's why your hands warm up when you rub them together)

The main types of friction you'll encounter are sliding friction (a box pushed across a floor), rolling friction (a wheel on pavement), and fluid friction, also called drag (discussed below).

Static vs. Kinetic Friction

These two types come up constantly in problems, so it's worth getting the distinction down clearly.

Static friction acts on objects that are not yet moving. It matches whatever applied force is trying to start the motion, up to a maximum value. If you push gently on a heavy box and it doesn't budge, static friction is exactly canceling your push. Push harder, and static friction increases to match. It only "breaks" when your applied force exceeds the maximum static friction.

Kinetic friction acts on objects that are already sliding. Once the box starts moving, kinetic friction takes over. It stays roughly constant for a given pair of surfaces and is always less than the maximum static friction. This is why it's harder to start pushing a heavy box than to keep it sliding.

Calculating Friction Force

The friction force depends on two things: the coefficient of friction ($\mu$) and the normal force ($F_n$), which is the perpendicular contact force between the surfaces.

• Static friction: $F_s \leq \mu_s F_n$ This is an inequality. Static friction can be anything from zero up to $\mu_s F_n$. It only equals $\mu_s F_n$ at the instant the object is about to slip.

• Kinetic friction: $F_k = \mu_k F_n$ This is a straightforward equality. Once the object is sliding, the friction force is constant (for a given normal force).

The coefficient of friction $\mu$ is dimensionless (no units). It depends on the nature of both surfaces. Rubber on concrete has a high $\mu$; ice on steel has a low one. Typical values: rubber on dry concrete $\mu_s \approx 0.7$, steel on steel $\mu_k \approx 0.6$.

Common mistake: Students often forget that the normal force isn't always equal to weight. On an incline, or when someone pushes down or pulls up on an object, $F_n$ changes. Always solve for $F_n$ from your free-body diagram before plugging into the friction formula.

Drag Forces and Motion Analysis

Drag forces are the fluid version of friction. They act on objects moving through air, water, or any other fluid, and they always oppose the direction of motion.

Concept of Drag Force

Drag depends on several factors:

• Fluid density ($\rho$): Denser fluids create more drag. Water produces far more drag than air.
• Cross-sectional area ($A$): A larger area facing the flow means more drag. That's why parachutes work.
• Drag coefficient ($C_d$): A dimensionless number that depends on the object's shape. A streamlined shape has a low $C_d$; a flat plate has a high one.
• Velocity ($v$): Faster motion means more drag.

At low velocities (think: a marble sinking slowly in honey), drag is roughly proportional to velocity: $F_d \propto v$. At higher velocities (a car on the highway, a skydiver in freefall), drag grows with the square of velocity:

$F_d = \frac{1}{2} \rho C_d A v^2$

This $v^2$ dependence is why doubling your speed quadruples the drag force.

Motion Under Friction and Drag

To analyze motion with friction or drag, follow these steps:

1. Draw a free-body diagram showing all forces, including friction and/or drag
2. Determine the normal force from the perpendicular direction (you need this for friction calculations)
3. Calculate friction or drag using the appropriate formula
4. Write Newton's Second Law ($\Sigma F = ma$) along the direction of motion
5. Solve for the unknown (usually acceleration, but sometimes the applied force or friction coefficient)

For horizontal motion with friction, the net force equation typically looks like:

$F_{net} = F_{applied} - F_k = ma$

For objects falling through a fluid, weight pulls down and drag pushes up:

$F_{net} = mg - F_d = ma$

Terminal Velocity

As a falling object speeds up, the drag force increases (remember the $v^2$ dependence). Eventually, drag grows large enough to equal the object's weight. At that point, the net force is zero, acceleration is zero, and the object falls at a constant speed called terminal velocity.

Setting $mg = \frac{1}{2} \rho C_d A v_t^2$ and solving for $v_t$:

$v_t = \sqrt{\frac{2mg}{\rho C_d A}}$

A skydiver in spread-eagle position reaches a terminal velocity of about 55 m/s (roughly 120 mph). Opening a parachute dramatically increases $A$, which drops the terminal velocity to around 5 m/s for a safe landing.

Energy Considerations

Both friction and drag dissipate mechanical energy, converting it to thermal energy (and sometimes sound). The work done by friction over a distance $d$ is:

$W_{friction} = F_f \cdot d$

This energy is "lost" from the mechanical system, which is why real-world motion always requires energy input to sustain. Disc brakes on a car use friction deliberately to convert kinetic energy into heat. Lubricants like engine oil reduce friction coefficients between surfaces, minimizing energy loss.
