4.3 Applications of Newton's Laws

Forces and Accelerations

Forces govern how objects move and interact. Every time something speeds up, slows down, or changes direction, forces are responsible. Newton's laws give you the tools to analyze these situations quantitatively, whether you're dealing with a box sliding down a ramp or two masses connected by a rope over a pulley.

This section covers how to apply Newton's laws to real scenarios: breaking forces into components, handling inclined planes, solving multi-object problems, and understanding apparent weight.

Forces and Accelerations in Dimensions

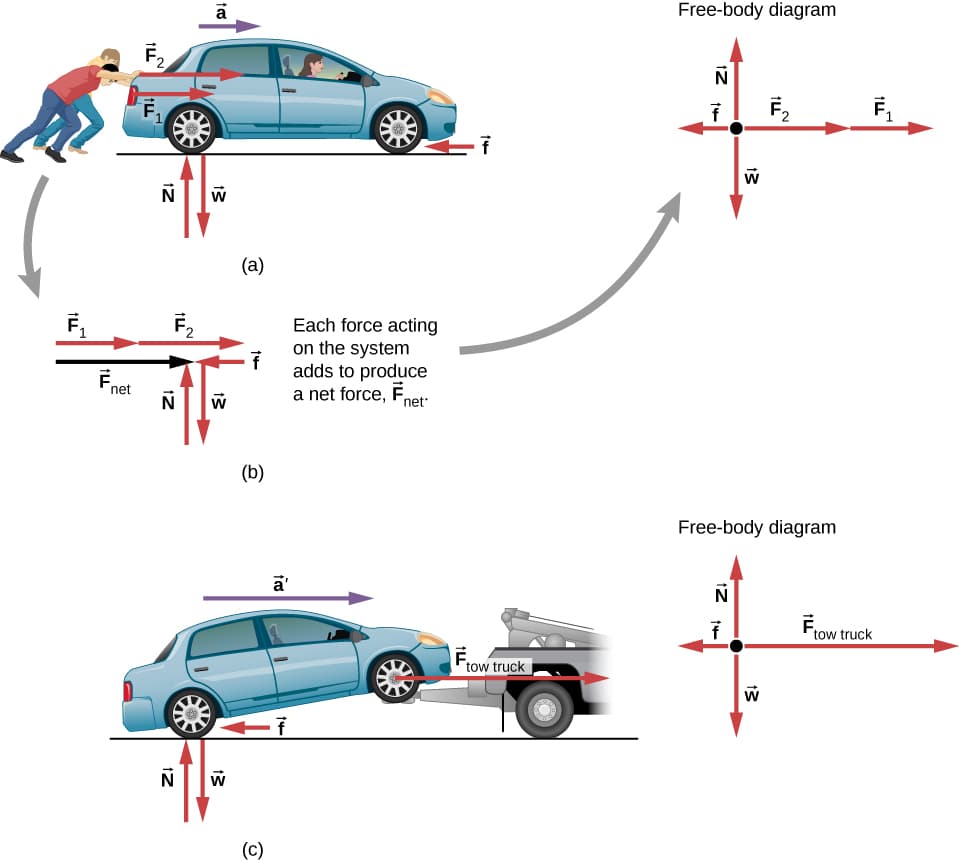

Before solving any force problem, you need a free-body diagram (FBD). This is a sketch of the object isolated from everything else, with arrows representing every force acting on it. Each arrow's direction and relative length should reflect the force's direction and magnitude.

Newton's Second Law ties everything together:

$F_{net} = ma$

This is a vector equation, meaning it applies independently in each direction. For a one-dimensional problem (like an object in free fall), you only need one axis. For two-dimensional problems (like projectile motion or circular motion), you'll write separate equations for each axis.

Key forces you'll encounter:

• Normal force acts perpendicular to the surface of contact. On a flat surface, it equals the object's weight. On a tilted surface, it equals only the perpendicular component of the weight.
• Static friction prevents an object from starting to slide. It adjusts up to a maximum value of $f_s \leq \mu_s N$.
• Kinetic friction acts on an object that's already sliding, with magnitude $f_k = \mu_k N$. It always opposes the direction of motion.
• Tension pulls along a rope or cable, transmitting force from one object to another.

Motion Analysis on Inclined Planes

Inclined plane problems become much easier once you tilt your coordinate system so that one axis runs parallel to the slope and the other runs perpendicular to it. This way, the motion (or potential motion) lines up with one axis.

Here's how to set up an inclined plane problem:

1. Draw a free-body diagram of the object on the slope. Include gravity (straight down), the normal force (perpendicular to the surface), and friction (parallel to the surface, opposing motion).

2. Choose axes: let the x-axis point along the incline (positive pointing up or down the slope, your choice) and the y-axis point perpendicular to the surface.

3. Decompose the weight $mg$ into components along your axes:

   • Parallel to the incline: $F_{\parallel} = mg\sin(\theta)$
   • Perpendicular to the incline: $F_{\perp} = mg\cos(\theta)$

4. Apply Newton's Second Law along each axis. Perpendicular to the surface, acceleration is zero (the object doesn't fly off or sink into the ramp), so $N = mg\cos(\theta)$.

5. Along the incline, set up $F_{net} = ma$ using the parallel weight component, friction, and any applied forces.

Notice that as $\theta$ increases, $mg\sin(\theta)$ grows (pulling the object more strongly down the slope) while $mg\cos(\theta)$ shrinks (reducing the normal force and therefore the maximum friction). That's why steeper ramps make objects more likely to slide.

Multiple Object Systems and Apparent Weight

Newton's Laws for Multiple Objects

When two or more objects are connected (by a rope, a rod, or direct contact), you analyze each object with its own free-body diagram but link them through shared forces and constraints.

The general approach:

1. Draw a separate free-body diagram for each object.
2. Identify action-reaction pairs (Newton's Third Law): if object A pulls on object B with some tension, then object B pulls back on A with equal magnitude in the opposite direction.
3. If the objects are connected by a taut, massless rope, the tension is the same throughout the rope, and both objects share the same magnitude of acceleration.
4. Write $F_{net} = ma$ for each object separately, then solve the system of equations.

Atwood machine example: Two masses $m_1$ and $m_2$ hang on opposite sides of a frictionless pulley. Since they're connected by one rope, they share the same acceleration magnitude. The heavier mass accelerates downward while the lighter one accelerates upward. Applying Newton's Second Law to each mass and combining gives:

$a = \frac{(m_1 - m_2)}{(m_1 + m_2)}g$

If $m_1 = 8 \text{ kg}$ and $m_2 = 6 \text{ kg}$, the acceleration is $a = \frac{2}{14}(9.8) \approx 1.4 \text{ m/s}^2$.

Concept of Apparent Weight

Your apparent weight is the force you feel from whatever is supporting you (the floor, a scale, a seat). It equals the normal force $N$, not your true gravitational weight $mg$. These two differ whenever you're accelerating vertically.

For an object in an elevator accelerating upward at rate $a$:

$N = m(g + a)$

You feel heavier because the floor has to push harder to both support your weight and accelerate you upward.

For downward acceleration at rate $a$:

$N = m(g - a)$

You feel lighter because gravity is already doing some of the work of accelerating you downward, so the floor pushes less.

If the elevator is in free fall ($a = g$), then $N = m(g - g) = 0$. The floor exerts no force on you at all. This is weightlessness, the same condition astronauts experience in orbit. They're not beyond gravity's reach; they're in continuous free fall around Earth, so their apparent weight is zero.
