8.4 Torque on current loops and magnetic dipole moments

Magnetic fields exert forces on current-carrying wires, creating torque on current loops. This torque aligns the loop's magnetic dipole moment with the external field. Understanding this interaction is crucial for devices like motors and generators.

Magnetic dipole moments characterize the strength and orientation of a current loop's magnetic field. When placed in an external field, dipoles experience torque and potential energy changes, forming the basis for various electromagnetic applications.

Torque on Current Loops

Magnetic Torque on Current-Carrying Loops

• Magnetic torque is the twisting force experienced by a current-carrying loop in the presence of an external magnetic field
• Torque tends to align the loop's magnetic dipole moment with the external magnetic field
• Magnitude of the torque depends on the current, area of the loop, strength of the magnetic field, and the angle between the loop's normal vector and the field direction
• Direction of the torque is determined by the right-hand rule (curl the fingers of your right hand in the direction of the current, and the thumb points in the direction of the torque)

Applications of Current Loops in Magnetic Fields

• Current loop is a simple closed circuit consisting of a conducting wire forming a loop
• Current loops are used in various electromagnetic devices such as galvanometers, motors, and generators

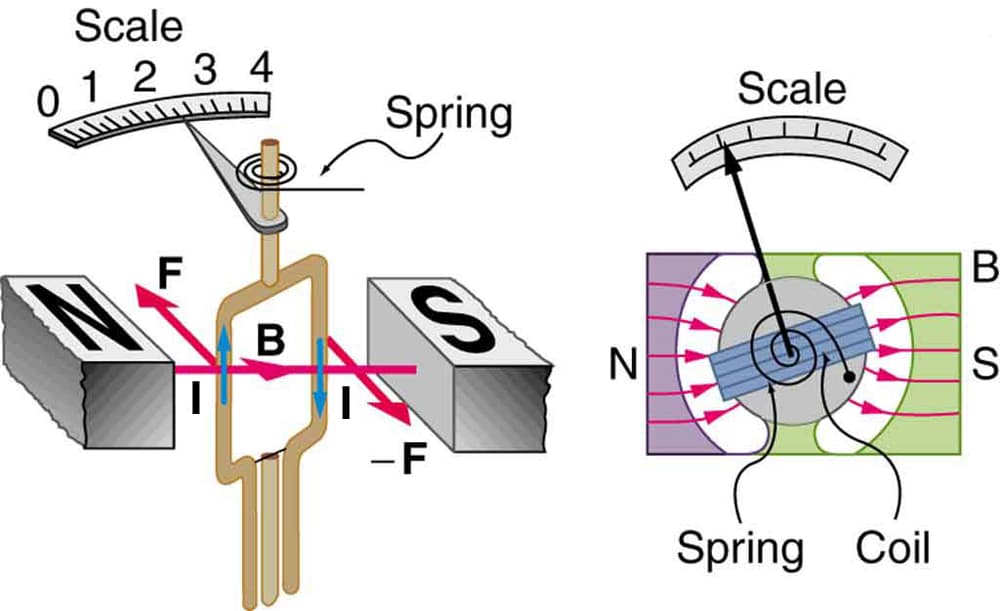

• Galvanometer is an instrument that detects and measures small electric currents by utilizing the torque experienced by a current loop in a magnetic field
• Galvanometers form the basis for analog ammeter and voltmeter designs (measure current and voltage, respectively)

Magnetic Dipole Moments

Magnetic Dipole Moment and Its Properties

• Magnetic dipole moment is a vector quantity that characterizes the strength and orientation of a current loop's magnetic field
• Denoted by the symbol $\vec{\mu}$ and measured in units of ampere-square meter (A·m²)
• Magnitude of the magnetic dipole moment is given by $|\vec{\mu}| = IA$, where $I$ is the current and $A$ is the area of the loop
• Direction of the magnetic dipole moment is perpendicular to the plane of the loop, determined by the right-hand rule (curl the fingers of your right hand in the direction of the current, and the thumb points in the direction of the magnetic dipole moment)

Potential Energy and Torque on a Magnetic Dipole

• Potential energy of a magnetic dipole in an external magnetic field is given by $U = -\vec{\mu} \cdot \vec{B}$, where $\vec{B}$ is the external magnetic field
• Magnetic dipole experiences a torque when placed in an external magnetic field, given by $\vec{\tau} = \vec{\mu} \times \vec{B}$
• Torque tends to align the magnetic dipole moment with the external magnetic field, minimizing the potential energy
• DC motor principle relies on the torque experienced by a current-carrying loop in a magnetic field to generate continuous rotational motion
• In a DC motor, the current in the loop is reversed every half-rotation using a commutator, ensuring that the torque always acts in the same rotational direction (maintains continuous rotation)
