7.1 Series and parallel combinations of resistors
2 min read•august 7, 2024
Resistors in series and parallel are fundamental building blocks of DC circuits. They determine how voltage and current flow through a circuit, shaping its behavior and functionality.
Understanding these combinations is crucial for analyzing complex circuits. Series resistors add up, increasing total resistance, while parallel resistors offer multiple paths, decreasing overall resistance. This knowledge is essential for designing and troubleshooting electrical systems.
Series Circuits
Characteristics and Equivalent Resistance
Top images from around the web for Characteristics and Equivalent Resistance
Resistors in Series and Parallel | Physics View original
Is this image relevant?

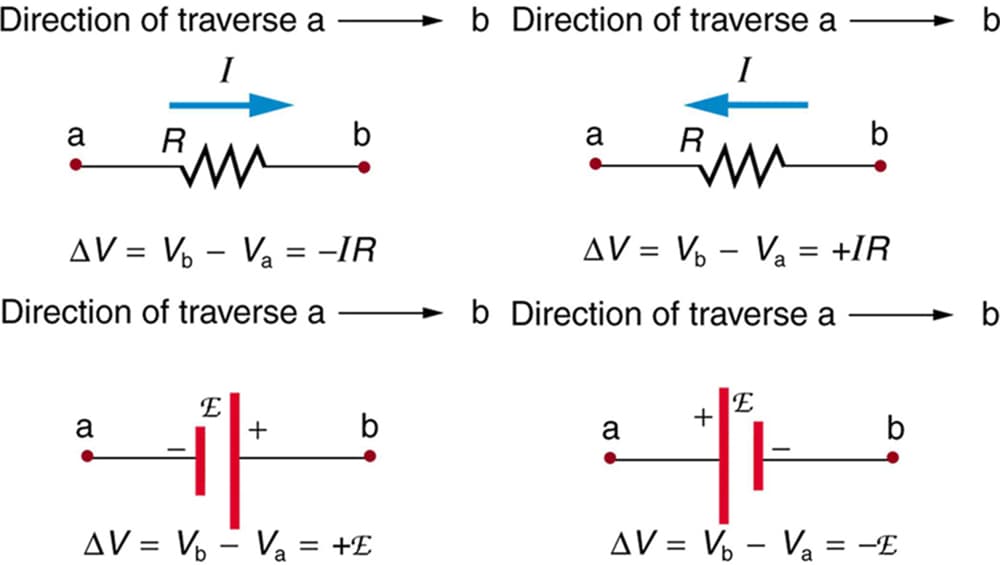

Kirchhoff’s Rules · Physics View original
Is this image relevant?
Kirchhoff’s Rules | Boundless Physics View original
Is this image relevant?
Resistors in Series and Parallel | Physics View original
Is this image relevant?
Kirchhoff’s Rules · Physics View original
Is this image relevant?
1 of 3
Top images from around the web for Characteristics and Equivalent Resistance
Resistors in Series and Parallel | Physics View original
Is this image relevant?
Kirchhoff’s Rules · Physics View original
Is this image relevant?
Kirchhoff’s Rules | Boundless Physics View original
Is this image relevant?
Resistors in Series and Parallel | Physics View original
Is this image relevant?
Kirchhoff’s Rules · Physics View original
Is this image relevant?
1 of 3
- Series circuits consist of components connected end-to-end, forming a single continuous path for current flow
- Current remains constant throughout the entire while voltage drops across each component
- () of a series circuit is the sum of individual resistances:
- Total resistance in a series circuit is always greater than any individual resistance
Voltage Divider and Applications
- refers to the division of voltage across each component in a series circuit
- Voltage across each resistor is proportional to its resistance relative to the total resistance:
- Voltage dividers are used in various applications such as:
- Adjusting voltage levels in electronic circuits (potentiometers)
- Sensing physical quantities (temperature, light, pressure) using variable resistors (thermistors, photoresistors, strain gauges)
- Kirchhoff's voltage law () states that the sum of voltage drops across components in a series circuit equals the source voltage:
Parallel Circuits
Characteristics and Equivalent Resistance
- Parallel circuits have components connected across the same two nodes, providing multiple paths for current flow
- Voltage remains constant across all parallel branches while current divides among the branches
- Equivalent resistance () of a is the reciprocal of the sum of reciprocals of individual resistances:
- Total resistance in a parallel circuit is always less than the smallest individual resistance
Current Divider and Power Dissipation
- refers to the division of current among parallel branches
- Current through each branch is inversely proportional to its resistance:
- Kirchhoff's current law () states that the sum of currents entering a node equals the sum of currents leaving the node:
- in each resistor can be calculated using or
- Total power dissipated in a parallel circuit is the sum of power dissipated by individual resistors:
- Parallel circuits are commonly used in:
- Household wiring (outlets connected in parallel to maintain constant voltage)
- Redundant systems (backup power supplies, safety mechanisms) to ensure continued operation if one component fails
