Kirchhoff's laws are essential tools for analyzing DC circuits. They help us understand how current and voltage behave in complex networks, based on the principles of conservation of charge and energy.
Using these laws, we can solve tricky circuit problems. We'll learn about and techniques, which apply Kirchhoff's laws to find currents and voltages in various circuit elements.
Kirchhoff's Laws
Conservation of Current
Top images from around the web for Conservation of Current
Kirchhoff's Circuit Law - Electronics-Lab.com View original
Is this image relevant?
Kirchhoff's circuit laws - Wikipedia View original
Is this image relevant?
Kirchhoff’s Rules | Boundless Physics View original
Is this image relevant?
Kirchhoff's Circuit Law - Electronics-Lab.com View original
Is this image relevant?
Kirchhoff's circuit laws - Wikipedia View original
Is this image relevant?
1 of 3
Top images from around the web for Conservation of Current
Kirchhoff's Circuit Law - Electronics-Lab.com View original
Is this image relevant?
Kirchhoff's circuit laws - Wikipedia View original
Is this image relevant?
Kirchhoff’s Rules | Boundless Physics View original
Is this image relevant?
Kirchhoff's Circuit Law - Electronics-Lab.com View original
Is this image relevant?
Kirchhoff's circuit laws - Wikipedia View original
Is this image relevant?
1 of 3

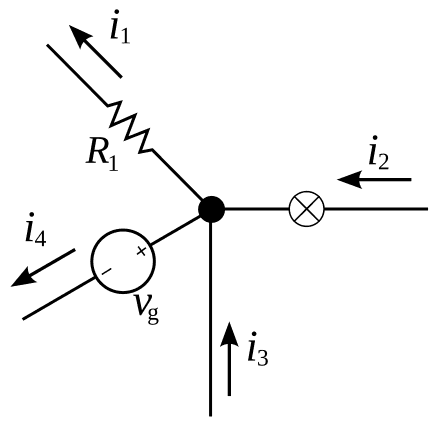

- (KCL) states that the sum of currents entering a node is equal to the sum of currents leaving the node
- Based on the principle of conservation of charge, which means that charge cannot be created or destroyed
- Applies to any junction or node in a circuit where two or more branches meet
- Mathematically expressed as: , where represents the current in branch and is the total number of branches connected to the node
- Helps in determining the currents flowing through different branches of a circuit
Conservation of Voltage
- (KVL) states that the sum of all voltage drops around any closed in a circuit is equal to the sum of all voltage rises
- Based on the principle of conservation of energy, which means that the total energy gained by a charge after completing a closed loop is zero
- Applies to any closed loop or mesh in a circuit
- Mathematically expressed as: , where represents the or rise across element and is the total number of elements in the loop
- Helps in determining the voltage drops and rises across different elements in a circuit
Circuit Analysis Techniques
Node Analysis
- is a method for determining the voltages at different nodes in a circuit using KCL
- Involves assigning a reference node (usually ground) and expressing the currents in terms of the node voltages
- Generates a set of linear equations based on KCL, which can be solved to find the node voltages
- Once the node voltages are known, branch currents can be calculated using
- Particularly useful for circuits with multiple voltage sources and resistors connected in parallel
Mesh Analysis
- Mesh analysis is a method for determining the currents flowing through different loops or meshes in a circuit using KVL
- Involves assigning a current variable to each mesh and expressing the voltage drops and rises in terms of these mesh currents
- Generates a set of linear equations based on KVL, which can be solved to find the mesh currents
- Once the mesh currents are known, voltage drops across elements can be calculated using Ohm's law
- Particularly useful for circuits with multiple current sources and resistors connected in series
Junctions and Loops
- A junction, also known as a node, is a point in a circuit where two or more branches meet
- KCL is applied at junctions to ensure conservation of current
- A loop is a closed path in a circuit that starts and ends at the same point without passing through any node more than once
- KVL is applied to loops to ensure conservation of voltage
- Identifying junctions and loops is crucial for applying Kirchhoff's laws and performing using node or mesh analysis techniques
Key Terms to Review (18)
Circuit analysis: Circuit analysis is the process of examining and solving electrical circuits to determine the voltage, current, and resistance values within them. This involves applying various techniques and laws to understand how different components interact within a circuit, which is essential for designing and troubleshooting electrical systems. Understanding circuit analysis allows for the prediction of circuit behavior under various conditions, including the arrangement of components like resistors.
Current conservation: Current conservation refers to the principle that electric charge is neither created nor destroyed in an electrical circuit. This fundamental concept is pivotal in analyzing circuits, ensuring that the total current entering a junction equals the total current leaving it. This means that in any closed circuit, the flow of electric charge remains constant, laying the groundwork for understanding more complex circuit behavior and ensuring that calculations involving current are accurate.
Kirchhoff's Current Law: Kirchhoff's Current Law (KCL) states that the total current entering a junction in an electrical circuit must equal the total current leaving that junction. This fundamental principle is based on the conservation of electric charge, implying that charge cannot accumulate at a junction. KCL serves as a foundational tool for analyzing electric circuits, particularly in determining current distribution and ensuring that circuit designs maintain balance.
Kirchhoff's Voltage Law: Kirchhoff's Voltage Law (KVL) states that the sum of the electrical potential differences (voltages) around any closed circuit loop must equal zero. This law emphasizes the principle of conservation of energy within electrical circuits, connecting potential energy and electric potential difference, and is critical for analyzing how voltage is distributed in circuits, understanding electromotive forces, and considering the impact of internal resistances.
Loop: In the context of electrical circuits, a loop is a closed path through which electric current can flow. Loops are crucial in understanding how current and voltage behave in circuits, as they allow for the application of Kirchhoff's laws, which govern the conservation of charge and energy within electrical systems.
Mesh analysis: Mesh analysis is a systematic method used to analyze electrical circuits by applying Kirchhoff's Voltage Law (KVL) to different loops or meshes within the circuit. It allows for the calculation of currents flowing through the components by setting up equations based on the sum of voltage drops around each mesh being equal to zero. This technique is particularly useful for circuits with multiple loops and can simplify the analysis of complex networks.
Network theory: Network theory is a branch of mathematics and science that studies the relationships and connections between various entities in a structured format. It provides a framework for analyzing how components of a system interact, which is crucial in understanding electrical circuits and systems where elements are interconnected. This theory underpins principles like Kirchhoff's current and voltage laws, helping to establish the rules for how current and voltage behave in complex networks of electrical components.
Node: A node is a point in a circuit where two or more circuit elements meet. It serves as a junction for the flow of current and is fundamental in analyzing electrical circuits through principles like Kirchhoff's current law. Understanding nodes is crucial for visualizing how electrical components are interconnected, allowing for the determination of voltages and currents at various points in the circuit.
Node analysis: Node analysis is a systematic method used in circuit analysis to determine the voltages at the nodes of an electrical circuit. By applying Kirchhoff's current law, it allows for the calculation of unknown voltages by forming a set of equations based on the currents entering and leaving each node. This technique streamlines the analysis of complex circuits and is essential for understanding how different components interact within a circuit.
Norton's Theorem: Norton's Theorem states that any linear electrical network with voltage sources and resistances can be replaced by an equivalent circuit consisting of a single current source in parallel with a single resistor. This simplification is useful for analyzing complex circuits, allowing easier calculation of current and voltage at specific points in the network.
Ohm's Law: Ohm's Law states that the current flowing through a conductor between two points is directly proportional to the voltage across the two points and inversely proportional to the resistance of the conductor. This fundamental principle helps in understanding how voltage, current, and resistance interact within electrical circuits, linking concepts such as electric potential energy and current density with the behavior of resistors in series and parallel configurations.
Parallel Circuit: A parallel circuit is a type of electrical circuit where two or more components are connected across the same voltage source, providing multiple pathways for current to flow. In this configuration, the voltage across each component remains the same while the total current is divided among them. This allows for components to operate independently; if one fails, the others continue to function, making parallel circuits vital in both household and industrial applications.
Resistance: Resistance is a measure of the opposition to the flow of electric current in a circuit, quantified in ohms (Ω). It plays a crucial role in determining how much current will flow for a given voltage according to Ohm's law, and it influences the performance of electrical components and circuits, particularly in terms of energy dissipation as heat.
Series Circuit: A series circuit is an electrical circuit where components are connected end-to-end in a single path for the current to flow. In this setup, the same current flows through each component, and the total voltage across the circuit is the sum of the voltages across each individual component. This type of circuit can be analyzed using laws that describe the behavior of current and voltage, which are essential for understanding how resistors and other components interact within a circuit.
Thevenin's Theorem: Thevenin's Theorem states that any linear electrical network with voltage sources, current sources, and resistors can be simplified to a single voltage source and a single resistor in series with the load. This powerful method allows for easier analysis of complex circuits by focusing on the relationship between the load and the rest of the circuit, making it particularly useful when applying Kirchhoff's laws, analyzing multi-loop circuits, and understanding transient behavior in RC circuits.
Voltage drop: Voltage drop refers to the reduction in voltage across a component or conductor in an electrical circuit, caused by the resistance of the material through which the current is flowing. This concept is crucial for understanding how electrical energy is distributed and consumed in various circuit configurations, affecting the overall efficiency and functionality of electrical systems.
σi = 0: The equation σi = 0 indicates that the net current flowing into a junction or node is zero, which is a fundamental principle derived from Kirchhoff's current law. This principle asserts that charge conservation holds in an electrical circuit, meaning that the total current entering a junction must equal the total current leaving that junction. It emphasizes the balance of electrical charge and the steady state of current flow in a network.
σv = 0: The equation σv = 0 signifies that the total divergence of the electric field in a region is zero, indicating that there are no free charges present within that volume. This concept plays a crucial role in understanding how electric fields behave in free space and in materials, as well as how they relate to charge distributions. This equation connects to both Kirchhoff's current law and voltage law by emphasizing the conservation of electric charge and the relationships between voltage and electric potential.
