3.2 Gaussian surfaces and symmetry
3 min read•august 7, 2024
Gaussian surfaces and symmetry are key concepts in . They help simplify calculations by exploiting charge distribution patterns. Understanding these tools is crucial for solving complex electromagnetic problems efficiently.
Symmetry in charge distributions leads to predictable electric field patterns. Spherical, cylindrical, and planar symmetries are common types. Choosing the right Gaussian surface based on symmetry can greatly simplify flux calculations.
Gaussian Surfaces and Symmetry
Defining Gaussian Surfaces and Symmetry
Top images from around the web for Defining Gaussian Surfaces and Symmetry

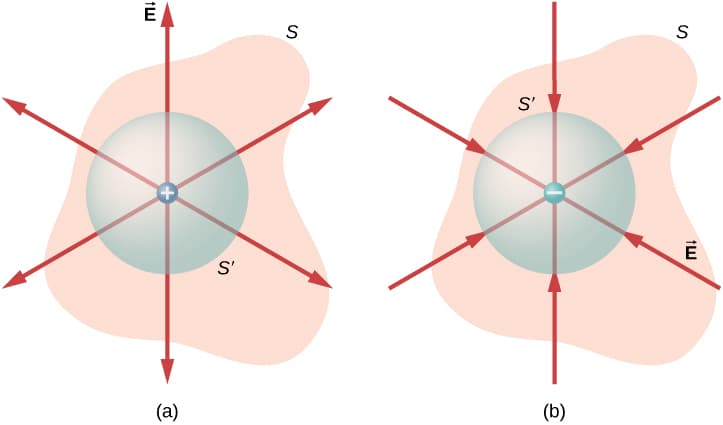

Explaining Gauss’s Law | CircuitBread View original
Is this image relevant?
Explaining Gauss’s Law | CircuitBread View original
Is this image relevant?
Applying Gauss’s Law | CircuitBread View original
Is this image relevant?
Explaining Gauss’s Law | CircuitBread View original
Is this image relevant?
Explaining Gauss’s Law | CircuitBread View original
Is this image relevant?
1 of 3
Top images from around the web for Defining Gaussian Surfaces and Symmetry
Explaining Gauss’s Law | CircuitBread View original
Is this image relevant?
Explaining Gauss’s Law | CircuitBread View original
Is this image relevant?
Applying Gauss’s Law | CircuitBread View original
Is this image relevant?
Explaining Gauss’s Law | CircuitBread View original
Is this image relevant?
Explaining Gauss’s Law | CircuitBread View original
Is this image relevant?
1 of 3
- Gaussian surface is a closed surface used to calculate the through it
- Can be any shape or size, but choosing a surface that matches the symmetry of the charge distribution simplifies calculations
- Symmetry in the context of electric fields refers to the spatial distribution of charges and the resulting electric field lines
- Symmetrical charge distributions produce electric fields with predictable patterns and simplify the application of Gauss's law
Types of Symmetry in Charge Distributions
- occurs when the charge distribution is uniform and radially symmetric around a central point
- Electric field lines point radially outward (positive charge) or inward (negative charge) and have equal magnitude at equal distances from the center
- Examples: a single point charge, a uniformly charged sphere
- arises when the charge distribution is uniform along the axis of a cylinder and radially symmetric around the axis
- Electric field lines point radially outward (positive charge) or inward (negative charge) and have equal magnitude at equal distances from the axis
- Examples: an infinitely long, uniformly charged wire, a uniformly charged cylindrical shell
- Planar symmetry is present when the charge distribution is uniform over an infinite plane
- Electric field lines are perpendicular to the plane and have equal magnitude at equal distances from the plane
- Examples: an infinite, uniformly charged sheet, two parallel infinite charged plates (capacitor)
Flux Calculation and Imaginary Surfaces
Using Imaginary Surfaces for Flux Calculation
- To calculate the electric flux through a closed surface, an imaginary surface called a Gaussian surface is constructed
- The imaginary surface does not have to be a physical object; it is a mathematical tool used to simplify the flux calculation
- The Gaussian surface should be chosen to take advantage of the symmetry of the charge distribution, making the flux calculation easier
- The flux through the imaginary surface is equal to the total charge enclosed divided by the permittivity of free space (), as stated by Gauss's law:
Considerations for Choosing Imaginary Surfaces
- The imaginary surface should enclose the charge distribution of interest
- The surface should be chosen such that the electric field is either perpendicular or parallel to the surface at all points
- If the field is perpendicular to the surface, the flux calculation involves the product of the field magnitude and the surface area
- If the field is parallel to the surface, the flux through that portion of the surface is zero
- For highly symmetrical charge distributions (spherical, cylindrical, or planar), choosing a Gaussian surface that matches the symmetry simplifies the flux calculation
- Examples: a for a point charge, a for an infinite line charge, or a planar Gaussian surface for an infinite sheet of charge
