to Ampère's law introduced , fixing a flaw in the original equation. This addition accounts for time-varying electric fields, ensuring consistency with the and conservation of total current.
The , a fundamental equation in electromagnetism, describes the relationship between magnetic fields, electric currents, and changing electric fields. It's crucial for understanding and AC circuits.
Displacement Current and Ampère-Maxwell Law

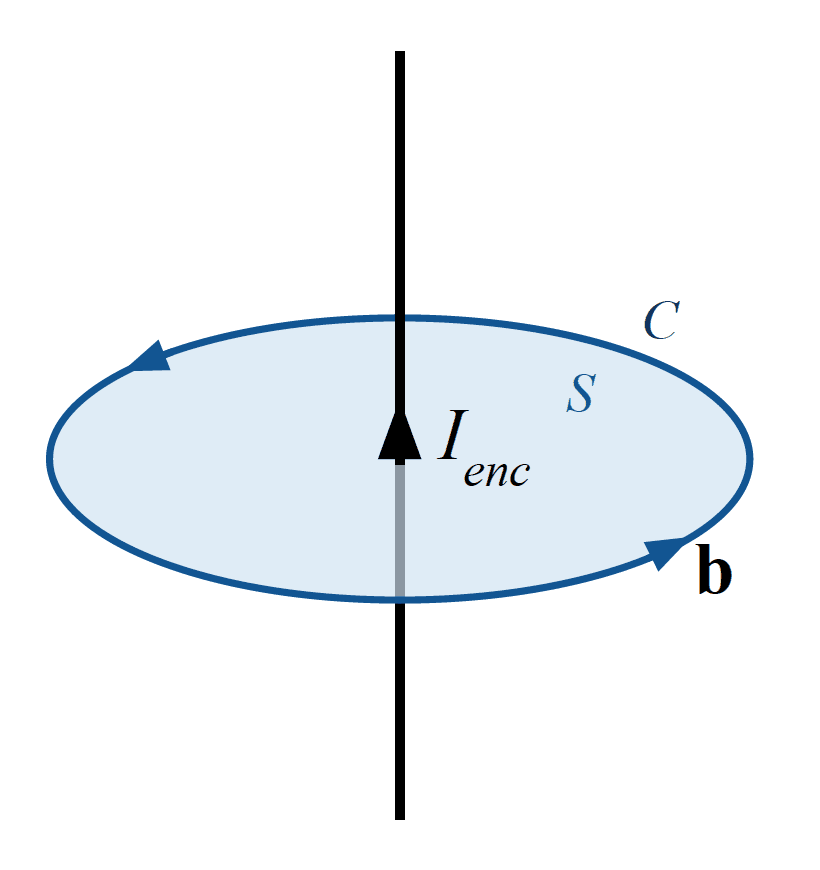

Maxwell's Correction to Ampère's Law
Top images from around the web for Maxwell's Correction to Ampère's Law
Ampere-Maxwell — Electromagnetic Geophysics View original
Is this image relevant?
1 of 3
Maxwell introduced the concept of displacement current to fix a flaw in Ampère's law
Ampère's law failed to account for time-varying electric fields, which led to inconsistencies with the continuity equation
Maxwell's correction adds the displacement current term (ϵ0∂t∂E) to Ampère's law
This term represents the rate of change of the over time
It ensures that the total current (conduction + displacement) is conserved
Displacement Current and its Properties
Displacement current (ID) is a term added to the conduction current to obtain the total current
It is defined as ID=ϵ0dtdΦE, where ΦE is the electric flux
Displacement current is not an actual flow of charges, but a time-varying electric field that induces a
It occurs in capacitors, where the electric field between the plates changes with time (charging or discharging)
It also exists in empty space, such as in electromagnetic waves
The (JD) is related to the time-varying electric field by JD=ϵ0∂t∂E
Ampère-Maxwell Law and its Applications
The Ampère-Maxwell law is the modified version of Ampère's law that includes the displacement current term
In integral form: ∮B⋅dl=μ0Ienc+μ0ϵ0dtdΦE
In differential form: ∇×B=μ0J+μ0ϵ0∂t∂E
The Ampère-Maxwell law is one of the four fundamental equations of electromagnetism (Maxwell's equations)
It describes the relationship between magnetic fields, electric currents, and time-varying electric fields
Applications of the Ampère-Maxwell law include:
Analyzing the behavior of capacitors and inductors in AC circuits
Explaining the propagation of electromagnetic waves in vacuum and media
Designing and optimizing electromagnetic devices (transformers, motors, generators)
Conduction Current and Continuity Equation
Conduction Current and Charge Conservation
Conduction current (IC) is the flow of electric charges (electrons) through a conductor
It is defined as the rate of flow of charge (IC=dtdQ)
The conduction current density (JC) is related to the electric field by Ohm's law: JC=σE, where σ is the conductivity
The continuity equation expresses the conservation of electric charge
In integral form: dtd∫VρdV=−∮SJ⋅dA
In differential form: ∂t∂ρ+∇⋅J=0
Capacitor Charging and Displacement Current
When a capacitor is charging, the conduction current flows through the connecting wires
However, there is no conduction current between the capacitor plates (assuming a perfect insulator)
The displacement current accounts for the charging of the capacitor
As the electric field between the plates changes, it induces a magnetic field (as per the Ampère-Maxwell law)
The displacement current ensures that the total current (conduction + displacement) is continuous and conserved
The displacement current in a capacitor is equal to the conduction current in the wires connected to it
This maintains the continuity of current and ensures charge conservation
Relationship between Conduction Current and Displacement Current
In a closed circuit, the conduction current and displacement current are complementary
The conduction current flows through conductors (wires, resistors)
The displacement current "flows" through insulators (capacitors, empty space)
The total current, which is the sum of conduction and displacement currents, is always continuous and conserved
This is a consequence of the continuity equation and the Ampère-Maxwell law
In electromagnetic waves, the conduction current is zero (in vacuum), and the displacement current is responsible for the propagation of the wave
The time-varying electric and magnetic fields sustain each other, creating a self-propagating wave
Key Terms to Review (18)
Ampère-Maxwell Law: The Ampère-Maxwell Law is a fundamental principle in electromagnetism that extends Ampère's original law to include a term for displacement current. This law states that the magnetic field in a closed loop is proportional to the total electric current passing through the loop and also accounts for changing electric fields, providing a deeper understanding of how electric and magnetic fields interact, especially in dynamic situations.
André-Marie Ampère: André-Marie Ampère was a French physicist and mathematician who is best known for his foundational work in electromagnetism, particularly in defining the relationship between electric currents and magnetic fields. His contributions laid the groundwork for the study of electromagnetism, establishing principles that describe how electric currents produce magnetic forces and interactions.
Capacitor charging: Capacitor charging is the process by which an electrical charge accumulates on the plates of a capacitor when connected to a voltage source, leading to the establishment of an electric field between the plates. During this process, current flows into the capacitor, and as the charge builds up, the voltage across the capacitor increases until it equals the supply voltage. This phenomenon is integral to understanding how capacitors store energy in electric fields and influences various applications in circuits.
Continuity equation: The continuity equation is a fundamental principle in physics that expresses the conservation of a quantity, such as electric charge or fluid mass, within a given system. It states that the rate at which a quantity enters a volume must equal the rate at which it exits, accounting for any accumulation within that volume. This concept is crucial in understanding electric current and current density, as well as the displacement current associated with changing electric fields.
Displacement current: Displacement current is a concept introduced by James Clerk Maxwell to address the changing electric field in regions where the electric flux is varying over time, particularly in capacitors. It is crucial for understanding how a changing electric field can produce a magnetic field, effectively modifying Ampère's Law to accommodate situations where conduction current does not flow. This helps explain electromagnetic waves and the connection between electricity and magnetism.
Displacement current density: Displacement current density is a term introduced by James Clerk Maxwell that represents a quantity similar to electric current density in regions where electric fields change over time. It accounts for the changing electric field in a capacitor or other situations where no physical charge flows, allowing for the modification of Ampère's law to include these scenarios, thus creating the Ampère-Maxwell law.
Electric Field: An electric field is a region around a charged particle where a force would be exerted on other charged particles. This field represents the influence of an electric charge, dictating how other charges will move or behave when placed within that field. The strength and direction of an electric field are determined by the source charge and can be visualized using field lines, which show how the field extends through space and interact with other charges.
Electromagnetic field: An electromagnetic field is a physical field produced by electrically charged objects, encompassing both electric and magnetic components. This field can exert forces on charged particles and can propagate as electromagnetic waves, such as light, through space. The understanding of electromagnetic fields is crucial for explaining how displacement current affects the behavior of electric and magnetic fields in dynamic situations.
Electromagnetic waves: Electromagnetic waves are oscillations of electric and magnetic fields that propagate through space at the speed of light. These waves are generated by the movement of charged particles and can travel through a vacuum or various media, carrying energy and information. They encompass a wide spectrum of waves, including radio waves, microwaves, infrared, visible light, ultraviolet, X-rays, and gamma rays, playing a crucial role in communication, energy transfer, and various technologies.
Faraday's Law of Induction: Faraday's Law of Induction states that a changing magnetic field within a closed loop induces an electromotive force (emf) in the loop. This principle is foundational for understanding how electric currents can be generated from magnetic fields, linking the concepts of magnetism and electricity.
Field Lines: Field lines are visual representations used to illustrate the direction and strength of a field, such as electric or magnetic fields. They provide a way to visualize how forces act in a region, showing how the field interacts with charges or currents, and are crucial for understanding concepts like Gauss's law and the behavior of magnetic fields.
Gauss's Law for Electricity: Gauss's Law for Electricity states that the electric flux through a closed surface is proportional to the charge enclosed within that surface. This fundamental principle helps in analyzing electric fields generated by static charge distributions and is essential when applying symmetry to determine electric fields in complex scenarios.
James Clerk Maxwell: James Clerk Maxwell was a Scottish physicist who is best known for formulating the classical theory of electromagnetic radiation, bringing together electricity, magnetism, and light as manifestations of the same phenomenon. His groundbreaking work led to the development of Maxwell's equations, which describe how electric and magnetic fields interact and propagate, influencing many aspects of modern physics and engineering.
Magnetic Field: A magnetic field is a region around a magnetic material or a moving electric charge within which the force of magnetism acts. This field is represented by magnetic field lines that indicate the direction and strength of the magnetic force, which plays a vital role in various physical phenomena, including the behavior of charged particles and electromagnetic waves. Understanding magnetic fields is essential for grasping concepts like symmetry in physics, how charges interact with these fields, and the fundamental laws governing electromagnetism.
Maxwell's Correction: Maxwell's Correction refers to the modification made by James Clerk Maxwell to Ampère's law, which introduces the concept of displacement current. This correction was crucial in explaining how changing electric fields can generate magnetic fields, particularly in scenarios where electric charges are not present, bridging the gap between electricity and magnetism.
Permittivity: Permittivity is a fundamental property of materials that indicates how easily electric fields can pass through them. It quantifies the ability of a substance to store electrical energy in an electric field, and is essential in understanding how electric charges interact within different media. The concept of permittivity connects directly to electrostatic fields, influencing capacitance and the behavior of electric fields in various materials, while also being crucial for understanding displacement current and its role in extending Ampère's law.
Speed of light in vacuum: The speed of light in vacuum is a fundamental constant of nature, denoted as 'c', which is approximately 299,792,458 meters per second. This speed is crucial in electromagnetism as it establishes the relationship between electric and magnetic fields, particularly in the context of electromagnetic waves and how they propagate through space. The constancy of the speed of light plays a key role in Maxwell's equations and the concept of displacement current, influencing how electric fields can create magnetic fields even in the absence of a physical current.
Vacuum permittivity: Vacuum permittivity, denoted as \( \varepsilon_0 \), is a fundamental physical constant that quantifies the ability of a vacuum to permit electric field lines. It plays a crucial role in the relationship between electric charge and electric field, influencing the strength of electrostatic interactions in free space. This concept is vital for understanding electromagnetic phenomena, such as the behavior of current-carrying conductors, the displacement current in changing electric fields, and the forces described by Coulomb's law.
