9.3 Magnetic fields of current distributions

Magnetic fields from current distributions are a crucial concept in electromagnetism. This topic explores how different current arrangements create magnetic fields, from simple wires to complex geometries. Understanding these relationships is key to grasping the fundamental principles of magnetism.

The Biot-Savart law and Ampère's law are essential tools for calculating magnetic fields. These laws help us analyze various current distributions, including finite wires, circular loops, and solenoids. Symmetry considerations often simplify these calculations, making complex problems more manageable.

Current Distributions

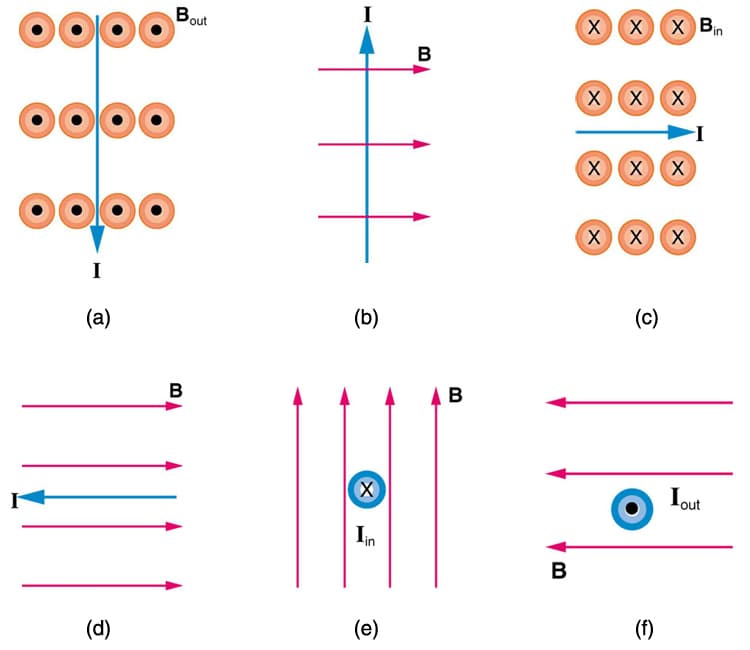

Current Density and Types of Current

• Current density $\vec{J}$ represents the amount of current flowing per unit area through a conductor
  • Measured in units of amperes per square meter (A/m²)
  • Mathematically expressed as $\vec{J} = \frac{d\vec{I}}{dA}$, where $d\vec{I}$ is the differential current element and $dA$ is the differential area element
• Volume current occurs when current flows through a three-dimensional conductor
  • Described by the volume current density $\vec{J}_v$, which is a vector field representing the current per unit volume at each point within the conductor
• Surface current occurs when current flows along a two-dimensional surface
  • Described by the surface current density $\vec{K}$, which is a vector field representing the current per unit length along the surface
  • Mathematically expressed as $\vec{K} = \int_{-t/2}^{t/2} \vec{J}_v dz$, where $t$ is the thickness of the surface
• Line current occurs when current flows along a one-dimensional path (thin wire)
  • Described by the line current $I$, which is a scalar quantity representing the total current flowing through the wire

Calculating Magnetic Fields from Current Distributions

• The magnetic field produced by a current distribution can be calculated using the Biot-Savart law
  • Biot-Savart law: $d\vec{B} = \frac{\mu_0}{4\pi} \frac{Id\vec{l} \times \hat{r}}{r^2}$, where $\mu_0$ is the permeability of free space, $I$ is the current, $d\vec{l}$ is the differential length element, and $\hat{r}$ is the unit vector pointing from the current element to the point of interest
• For complex current distributions, the magnetic field can be determined by integrating the Biot-Savart law over the entire current distribution
  • Example: For a circular loop of wire carrying a current $I$, the magnetic field at the center of the loop is given by $\vec{B} = \frac{\mu_0 I}{2R}\hat{z}$, where $R$ is the radius of the loop and $\hat{z}$ is the unit vector perpendicular to the plane of the loop

Magnetic Field Properties

Magnetic Field Lines and Flux Density

• Magnetic field lines are imaginary lines that represent the direction of the magnetic field at each point in space
  • Magnetic field lines always form closed loops and never cross each other
  • The density of magnetic field lines indicates the strength of the magnetic field (more dense lines represent a stronger field)
• Magnetic flux density $\vec{B}$ is a vector field that quantifies the strength and direction of the magnetic field at each point in space
  • Measured in units of teslas (T) or webers per square meter (Wb/m²)
  • Mathematically expressed as $\vec{B} = \frac{\Phi_B}{A}$, where $\Phi_B$ is the magnetic flux and $A$ is the area through which the flux passes

Symmetry Considerations in Magnetic Fields

• Symmetry can often be used to simplify the calculation of magnetic fields produced by current distributions
  • Example: For an infinitely long straight wire carrying a current $I$, the magnetic field at a distance $r$ from the wire is given by $\vec{B} = \frac{\mu_0 I}{2\pi r}\hat{\phi}$, where $\hat{\phi}$ is the unit vector in the azimuthal direction (tangent to a circle centered on the wire)
• Ampère's law, which relates the magnetic field to the current enclosed by a closed loop, can be used to calculate magnetic fields in situations with high symmetry
  • Ampère's law: $\oint \vec{B} \cdot d\vec{l} = \mu_0 I_{enc}$, where $I_{enc}$ is the current enclosed by the closed loop
  • Example: For an infinitely long solenoid with $N$ turns per unit length carrying a current $I$, the magnetic field inside the solenoid is given by $\vec{B} = \mu_0 NI\hat{z}$, where $\hat{z}$ is the unit vector along the axis of the solenoid

Current-Carrying Conductors

Finite Wire and Magnetic Field Calculations

• A finite wire carrying a current $I$ produces a magnetic field that can be calculated using the Biot-Savart law
  • The magnetic field at a point $P$ due to a finite wire segment can be determined by integrating the Biot-Savart law along the length of the wire
  • Example: For a straight wire of length $L$ carrying a current $I$, the magnetic field at a point $P$ located a distance $r$ from the center of the wire and perpendicular to its axis is given by $\vec{B} = \frac{\mu_0 I}{4\pi r} \left(\sin \theta_2 - \sin \theta_1\right)\hat{\phi}$, where $\theta_1$ and $\theta_2$ are the angles between the point $P$ and the ends of the wire, and $\hat{\phi}$ is the unit vector in the azimuthal direction
• The magnetic field produced by a finite wire can be used to analyze the force between two current-carrying wires (Ampère's force law)
  • Ampère's force law: $\vec{F} = I_1 \int d\vec{l_1} \times \vec{B_2}$, where $I_1$ is the current in wire 1, $d\vec{l_1}$ is the differential length element of wire 1, and $\vec{B_2}$ is the magnetic field produced by wire 2

Helmholtz Coils and Uniform Magnetic Fields

• Helmholtz coils are a pair of identical circular coils placed symmetrically along a common axis, used to produce a nearly uniform magnetic field in the region between the coils
  • The coils are separated by a distance equal to their radius $R$ and carry equal currents $I$ in the same direction
  • The magnetic field at the center of the Helmholtz coils is given by $\vec{B} = \left(\frac{4}{5}\right)^{3/2} \frac{\mu_0 NI}{R}\hat{z}$, where $N$ is the number of turns in each coil and $\hat{z}$ is the unit vector along the axis of the coils
• Helmholtz coils are often used in scientific experiments and applications that require a uniform magnetic field
  • Example: Helmholtz coils can be used to cancel the Earth's magnetic field in a small region, allowing for the study of magnetic materials or the calibration of sensitive magnetic field sensors without interference from the background field
