9.2 Ampère's law and its applications
3 min read•august 7, 2024
connects magnetic fields to their current sources, providing a powerful tool for analyzing electromagnetic systems. It relates the circulation of magnetic fields around closed loops to the enclosed currents, enabling calculations for various configurations.
This law finds practical applications in analyzing solenoids, toroids, and infinite current sheets. By leveraging symmetry and applying Ampère's law, we can determine magnetic field strengths in these important electromagnetic structures.
Ampère's Law Fundamentals
Mathematical Formulation and Concepts
Top images from around the web for Mathematical Formulation and Concepts
22.9 Magnetic Fields Produced by Currents: Ampere’s Law – College Physics: OpenStax View original
Is this image relevant?
Ampere-Maxwell — Electromagnetic Geophysics View original
Is this image relevant?
Magnetic field of a current loop – TikZ.net View original
Is this image relevant?
22.9 Magnetic Fields Produced by Currents: Ampere’s Law – College Physics: OpenStax View original
Is this image relevant?
Ampere-Maxwell — Electromagnetic Geophysics View original
Is this image relevant?
1 of 3
Top images from around the web for Mathematical Formulation and Concepts
22.9 Magnetic Fields Produced by Currents: Ampere’s Law – College Physics: OpenStax View original
Is this image relevant?
Ampere-Maxwell — Electromagnetic Geophysics View original
Is this image relevant?
Magnetic field of a current loop – TikZ.net View original
Is this image relevant?
22.9 Magnetic Fields Produced by Currents: Ampere’s Law – College Physics: OpenStax View original
Is this image relevant?
Ampere-Maxwell — Electromagnetic Geophysics View original
Is this image relevant?
1 of 3

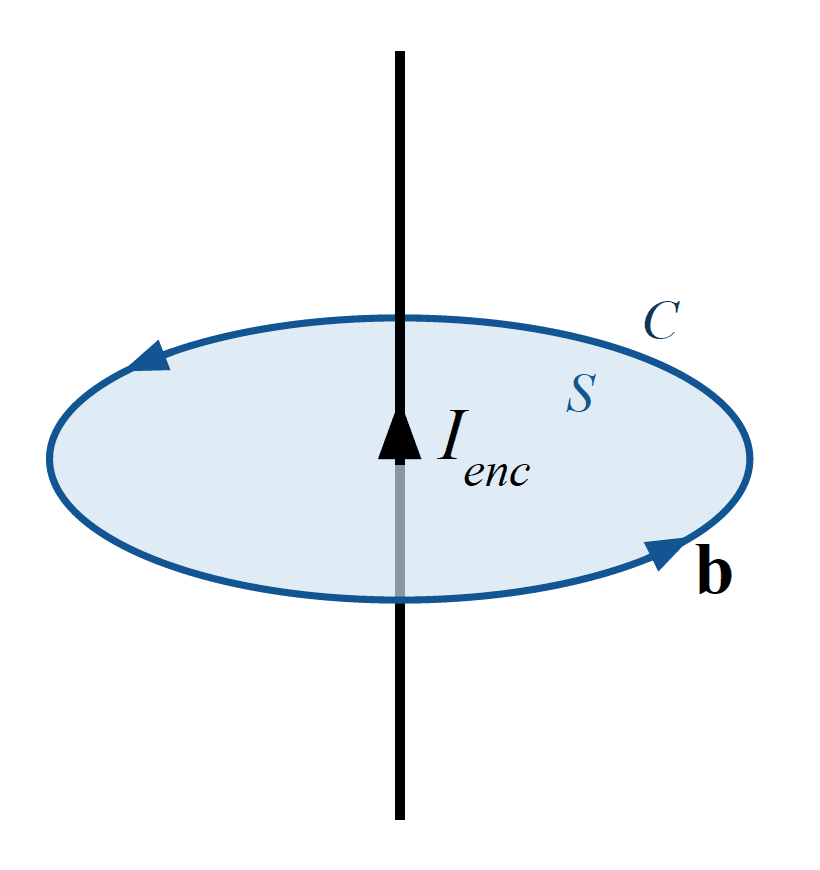

- Ampère's law states that the closed loop integral of the magnetic field around a path is equal to times the current enclosed by the path, expressed as
- The closed loop integral, denoted by , represents the integration of the magnetic field along a closed path
- Evaluating this integral yields the total magnetic field along the chosen path
- Current enclosed, , is the net current passing through the surface bounded by the closed loop
- Includes all currents, both free currents (in wires) and bound currents (in magnetized materials)
Amperian Loop and Right-Hand Rule
- An Amperian loop is an imaginary closed path used to calculate the magnetic field using Ampère's law
- The shape of the loop is chosen to take advantage of symmetry and simplify calculations (rectangular loop, )
- The right-hand rule determines the direction of the magnetic field in relation to the current
- Point your thumb in the direction of the current, and your fingers will curl in the direction of the magnetic field
- Helps establish the positive direction for the line integral in Ampère's law
Applications to Solenoids and Toroids
Solenoids
- A solenoid is a long, tightly wound coil of wire that produces a nearly uniform magnetic field inside the coil when an electric current passes through it
- The field inside the solenoid is strong and uniform, while the field outside is weak (ideal solenoid approximation)
- Ampère's law can be used to calculate the : , where is the number of turns per unit length and is the current
- The field is proportional to the current and the turn density, allowing for the creation of strong magnetic fields (electromagnets, MRI machines)
Toroids
- A toroid is a solenoid bent into a donut-like shape, forming a closed loop
- The magnetic field is confined within the toroid, with negligible field outside
- Ampère's law can be applied to find the magnetic field inside a toroid: , where is the total number of turns and is the distance from the center of the toroid
- Toroids and solenoids exhibit cylindrical symmetry, simplifying the application of Ampère's law
- The magnetic field is tangent to the circular path and constant in magnitude along the path (symmetric)
Infinite Sheet of Current
Magnetic Field Calculation
- An infinite sheet of current is a hypothetical, infinitely large plane with a uniform current density flowing in one direction
- Ampère's law can be used to determine the magnetic field produced by an infinite sheet of current
- The field is perpendicular to the sheet and has a magnitude of , where is the surface current density (current per unit width)
- The magnetic field is uniform and points in opposite directions on either side of the sheet (right-hand rule)
- The field does not depend on the distance from the sheet, as long as the sheet is infinitely large compared to the observation point
Key Terms to Review (15)
∮b·dl = μ₀i_enc: The equation ∮b·dl = μ₀i_enc represents Ampère's law, which relates the integrated magnetic field around a closed loop to the electric current passing through that loop. This relationship is fundamental in electromagnetism as it shows how magnetic fields are generated by electric currents. It also sets the stage for further understanding of how magnetic fields influence charged particles and currents.
Ampère's Law: Ampère's Law relates the integrated magnetic field around a closed loop to the electric current passing through that loop. It forms a fundamental principle in electromagnetism, showing how currents produce magnetic fields, and is a key tool in analyzing the magnetic effects of current distributions.
Biot-Savart law: The Biot-Savart law is a fundamental equation in electromagnetism that describes how electric currents produce magnetic fields. It relates the magnetic field generated at a point in space to the amount of current flowing through a conductor, the direction of that current, and the distance from the conductor to the point of interest. This law is essential for understanding the behavior of magnetic fields produced by various current distributions and serves as a foundation for further exploration of magnetic forces and torque on current-carrying loops.
Calculating magnetic fields: Calculating magnetic fields involves determining the strength and direction of magnetic forces generated by electric currents or magnetic materials. This process is crucial for understanding how magnets and currents interact, which is central to many applications in electromagnetism, including electric motors, generators, and inductive devices.
Circular loop: A circular loop is a closed loop of wire that carries an electric current, creating a magnetic field around it. This configuration is essential for understanding how magnetic fields are generated and manipulated by currents, as well as how these loops interact with external magnetic fields, leading to concepts such as torque and magnetic dipole moments.
I_enc: i_enc represents the total enclosed current through a surface in the context of Ampère's law, which relates magnetic fields to the currents that produce them. It plays a crucial role in understanding how magnetic fields are generated and how they interact with electric currents. By calculating i_enc, we can apply Ampère's law to determine the magnetic field around various current-carrying conductors.
Infinite straight wire: An infinite straight wire is a theoretical construct in electromagnetism representing a wire that carries an electric current and extends infinitely in both directions. This concept simplifies calculations and helps in understanding the behavior of magnetic fields generated by current-carrying wires, leading to important principles and laws in electromagnetism.
Magnetic field inside a solenoid: The magnetic field inside a solenoid is a uniform magnetic field created when an electric current flows through a coil of wire wrapped in a helical shape. This field is characterized by its strength and direction, which depend on the current and the number of turns per unit length of the solenoid, connecting it directly to Ampère's law, which relates the integrated magnetic field around a closed loop to the electric current passing through that loop.
Magnetic field strength: Magnetic field strength, often represented by the symbol 'H', is a measure of the intensity of a magnetic field produced by an electric current or a magnet. It describes how strong the magnetic effect is in a given area and is critical for understanding how magnetic fields interact with materials, such as currents and magnetic forces acting on charges. This concept is foundational when applying various laws and equations to determine magnetic fields generated by current-carrying conductors and their effects on surrounding materials.
Magnetic flux density: Magnetic flux density, often represented by the symbol $$B$$, is a measure of the strength and direction of a magnetic field in a given area. It quantifies how much magnetic flux passes through a unit area perpendicular to the direction of the magnetic field. Magnetic flux density is crucial for understanding how magnetic fields interact with electric currents and charges, particularly when applying Ampère's law to analyze magnetic fields created by current-carrying conductors.
Solenoid magnetic fields: Solenoid magnetic fields are the magnetic fields produced inside and around a solenoid, which is a coil of wire designed to create a uniform magnetic field when an electric current flows through it. These fields are crucial for understanding how electric currents generate magnetic effects and are foundational in applications such as electromagnets and inductors.
Steady current: Steady current refers to the flow of electric charge that remains constant over time, meaning that the magnitude and direction of the current do not change. This type of current is crucial in understanding various electrical phenomena, as it allows for predictable behavior in circuits and simplifies the application of Ampère's law, which relates magnetic fields to the electric currents that produce them.
Superposition Principle: The superposition principle states that when multiple influences or fields are present, the total effect at any point is the vector sum of the individual effects from each influence. This concept is crucial in understanding how electric fields and potentials combine from multiple sources, allowing for calculations and predictions in both electrostatics and magnetostatics.
Time-varying current: Time-varying current refers to an electric current that changes with time, as opposed to a steady direct current (DC) or alternating current (AC). This concept is crucial in understanding how electric and magnetic fields interact, especially in relation to the behavior of inductors and capacitors. When the current varies, it generates a changing magnetic field that can induce electromotive force (EMF) in nearby conductors, leading to the phenomena described by Ampère's law.
μ₀: The symbol μ₀ represents the permeability of free space, a fundamental physical constant that quantifies the ability of a vacuum to support the formation of magnetic fields. It serves as a key factor in Ampère's Law, which relates the magnetic field generated by an electric current to the current itself and its configuration. The value of μ₀ is crucial in many equations of electromagnetism, allowing for a better understanding of how magnetic fields interact with materials and how they can be manipulated.
