11.4 Coupled circuits and transformers
4 min read•august 7, 2024
and are essential in electromagnetic systems, allowing energy transfer between circuits without direct electrical connection. They rely on magnetic flux linkage, with transformers using this principle to step voltages up or down efficiently.
Understanding transformers is crucial for grasping how electrical energy is manipulated in power systems. This topic builds on previous concepts of inductance and magnetic fields, showing how they're applied in practical devices used throughout modern technology.
Transformer Basics
Components and Structure
Top images from around the web for Components and Structure

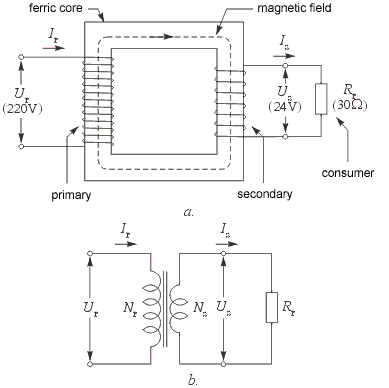

3.2 Transformers | Components of electronic devices View original
Is this image relevant?

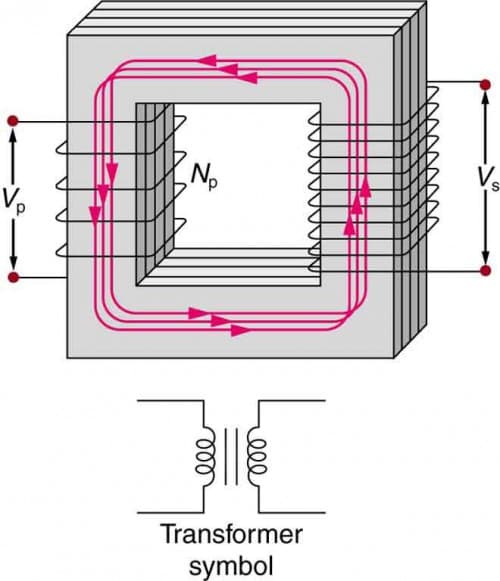

Transformers | Physics II View original
Is this image relevant?
electromagnetism - How do transformers work? - Physics Stack Exchange View original
Is this image relevant?
3.2 Transformers | Components of electronic devices View original
Is this image relevant?
Transformers | Physics II View original
Is this image relevant?
1 of 3
Top images from around the web for Components and Structure
3.2 Transformers | Components of electronic devices View original
Is this image relevant?
Transformers | Physics II View original
Is this image relevant?
electromagnetism - How do transformers work? - Physics Stack Exchange View original
Is this image relevant?
3.2 Transformers | Components of electronic devices View original
Is this image relevant?
Transformers | Physics II View original
Is this image relevant?
1 of 3
- Transformers consist of two or more coils of wire wound around a common core made of ferromagnetic material (iron, ferrite) which couples the coils magnetically
- is the coil connected to the power source or input signal
- Carries the alternating current that creates a changing magnetic flux in the core
- is the coil that provides the output voltage and current
- Induced voltage in the secondary winding is determined by the changing magnetic flux in the core and the number of turns in the coil
- Turns ratio () is the ratio of the number of turns in the primary winding () to the number of turns in the secondary winding ()
- Determines the voltage transformation ratio between input and output ()
- A has more turns in the secondary (higher output voltage) while a has fewer turns in the secondary (lower output voltage)
Ideal Transformer Characteristics
- An ideal transformer is a theoretical model that assumes perfect coupling between windings, no energy losses, and no leakage flux
- In reality, transformers have imperfect coupling, resistive losses, core losses, and some leakage flux
- In an ideal transformer, the input power equals the output power ()
- This implies that where and are the primary and secondary currents respectively
- Combining the power equation with the voltage ratio gives the current ratio:
- The current is stepped down in a step-up transformer and stepped up in a step-down transformer, opposite to the voltage transformation
Transformer Coupling
Mutual Inductance and Coupling Coefficient
- () quantifies the coupling between the primary and secondary windings
- Determined by the geometry of the coils, their proximity, and the properties of the core material
- Higher mutual inductance indicates stronger coupling and more efficient energy transfer
- () is a dimensionless quantity that describes the degree of between the windings
- Defined as where and are the self-inductances of the primary and secondary windings
- Ranges from 0 (no coupling) to 1 (perfect coupling)
- Practical transformers have coupling coefficients close to, but less than, 1 (typical values 0.95 to 0.99)
Leakage Flux and Its Effects
- Leakage flux is the portion of the magnetic flux generated by one winding that does not link to the other winding
- Caused by imperfect coupling between the windings and the finite permeability of the core
- Results in leakage inductance which appears in series with the windings
- Leakage flux reduces the of the transformer by not contributing to the energy transfer between windings
- Causes voltage drops across the leakage inductances, reducing the output voltage and regulation of the transformer
- Leakage inductance can be minimized by careful design of the winding geometry and core to maximize coupling
- Interleaving the primary and secondary windings or using a shell-type core structure can help reduce leakage flux
Transformer Losses and Applications
Types of Losses in Transformers
- Core losses occur in the transformer core due to the alternating magnetic flux
- Consist of hysteresis losses (due to the work done to reverse the magnetization of the core each cycle) and eddy current losses (due to induced currents circulating in the core)
- Can be reduced by using high-quality, thin laminations of core material to minimize eddy currents and by choosing materials with low hysteresis (silicon steel, ferrites)
- Copper losses (I^2^R losses) occur in the primary and secondary windings due to their finite resistance
- Proportional to the square of the current flowing through the windings
- Can be minimized by using larger cross-section wire or by operating at lower current levels
Impedance Matching with Transformers
- Transformers can be used to match the impedance of a source to the impedance of a load for maximum power transfer
- Maximum power is delivered to the load when its impedance equals the complex conjugate of the source impedance
- The impedance transformation ratio of a transformer is equal to the square of its turns ratio:
- A step-up transformer increases the load impedance seen by the source, while a step-down transformer decreases it
- transformers are commonly used in audio systems (to match low-impedance speakers to high-impedance amplifiers) and in radio-frequency circuits (to match antennas to transmitters or receivers)
- Allows maximum power transfer, improves signal quality, and reduces reflections caused by impedance mismatches
