15.5 The Photoelectric Effect

The photoelectric effect happens when light shining on a metal ejects electrons, but only if the light's frequency is high enough. The key equation is $K_{\text{max}} = hf - \phi$, where the maximum kinetic energy of an ejected electron equals the photon energy minus the metal's work function.

Why This Matters for the AP Physics 2 Exam

The photoelectric effect is one of the clearest examples of wave-particle duality, a central idea in modern physics. You will use it to explain why light has to behave as particles, not just waves, and to connect a photon's frequency to the energy it delivers.

This topic gives you good practice with the kind of reasoning the exam rewards: comparing two scenarios, predicting how changing one variable affects another, and justifying a claim with a physics principle. For example, you might be asked what happens to the stopping potential when you swap in a metal with a higher work function, then justify your answer using $K_{max} = hf - \phi$. That blend of calculation, representation, and clear written reasoning is exactly what the Mathematical Routines free-response question asks for, and the photoelectric effect is a natural fit for it.

more resources to help you study

practice multiple choiceFRQ practice & scoringcheatsheetsscore calculator

Key Takeaways

• Electrons are emitted from a photoactive material only when the incident light meets or exceeds the threshold frequency, no matter how bright the light is.
• The maximum kinetic energy of an ejected electron follows $K_{max} = hf - \phi$, connecting photon energy to the material's work function.
• The work function $\phi$ is the minimum energy needed to release an electron from the material.
• Photon energy depends on frequency through $E = hf$, so higher frequency light gives ejected electrons more kinetic energy.
• The fact that electron energy depends on frequency, not intensity, is evidence that light is made of quantized packets (photons).
• In a standard setup, two plates sit in a vacuum chamber and the voltage is adjusted until the current reaches zero, which lets you find the stopping potential and the work function.

Core Concepts

Electron Emission Fundamentals

The photoelectric effect happens when electromagnetic radiation strikes a photoactive material and causes electrons to be emitted. The energy of an incident photon transfers directly to an electron in the material, which is why this phenomenon points to the particle-like nature of light.

• Photoactive materials include certain metals, which release electrons when light hits them.
• The effect is the basic idea behind technologies like solar cells and light meters (an application, not required AP content).

Threshold Frequency

For any electrons to be emitted, the incident light must meet a minimum frequency called the threshold frequency.

• When the light's frequency equals or exceeds the threshold frequency, electrons are emitted regardless of intensity.
• If the frequency is below the threshold, no electrons are emitted even if the light is extremely bright.
• This contradicted classical wave theory, which predicted that enough intensity at any frequency should eventually free electrons.

For example, if a metal has a threshold frequency of $5 \times 10^{14} \text{ Hz}$, light at $6 \times 10^{14} \text{ Hz}$ will eject electrons, while light at $4 \times 10^{14} \text{ Hz}$ will not, no matter how bright the source.

Maximum Kinetic Energy and Frequency

The maximum kinetic energy of emitted electrons depends on both the frequency of the incident light and the material's work function.

• The work function $\phi$ is the minimum energy needed to remove an electron from the material.
• The relationship is: $K_{max} = hf - \phi$ where $h$ is Planck's constant ($6.63 \times 10^{-34} \text{ J}\cdot\text{s}$) and $f$ is the light frequency.

The photon delivers energy $hf$. Part of it ($\phi$) is "spent" freeing the electron from the surface, and whatever is left over becomes the electron's kinetic energy. That is why $K_{max}$ rises with frequency but not with brightness.

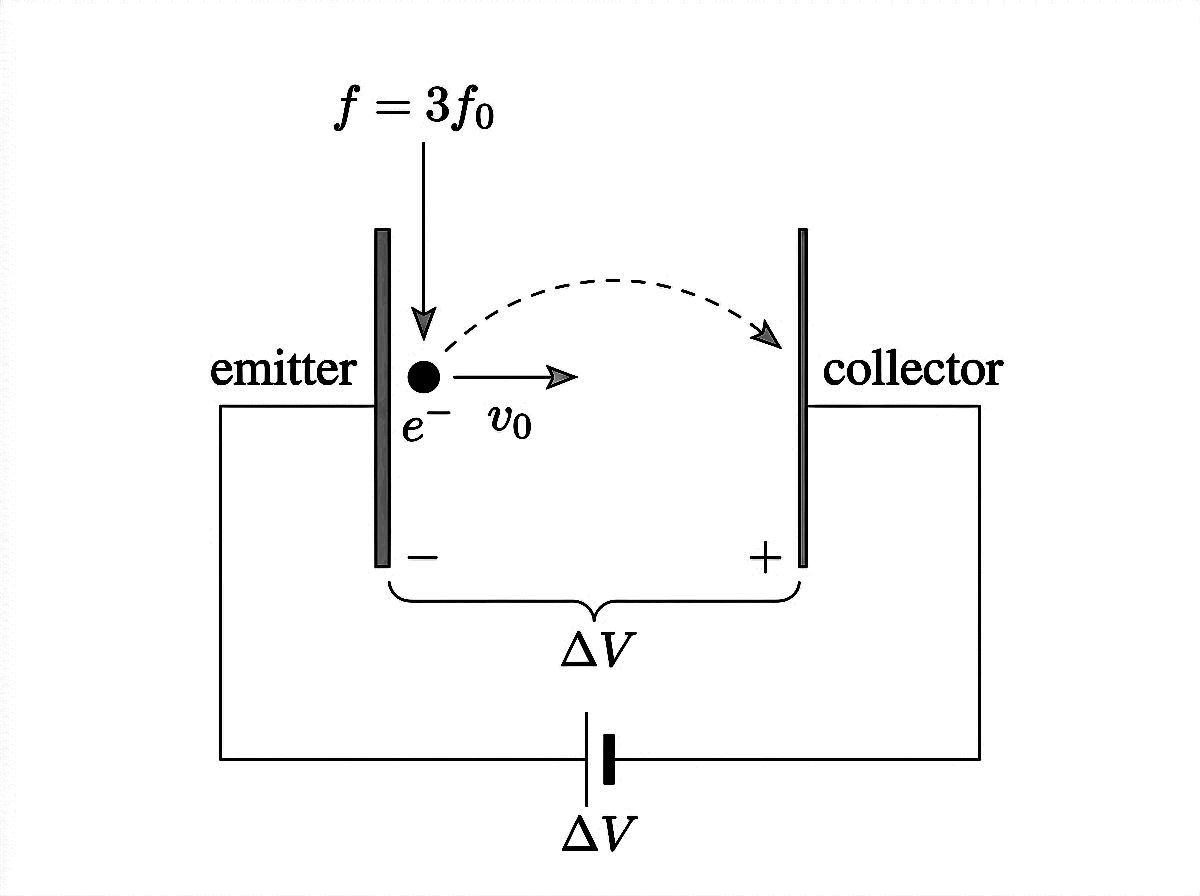

In a typical photoelectric effect experiment:

1. Two metal plates are placed in a vacuum chamber and connected to a variable voltage source.
2. One plate is illuminated with monochromatic light, ejecting electrons.
3. The potential difference between the plates is adjusted until the current drops to zero.
4. This stopping potential relates directly to the maximum kinetic energy of the emitted electrons.

Work Function of Materials

The work function is the minimum energy required to release an electron from a material's surface, and it differs from one material to another.

• Materials with lower work functions emit electrons more easily when light hits them.
• The work function sets the threshold frequency through $f_{threshold} = \phi/h$.

How to Use This on the AP Physics 2 Exam

Problem Solving

• Start every photoelectric calculation from $K_{max} = hf - \phi$. Identify which quantity you are solving for before plugging in.
• Watch your energy units. Photon energy in joules often needs converting to eV (divide by $1.60 \times 10^{-19}$), and work functions are usually given in eV.
• To find threshold frequency, set $K_{max} = 0$, which gives $f_{threshold} = \phi/h$. At threshold, the photon energy exactly equals the work function.
• The stopping potential $V_{stop}$ connects to kinetic energy through $K_{max} = eV_{stop}$, so a measured stopping voltage gives you the maximum electron energy.

Free Response

• When a question asks how changing the metal or the light affects results, name the variable, state the direction of change, and justify it with the equation. Example: a higher work function means a smaller $K_{max}$ for the same frequency, so the stopping potential decreases.
• If you are asked to find the work function from data, use a graph of $K_{max}$ versus $f$. The slope is $h$ and the vertical intercept is $-\phi$.
• For the Mathematical Routines question, keep your written explanation organized and tied to evidence. State the principle (energy conservation for a single photon), apply it, then check that your answer makes sense.

Common Trap

• Increasing intensity adds more photons but does not raise the energy of any single ejected electron. Do not let "brighter light" trick you into a larger $K_{max}$.

Practice Problem 1: Threshold Frequency

Solution

At the threshold frequency, the photon energy just equals the work function, so $f_{threshold} = \phi/h$.

First convert the work function from eV to joules: $\phi = 2.0 \text{ eV} \times 1.60 \times 10^{-19} \text{ J/eV} = 3.20 \times 10^{-19} \text{ J}$

Now calculate the threshold frequency: $f_{threshold} = \frac{3.20 \times 10^{-19} \text{ J}}{6.63 \times 10^{-34} \text{ J·s}} = 4.83 \times 10^{14} \text{ Hz}$

Light with a frequency below $4.83 \times 10^{14}$ Hz will not eject electrons from this metal.

Practice Problem 2: Maximum Kinetic Energy

Solution

Use the photoelectric effect equation: $K_{max} = hf - \phi$

First calculate the energy of the incident photons: $hf = 6.63 \times 10^{-34} \text{ J}\cdot\text{s} \times 7.0 \times 10^{14} \text{ Hz} = 4.64 \times 10^{-19} \text{ J}$

Convert to eV: $hf = 4.64 \times 10^{-19} \text{ J} \div 1.60 \times 10^{-19} \text{ J/eV} = 2.9 \text{ eV}$

Now subtract the work function: $K_{max} = 2.9 \text{ eV} - 1.8 \text{ eV} = 1.1 \text{ eV}$

The maximum kinetic energy of the emitted electrons is 1.1 eV.

Common Misconceptions

• "Brighter light gives electrons more energy." Brighter light at the same frequency just ejects more electrons; it does not increase any single electron's maximum kinetic energy. Only frequency changes $K_{max}$.
• "Any light will eventually free electrons if it is intense enough." If the frequency is below the threshold, no electrons come out no matter how long or how brightly you shine the light.
• "The work function is the kinetic energy of the electron." The work function is the energy spent getting the electron out. The leftover energy after subtracting $\phi$ becomes the electron's kinetic energy.
• "Stopping potential and work function are the same thing." Stopping potential is the voltage that brings the current to zero and measures $K_{max}$. The work function is a fixed property of the material.
• "Photon energy depends on intensity." Photon energy depends only on frequency through $E = hf$. Intensity tells you how many photons arrive, not how much energy each one carries.
