15.4 Blackbody Radiation

Blackbody radiation is the electromagnetic energy an object gives off because of its temperature. The two equations you need are Wien's law ($\lambda_{\text{max}} = \frac{b}{T}$), which tells you the peak wavelength, and the Stefan Boltzmann law ($P = A\sigma T^4$), which gives total emitted power.

Why This Matters for the AP Physics 2 Exam

This topic is part of Modern Physics, one of the higher-weighted units on the exam. Blackbody radiation is one of the key phenomena that classical physics could not explain, which makes it a strong example of why quantum theory was needed. On the exam you may need to calculate peak wavelength or emitted power, read and interpret intensity-versus-wavelength curves, and explain in words why a quantized model fits the data when a classical model fails. That kind of clear, evidence-based explanation is exactly the type of reasoning the first free-response question rewards, since it asks you to use models, justify claims, and write an organized analysis.

more resources to help you study

practice multiple choiceFRQ practice & scoringcheatsheetsscore calculator

Key Takeaways

• All matter above absolute zero spontaneously converts some internal thermal energy into electromagnetic energy.
• A blackbody is an idealized object that absorbs all radiation hitting it, and at constant temperature it emits energy at the same rate.
• A blackbody's continuous spectrum depends only on temperature, and it is usually graphed as intensity per unit wavelength versus wavelength.
• Classical physics failed to model this spectrum; Planck's law works because it assumes light energy is quantized.
• Wien's law: peak wavelength decreases as temperature increases, $\lambda_{\text{max}} = \frac{b}{T}$.
• Stefan-Boltzmann law: emitted power depends on surface area and on temperature to the fourth power, $P = A\sigma T^4$.

Electromagnetic Radiation from Temperature

Thermal Energy to Electromagnetic Energy

All matter spontaneously converts a portion of its internal thermal energy into electromagnetic energy. This happens on its own, without any outside trigger, as the particles in the material release energy as photons.

• The emission happens across a wide range of wavelengths.
• It occurs for any object above absolute zero.
• The intensity and the wavelength distribution depend on the object's temperature.

Blackbody Radiation Model

A blackbody is an idealized model of matter that absorbs all radiation that falls on it, no matter the wavelength or direction. It is a useful reference because its behavior is simple and predictable.

• When a blackbody is in equilibrium at a constant temperature, it must emit energy at the same rate it absorbs energy.
• The radiation a blackbody emits depends only on its temperature, not on what it is made of or its shape.
• Real objects only approximate this ideal, with some materials coming closer than others.

Blackbody Spectrum Characteristics

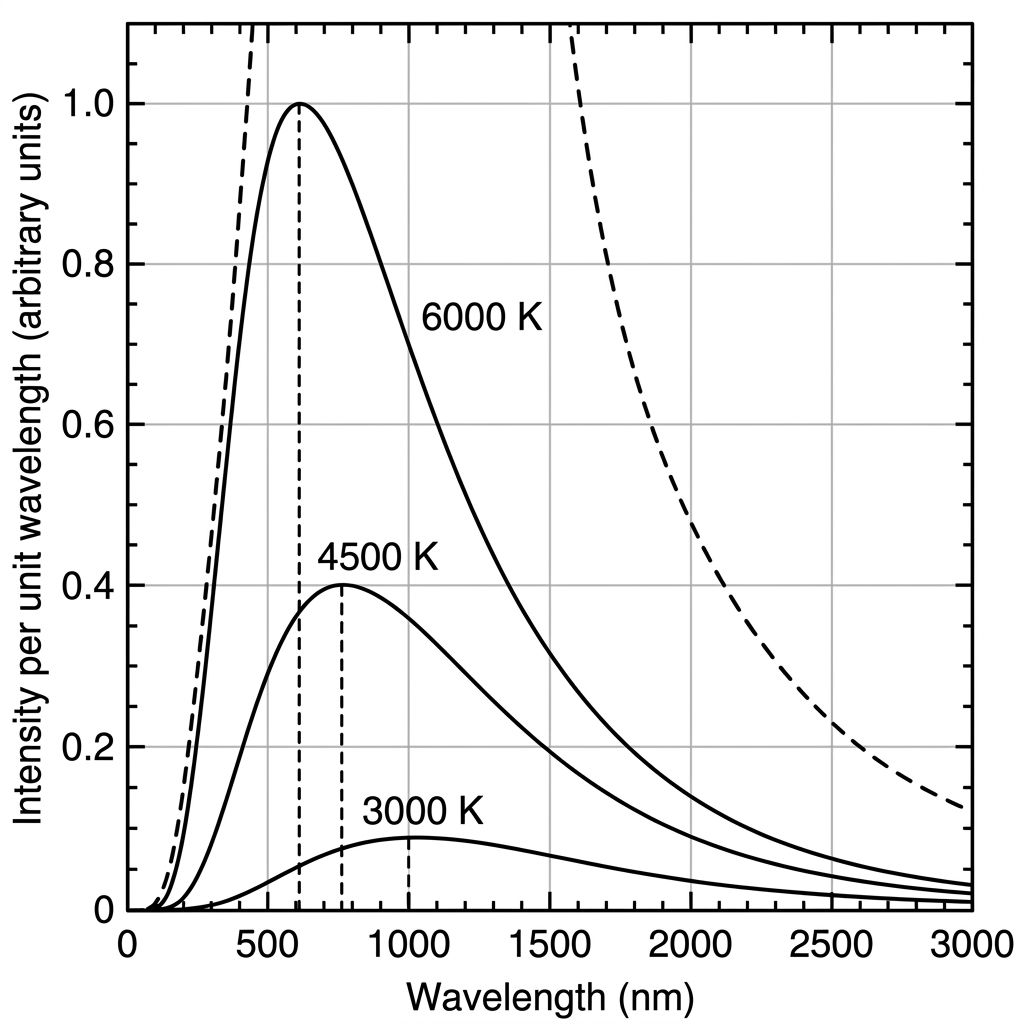

A blackbody emits a continuous spectrum whose shape depends only on its temperature. The spectrum is usually shown by plotting intensity per unit wavelength against wavelength, which produces a curve with a clear peak.

• As temperature increases, the peak shifts toward shorter wavelengths and the total energy emitted rises sharply.
• The curve is continuous, not a set of discrete lines like an emission spectrum.

Planck's Law vs Classical Physics

The distribution of a blackbody's intensity cannot be modeled using only classical physics. Classical predictions broke down at shorter wavelengths, a failure often called the ultraviolet catastrophe.

Planck resolved this by assuming energy is not continuous but comes in discrete packets called quanta.

• Planck's law correctly describes the entire spectrum because it assumes the energy of light is quantized.
• The energy of a photon is directly proportional to its frequency: $E = hf$ where $h$ is Planck's constant.
• This quantum approach was a starting point for quantum physics.

The Rayleigh-Jeans law and the ultraviolet catastrophe are helpful background for understanding why classical physics failed, but the core AP idea is simply that the spectrum requires a quantized model (Planck's law) rather than a classical one.

Wien's Law for Peak Wavelength

Wien's displacement law describes how the peak wavelength of a blackbody's spectrum shifts with temperature. Astronomers use this to estimate the temperature of distant stars from their light.

$\lambda_{\text{max}} = \frac{b}{T}$

Here $b$ is Wien's displacement constant (about $2.898 \times 10^{-3}$ m·K) and $T$ is the absolute temperature in Kelvin.

• As temperature increases, the peak wavelength gets shorter.
• As temperature decreases, the peak wavelength gets longer.
• This is why a heated object glows red first, then shifts toward orange, yellow, and eventually blue-white as it gets hotter.

Stefan-Boltzmann Law for Power

The Stefan-Boltzmann law gives the total power a blackbody emits across all wavelengths. It connects temperature directly to how much energy an object radiates.

$P = A \sigma T^{4}$

Where:

• $P$ is the total power emitted in watts
• $A$ is the surface area in square meters
• $\sigma$ is the Stefan-Boltzmann constant ($5.67 \times 10^{-8} \, \text{W} \, \text{m}^{-2} \, \text{K}^{-4}$)
• $T$ is the absolute temperature in Kelvin

Because power depends on the fourth power of temperature:

• Doubling the temperature increases the emitted power by a factor of 16.
• The law covers radiation across all wavelengths, not just visible light.

How to Use This on the AP Physics 2 Exam

Problem Solving

• For peak wavelength questions, use $\lambda_{\text{max}} = \frac{b}{T}$. Make sure temperature is in Kelvin, and watch the direction of the shift: higher T means shorter peak wavelength.
• For total power questions, use $P = A\sigma T^4$. If you are given a sphere, find the surface area with $A = 4\pi r^2$ before plugging in.
• Use the fourth-power relationship for quick ratio reasoning. If temperature triples, power increases by a factor of $3^4 = 81$.
• Keep units consistent and carry them through, since wavelength answers in nm and power answers in watts are easy to check for reasonableness.

Free Response

• Be ready to read an intensity-versus-wavelength graph and identify the peak, compare two curves at different temperatures, or describe how the curve changes as temperature rises.
• If asked to explain why quantum theory is needed, state clearly that classical physics fails to predict the spectrum and that Planck's law works because it assumes light energy is quantized.
• When you justify a claim, connect the equation to its meaning. For example, link the shorter peak wavelength to a higher temperature using Wien's law, not just a memorized result.

Common Trap

• Wien's law and the Stefan-Boltzmann law describe different things. One is about where the peak is; the other is about total power. Pick based on what the question asks.

Practice Problem 1: Wien's Displacement Law

Solution

Use Wien's displacement law:

$\lambda_{\text{max}} = \frac{b}{T}$

With $b = 2.898 \times 10^{-3}$ m·K and $T = 5,800$ K:

$\lambda_{\text{max}} = \frac{2.898 \times 10^{-3} \text{ m·K}}{5,800 \text{ K}} = 5.00 \times 10^{-7} \text{ m} = 500 \text{ nm}$

This peak (500 nm) falls in the green part of the visible spectrum. However, stars emit across the entire spectrum, and a star at about this temperature (like our Sun) appears yellow-white because of the mix of all wavelengths.

Practice Problem 2: Stefan-Boltzmann Law

Solution

Use the Stefan-Boltzmann law:

$P = A \sigma T^{4}$

First find the surface area of the sphere: $A = 4\pi r^2 = 4\pi(0.1 \text{ m})^2 = 0.1257 \text{ m}^2$

Now calculate the power: $P = 0.1257 \text{ m}^2 \times 5.67 \times 10^{-8} \text{ W/m}^2\text{K}^4 \times (400 \text{ K})^4$ $P = 0.1257 \text{ m}^2 \times 5.67 \times 10^{-8} \text{ W/m}^2\text{K}^4 \times 25.6 \times 10^9 \text{ K}^4$ $P = 182.3 \text{ W}$

The blackbody radiates approximately 182 watts.

Common Misconceptions

• A blackbody is not literally black. It is a perfect absorber, but when hot it glows brightly. The "black" refers to absorbing all incoming radiation, not its appearance.
• The blackbody spectrum is continuous, not a series of sharp lines. Emission and absorption line spectra come from atomic energy transitions, which is a different topic.
• The peak wavelength is not the only wavelength emitted. A blackbody radiates across all wavelengths; the peak is just where intensity per unit wavelength is greatest.
• Higher temperature does not just brighten the object. It also shifts the peak to shorter wavelengths, which changes the color, not only the intensity.
• The Stefan-Boltzmann law depends on temperature to the fourth power, not the first power, so small temperature changes cause large changes in radiated power.
• Temperature in these equations must be in Kelvin. Using Celsius will give wrong answers for both Wien's law and the Stefan-Boltzmann law.
