11.2 Simple Circuits

A circuit is one or more electrical loops made of components like batteries, resistors, bulbs, switches, capacitors, and meters. For charge to flow you need a closed loop, and the way components are arranged controls how the circuit behaves. These ideas help you read schematics, identify open and closed circuits, and explain how circuit elements affect charge flow.

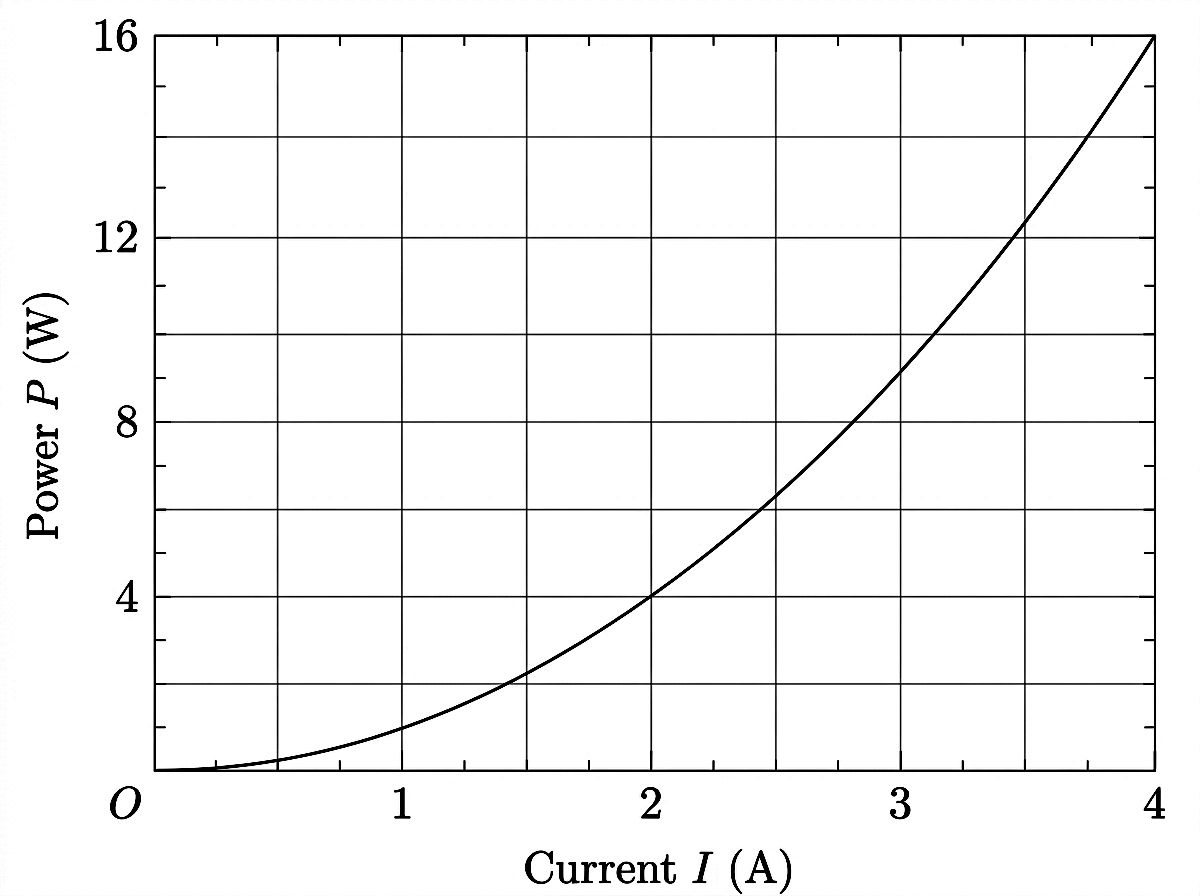

The circuit vocabulary and schematic reading you pick up here carry through the rest of the circuits unit, including the later calculations of current, resistance, potential difference, and power. The exam also expects experimental reasoning, and real lab setups are described and analyzed through these diagrams.

How Loops and Arrangement Control Charge Flow

• A circuit is built from electrical loops that can include wires, batteries, resistors, lightbulbs, capacitors, switches, ammeters, and voltmeters.
• A closed loop lets charge flow; an open circuit blocks it; a short circuit gives charge a path with no change in potential difference.
• One circuit element can belong to more than one loop at the same time.
• A circuit's properties depend on the physical arrangement of its parts, not just which parts are present.
• Schematic diagrams use standard symbols, and variable elements get a diagonal strikethrough arrow.
• Unless told otherwise, treat every schematic as drawn with conventional current (the direction positive charge would move).

Behavior of a Circuit

Circuits are systems that let electric charge flow through connected components. They are the basis of every electronic device, from a flashlight to a computer.

Common circuit elements include:

• Wires (conductors)
• Batteries (sources of potential difference, or emf)
• Resistors (oppose the flow of charge)
• Lightbulbs (resistive elements that convert electrical energy to light)
• Capacitors (store charge and energy)
• Switches (open or close the path)
• Ammeters (measure current)
• Voltmeters (measure potential difference)

A circuit must form a complete loop for charge to flow. That gives three states to recognize:

• Closed circuit: a complete path, so charges can flow.
• Open circuit: a break in the path, so charges cannot flow (like a switch that is off).
• Short circuit: a path where charges can flow with no change in potential difference. In practice this is usually a very low resistance path that bypasses other components and can carry a large current.

Many real circuits have multiple loops, and a single component can sit on more than one loop at once. That shared arrangement is what makes more complex circuits interesting to analyze.

Reading Schematic Diagrams

Schematic diagrams are the standard way to represent circuits. They use set symbols so a component looks the same no matter its real-world shape or size.

Common symbols include:

• Battery: a long line and a short parallel line
• Resistor: a zigzag or a rectangle
• Switch: a break in the wire with a movable contact
• Capacitor: two parallel plates
• Lightbulb: a lamp symbol
• Ammeter: a circle labeled A
• Voltmeter: a circle labeled V

Two ideas matter most when you read a schematic:

• The physical arrangement of the parts helps determine the circuit's electrical properties, so where elements sit relative to each other changes how the circuit acts.
• Variable elements, like an adjustable resistor, are shown by adding a diagonal strikethrough arrow across the standard symbol.

Reading Schematics and Justifying Circuit Claims

Problem Solving:

• Start by checking whether the circuit is closed, open, or short. That single check tells you whether current can flow before you do any math.
• Trace each loop with your finger or pencil. Identifying shared elements early helps you set up later analysis correctly.
• Match every symbol to its component so you do not misread a capacitor as a battery or a voltmeter as an ammeter.

Free Response:

• Use precise terms. Say "potential difference" when you mean voltage and "current" when you mean rate of charge flow, since written responses are scored on correct vocabulary.
• When you justify a claim, point to the physical arrangement. For example, explain that current cannot flow because the loop is broken at the open switch, not just that "the circuit is off."
• Define a short circuit as a path with no change in potential difference, not simply a "dangerous" or "broken" circuit.

Common Trap:

• Conventional current is assumed unless a problem says otherwise, even though the actual moving charges in common wires are electrons.

Practice Problem 1: Circuit Components

Solution

Draw one closed loop with the battery, switch, and three resistors all in series. One possible schematic is:

</>Code
   ┌──o/ o──/\/\/──/\/\/──/\/\/──┐
   │                              │
   └──────────────| |─────────────┘

When the switch is open, the loop is broken and no current flows. When the switch is closed, the loop is complete, so current flows through all three resistors.

Practice Problem 2: Circuit Analysis

Solution

When the switch is open, the circuit contains a break, so it is an open circuit and charges cannot flow through the interrupted path. When the switch is closed, the path is complete, so it is a closed circuit and charges can flow. A single circuit element can be part of multiple electrical loops if that element lies on a section of the circuit shared by more than one complete path in the schematic.

Common Misconceptions

• Misconception: Batteries store charge.
  Actually: Batteries supply a potential difference (emf) that pushes charge through a circuit; they do not hold a reservoir of charge waiting to be used.
• Misconception: Current gets used up as it goes around a loop.
  Actually: Charge is conserved. The same current passes through elements in a single series path; energy is transferred, but charge is not consumed.
• Misconception: A short circuit means the circuit is broken.
  Actually: A short circuit is the opposite of a break. It is a path that lets charge flow with no change in potential difference, often a low resistance shortcut that can carry a large current.
• Misconception: Conventional current is the direction electrons move.
  Actually: Conventional current points the way positive charge would move, which is opposite to the actual electron flow in common wires.
• Misconception: Only the parts in a circuit matter.
  Actually: The physical arrangement of those parts also shapes the circuit's behavior, so the same components wired differently can act very differently.
