9.3 Thermal Energy Transfer and Equilibrium

Thermal energy transfer is how heat moves between systems in thermal contact because of temperature differences—energy flows spontaneously from higher to lower temperature until thermal equilibrium (same temperature) is reached (CED 9.3.A.3–4). The three mechanisms are conduction (direct atom-to-atom collisions; described by Fourier’s law and thermal conductivity), convection (bulk fluid motion carrying heat), and radiation (electromagnetic emission; governed by the Stefan–Boltzmann law and emissivity). In collisions, higher-energy atoms are more likely to give energy to lower-energy ones, so after many collisions temperatures equalize (CED 9.3.A.3.i–ii). Newton’s law of cooling describes approximate heat-loss rates when the temperature difference is small. On the AP exam, expect questions asking you to ID mechanisms, apply heat-flow laws (qualitative and simple quantitative), and reason about equilibrium (no net heat flow). For a focused review and practice questions on Topic 9.3, see the Fiveable study guide (https://library.fiveable.me/ap-physics-2-revised/unit-1/3-thermal-energy-transfer-and-equilibrium/study-guide/B2UC1jOK2bqVTMMH) and extra practice problems (https://library.fiveable.me/practice/ap-physics-2-revised).

Because temperature measures the average kinetic energy of particles, when two systems touch the faster (hotter) particles collide with slower (colder) ones and—on average—transfer energy to them. Microscopically, individual collisions can give energy either way, but statistically energy is much more likely to go from higher-energy atoms to lower-energy atoms (CED 9.3.A.3.i). After many collisions the most probable outcome is both systems having the same temperature, so no net transfer—that’s thermal equilibrium (CED 9.3.A.4). The reason you never see spontaneous heat flow from cold to hot is statistical: such a reversal would decrease total entropy and is overwhelmingly improbable (see Topic 9.6 on the Second Law). This is exactly what AP asks you to describe: identify conduction/convection/radiation as mechanisms (CED 9.3.A.2) and explain the net, spontaneous direction of transfer (CED 9.3.A.3). For a focused review, check the Topic 9.3 study guide (https://library.fiveable.me/ap-physics-2-revised/unit-1/3-thermal-energy-transfer-and-equilibrium/study-guide/B2UC1jOK2bqVTMMH) and practice problems (https://library.fiveable.me/practice/ap-physics-2-revised).

Conduction, convection, and radiation are the three thermal processes that move energy between systems in thermal contact (CED 9.3.A.2): - Conduction: energy transfer by microscopic collisions and vibrations between atoms/molecules in direct contact (solids or between touching materials). It follows a temperature gradient; heat flux ∝ thermal conductivity and ∇T (Fourier’s law). Conduction moves energy from higher-T to lower-T until thermal equilibrium (CED 9.3.A.3). - Convection: bulk motion of a fluid (liquid or gas) carrying heat. Natural convection is driven by density differences from temperature changes; forced convection uses a pump or fan. Convection combines conduction at boundaries and fluid flow. - Radiation: energy transfer by electromagnetic waves; no medium needed. Emission rate depends on T^4 (Stefan–Boltzmann law) and surface emissivity. Radiation can transfer heat between bodies not in contact. These are the CED mechanisms you’ll be tested on. For a focused review, see the Topic 9.3 study guide (https://library.fiveable.me/ap-physics-2-revised/unit-1/3-thermal-energy-transfer-and-equilibrium/study-guide/B2UC1jOK2bqVTMMH) and practice problems (https://library.fiveable.me/practice/ap-physics-2-revised).

Thermal equilibrium means two objects in thermal contact end up at the same temperature so there’s no net heat flow between them. If they start at different temperatures, energy transfers spontaneously (by conduction, convection, or radiation) from the hotter system to the cooler one until their temperatures match. “Thermal contact” just means heat can move between the systems; “heating” and “cooling” describe the direction of that transfer. Microscopically, faster (higher-energy) atoms are more likely to give energy to slower ones; after enough collisions the most probable state is equal temperature. On the AP exam this is Topic 9.3 (learning objective 9.3.A and EK 9.3.A.3–4): expect questions about direction of spontaneous heat flow and conditions for no net transfer. For a quick review, see the Topic 9.3 study guide (https://library.fiveable.me/ap-physics-2-revised/unit-1/3-thermal-energy-transfer-and-equilibrium/study-guide/B2UC1jOK2bqVTMMH) and practice problems (https://library.fiveable.me/practice/ap-physics-2-revised).

Short answer: not always. "Thermal contact" means two systems can exchange energy by thermal processes (conduction, convection, or radiation)—not just that they're physically touching. If they touch, conduction is often the mechanism, but two bodies can be in thermal contact across a gap via radiation (or a fluid between them can allow convection). Energy flows spontaneously from the higher-temperature system to the lower-temperature one until thermal equilibrium is reached (no net transfer)—that’s exactly what Topic 9.3 in the CED says (9.3.A.1–9.3.A.4). On the exam you might need to identify the mode (conduction/convection/radiation) and predict direction of heat flow or final temperature. For a quick CED-aligned review, see the Topic 9.3 study guide (https://library.fiveable.me/ap-physics-2-revised/unit-1/3-thermal-energy-transfer-and-equilibrium/study-guide/B2UC1jOK2bqVTMMH). For extra practice, check Fiveable’s AP Physics 2 practice problems (https://library.fiveable.me/practice/ap-physics-2-revised).

Two objects have reached thermal equilibrium when they’re in thermal contact and no net energy is being transferred between them by conduction, convection, or radiation (CED 9.3.A.2–4). Practically, that means both objects have the same temperature (measured with a thermometer) and heat flow between them is zero—microscopically, atomic collisions no longer favor energy transfer from one to the other. In experiments you’ll see temperatures stop changing (steady state), and models like Newton’s law of cooling predict zero net heat flux at equilibrium. If you’re solving AP problems, check: (1) are they in thermal contact, (2) do their temperatures equalize, and (3) is net Q̇ = 0? For more examples and exam-style practice, see the Topic 9.3 study guide (https://library.fiveable.me/ap-physics-2-revised/unit-1/3-thermal-energy-transfer-and-equilibrium/study-guide/B2UC1jOK2bqVTMMH) and Unit 9 overview (https://library.fiveable.me/ap-physics-2-revised/unit-9). For extra practice, try the problem set (https://library.fiveable.me/practice/ap-physics-2-revised).

At the atomic level, heat flow happens because faster (higher-energy) atoms or molecules in the hot object bump into slower ones in the cold object and transfer kinetic energy. Those collisions are random, but statistically energy is more likely to go from high-energy atoms to low-energy atoms (CED 9.3.A.3.i). In solids this direct contact transfer is conduction (phonons and electron collisions carry energy); in fluids bulk motion (convection) and microscopic collisions move energy; and objects also exchange energy by electromagnetic radiation (photons) even without contact (CED 9.3.A.2). After many microscopic energy exchanges the two bodies reach the most probable state where their temperatures equalize and there’s no net transfer—thermal equilibrium (CED 9.3.A.3.ii and 9.3.A.4). For AP review, see the Topic 9.3 study guide (https://library.fiveable.me/ap-physics-2-revised/unit-1/3-thermal-energy-transfer-and-equilibrium/study-guide/B2UC1jOK2bqVTMMH) and practice problems (https://library.fiveable.me/practice/ap-physics-2-revised).

When two materials touch (thermal contact), their atoms collide and exchange kinetic energy. Collisions are random, but an atom that already has more kinetic energy (higher temperature) is more likely to give up energy in a collision because it has larger speeds and transfers more momentum/energy on average. Over many collisions, energy flow is overwhelmingly from the higher-energy side to the lower-energy side—that’s conduction (CED 9.3.A.2–3). Statistically, there are far more microscopic ways (microstates) for energy to be spread evenly than kept uneven, so the most probable outcome is equal temperatures (thermal equilibrium, CED 9.3.A.3.ii). No magic force picks direction—it’s just probability + the mechanics of collisions that make net transfer go from hot to cold (CED 9.3.A.3.i). For more practice and review on Topic 9.3, see the Fiveable study guide (https://library.fiveable.me/ap-physics-2-revised/unit-1/3-thermal-energy-transfer-and-equilibrium/study-guide/B2UC1jOK2bqVTMMH) and practice problems (https://library.fiveable.me/practice/ap-physics-2-revised).

Heating vs cooling just describes the direction of thermal energy flow between systems in thermal contact. By the CED: heating = thermal energy transferred into a system; cooling = thermal energy transferred out of a system. Energy moves by conduction, convection, or radiation and it happens spontaneously from the higher-temperature body to the lower-temperature body (so collisions transfer energy from higher-energy atoms to lower-energy atoms). If there’s no net transfer anymore, the two systems are in thermal equilibrium. On the AP, you should be able to identify which body gains or loses energy, name the transfer process (conduction/convection/radiation), and use that to justify heat flow direction (Topic 9.3, EK 9.3.A.*). For extra practice and quick review, see the Topic 9.3 study guide (https://library.fiveable.me/ap-physics-2-revised/unit-1/3-thermal-energy-transfer-and-equilibrium/study-guide/B2UC1jOK2bqVTMMH) and thousands of practice problems (https://library.fiveable.me/practice/ap-physics-2-revised).

Thermal energy transfer happens because two systems at different temperatures are in thermal contact: energy moves spontaneously from the higher-temperature system to the lower-temperature one (CED 9.3.A.3). That transfer can occur by conduction (through materials, governed locally by Fourier’s law and the temperature gradient), convection (bulk fluid motion carrying heat), or radiation (electromagnetic emission, described by the Stefan–Boltzmann law and emissivity)—all keywords on the CED. Microscopically, faster (higher-energy) atoms are more likely to give energy in collisions to slower atoms, so after many exchanges both bodies tend toward the same temperature. When no net thermal energy flows, the systems are in thermal equilibrium (CED 9.3.A.4). For quick review and AP-aligned practice on these ideas, see the Topic 9.3 study guide (https://library.fiveable.me/ap-physics-2-revised/unit-1/3-thermal-energy-transfer-and-equilibrium/study-guide/B2UC1jOK2bqVTMMH), the Unit 9 overview (https://library.fiveable.me/ap-physics-2-revised/unit-9), and thousands of practice problems (https://library.fiveable.me/practice/ap-physics-2-revised).

“Spontaneous” just means it happens by itself—no outside work required. For thermal processes that means energy moves from the hotter body to the colder one (conduction, convection, radiation) because on the microscopic level high-energy atoms are more likely to give energy to lower-energy atoms during collisions (CED 9.3.A.3.i). After many such exchanges the most probable outcome is both bodies reach the same temperature—thermal equilibrium—and then there’s no net heat flow (CED 9.3.A.3.ii and 9.3.A.4). Thinking in thermodynamics terms, spontaneous heat flow increases the number of accessible microstates (entropy), so the overall direction is toward greater disorder without doing work. On the AP exam you should be able to describe this qualitatively and name the mechanisms (conduction, convection, radiation)—see the Topic 9.3 study guide for a focused review (https://library.fiveable.me/ap-physics-2-revised/unit-1/3-thermal-energy-transfer-and-equilibrium/study-guide/B2UC1jOK2bqVTMMH). Want extra practice? Try problems at (https://library.fiveable.me/practice/ap-physics-2-revised).

All three modes often happen together. Examples: - Boiling water on a stove: conduction from the burner through the pot (thermal conductivity, Fourier’s-law heat flux), convection in the water as hot fluid rises and cold sinks (buoyancy-driven heat transfer), and radiation from the hot burner and pot surface to the room (Stefan–Boltzmann, emissivity). - A person near a campfire: conduction through touching a warm rock, convection from hot air currents rising off the fire, and radiation—you feel infrared from the flames even without touching them. - A car engine: conduction through metal parts, coolant convection carrying heat away, and radiation from hot surfaces to surroundings. These are examples of systems in thermal contact where energy spontaneously flows from hotter to cooler parts until thermal equilibrium (CED 9.3.A.2–A.4). For more concrete practice and AP-style problems on Topic 9.3, check the topic study guide (https://library.fiveable.me/ap-physics-2-revised/unit-1/3-thermal-energy-transfer-and-equilibrium/study-guide/B2UC1jOK2bqVTMMH) and thousands of practice questions (https://library.fiveable.me/practice/ap-physics-2-revised).

Thermal equilibrium is reached when no net heat flows between systems—i.e., they share the same temperature. For typical calorimetry problems use conservation of energy: sum of heat changes = 0. Practically: 1) Identify isolated systems in thermal contact (metal + water, etc.). 2) Write Q = m c ΔT for each piece (use L for latent heat if a phase change occurs). Heat lost is negative, heat gained positive. 3) Set ΣQ = 0 and solve for the final temperature Tf. Example: a hot metal (m1, c1, T1) dropped in cooler water (m2, c2, T2): m1 c1 (Tf − T1) + m2 c2 (Tf − T2) = 0 → solve for Tf. If heat exchange with environment matters, include conduction/convection/radiation terms (Newton’s law of cooling or Stefan–Boltzmann as appropriate) and solve differential equations for approach to equilibrium. For AP-style problems focus on energy balance with Q = mcΔT and note phase-change terms when needed. For more examples and practice see the Topic 9.3 study guide (https://library.fiveable.me/ap-physics-2-revised/unit-1/3-thermal-energy-transfer-and-equilibrium/study-guide/B2UC1jOK2bqVTMMH) and Unit 9 review (https://library.fiveable.me/ap-physics-2-revised/unit-9).

Because collisions randomly exchange energy, the system explores many possible microscopic energy distributions (microstates). Energy transfer is more likely from a faster (higher-energy) atom to a slower one, so over many collisions high-energy atoms lose energy and low-energy atoms gain it. Statistically, the vast majority of microstates correspond to both systems having the same average energy per particle—i.e., the same temperature—so that arrangement is the most probable. In thermodynamic language, equilibrium is the macrostate with the largest number of microstates (maximum multiplicity) and therefore maximum entropy; once reached there’s no net flow of thermal energy between systems (CED 9.3.A.3.i–ii and 9.3.A.4). This idea shows up on the exam when you’re asked to describe spontaneous heat flow and define thermal equilibrium. For a focused review, see the Topic 9.3 study guide (https://library.fiveable.me/ap-physics-2-revised/unit-1/3-thermal-energy-transfer-and-equilibrium/study-guide/B2UC1jOK2bqVTMMH) and extra practice problems (https://library.fiveable.me/practice/ap-physics-2-revised).

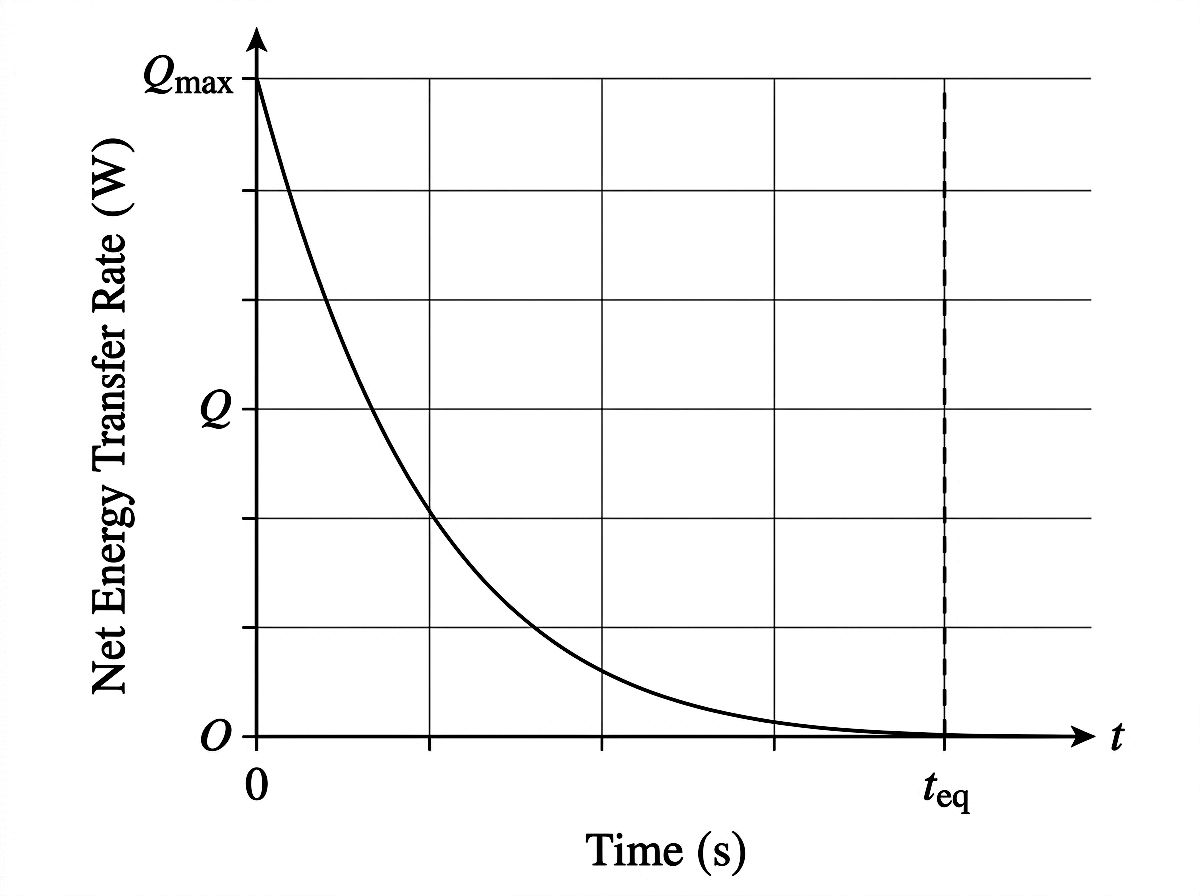

The rate of thermal energy transfer falls as the two systems’ temperatures approach each other and goes to zero when they reach thermal equilibrium. Thermal energy spontaneously flows from the higher-temperature system to the lower-temperature one (CED 9.3.A.3); as the temperature difference ΔT shrinks the driving “push” for heat weakens. For conduction (Fourier’s law) the heat flux ∝ temperature gradient (q = −kA dT/dx), so smaller ΔT → smaller q. For convective/bulk exchange Newton’s law of cooling often applies for small ΔT: rate ∝ ΔT. For radiation the net power follows the Stefan–Boltzmann dependence: Pnet ∝ (T1^4 − T2^4), which also shrinks as T1 → T2. At thermal equilibrium there’s no net transfer (CED 9.3.A.4). For AP review and practice on these ideas, see the Topic 9.3 study guide (https://library.fiveable.me/ap-physics-2-revised/unit-1/3-thermal-energy-transfer-and-equilibrium/study-guide/B2UC1jOK2bqVTMMH) and more practice problems (https://library.fiveable.me/practice/ap-physics-2-revised).
