11.1 Electric Current

Electric current is the rate at which charge passes through a cross section of a wire, written as $I = \frac{\Delta q}{\Delta t}$ and measured in amperes. Charge moves through a circuit in response to a potential difference (emf), and the direction of conventional current is defined as the way positive charge would move, even though electrons are usually the real charge carriers.

Current is the starting point for Unit 11, where power, resistance, Ohm's law, and full circuit analysis all build on how current relates to charge, time, and potential difference. Free-response questions reward defending a claim with evidence, so back each claim with the exact meaning of current, potential difference, and emf.

Current as Rate of Charge Flow and Its Direction

• Current is the rate of charge flow through a cross-sectional area: $I = \frac{\Delta q}{\Delta t}$, with current in amperes (A), charge in coulombs (C), and time in seconds (s).
• Charge moves in a circuit because of an electric potential difference, also called electromotive force or emf ($\varepsilon$).
• Current is not a vector, but it has a direction tied to how positive charge would move, not to any coordinate axes.
• Conventional current points in the direction positive charge would flow; in common circuits the actual carriers are electrons moving the opposite way.
• If the net current in a wire is zero, there is no net motion of charge carriers, but individual carriers still move due to random thermal motion.

Movement of Electric Charges

Electric current is the flow of charge through a material. When charge moves through a conductor like a wire, you measure that movement as current.

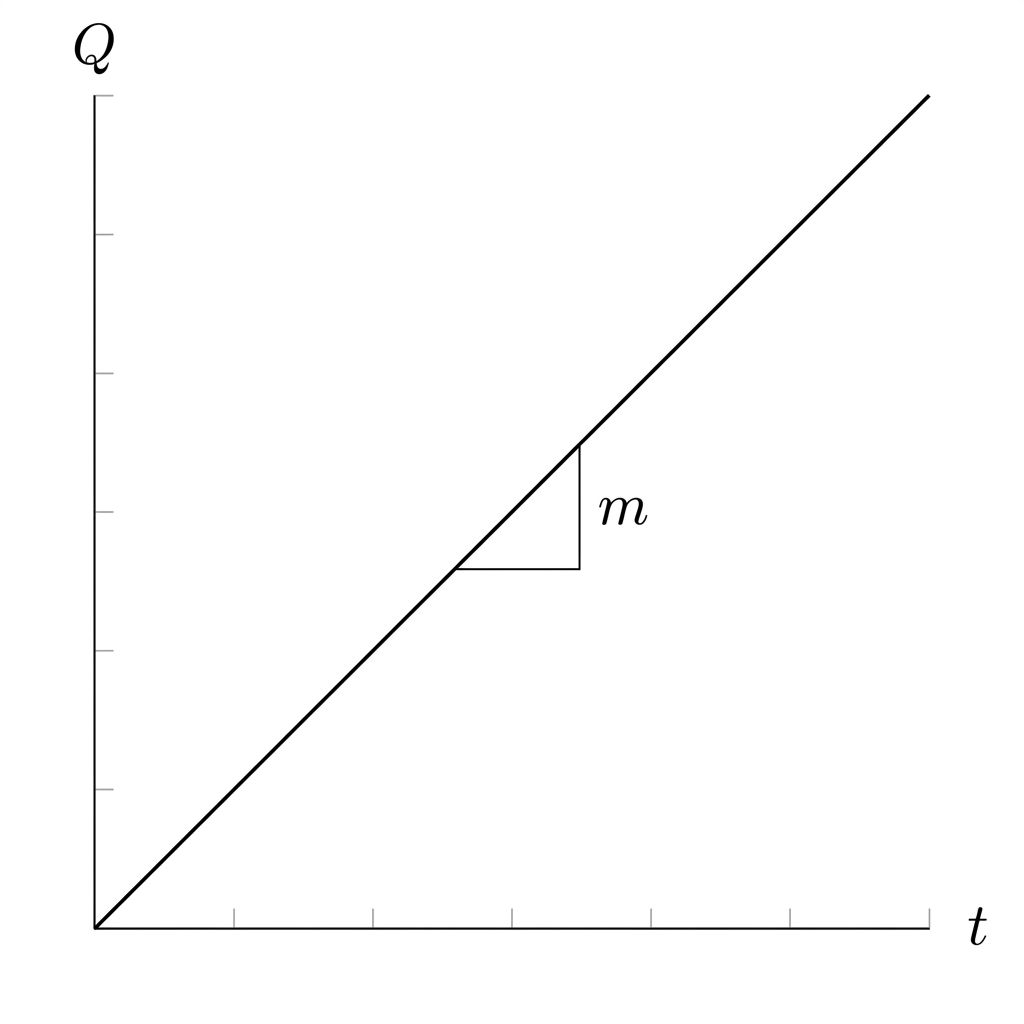

Current is defined as the amount of charge passing through a cross-sectional area of a wire over a time interval:

$I = \frac{\Delta q}{\Delta t}$

where:

• $I$ is the current, measured in amperes (A)
• $\Delta q$ is the amount of charge, measured in coulombs (C)
• $\Delta t$ is the time interval, measured in seconds (s)

Electric potential difference, sometimes called electromotive force (emf, $\varepsilon$), is what drives charge through a circuit. It is similar to how a pressure difference pushes water through a pipe.

Even when the net current in a section of wire is zero, individual charge carriers still move with random thermal motion. They just have no net direction of travel, so no charge is passing through on average.

Current Direction

Current has a defined direction, but that direction is not tied to any spatial coordinate system. It only describes how positive charge would move.

• Conventional current is defined as the direction positive charge would move.
• In most common circuits, the actual charge carriers are electrons, which carry negative charge.
• Those electrons physically move opposite to the conventional current direction.
• This convention was set before scientists discovered that electrons are the moving charges in most circuits.

If conventional current flows clockwise in a circuit, the electrons are actually moving counterclockwise. For most basic circuit problems, you only need to track conventional current, but knowing the difference helps when a question specifically asks about electron motion.

Calculating Current and Justifying Claims About Charge Flow

Problem Solving: When you see charge and time given, reach for $I = \frac{\Delta q}{\Delta t}$. Watch your units: charge in coulombs, time in seconds, current in amperes. The equation also rearranges to find total charge ($\Delta q = I \Delta t$) when current and time are given.

Free Response: Free-response questions often ask you to describe or justify, not just calculate. Use precise terms: "current" is a rate of charge flow, "potential difference" drives that flow, and "emf" is the potential difference a source supplies. Do not mix these words up, since the explanation points usually depend on correct vocabulary.

Common Trap: If a question describes electron flow, remember conventional current points the opposite way. Read carefully to see whether the prompt is asking about electron motion or conventional current direction.

Practice Problem 1: Current Calculation

Solution

Use the definition of current as the rate of charge flow:

$I = \frac{\Delta q}{\Delta t}$

Given:

• Charge that passed through: $\Delta q = 24$ C
• Time interval: $\Delta t = 8$ s

Substituting:

$I = \frac{24 \text{ C}}{8 \text{ s}} = 3 \text{ A}$

The current in the wire is 3 amperes.

Practice Problem 2: Current Direction

Solution

Conventional current is defined as the direction positive charge would flow, which is opposite to the direction of electron flow.

Since electrons flow from the negative terminal through the resistor to the positive terminal, the conventional current flows:

• From the positive terminal of the battery
• Through the resistor
• To the negative terminal of the battery

This is opposite to the actual movement of electrons in the circuit.

Common Misconceptions

• Misconception: Current gets used up as it flows.
  Actually: Current is a rate of charge flow, and charge is conserved. The same current passes through a single series path; it is not consumed by components.
• Misconception: Batteries store charge.
  Actually: A battery supplies a potential difference (emf) that drives charge around the circuit; it does not hold a reservoir of charge waiting to be released.
• Misconception: Current is a vector.
  Actually: Current has a direction but is not a vector quantity. Its direction describes how positive charge would move, not an axis in space.
• Misconception: Zero current means electrons stop moving.
  Actually: If the net current is zero, there is no net motion of charge, but individual carriers still move randomly due to thermal motion.
• Misconception: Electrons move in the direction of conventional current.
  Actually: In common circuits the electrons move opposite to conventional current, since they carry negative charge.
