14.9 Thin Film Interference

AP Physics 2 14.9 Thin Film Interference Summary

Thin-film interference happens when light reflects off both the top and bottom surfaces of a film whose thickness is close to the wavelength of light, and those two reflected waves combine. Whether you get bright (constructive) or dark (destructive) reflection depends on the film thickness, the wavelength of light in the film, and any 180-degree phase flips that happen at each boundary. This explains soap bubble colors, oil-slick rainbows, and antireflection coatings.

more resources to help you study

practice multiple choiceFRQ practice & scoringcheatsheetsscore calculator

Why This Matters for the AP Physics 2 Exam

Thin-film interference pulls together several wave ideas you already know: reflection, refraction, phase, and interference. On the AP Physics 2 exam, you may need to explain why a film looks a certain color, predict whether reflected light gets brighter or darker, or reason about how an antireflection coating works. Because this topic rewards diagrams and clear cause-and-effect reasoning, it fits well with questions that ask you to describe a physical situation, connect representations, and justify a claim using wave behavior. Keep the analysis to light hitting the film straight on (normal incidence), since that is the only case you are expected to handle quantitatively.

Key Takeaways

• Light at a boundary splits into transmitted, reflected, and absorbed parts; the two reflected waves (from the top and bottom film surfaces) are what interfere.
• A reflected ray flips phase by 180 degrees when it bounces off a medium with a higher index of refraction, and it does not flip when it bounces off a lower-index medium.
• Refraction does not change a wave's phase, so only reflections add phase flips.
• The wavelength inside the film shrinks to lambda/n, and for normal incidence the extra path is twice the film thickness (2t).
• To decide constructive vs destructive, combine the 2t path difference with any phase flips at the two surfaces.
• A simple antireflection coating is one quarter of the wavelength thick (in the film) and has an index between air and the surface it covers.

How the Pieces Fit Together

Light at a Boundary

When light hits the boundary between two media, three things can happen:

• Transmitted light passes into the new medium, usually bending due to refraction.
• Reflected light bounces back, following the law of reflection.
• Absorbed light is taken in and turned into other energy, usually heat.

How much goes each way depends on the two media, especially their indices of refraction.

Phase Change on Reflection

A reflected ray may pick up a 180-degree phase change (a half-wavelength shift) depending on the indices involved:

• Reflecting off a higher-index medium: 180-degree phase flip.
• Reflecting off a lower-index medium: no phase flip.

Examples:

• Light in air reflecting off water (low to high index) flips 180 degrees.
• Light in water reflecting off air (high to low index) does not flip.

This flip is often the deciding factor between constructive and destructive interference.

Phase During Refraction

Refraction does not add a phase shift. When light passes from one medium into another, its speed and direction change, but its phase stays continuous. That means only the reflections in a thin-film setup contribute phase flips, which makes the bookkeeping simpler.

How Thin-Film Interference Works

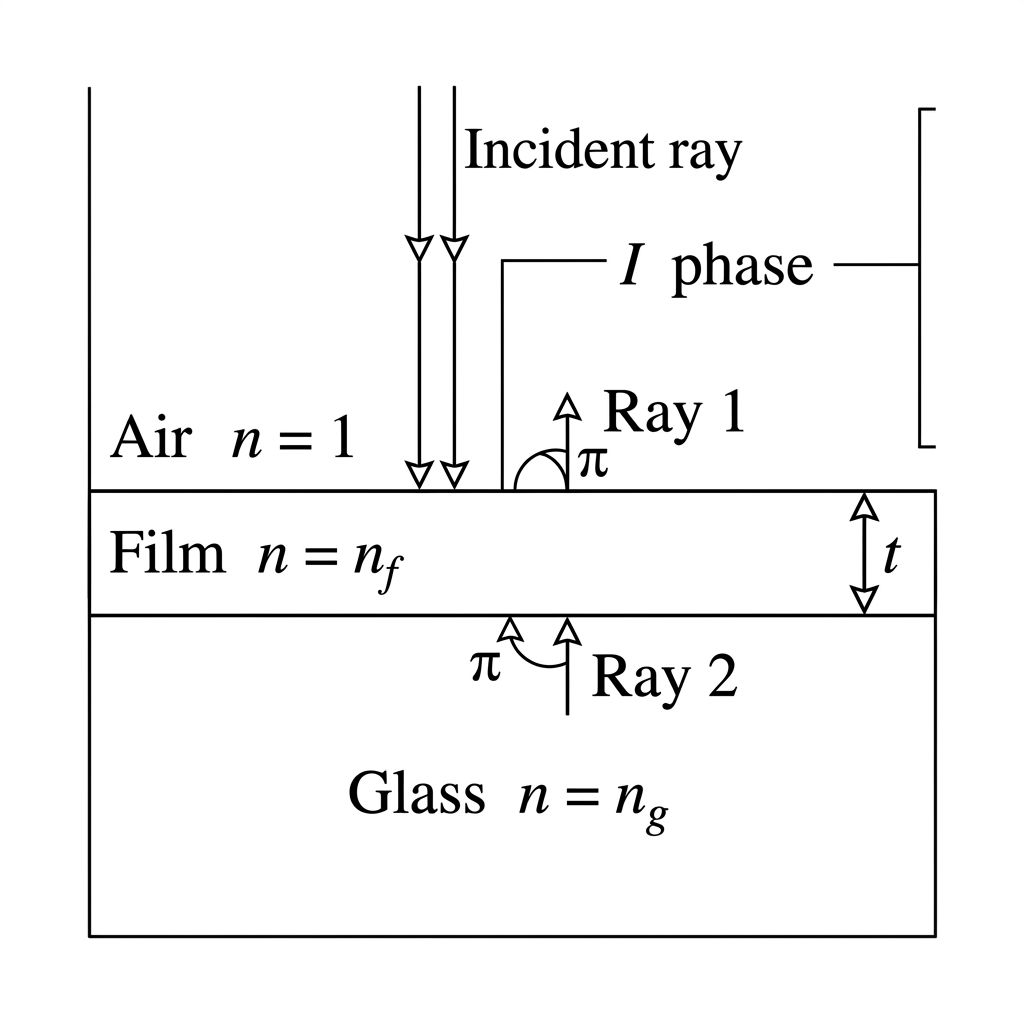

Thin-film interference happens when the film's thickness is comparable to the wavelength of light. Part of the light reflects off the first surface, while the rest enters the film, reflects off the second surface, and comes back out. These two reflected waves then overlap and add by superposition into one combined wave.

• Constructive interference: waves in phase, amplitudes add, brighter reflection.
• Destructive interference: waves out of phase, amplitudes subtract, dimmer or canceled reflection.

What Controls the Interference

• Film thickness: sets the path length difference between the two reflected waves.
• Wavelength in the film: equals lambda/n, so different colors interfere differently at the same thickness.
• Indices of refraction: decide whether each reflection flips phase.
• Angle of incidence: changes the path through the film.

For normal incidence (light hitting straight on), the path length difference is just twice the film thickness, 2t.

Everyday Examples

• Soap bubbles: a film of changing thickness reflects different colors at different spots. As the film thins from gravity and evaporation, the colors shift.
• Oil slicks: a thin oil layer on water produces colored bands tied to the oil's varying thickness.
• Antireflection coatings: the coating thickness is chosen so reflected light interferes destructively. The simplest version is one quarter of the wavelength thick in the coating, with an index between that of air and the surface beneath. These coatings show up on camera lenses, eyeglasses, and solar panels.

How to Use This on the AP Physics 2 Exam

Problem Solving

Use a consistent checklist so you do not miss a phase flip:

1. Track the index of refraction at each interface to find which reflections flip 180 degrees.
2. Convert the wavelength into the film using lambda_film = lambda_air / n.
3. Write the path difference as 2t for normal incidence.
4. Combine 2t with the phase flips to pick the right condition. If the two reflections have a net half-wavelength difference from phase flips, the math for "bright" and "dark" swaps compared with no phase flips.

Free Response

When a question asks you to explain a color or a coating, state your reasoning in order: identify each reflection's phase behavior, compare the path difference to the wavelength in the film, then conclude constructive or destructive. A quick labeled sketch of the two reflected rays helps justify your claim.

Common Trap

Watch for cases where both reflections flip phase (like an antireflection coating where index increases at both surfaces). The two flips cancel each other out, so the leftover condition comes only from the 2t path difference.

Practice Problem 1: Soap Bubble Interference

Solution

To see why yellow appears bright, check whether constructive interference occurs.

Identify the phase changes:

• Air-soap interface: light goes from lower n (air, n=1) to higher n (soap, n=1.33), so there is a 180-degree phase change.
• Soap-air interface: light goes from higher n (soap) to lower n (air), so there is no phase change.

Find the wavelength in the soap film: $\lambda_{soap} = \lambda_{air}/n_{soap} = 580 \text{ nm}/1.33 = 436.1 \text{ nm}$

Because exactly one reflection flips phase, constructive interference needs the path difference (2t) to equal: $2t = (m + 1/2)\lambda_{soap}$ where m is an integer

Check the thickness: $2(217.5 \text{ nm}) = 435 \text{ nm}$

This is very close to $\lambda_{soap}$, which matches $m = 1$ and satisfies the condition for constructive interference. So yellow light appears bright at this location.

Practice Problem 2: Antireflective Coating

Solution

An antireflection coating needs destructive interference between light reflected from the air-coating interface and the coating-lens interface.

Phase changes:

• Air-coating interface: light goes from lower n (air, n=1) to higher n (coating, n=1.38), so there is a 180-degree phase change.
• Coating-lens interface: light goes from lower n (coating) to higher n (lens, n=1.5), so there is another 180-degree phase change.

Since both reflections flip the same amount, they cancel out, leaving no net phase difference from reflection. So destructive interference requires the path difference to create a half-wavelength shift.

For minimum thickness: $2t = \lambda_{coating}/2$

Find the wavelength in the coating: $\lambda_{coating} = \lambda_{air}/n_{coating} = 550 \text{ nm}/1.38 = 398.55 \text{ nm}$

Therefore: $t = \lambda_{coating}/4 = 398.55 \text{ nm}/4 = 99.64 \text{ nm}$

The minimum thickness is approximately 99.6 nm.

Common Misconceptions

• "The film thickness alone tells you bright or dark." It does not. You must combine the 2t path difference with the phase flips at both surfaces.
• "Every reflection flips the phase by 180 degrees." Only reflections off a higher-index medium flip. Reflecting off a lower-index medium adds no flip.
• "Refraction changes the phase too." Refraction does not add a phase shift; only reflections do.
• "Use the wavelength in air for the film calculation." Inside the film, the wavelength is lambda/n, so use the shorter, in-film wavelength when comparing to 2t.
• "Constructive interference always means 2t equals a whole number of wavelengths." That is only true when the phase flips cancel or are both absent. With a single 180-degree flip, the constructive and destructive conditions swap.
• "Antireflection coatings absorb the light." They work by destructive interference of reflected light, redirecting energy into transmission rather than absorbing it.
