The Doppler effect is the change in observed wave frequency when a source and observer move relative to each other. If they move closer together, the observed frequency is higher than the source's rest frequency; if they move apart, the observed frequency is lower. For AP Physics 2 you only need a qualitative understanding, no Doppler calculations.

more resources to help you study

practice multiple choice FRQ practice & scoring cheatsheets score calculator

Why This Matters for the AP Physics 2 Exam

The Doppler effect connects wave behavior to motion, which is a common theme on the AP Physics 2 exam. You will most often see it tested through reasoning and explanation: predicting whether observed frequency goes up or down, comparing scenarios with different relative speeds, and justifying your answer using how wavefronts bunch up or spread out.

This topic also fits the exam's focus on models and representations. You might interpret a diagram of wavefronts around a moving source, or write a clear verbal explanation linking relative motion to a frequency or pitch change. Because the AP exam keeps this topic qualitative, your job is to explain cause and effect accurately, not crunch numbers.

Key Takeaways

The Doppler effect links three things: the source's rest frequency, the observed frequency, and the relative velocity between source and observer.
Source and observer moving closer means observed frequency is greater than the rest frequency.
Source and observer moving apart means observed frequency is less than the rest frequency.
No relative motion means observed frequency equals the rest frequency.
A greater relative velocity produces a larger difference between observed and rest frequency.
AP Physics 2 only requires qualitative reasoning here, so focus on direction of change and why, not equations.

How the Doppler Effect Works

The Doppler effect happens when there is relative motion between a wave source and an observer. It applies to all waves, including sound, light, and water waves.

Rest frequency is the frequency the source emits when there is no relative motion between source and observer.
Observed frequency is the frequency the observer actually detects, which can differ from the rest frequency.
The difference between them is the Doppler shift.

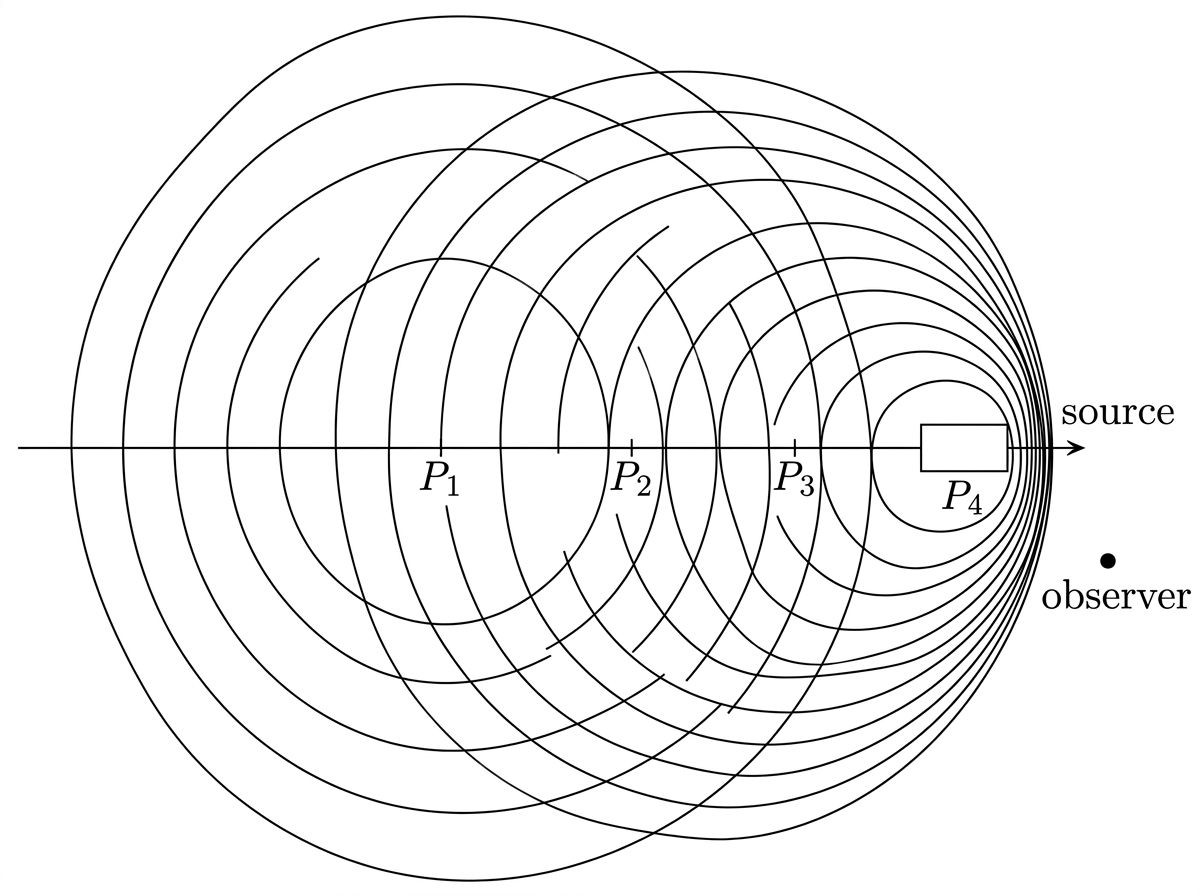

When source and observer move toward each other, the wavefronts bunch together, so the observer receives more wave crests per second and detects a higher frequency. When they move apart, the wavefronts spread out, so the observer receives fewer crests per second and detects a lower frequency.

A useful detail: the size of the Doppler shift grows with the relative velocity. Faster relative motion means a bigger gap between observed and rest frequency. When source and observer have the same velocity (no relative motion between them), the observed frequency equals the rest frequency.

For sound, frequency relates to pitch, so an approaching source sounds higher pitched and a receding source sounds lower pitched.

Direction of Change

Moving closer together: wavefronts compress, observed frequency is higher than rest frequency. Faster approach means a bigger increase.
Moving apart: wavefronts stretch, observed frequency is lower than rest frequency. Faster recession means a bigger decrease.
No relative motion: observed frequency equals rest frequency.

Applications

These are real-world uses of the Doppler effect, not separate AP requirements:

Radar systems that measure vehicle speeds.
Astronomical measurements of star and galaxy motion (redshift and blueshift).
Medical ultrasound that measures blood flow direction and speed.
Weather radar that tracks precipitation and storm movement.

🚫 Boundary Statement

AP Physics 2 only requires a qualitative understanding of the Doppler effect, without quantitative calculations.

How to Use This on the AP Physics 2 Exam

Free Response

When you explain a Doppler scenario, name the relative motion first, then state the direction of the frequency change, then justify it with wavefront spacing. For example: the source moves toward the observer, so the observed frequency is higher because the wavefronts arrive more often. Tie pitch to frequency for sound questions.

Problem Solving

Even though the math stays qualitative, you can still compare scenarios. If two sources approach at different speeds, the faster one produces the larger frequency increase. Watch for the case where source and observer move together at the same velocity, since that gives no shift at all.

Common Trap

Read carefully for what is moving and in which direction. A question may describe a moving observer instead of a moving source, but the rule is the same: closing the gap raises the observed frequency, and opening the gap lowers it.

Practice Problem 1: Ambulance Siren

An ambulance with its siren blaring at a constant frequency drives past you as you stand on a sidewalk. Describe what happens to the pitch (frequency) of the siren that you hear as the ambulance approaches, passes by, and then moves away from you. Explain why this happens in terms of the Doppler effect.

Solution

As the ambulance approaches, the pitch you hear is higher than the actual siren frequency. The ambulance moving toward you compresses the sound waves, so the wave crests reach your ears more often than they would if the ambulance were standing still.

At the moment the ambulance passes, the pitch drops. This is the transition point where the ambulance switches from moving toward you to moving away from you.

After it passes and moves away, the pitch is lower than the actual siren frequency. The ambulance now moving away stretches the sound waves, so the wave crests reach your ears less often.

This whole pattern is the Doppler effect: the observed frequency depends on the relative motion between the source and observer.

Practice Problem 2: Astronomical Applications

Astronomers observe that the spectral lines from a distant galaxy appear shifted toward the red end of the spectrum compared to the same spectral lines measured in a laboratory on Earth. What can astronomers conclude about this galaxy's motion relative to Earth, and what principle explains this observation?

Solution

A shift toward the red end of the spectrum means longer wavelengths and lower frequencies, so astronomers conclude the galaxy is moving away from Earth. This is called redshift.

The Doppler effect explains it. As the galaxy moves away, the light waves it emits are stretched from our point of view, which increases the wavelength and lowers the frequency, shifting the spectral lines toward red.

A larger redshift means the galaxy is receding faster. This use of the Doppler effect helped reveal that the universe is expanding.

Common Misconceptions

The source frequency does not actually change. The siren keeps emitting the same frequency. Only the observed frequency changes because of relative motion.
It is not the speed alone that matters, but relative motion. If the source and observer move at the same velocity, there is no shift even if both are moving fast.
Approaching does not mean louder. A higher observed frequency means higher pitch, not greater loudness. Loudness depends on amplitude, not the Doppler shift.
The effect works in both directions. A moving observer with a stationary source produces a Doppler shift too. What matters is whether the gap between them is closing or opening.
Redshift means moving away, not turning red. The light shifts toward longer wavelengths; the object is not literally glowing red.
AP keeps this qualitative. You are not expected to calculate an exact observed frequency, so do not invent a formula on the exam.

Vocabulary

The following words are mentioned explicitly in the College Board Course and Exam Description for this topic.

Term	Definition
Doppler effect	The change in observed frequency of a wave due to relative motion between the source and observer.
observed frequency	The frequency of a wave as measured by an observer, which may differ from the rest frequency due to relative motion.
relative velocity	The velocity of the wave source with respect to the observer.
rest frequency	The frequency of a wave emitted by a source at rest relative to the observer.
wave source	An object or system that emits waves.

Frequently Asked Questions

What is the Doppler effect in AP Physics 2?

The Doppler effect is the change in observed frequency caused by relative motion between a wave source and an observer. AP Physics 2 focuses on qualitative reasoning about whether the observed frequency increases or decreases.

What happens when a wave source moves toward an observer?

When the source and observer move closer together, wavefronts bunch up. The observer detects a higher frequency than the source's rest frequency.

What happens when a wave source moves away from an observer?

When the source and observer move apart, wavefronts spread out. The observer detects a lower frequency than the source's rest frequency.

How does relative velocity affect the Doppler effect?

A greater relative velocity creates a larger difference between the observed frequency and the rest frequency. If source and observer have no relative motion, there is no Doppler shift.

Does AP Physics 2 require Doppler effect calculations?

No. The AP Physics 2 CED requires qualitative understanding of the Doppler effect, so focus on direction of frequency change, wavefront spacing, and relative motion rather than equations.

What is a common AP Physics 2 mistake with the Doppler effect?

A common mistake is thinking the source frequency itself changes. The rest frequency stays the same; the observer detects a different frequency because of relative motion.
