14.6 Wave Interference and Standing Waves

When two or more waves overlap, their displacements add together by superposition, which can build up (constructive interference) or cancel out (destructive interference). When waves are trapped in a region and travel in opposite directions, they form standing waves with fixed nodes and antinodes, and only certain wavelengths (harmonics) fit the boundary conditions.

Why This Matters for the AP Physics 2 Exam

This topic is part of Waves, Sound, and Physical Optics, which carries a meaningful share of the exam. It shows up in two main ways. First, the multiple-choice section leans heavily on reading and analyzing wave representations, so you need to add wave shapes point by point and interpret standing-wave diagrams. Second, the free-response section includes a Translation Between Representations question, where you may be asked to connect a sketch of a standing wave to equations relating length, wavelength, frequency, wave speed, and harmonic number. Being able to move between a diagram, a graph, and an equation is exactly the skill this topic builds.

You should also be ready to use functional dependence, such as predicting how a frequency or fringe spacing changes when one variable changes, since that style of reasoning runs through this whole unit.

Key Takeaways

• Waves pass through each other and combine by superposition; after overlapping, each wave continues unchanged.
• Constructive interference happens when displacements are in the same direction; destructive interference happens when they are in opposite directions.
• Beats come from two waves of slightly different frequency, with beat frequency $|f_{\text{beat}}| = |f_1 - f_2|$.
• Standing waves form from two identical waves traveling in opposite directions in a confined region.
• Nodes are always zero amplitude and antinodes are always maximum; adjacent nodes (or adjacent antinodes) are half a wavelength apart.
• Boundary conditions decide which harmonics exist; a region with a node at one end and an antinode at the other allows only odd harmonics.

Wave Interference

Wave interference is what happens when two or more waves overlap in the same region. Waves do not bounce off each other like solid objects. They travel through each other, overlap for a moment, and keep going.

Superposition

Superposition is the rule for combining overlapping waves: the displacement at any point equals the sum of the individual wave displacements at that point.

• For water waves, the combined height is the sum of the individual heights.
• For sound waves, the combined pressure variation is the sum of the individual pressure variations.
• Each wave keeps its own frequency, wavelength, and speed before and after the overlap. The interaction only lasts while the waves overlap.

Constructive vs Destructive Interference

How waves combine depends on whether their displacements point the same way or opposite ways at a given point.

• Constructive interference occurs when the displacements are in the same direction. The amplitudes add, producing a larger combined amplitude.
• Destructive interference occurs when the displacements are in opposite directions. The amplitudes partly or fully cancel, producing a smaller combined amplitude.
• Because the displacements add or subtract depending on the overlap, the resultant wave can have a larger or smaller amplitude than either wave alone at that location.

Example application: noise-cancelling headphones produce a sound wave that interferes destructively with unwanted noise.

Visual Representations

Wave diagrams are one of the most useful tools for this topic, and the exam expects you to read and use them.

• To add two wave pulses, add their displacements point by point.
• Amplitude vs. position graphs make it easy to spot where waves reinforce and where they cancel.
• Sketching the combined shape is often faster and more reliable than reasoning in words.

Beats

When two waves have slightly different frequencies, they drift in and out of phase. This produces beats, which are steady rises and falls in amplitude that you hear as a pulsing in loudness.

• The waves alternate between constructive and destructive interference as their phase relationship changes.
• The beat frequency is the difference between the two frequencies:

$|f_{\text{beat}}| = |f_1 - f_2|$

• Tuning forks are commonly used to demonstrate beats, and musicians tune instruments by listening for the pulsing to slow down and disappear.

Standing Waves

A standing wave is a special interference pattern that forms when waves are confined to a region and travel in opposite directions. The pattern appears to stay in place instead of moving along.

How Standing Waves Form

• They result from the superposition of two identical waves traveling in opposite directions, usually because a wave reflects back and forth within the region.
• Unlike a traveling wave, a standing wave does not appear to move left or right.
• Standing waves only form at specific frequencies set by the size and boundaries of the region.
• Common places standing waves form include pipes with open or closed ends and strings with fixed or loose ends.

Nodes and Antinodes

Standing waves have fixed points of zero motion and fixed points of maximum motion.

• A node is a point where the amplitude is always zero.
• An antinode is a point where the amplitude is always at maximum.
• The distance between adjacent nodes, or between adjacent antinodes, is half a wavelength. This means the wavelength is twice the node-to-node (or antinode-to-antinode) distance.

The fundamental, or first harmonic, has the longest possible wavelength and the simplest pattern:

• String fixed at both ends: nodes at the ends, one antinode in the middle.
• Pipe open at both ends: antinodes at the ends, one node in the middle.
• Pipe closed at one end: node at the closed end, antinode at the open end.

Harmonics and Boundary Conditions

The standing wave with the longest wavelength is the first harmonic. The next-longest is the second harmonic, then the third, and so on. The boundary conditions decide which harmonics are allowed.

For a string fixed at both ends (or a pipe open at both ends), the length must hold a whole number of half-wavelengths:

$L = n \cdot \frac{\lambda}{2}, \quad n = 1, 2, 3, \dots$

$\lambda_n = \frac{2L}{n}$

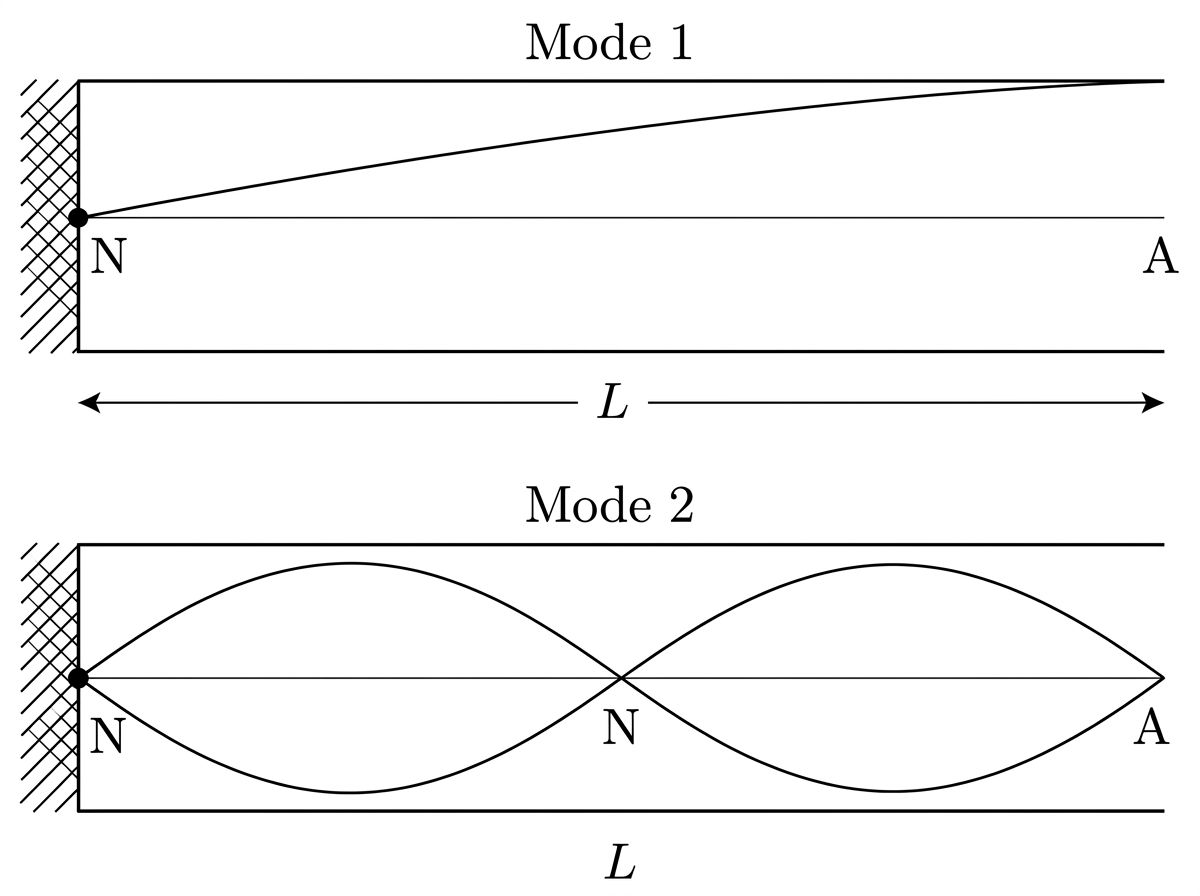

For a pipe closed at one end and open at the other, there is a node at the closed end and an antinode at the open end. Only odd harmonics are allowed, and the length must hold an odd number of quarter-wavelengths:

$L = (2n-1) \cdot \frac{\lambda}{4}, \quad n = 1, 2, 3, \dots$

$\lambda_n = \frac{4L}{2n-1}, \qquad f_n = \frac{(2n-1)v}{4L}$

These correspond to the 1st, 3rd, 5th, ... harmonics. In every case, the frequency connects to wavelength through the wave speed:

$f_n = \frac{v}{\lambda_n}$

Reading a Standing Wave Diagram

A sketch of a standing wave tells you the harmonic number and the wavelength. Count the half-wavelength segments (the loops between adjacent nodes) that fit in the region.

• Fixed-fixed string or open-open pipe: each loop is half a wavelength, so $L = n\frac{\lambda}{2}$.
• Pipe closed at one end: build the pattern from quarter-wavelength segments, so $L = (2n-1)\frac{\lambda}{4}$.

Once you have the wavelength from the diagram, find the frequency with $f = \frac{v}{\lambda}$.

How to Use This on the AP Physics 2 Exam

MCQ

• Practice adding two wave shapes point by point so you can quickly identify constructive vs destructive regions.
• Be ready to read a standing-wave diagram, count loops, and find the harmonic number and wavelength.
• Watch for the boundary clue: a node-at-one-end, antinode-at-other setup means odd harmonics only.

Translation Between Representations

• This topic is a strong fit for connecting a standing-wave sketch to equations linking length, wavelength, frequency, wave speed, and harmonic number.
• Practice moving in both directions: from a diagram to an equation, and from an equation back to a sketch.

Problem Solving

• For beats, use $|f_{\text{beat}}| = |f_1 - f_2|$ directly.
• For harmonics, pick the correct boundary relation first ($L = n\frac{\lambda}{2}$ or $L = (2n-1)\frac{\lambda}{4}$), solve for wavelength, then use $f = \frac{v}{\lambda}$.
• Use functional dependence when a question changes one variable: for a fixed-fixed string, $f_n = \frac{nv}{2L}$, so doubling the length halves the frequencies.

Practice Problem 1: Wave Interference

Solution

To find the beat frequency, take the absolute difference between the two frequencies:

$|f_{\text{beat}}| = |f_1 - f_2|$

Substituting the given values: $|f_{\text{beat}}| = |256 \text{ Hz} - 260 \text{ Hz}| = |{-4 \text{ Hz}}| = 4 \text{ Hz}$

A listener would hear 4 beats per second as these sound waves interfere.

Practice Problem 2: Standing Waves

Solution

For a string fixed at both ends, the harmonic wavelengths are: $\lambda_n = \frac{2L}{n}, \quad n = 1, 2, 3, \dots$

Frequency relates to wavelength by: $f_n = \frac{v}{\lambda_n}$

Substituting the wavelength formula: $f_n = \frac{v}{\frac{2L}{n}} = \frac{nv}{2L}$

For the first harmonic (n = 1): $f_1 = \frac{1 \times 320 \text{ m/s}}{2 \times 0.65 \text{ m}} = \frac{320 \text{ m/s}}{1.3 \text{ m}} = 246.2 \text{ Hz}$

For the second harmonic (n = 2): $f_2 = \frac{2 \times 320 \text{ m/s}}{2 \times 0.65 \text{ m}} = \frac{640 \text{ m/s}}{1.3 \text{ m}} = 492.3 \text{ Hz}$

For the third harmonic (n = 3): $f_3 = \frac{3 \times 320 \text{ m/s}}{2 \times 0.65 \text{ m}} = \frac{960 \text{ m/s}}{1.3 \text{ m}} = 738.5 \text{ Hz}$

The frequencies of the first three harmonics are 246.2 Hz, 492.3 Hz, and 738.5 Hz.

Common Misconceptions

• Waves bounce off each other. They do not. Overlapping waves pass through each other and combine by adding displacements, then continue unchanged.
• Destructive interference harms energy. Energy is not lost. The displacements cancel at certain points and times, but the wave energy is still present and reappears elsewhere as the waves move apart.
• Beat frequency is the average of the two frequencies. It is the absolute difference, $|f_1 - f_2|$, not the average.
• A node is where the wave is slow or small. A node is a point that is always exactly zero displacement, not just a weak spot.
• Every region allows all harmonics. Boundary conditions matter. A region with a node at one end and an antinode at the other supports only odd harmonics.
• Adjacent nodes are one full wavelength apart. Adjacent nodes (and adjacent antinodes) are half a wavelength apart, so the wavelength is twice that spacing.
