11.7 Kirchhoff's Junction Rule

Kirchhoff's junction rule says the total current entering a junction equals the total current leaving it. It comes from conservation of charge: charge cannot build up at a circuit junction, so current in must match current out.

$\sum I_{\text{in}} = \sum I_{\text{out}}$

Use it whenever a circuit has a node where current splits or recombines. The rule comes from conservation of charge, so current cannot pile up at an ordinary junction.

Why This Matters for the AP Physics 2 Exam

AP Physics 2 asks you to describe and analyze circuits using conservation laws. For junction-rule questions, you may need to write a current equation for a node, solve for an unknown branch current, or explain why current entering a junction must match current leaving it. This topic also pairs with Kirchhoff's loop rule when you analyze circuits with more than one path.

more resources to help you study

practice multiple choiceFRQ practice & scoringcheatsheetsscore calculator

Conservation of Electric Charge

Kirchhoff's Junction Rule is fundamentally based on the conservation of electric charge, one of the most foundational principles in physics.

Electric charge is conserved within a circuit; it can only be transferred from one location to another. This means that the net charge in an isolated system always remains constant. In practical terms, electrons flowing through a circuit must be accounted for at every point.

Junction Rule Explained

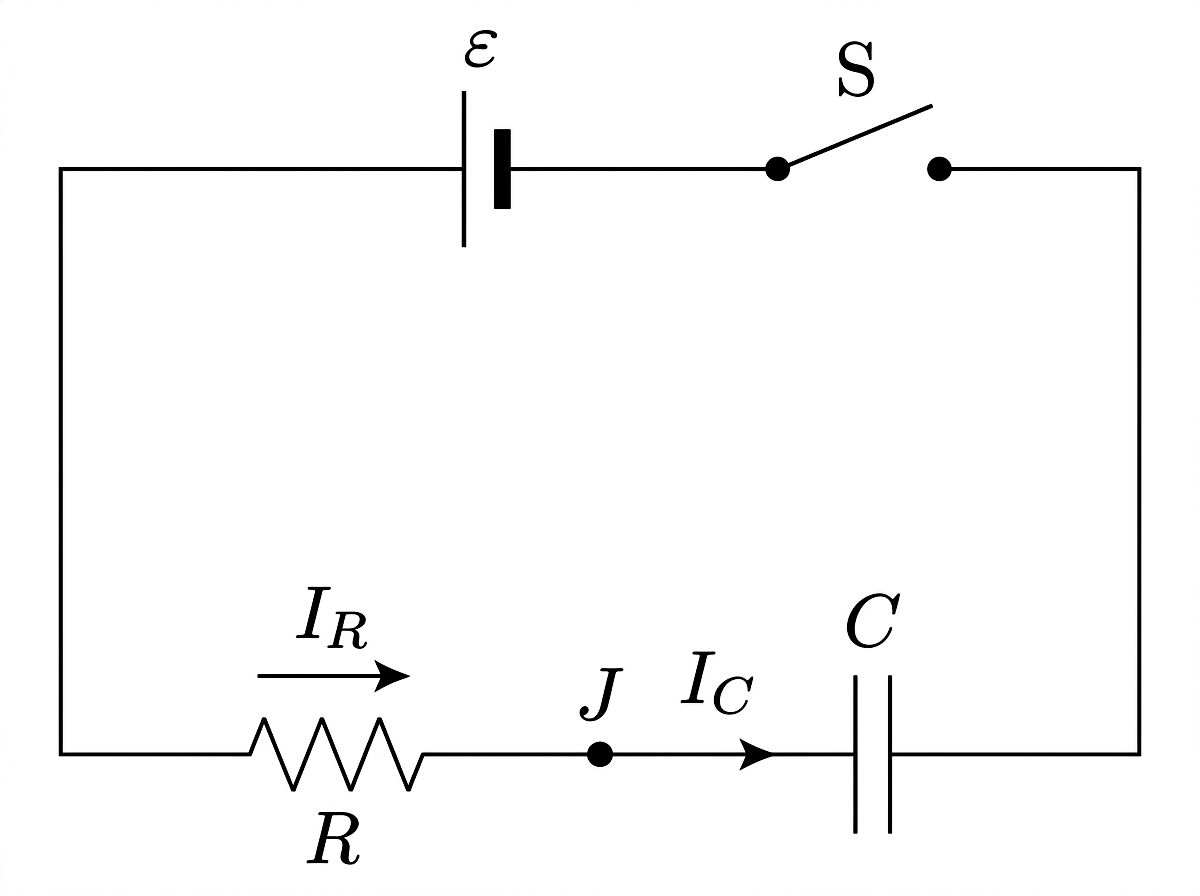

A junction (or node) in a circuit is any point where two or more conductors meet. When charges flow through a circuit, they must follow specific paths dictated by the conservation principle.

Kirchhoff's Junction Rule states that the total current entering a junction must equal the total current leaving that junction. This ensures that charge doesn't accumulate at any point in the circuit.

The rule can be expressed mathematically as:

$\sum I_{\text{in}} = \sum I_{\text{out}}$

Alternatively, this can be written as:

$\sum I = 0$

Where all currents are assigned either positive or negative values based on their direction relative to the junction.

Applying the Junction Rule

When analyzing circuits using Kirchhoff's Junction Rule:

• Currents entering a junction are typically assigned positive values
• Currents leaving a junction are typically assigned negative values
• The algebraic sum of all currents at any junction must equal zero

For example, if three wires meet at a junction with currents $I_1$, $I_2$, and $I_3$, then:

$I_1 + I_2 + I_3 = 0$

If we know that $I_1 = 5A$ enters the junction and $I_2 = 3A$ leaves the junction, we can determine that $I_3 = -2A$, meaning 2 amperes must leave the junction through the third wire.

Practical Applications

The Junction Rule helps us analyze complex circuits by breaking them down into manageable parts:

• Allows us to determine unknown currents in multi-loop circuits
• Works in conjunction with Kirchhoff's Loop Rule to solve circuit problems
• Applies to any type of junction, whether it connects resistors, capacitors, inductors, or other circuit elements

Practice Problem 1: Simple Junction Analysis

Solution Using Kirchhoff's Junction Rule, we know that the sum of all currents at the junction must equal zero:

$\sum I = 0$

Let's assign positive values to currents entering the junction and negative values to currents leaving:

• First branch: +6.0 A (entering)
• Second branch: -4.0 A (leaving)
• Third branch: $I_3$ (unknown)

Now we can write: +6.0 A + (-4.0 A) + $I_3$ = 0 $I_3$ = -2.0 A

The negative sign indicates that the current in the third branch is leaving the junction, with a magnitude of 2.0 A.

Practice Problem 2: Multi-Junction Circuit

Solution Let's analyze this using Kirchhoff's Junction Rule. At the junction where the current splits from the battery:

$I_{battery} = I_{R1} + I_{R2} + I_{R3}$

Substituting the known values: 12.0 A = 5.0 A + $I_{R2}$ + 4.0 A

Solving for $I_{R2}$: $I_{R2}$ = 12.0 A - 5.0 A - 4.0 A = 3.0 A

Therefore, the current through resistor R2 is 3.0 A.
