13.1 Reflection

TLDR

Reflection in AP Physics 2 starts with modeling light as a ray that travels in a straight line and is perpendicular to the wavefront. When that ray hits a surface, it reflects so the angle of incidence equals the angle of reflection, both measured from the normal. Smooth surfaces give specular reflection (clear images) and rough surfaces give diffuse reflection (scattered light).

more resources to help you study

practice multiple choiceFRQ practice & scoringcheatsheetsscore calculator

Why This Matters for the AP Physics 2 Exam

This topic builds the ray model you will use for the rest of Unit 13 (Geometric Optics). Once you can draw rays, find the normal, and apply the law of reflection, you are ready to handle mirrors and the image-formation problems that follow.

On the exam, reflection shows up in two main ways. First, you may need to calculate or compare angles using the law of reflection, often after correctly converting between an angle measured from the surface and an angle measured from the normal. Second, you may need to explain in words why a surface produces a clear image or scattered light, which connects to the kind of reasoning and experimental analysis the AP Physics 2 free-response section rewards. Knowing when the ray model works (and when light's wave behavior takes over) also keeps you from misapplying it later in Unit 14.

Key Takeaways

• A light ray is a straight line, points in the direction the light travels, and is perpendicular to the wavefront.
• The ray model works for geometric optics but cannot explain interference or diffraction, which need a wave model.
• The law of reflection: $\theta_i = \theta_r$, with both angles measured from the normal, not the surface.
• Specular reflection comes from smooth surfaces where the normal stays nearly constant, producing clear images.
• Diffuse reflection comes from rough surfaces where the normal varies point to point, scattering light in many directions.
• Both specular and diffuse reflection obey the law of reflection; the difference is the surface, not the rule.

Light as a Ray

A light ray is a straight line that points in the direction light travels and is perpendicular to the wavefront of the light wave. It is a modeling tool that lets you track light's path without worrying about its wave details.

• Used in geometric optics, where you can ignore light's wave nature
• Shows the direction energy moves
• Drawn as straight lines with arrows for direction

The ray model works well for mirrors and lenses, but it has limits.

A laser is a common real-world source you can model as a ray: it produces a single coherent, monochromatic beam in a well-defined direction. Its wave behavior comes up later in Unit 14.

Ray Diagrams

Ray diagrams show the path of light before and after it interacts with matter, such as reflecting off a surface or crossing into a new material. They help you predict how light behaves.

When you build a ray diagram:

1. Draw rays as straight lines with directional arrows.
2. Show how rays change direction at boundaries between media.
3. Include the normal line (perpendicular to the surface) where reflection or refraction happens.
4. Trace multiple rays to find where an image forms.

These diagrams are the core tool for analyzing reflection, refraction, and image formation in mirrors and lenses.

Reflection of Light

When light is incident on a surface, some or all of it can be reflected. The key idea for this topic is how the reflected ray lines up geometrically with the incident ray and the normal.

Law of Reflection

The law of reflection states that the angle between the incident ray and the normal equals the angle between the reflected ray and the normal. The normal is the line perpendicular to the surface at the point where the light hits.

• Angle of incidence ($\theta_i$): angle between the incident ray and the normal
• Angle of reflection ($\theta_r$): angle between the reflected ray and the normal

$\theta_i = \theta_r$

This holds for every reflecting surface, whether the reflection is specular or diffuse. The single most common mistake is measuring angles from the surface instead of from the normal.

Diffuse Reflection

Diffuse reflection happens on rough, irregular surfaces. The microscopic bumps mean the normal line points in different directions from point to point, so the reflected rays scatter many ways.

• Each ray meets a slightly different surface orientation
• The normal varies across the surface
• Each ray still obeys the law of reflection locally, but the directions spread out

This gives soft, even light without a clear image. Examples include paper, unpolished wood, fabric, and matte-painted walls. Diffuse reflection is why you can see a non-shiny object from almost any angle with fairly even brightness.

Specular Reflection

Specular reflection happens on smooth surfaces, where surface variations are small. The normal stays nearly constant across the area the light strikes, so light reflects uniformly and keeps its organization.

• Parallel incident rays stay organized after reflecting
• The normal is roughly the same direction across the reflection area
• The organized rays can form an image

This produces clear, mirror-like images and can create bright glare. Examples include mirrors, polished metal, calm water, glossy paint, and clean glass.

Worked Examples

Problem 1: Law of Reflection

Solution

Start with what you know: the ray makes a 37 degree angle with the mirror surface. The law of reflection uses angles measured from the normal, not the surface.

Step 1: Find the angle of incidence. The normal is perpendicular to the surface, so: $\theta_i = 90° - 37° = 53°$

Step 2: Apply the law of reflection. Since $\theta_i = \theta_r$, the angle of reflection is also 53 degrees.

Step 3: Find the angle between the two rays. Each ray makes 37 degrees with the surface, so the angle between them is: $37° + 37° = 74°$

You can check this from the normal side: $180° - (53° + 53°) = 74°$

The angle between the incident and reflected rays is 74 degrees.

Problem 2: Diffuse vs. Specular Reflection

Solution

This is the difference between specular and diffuse reflection.

Still lake:

• The surface is smooth and flat
• Every point has nearly the same orientation, so the normal is consistent
• Rays reflect in an organized way (specular reflection)
• The organization is preserved, producing a clear reflection

Windy lake with waves:

• The surface is irregular, with many orientations
• The normal changes from point to point
• Rays reflect in many directions (diffuse reflection)
• The image breaks up, leaving glittery highlights but no clear picture

Each individual ray still obeys the law of reflection. The surface roughness, not a broken rule, is what harms the image.

How to Use This on the AP Physics 2 Exam

MCQ

• Watch the wording carefully. If a problem gives an angle "from the surface," convert it to an angle from the normal before applying $\theta_i = \theta_r$.
• Remember that the law of reflection applies to every surface. A diffuse surface does not break it; the normal just varies.
• Know the limit of the ray model: if a question involves interference or diffraction, the ray model is not enough.

Free Response

• When asked to explain reflection in words, tie your answer to the normal. State that both angles are measured from the normal and that they are equal.
• To explain specular vs diffuse, point to the surface's normal lines: constant normal gives a clear image, varying normal scatters light.
• If a question involves designing or analyzing an experiment, describe how you would measure incidence and reflection angles from the normal and how to reduce error (for example, sighting the rays carefully or repeating measurements).

Common Trap

• Measuring angles from the surface instead of the normal flips your numbers. Always draw the normal first.

Common Misconceptions

• "Diffuse reflection breaks the law of reflection." It does not. Every ray still follows $\theta_i = \theta_r$; the surface normal just points different ways across a rough surface.
• "Angles are measured from the surface." They are measured from the normal, the line perpendicular to the surface.
• "The ray model explains everything about light." It works for geometric optics like mirrors and lenses, but interference and diffraction need the wave model.
• "A laser is something special beyond a ray." For this topic, a laser is just a clean example of a single coherent, monochromatic beam you can model as a ray.

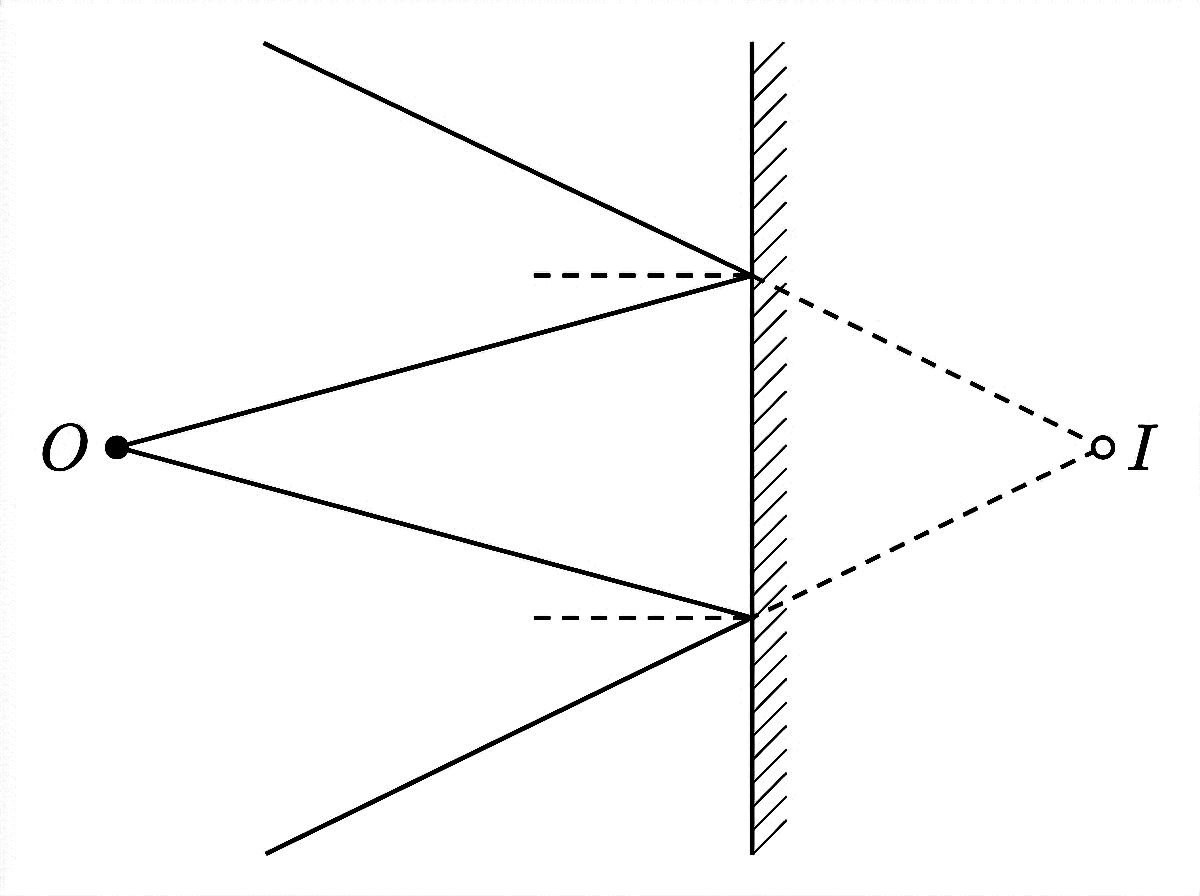

• "A virtual image is a real object behind the mirror." Reflected rays only appear to come from behind the surface; nothing is actually there.
