7.4 Force and moment measurement

Pressure and shear stress distributions

Every aerodynamic force originates from two things happening at the surface: pressure pushing normal to the surface and shear stress dragging along it. Understanding how these are distributed across a body is the foundation for predicting lift, drag, and moments.

The specific distributions depend on how the fluid flow interacts with the surface geometry. Once you know the pressure and shear stress at every point, you can integrate them to get the total aerodynamic loads.

Normal and tangential components

Pressure and shear stress at any surface point can be decomposed into two components:

• Normal component acts perpendicular to the surface. Pressure is the dominant contributor here, and it's the primary source of lift.
• Tangential component acts parallel to the surface. Shear stress drives this component, and it's responsible for skin friction drag.

The balance between these two components at every point on the surface determines the net force the body experiences.

Stress vector at a point

The stress vector at a point on the surface combines the effects of both pressure and shear stress into a single vector quantity. It has both magnitude and direction, telling you how intense the loading is and which way it acts.

For analysis, you resolve this vector into components along your chosen coordinate axes. Mapping the stress vector across the entire surface reveals where loading concentrates, which is critical for identifying potential failure points like the leading edge or trailing edge.

Isobars and isoshear lines

These are contour lines drawn on the surface to visualize distributions:

• Isobars connect points of equal pressure. Closely spaced isobars mean steep pressure gradients; widely spaced ones indicate more uniform pressure.
• Isoshear lines connect points of equal shear stress. They help you spot regions of high skin friction drag and locate flow features like boundary layer transition or shock-wave interactions.

Together, these maps give you a quick visual read on where the aerodynamic loading is most intense.

Force and moment resultants

Force and moment resultants are what you get when you add up (integrate) all the distributed pressure and shear stress over the entire surface. They represent the total aerodynamic loads the body feels and are the quantities you ultimately need for design and analysis.

Integration of distributed loads

To go from distributed loads to resultants:

1. Divide the surface into small elements, each with a known pressure and shear stress.
2. Compute the force contribution from each element (stress × area).
3. Sum all contributions over the entire surface.

For complex geometries, numerical integration techniques like the trapezoidal rule or Simpson's rule are standard. The accuracy of your result depends directly on having enough measurement points or a fine enough computational grid to capture the real distribution.

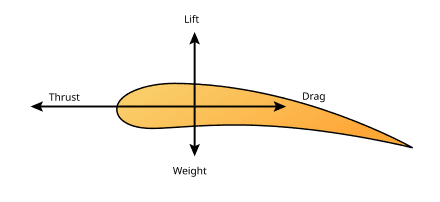

Components of aerodynamic force

The total aerodynamic force is decomposed into three components defined relative to the freestream velocity direction:

• Lift acts perpendicular to the freestream velocity.
• Drag acts parallel to the freestream velocity (opposing motion).
• Side force acts perpendicular to both lift and drag, and it matters for asymmetric bodies or yawed flight conditions.

These components are the primary quantities used to evaluate aircraft performance, stability, and control.

Aerodynamic moment about a point

The aerodynamic moment represents the tendency of the distributed forces to rotate the body about a chosen reference point. Moments are resolved into three components:

• Pitching moment (nose up/down rotation)
• Rolling moment (wing up/down rotation)
• Yawing moment (nose left/right rotation)

The magnitude and sign of each moment depend on where you place the reference point relative to the center of pressure. Balancing these moments is how engineers achieve trim and ensure stability, using control surfaces like the elevator, ailerons, and rudder.

Dimensionless force and moment coefficients

Raw force and moment values change with tunnel speed, air density, and model size. Dimensionless coefficients strip out those effects so you can compare results across different test conditions, scales, and even between wind tunnel data and CFD predictions.

Definitions and significance

Force coefficients are defined as:

$C = \frac{F}{q_\infty \, S}$

where $q_\infty = \frac{1}{2} \rho V_\infty^2$ is the dynamic pressure and $S$ is the reference area (typically wing planform area).

Moment coefficients include an additional reference length (chord $c$ or span $b$):

$C_m = \frac{M}{q_\infty \, S \, c}$

Because these coefficients are independent of scale, they're the standard language for reporting aerodynamic data. They also establish the similarity conditions that make wind tunnel testing meaningful: if you match the relevant dimensionless parameters (Reynolds number, Mach number), the coefficients should match between model and full scale.

Lift, drag, and moment coefficients

• Lift coefficient $C_L$ measures lifting efficiency. Higher $C_L$ means more lift for a given dynamic pressure and area.
• Drag coefficient $C_D$ quantifies resistance to motion. Lower is better for efficiency.
• Moment coefficients $C_m$, $C_l$, and $C_n$ characterize pitching, rolling, and yawing tendencies, respectively.

All of these coefficients vary with angle of attack, Reynolds number, and Mach number, among other parameters. That's why wind tunnel test matrices sweep through ranges of these variables.

Center of pressure vs aerodynamic center

These two reference points are easy to confuse but serve different purposes:

• The center of pressure is the point where the resultant aerodynamic force effectively acts, producing zero net moment. Its location shifts with angle of attack, which makes it inconvenient for stability analysis.
• The aerodynamic center is the point about which the pitching moment coefficient $C_m$ stays constant as angle of attack changes. For most subsonic airfoils, this sits near the quarter-chord point (25% of chord from the leading edge). Because it's fixed for a given geometry, it's the preferred reference for stability and control work.

Experimental methods for force measurement

Experimental force measurement gives you direct data on the aerodynamic loads a model experiences. This data is essential for validating CFD, verifying design predictions, and characterizing performance.

Wind tunnel balances

Wind tunnel balances are precision instruments that measure forces and moments on a model. Two main configurations exist:

• Internal balances sit inside the model itself, connected between the model and its support sting. They're compact and minimize flow interference but are limited by the space available inside the model.
• External balances support the model from outside the test section, typically from below or behind. They can handle larger loads but may introduce more support interference.

Common sensing technologies include strain gauge balances (which measure deformation of flexural elements) and piezoelectric balances (which generate charge in response to applied force).

Strain gauges and load cells

A strain gauge is a resistive element whose electrical resistance changes when it's mechanically deformed. When bonded to a structural member, it converts strain into a measurable voltage change.

A load cell packages one or more strain gauges into a transducer that outputs an electrical signal proportional to applied force. These are the workhorses of wind tunnel force measurement.

Two practical concerns are critical for accuracy:

• Calibration: You must apply known loads and record the output to establish a precise relationship between signal and force.
• Temperature compensation: Strain gauge resistance drifts with temperature, so compensation circuits or procedures are needed to avoid errors.

Direct vs indirect measurement techniques

• Direct techniques (wind tunnel balances, load cells) measure forces and moments on the model as a whole. They're straightforward but constrained by balance load capacity and model mounting.
• Indirect techniques infer forces from other measurements. For example, you can integrate surface pressure tap data to get forces, or use wake velocity surveys (via Pitot tubes or particle image velocimetry) to calculate drag from momentum deficit.

Direct methods give you the total load quickly. Indirect methods give you more spatial detail about where loads originate, but they require careful data processing and integration.

Experimental methods for moment measurement

Moment measurement focuses on the rotational effects of aerodynamic loading. Accurate moment data is essential for assessing stability, control authority, and trim characteristics.

Moment balances and torque transducers

Moment balances are designed specifically to measure moments about defined axes. Like force balances, they can be internal or external.

Torque transducers measure rotational moments directly, typically using strain gauges or piezoelectric elements on a calibrated torsion member. Proper alignment of the transducer axes with the desired moment axes is critical; even small misalignments introduce cross-talk between moment components.

Pressure taps and wake surveys

Pressure taps are small holes drilled into the model surface, each connected to a pressure transducer. By measuring the local static pressure at many points and integrating over the surface, you can compute both forces and moments.

Wake surveys measure velocity and pressure profiles downstream of the model using instruments like Pitot tubes or hot-wire anemometers. The momentum deficit in the wake gives you drag, and the asymmetry of the wake profile provides information about moments.

Corrections for support interference

The sting, strut, or other support hardware that holds the model in the tunnel inevitably disturbs the flow around it. This support interference alters the measured forces and moments from their true free-flight values.

Common correction approaches include:

• Empirical corrections based on testing with and without dummy support structures
• Dummy sting tests where a non-metric sting is placed near the model to quantify interference
• CFD simulations of the model-plus-support system to estimate the interference contribution

Applying these corrections is a standard part of wind tunnel data reduction.

Computational methods for force and moment prediction

Computational methods solve the governing fluid flow equations numerically to predict aerodynamic loads without building a physical model. They complement experiments by allowing rapid design iteration and access to flow details that are hard to measure.

Surface pressure and shear stress integration

CFD simulations produce detailed pressure and shear stress fields on every surface element. To get forces and moments:

1. Extract the pressure and wall shear stress at each surface cell.
2. Compute the force vector on each cell (pressure × area normal + shear × area tangent).
3. Sum all cell contributions for total force; take cross products with position vectors for moments.

Accuracy depends on mesh resolution near the surface (especially in the boundary layer) and the turbulence model used. Post-processing tools automate this integration, but you should always check grid convergence to make sure your results aren't mesh-dependent.

Farfield momentum balance

Instead of integrating loads on the body surface, the farfield method calculates forces by analyzing flow properties on a control volume far from the body. It's based on conservation of momentum: the net force on the body equals the net momentum flux through the control surface.

This approach is particularly useful for computing induced drag, because it separates drag components more cleanly than surface integration (where numerical errors in pressure and shear can contaminate the drag prediction). It applies to both steady and unsteady flows.

Vortex lattice and panel methods

These are lower-fidelity but computationally efficient alternatives to full CFD:

• Panel methods represent the body surface with discrete panels, each carrying a source or doublet distribution. They solve for the panel strengths by enforcing the no-penetration boundary condition. Panel methods handle arbitrary 3D geometries and give good pressure distributions for attached, inviscid flow.
• Vortex lattice methods (VLM) model lifting surfaces as a mesh of horseshoe vortices. They solve a linear system to satisfy the flow tangency condition at control points. VLM is fast and provides reliable estimates of lift, induced drag, and spanwise load distribution.

Both methods assume inviscid, incompressible (or linearized compressible) flow, so they don't capture viscous drag or separation. They trace their theoretical roots to lifting line theory and thin airfoil theory.

Unsteady force and moment considerations

When the flow or the body geometry changes with time, the aerodynamic loads become unsteady. These time-dependent forces and moments can be much larger than their steady-state counterparts and are critical for the design of aircraft, helicopters, and wind turbines.

Added mass effects

When a body accelerates through a fluid, it must also accelerate the surrounding fluid. This creates an additional inertial force called the added mass (or virtual mass) effect. The body behaves as though it has more mass than it actually does.

Added mass is most significant for lightweight structures with large surface areas, like thin wings and turbine blades. Neglecting it leads to inaccurate predictions of natural frequencies, dynamic response, and flutter boundaries.

Dynamic stall and flow hysteresis

Dynamic stall occurs when an airfoil undergoes a rapid increase in angle of attack. The flow initially stays attached beyond the static stall angle, producing a transient lift overshoot. A strong vortex sheds from the leading edge, and when it convects downstream, lift drops abruptly and drag spikes.

Flow hysteresis means the aerodynamic coefficients follow different paths during pitch-up versus pitch-down. The lift at a given angle of attack depends on whether the angle is increasing or decreasing.

Both phenomena are common in helicopter rotors, wind turbine blades, and highly maneuverable aircraft. They cause large fluctuating loads that drive vibration and fatigue.

Gust response and aeroelastic phenomena

Gusts are sudden changes in wind velocity that impose transient aerodynamic loads on a structure. The dynamic response of the structure to these loads is called the gust response, and it determines peak stresses and accelerations.

Aeroelastic phenomena arise from the coupling between aerodynamic forces and structural flexibility:

• Flutter is a self-excited oscillation where aerodynamic forces feed energy into a structural mode, potentially leading to catastrophic failure.
• Divergence is a static instability where aerodynamic moments overcome structural restoring forces, causing a surface to twist uncontrollably.

Both gust response and aeroelastic effects must be accounted for in the design process to ensure structural integrity and safe operating envelopes.
