2.1 Airfoil geometry
9 min read•august 20, 2024
Airfoil geometry is crucial in aerodynamics, shaping how wings and blades interact with air. The design impacts lift, drag, and overall performance. Key components include the , , , , and .
Various airfoil types exist, each optimized for specific conditions. Parameters like , , and influence performance. Understanding these elements helps engineers design efficient wings for different aircraft and applications.

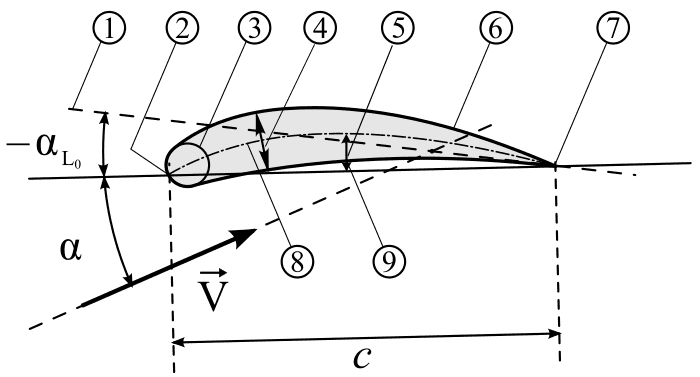

Airfoil components
- The airfoil is the cross-sectional shape of a wing or blade that generates lift when moving through a fluid
- Consists of several key components that contribute to its aerodynamic properties and performance
Leading edge
Top images from around the web for Leading edge
Αεροτομή - Βικιπαίδεια View original
Is this image relevant?
NACA airfoil – Open Source Ecology - Germany View original
Is this image relevant?
Airfoil - Wikipedia View original
Is this image relevant?
Αεροτομή - Βικιπαίδεια View original
Is this image relevant?
NACA airfoil – Open Source Ecology - Germany View original
Is this image relevant?
1 of 3
Top images from around the web for Leading edge
Αεροτομή - Βικιπαίδεια View original
Is this image relevant?
NACA airfoil – Open Source Ecology - Germany View original
Is this image relevant?
Airfoil - Wikipedia View original
Is this image relevant?
Αεροτομή - Βικιπαίδεια View original
Is this image relevant?
NACA airfoil – Open Source Ecology - Germany View original
Is this image relevant?
1 of 3
- The front-most point of the airfoil where the flow first encounters the surface
- Plays a crucial role in determining the and the maximum
- Shape affects the pressure distribution and the formation of the
- Typically rounded to promote smooth flow attachment and delay flow separation (NACA 0012)
Trailing edge
- The rear-most point of the airfoil where the flow leaves the surface
- Influences the lift and , as well as the stall behavior
- Shape affects the pressure recovery and the wake formation behind the airfoil
- Can be sharp (NACA 4412) or blunt (Supercritical airfoils) depending on the design requirements
Camber line
- The curve that passes through the midpoints between the upper and lower surfaces of the airfoil
- Determines the amount of lift generated by the airfoil at zero angle of attack
- Positive camber produces lift even at zero angle of attack, while symmetric airfoils generate zero lift
- Can be designed to optimize along the span (NACA 2412)
Chord line
- The straight line connecting the leading edge and the trailing edge of the airfoil
- Serves as a reference for measuring the angle of attack and other geometric parameters
- Length is used to non-dimensionalize airfoil parameters and performance coefficients
- Typically normalized to a unit length for comparison between different airfoils (NACA 0015)
Thickness distribution
- The variation of the airfoil thickness along the chord, measured perpendicular to the camber line
- Affects the structural strength, weight, and internal volume of the wing or blade
- Influences the pressure distribution, drag, and critical Mach number of the airfoil
- Can be designed to optimize the trade-off between aerodynamic and structural performance (NACA 63-415)
Airfoil classifications
Symmetrical vs asymmetrical
- Symmetrical airfoils have identical upper and lower surface shapes, resulting in zero lift at zero angle of attack (NACA 0012)
- Asymmetrical airfoils have different upper and lower surface shapes, generating lift even at zero angle of attack (NACA 4412)
- Symmetrical airfoils are often used for vertical stabilizers, while asymmetrical airfoils are used for wings and horizontal stabilizers
Laminar flow vs conventional
- Laminar flow airfoils are designed to maintain laminar boundary layer over a significant portion of the chord (NACA 6-series)
- Conventional airfoils have a shorter laminar flow region and rely on a turbulent boundary layer for most of the chord (NACA 4-series)
- Laminar flow airfoils can achieve lower drag coefficients but are more sensitive to surface roughness and off-design conditions
Low-speed vs high-speed
- Low-speed airfoils are designed for subsonic flow conditions, typically with thicker profiles and higher camber (Clark Y)
- High-speed airfoils are optimized for transonic or supersonic flow, with thinner profiles and reduced camber (NACA 64-series)
- Low-speed airfoils prioritize high lift and gentle stall characteristics, while high-speed airfoils focus on minimizing wave drag and delaying shock formation
Airfoil parameters
Angle of attack
- The angle between the chord line and the incoming flow direction, measured in degrees
- Determines the lift and drag forces acting on the airfoil, as well as the stall behavior
- Increasing angle of attack generally increases lift up to the , beyond which lift decreases abruptly
- Typical stall angles range from 10 to 20 degrees, depending on the airfoil design (NACA 0012: 15°)
Camber
- The maximum distance between the camber line and the chord line, typically expressed as a percentage of the chord length
- Positive camber increases lift at a given angle of attack, while negative camber decreases lift
- Higher camber also results in a more positive zero-lift angle of attack and a higher
- Typical camber values range from 0% for symmetric airfoils to 6% for high-lift airfoils (NACA 4412: 4%)
Thickness-to-chord ratio
- The maximum thickness of the airfoil divided by the chord length, expressed as a percentage
- Affects the structural strength, weight, and internal volume of the wing or blade
- Higher thickness-to-chord ratios increase drag but improve the stall characteristics and maximum lift coefficient
- Typical values range from 6% for high-speed airfoils to 18% for low-speed airfoils (NACA 0015: 15%)
Leading edge radius
- The radius of curvature at the leading edge, normalized by the chord length
- Larger leading edge radii promote smooth flow attachment and delay stall, but increase drag
- Smaller radii result in sharper pressure peaks and earlier flow separation, but reduce drag
- Typical values range from 0.5% to 2.5% of the chord length, depending on the airfoil design (NACA 0012: 1.58%)
Airfoil shapes
NACA 4-digit series
- Defined by a 4-digit code: first digit represents maximum camber as a percentage of chord, second digit represents the position of maximum camber along the chord, and last two digits represent the maximum thickness as a percentage of chord (NACA 2412)
- Widely used for general aviation and low-speed applications due to their simple geometry and predictable performance
- Examples include NACA 0012 (symmetric), NACA 2412 (moderate camber), and NACA 4412 (high camber)
NACA 5-digit series
- Designed to maintain laminar flow over a larger portion of the chord compared to the 4-digit series
- The first digit represents the camber line shape, the second and third digits represent the position of maximum camber, and the last two digits represent the maximum thickness (NACA 23012)
- Commonly used for high-performance sailplanes and low-drag applications
Supercritical airfoils
- Developed to delay the formation of shock waves and reduce wave drag in transonic flow conditions
- Characterized by a flattened upper surface, a highly cambered aft section, and a blunt trailing edge (NASA SC(2)-0714)
- Used for transonic and supersonic aircraft wings, as well as helicopter rotor blades
Laminar flow airfoils
- Designed to maintain laminar boundary layer over a significant portion of the chord, reducing skin friction drag
- Typically have a favorable pressure gradient on the upper surface and a carefully controlled shape to prevent premature transition (NACA 6-series)
- Used for high-performance sailplanes, low-drag fuselage sections, and wind turbine blades
Airfoil selection considerations
Reynolds number effects
- The Reynolds number (Re) represents the ratio of inertial forces to viscous forces in a fluid flow
- Airfoil performance depends on Re, with low-Re airfoils prioritizing laminar flow and high-Re airfoils focusing on turbulent flow characteristics
- Increasing Re generally improves the maximum lift coefficient and stall angle, while reducing the
- Typical Re ranges from 10^4 for model aircraft to 10^7 for commercial airliners
Mach number effects
- The Mach number (M) represents the ratio of the flow velocity to the speed of sound
- Airfoil performance is affected by compressibility effects at high subsonic (M > 0.6) and supersonic (M > 1) speeds
- Increasing M leads to the formation of shock waves, which cause a rapid increase in drag and a change in the pressure distribution
- Supercritical airfoils are designed to delay shock formation and minimize wave drag at transonic speeds
Stall characteristics
- The stall behavior of an airfoil determines its safety and controllability at high angles of attack
- Desirable stall characteristics include a gradual loss of lift beyond the stall angle, minimal lift hysteresis, and a gentle pitch break
- Airfoils with sharp leading edges or highly cambered sections may exhibit abrupt stall and post-stall behavior
- Stall characteristics can be improved through the use of (slats) or vortex generators
Drag characteristics
- The drag characteristics of an airfoil determine its efficiency and performance over a range of operating conditions
- Desirable drag characteristics include low minimum drag coefficient, a wide low-drag bucket, and gradual drag rise at high lift coefficients
- Airfoil drag can be reduced through the use of laminar flow designs, shock-free shapes, and devices
- Trade-offs between drag and other performance parameters (lift, stall, structural) must be considered in airfoil selection
Airfoil modifications
Leading edge devices
- Devices attached to the leading edge of an airfoil to improve its high-lift performance and stall characteristics
- Slats are retractable surfaces that create a slot between the main airfoil and the slat, delaying flow separation at high angles of attack
- Krueger flaps are hinged surfaces that extend forward and downward from the leading edge, increasing camber and lift
- Leading edge devices can increase the maximum lift coefficient by up to 50% and delay stall by 5-10 degrees
Trailing edge devices
- Devices attached to the trailing edge of an airfoil to increase lift, reduce drag, or control the pitching moment
- Plain flaps are hinged surfaces that deflect downward, increasing camber and lift (NACA 23012 with 20% plain flap)
- Split flaps are similar to plain flaps but have a gap between the main airfoil and the flap, reducing the hinge moment
- Fowler flaps extend aft and downward, increasing both camber and chord length for high lift (Boeing 727 with triple-slotted Fowler flaps)
Boundary layer control
- Techniques used to manipulate the boundary layer on an airfoil to improve its performance
- Suction is applied through small holes or slots to remove the low-energy boundary layer, delaying flow separation (Griffith airfoil)
- Blowing involves injecting high-velocity air into the boundary layer to energize it and prevent separation (Circulation Control Wing)
- Vortex generators are small protrusions that create streamwise vortices, mixing high-energy flow with the boundary layer (Boeing 737 with vortex generators)
Airfoil performance analysis
Lift coefficient vs angle of attack
- The lift coefficient (Cl) represents the normalized lift force generated by an airfoil at a given angle of attack (α)
- The Cl vs α curve shows the variation of lift with angle of attack, including the linear region, the maximum lift coefficient, and the stall angle
- The slope of the linear region (dCl/dα) is typically around 2π per radian for thin airfoils, but can be lower for thick or highly cambered airfoils
- The maximum lift coefficient (Cl_max) and stall angle (α_stall) depend on the airfoil shape, Reynolds number, and Mach number (NACA 0012: Cl_max ≈ 1.5, α_stall ≈ 15°)
Drag polar
- The is a plot of the lift coefficient (Cl) versus the drag coefficient (Cd) for an airfoil
- It shows the relationship between lift and drag over a range of angles of attack or operating conditions
- The minimum drag coefficient (Cd_min) occurs at zero lift for symmetric airfoils, and at a slightly positive lift coefficient for cambered airfoils
- The drag polar can be used to determine the best , the maximum lift coefficient, and the drag divergence Mach number
Lift-to-drag ratio
- The lift-to-drag ratio (L/D) represents the of an airfoil, with higher values indicating better performance
- The maximum L/D ratio ((L/D)_max) occurs at a specific angle of attack and lift coefficient, depending on the airfoil design
- Typical (L/D)_max values range from 20 for low-speed airfoils to 200 for high-performance sailplane airfoils (NACA 0012: (L/D)_max ≈ 60)
- The L/D ratio is an important parameter for determining the glide ratio, the power required, and the range of an aircraft
Pitching moment characteristics
- The pitching moment coefficient (Cm) represents the normalized torque acting on an airfoil about a reference point (usually the quarter-chord point)
- The Cm vs α curve shows the variation of pitching moment with angle of attack, including the zero-lift pitching moment (Cm_0) and the slope (dCm/dα)
- Positive camber typically results in a negative Cm_0, which requires a downward tail force to trim the aircraft
- The affect the longitudinal stability and control of an aircraft, as well as the trim drag penalty
- Supercritical airfoils are designed to have a more positive Cm_0 to reduce the trim drag and improve the overall efficiency
Key Terms to Review (34)
Aerodynamic Efficiency: Aerodynamic efficiency is a measure of how effectively an object can produce lift while minimizing drag during flight. It reflects the balance between these two opposing forces, allowing for better performance and fuel economy in aircraft. A higher aerodynamic efficiency indicates a more favorable lift-to-drag ratio, which is crucial for optimizing flight characteristics and overall performance.
Angle of Attack: The angle of attack is the angle between the chord line of an airfoil and the direction of the oncoming airflow. This angle is crucial as it directly influences the lift generated by the airfoil, impacting performance metrics such as lift and drag coefficients, which are essential in aerodynamics.
Bernoulli's Principle: Bernoulli's Principle states that in a fluid flow, an increase in the fluid's velocity occurs simultaneously with a decrease in pressure or potential energy. This principle explains how airfoil shape affects lift generation and connects various aerodynamic concepts, such as flow behavior, force generation, and pressure distributions.
Boundary Layer: The boundary layer is a thin region adjacent to a solid surface where the effects of viscosity are significant, leading to velocity gradients as the fluid transitions from zero velocity at the surface to the free-stream velocity. This concept is crucial in understanding how air interacts with surfaces, influencing lift, drag, and overall aerodynamic performance.
Boundary Layer Control: Boundary layer control refers to techniques used to manage the behavior of the boundary layer, a thin region of fluid flow near a solid surface where effects of viscosity are significant. Effective control can help delay boundary layer separation, reduce drag, and improve lift on aerodynamic surfaces such as airfoils. This plays a vital role in optimizing airfoil geometry, understanding boundary layer equations, and mitigating the adverse effects of boundary layer separation.
Camber: Camber refers to the curvature of an airfoil, specifically the difference between the upper and lower surfaces. It plays a crucial role in determining the lift characteristics of an airfoil by influencing airflow and pressure distribution around the surface. The shape of camber can be adjusted to optimize performance, affecting lift, drag, and stall characteristics of wings or blades.
Camber Line: The camber line is a crucial geometric feature of an airfoil, defined as the curve that connects the highest points of the airfoil's upper and lower surfaces. This line plays a vital role in determining the airfoil's lift characteristics, as it influences the distribution of airflow over the surfaces and directly affects the lift generated at different angles of attack. The shape and position of the camber line can significantly influence aerodynamic performance, making it essential for optimizing wing design.
Cambered Airfoil: A cambered airfoil is an airfoil shape that has a curved upper surface and a flatter lower surface, designed to generate lift more efficiently than a symmetrical airfoil. The curvature, or camber, of the airfoil influences the airflow around it, creating a pressure difference between the upper and lower surfaces which results in lift. This design plays a critical role in determining the performance characteristics of an airfoil, including its lift-to-drag ratio and stall behavior.
Chord Line: The chord line is an imaginary straight line connecting the leading edge and trailing edge of an airfoil. This line serves as a reference for measuring various characteristics of the airfoil, such as camber and angle of attack. The chord line plays a critical role in understanding the aerodynamic properties of an airfoil, influencing lift, drag, and overall performance in airflow.
Daniel Bernoulli: Daniel Bernoulli was an 18th-century Swiss mathematician and physicist known for his contributions to fluid dynamics and the formulation of Bernoulli's principle. His work laid the foundation for understanding the relationship between the velocity of a fluid and its pressure, which is crucial in analyzing airfoil geometry, aircraft design, and optimization processes in aerodynamics.
Delta Wing: A delta wing is a triangular-shaped wing design characterized by its large surface area and angular appearance. This shape provides excellent aerodynamic efficiency at high speeds and enhances stability, particularly during supersonic flight. The delta wing's structure allows for a high angle of attack, which contributes to its performance in both maneuverability and lift generation.
Drag Characteristics: Drag characteristics refer to the specific behavior of drag forces acting on an object, particularly an airfoil, as it moves through a fluid like air. These characteristics are influenced by various factors including the shape, surface texture, and angle of attack of the airfoil, which ultimately determine how efficiently it can generate lift while minimizing resistance. Understanding drag characteristics is crucial for optimizing aircraft performance and enhancing aerodynamic efficiency.
Drag Coefficient: The drag coefficient is a dimensionless number that quantifies the drag or resistance of an object in a fluid environment, particularly air. This value is crucial for understanding how different shapes and configurations affect the overall aerodynamic performance, as it relates directly to lift and drag coefficients, potential flow theory, and various aerodynamic calculations.
Drag Polar: The drag polar is a graphical representation that shows the relationship between drag force and lift coefficient for an airfoil or aircraft. It provides critical insight into how an airfoil behaves at different angles of attack and helps identify the optimal conditions for performance. The shape of the drag polar curve can significantly impact an aircraft's aerodynamic efficiency, helping engineers design wings and control surfaces to minimize drag while maximizing lift.
Leading Edge: The leading edge is the front part of an airfoil, which is the surface designed to generate lift in an aircraft. It plays a crucial role in the airflow characteristics around the airfoil and influences the overall aerodynamic performance, including lift generation and drag reduction. The shape and design of the leading edge can affect how smoothly air flows over the wing, impacting stall behavior and overall efficiency during flight.
Leading Edge Devices: Leading edge devices are aerodynamic features added to the front part of an airfoil to enhance its performance by improving airflow characteristics. These devices play a crucial role in managing lift and drag forces, allowing for better control and stability during various flight conditions. By modifying the airflow over the airfoil, leading edge devices can delay stall, improve lift at lower speeds, and contribute to overall aircraft efficiency.
Leading Edge Radius: The leading edge radius refers to the curvature at the front edge of an airfoil, which is critical in determining the aerodynamic characteristics of the airfoil. This feature affects how air flows over the airfoil, influencing lift, drag, and stall behavior. A well-designed leading edge radius helps to reduce flow separation and enhances the overall performance of the airfoil, making it a key element in airfoil geometry.
Lift Coefficient: The lift coefficient is a dimensionless number that represents the lift characteristics of an airfoil or wing at a specific angle of attack, compared to the dynamic pressure and the wing's reference area. It is crucial in understanding how changes in airfoil geometry, flow conditions, and angle of attack affect the lift generated by the wing. The lift coefficient helps engineers analyze the performance of various airfoil designs and influences the calculations of aerodynamic forces experienced by vehicles in motion through fluids.
Lift Distribution: Lift distribution refers to the variation of lift across the span of a wing, indicating how lift is generated at different points from the root to the tip of the wing. This concept is crucial for understanding the aerodynamic performance of wings, as it influences the aircraft's stability, control, and efficiency. The distribution pattern can be affected by various factors, including airfoil shape, angle of attack, and wing design, making it a key aspect in analyzing performance in aerodynamic studies.
Lift-to-Drag Ratio: The lift-to-drag ratio is a measure of the efficiency of an airfoil or aircraft, defined as the ratio of lift produced to the drag experienced. A higher ratio indicates that an aircraft can generate more lift for each unit of drag, which is crucial for optimizing performance in flight.
Mach number effects: Mach number effects refer to the variations in aerodynamic behavior that occur as the speed of an object approaches or exceeds the speed of sound, which is approximately 343 meters per second (1,125 feet per second) at sea level. These effects are significant because they influence lift, drag, and shock wave formation around objects like airfoils and during isentropic flow conditions. Understanding these effects is crucial for designing efficient aircraft and predicting their performance across different flight regimes.
NACA Airfoil: A NACA airfoil is a standardized shape for an airfoil defined by the National Advisory Committee for Aeronautics (NACA), which was established in the early 20th century. These airfoils are characterized by a specific numerical designation that conveys key geometric and aerodynamic properties. This standardization allows engineers and designers to predict performance characteristics such as lift, drag, and stall behavior based on the airfoil's geometry, making them essential in the study of aerodynamics.
Newton's Third Law: Newton's Third Law states that for every action, there is an equal and opposite reaction. This principle is essential in understanding the behavior of forces and motion in fluid dynamics, particularly how airfoils generate lift and drag, the impact on stability, and the relationship between aerodynamic forces and moments acting on an aircraft.
Pitching Moment: The pitching moment is a measure of the torque or rotational force acting on an aircraft about its lateral axis due to aerodynamic forces. This concept is crucial for understanding how an aircraft behaves during flight, particularly in terms of stability and control, influencing various aspects such as airfoil design, the relationship between wind axes and body axes, and handling qualities during maneuvers.
Pitching Moment Characteristics: Pitching moment characteristics refer to the behavior of an airfoil's pitching moment, which is the torque about the aerodynamic center that influences its rotational motion. This characteristic plays a crucial role in determining an airfoil's stability and control effectiveness, influencing how it responds to changes in angle of attack and airspeed. Understanding these characteristics is vital for designing airfoils that perform well across different flight conditions.
Reynolds Number Effects: Reynolds number effects refer to the influence of the Reynolds number on the flow characteristics around airfoils, which helps predict flow patterns and behavior in different flow regimes. The Reynolds number is a dimensionless quantity that measures the ratio of inertial forces to viscous forces in fluid flow, and its value determines whether the flow is laminar or turbulent. This distinction is crucial in understanding how airfoil geometry impacts lift and drag performance in various flight conditions.
Stall Angle: The stall angle is the critical angle of attack at which an airfoil or wing experiences a significant loss of lift due to flow separation over its surface. Beyond this angle, the airflow can no longer adhere to the wing's surface, leading to a rapid decrease in lift and an increase in drag, resulting in a stall condition. Understanding the stall angle is essential for analyzing airfoil performance, stability, and control during flight.
Stall characteristics: Stall characteristics refer to the behaviors and performance of an airfoil as it approaches and experiences a stall, which is the loss of lift due to exceeding the critical angle of attack. Understanding stall characteristics is essential for assessing the safety and handling of an aircraft, as it influences how an aircraft maneuvers during critical phases such as takeoff and landing, as well as how control surfaces respond to changes in angle of attack. These characteristics are also vital in evaluating the pitching moments that occur during a stall, impacting overall aircraft stability.
Symmetrical airfoil: A symmetrical airfoil is a type of airfoil that has identical upper and lower surfaces, which means it has no camber. This characteristic allows for equal lift generation on both sides at zero angle of attack, making it particularly useful in applications where performance is required in both upward and downward motions. Symmetrical airfoils are essential in understanding the fundamental principles of airfoil geometry and play a significant role in thin airfoil theory, especially in predicting lift and drag characteristics across various flight conditions.
Theodore von Kármán: Theodore von Kármán was a pioneering engineer and mathematician known for his fundamental contributions to aerodynamics, particularly in airfoil design and thin airfoil theory. His work laid the groundwork for modern fluid dynamics, enabling advancements in aircraft design and performance optimization. He is particularly recognized for establishing key principles that govern how air interacts with wing shapes, which are critical in understanding lift generation and aerodynamic efficiency.
Thickness Distribution: Thickness distribution refers to the variation in thickness of an airfoil from its leading edge to its trailing edge. This characteristic is crucial as it affects the aerodynamic performance, lift generation, and overall stability of the airfoil. A well-defined thickness distribution can enhance the airfoil's ability to maintain lift at various angles of attack and improve its performance in different flight conditions.
Thickness-to-chord ratio: The thickness-to-chord ratio is a key parameter in airfoil design that measures the thickness of the airfoil relative to its chord length. This ratio plays a crucial role in determining the aerodynamic characteristics of the airfoil, influencing factors such as lift, drag, and overall performance. A higher thickness-to-chord ratio typically leads to increased lift but may also result in higher drag, affecting the efficiency of the aircraft.
Trailing Edge: The trailing edge is the rear part of an airfoil, where the airflow separates from the surface. This section plays a crucial role in determining the aerodynamic performance of the airfoil, influencing lift generation, drag, and stall characteristics. Understanding the trailing edge helps in analyzing how an airfoil interacts with airflow, impacting overall aircraft efficiency and stability.
Trailing Edge Devices: Trailing edge devices are aerodynamic components located at the rear of an airfoil, designed to modify the airflow and enhance the performance of the wing. These devices can improve lift, reduce drag, and increase control by altering the characteristics of the airflow as it passes over the wing. Common examples include flaps, slats, and ailerons, which play crucial roles in aircraft maneuverability and efficiency.
