10.3 Dynamic stall
13 min read•august 20, 2024
is a complex aerodynamic phenomenon that occurs when an airfoil experiences rapid changes in . It leads to sudden lift increases followed by dramatic losses, causing significant unsteady loads and vibrations in various aerodynamic systems.
Understanding dynamic stall is crucial for designing helicopters, wind turbines, and high-maneuverability aircraft. This phenomenon involves vortex formation, shedding, and flow reattachment, impacting aerodynamic forces and system performance. Controlling dynamic stall is an active area of research.
Dynamic stall phenomenon
- Dynamic stall is a complex aerodynamic phenomenon that occurs when an airfoil or lifting surface undergoes rapid changes in angle of attack, leading to a sudden increase in lift followed by a dramatic loss of lift
- Understanding dynamic stall is crucial for the design and operation of various aerodynamic systems, such as helicopter rotor blades, wind turbine blades, and high-maneuverability aircraft
- Dynamic stall can lead to significant unsteady loads, vibrations, and control issues, making it a critical area of study in the field of aerodynamics

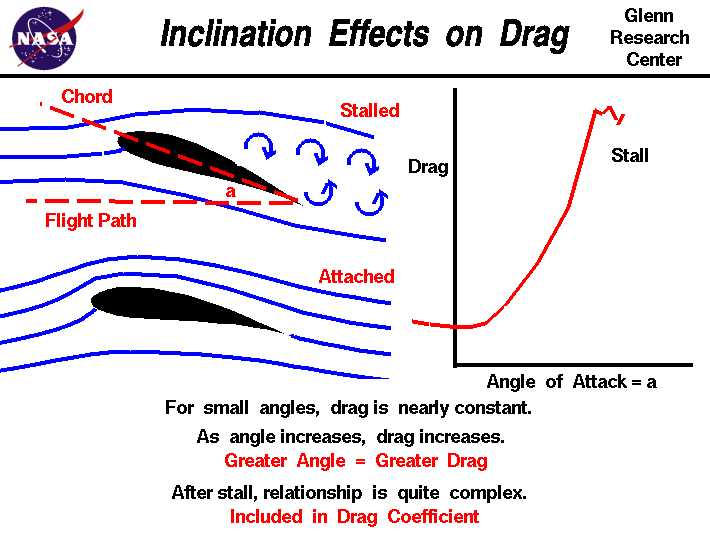

Causes of dynamic stall
Top images from around the web for Causes of dynamic stall
Chapter 1. Introduction to Aerodynamics – Aerodynamics and Aircraft Performance, 3rd edition View original
Is this image relevant?
What is the immediate cause of stall? - Aviation Stack Exchange View original
Is this image relevant?
Stall (fluid mechanics) - Wikipedia View original
Is this image relevant?
Chapter 1. Introduction to Aerodynamics – Aerodynamics and Aircraft Performance, 3rd edition View original
Is this image relevant?
What is the immediate cause of stall? - Aviation Stack Exchange View original
Is this image relevant?
1 of 3
Top images from around the web for Causes of dynamic stall
Chapter 1. Introduction to Aerodynamics – Aerodynamics and Aircraft Performance, 3rd edition View original
Is this image relevant?
What is the immediate cause of stall? - Aviation Stack Exchange View original
Is this image relevant?
Stall (fluid mechanics) - Wikipedia View original
Is this image relevant?
Chapter 1. Introduction to Aerodynamics – Aerodynamics and Aircraft Performance, 3rd edition View original
Is this image relevant?
What is the immediate cause of stall? - Aviation Stack Exchange View original
Is this image relevant?
1 of 3
- Dynamic stall occurs when an airfoil experiences a rapid increase in angle of attack, typically beyond the static stall angle
- The rapid change in angle of attack leads to the formation of a dynamic stall vortex near the leading edge of the airfoil
- The dynamic stall vortex initially enhances lift by creating a low-pressure region on the upper surface of the airfoil
- As the vortex grows and convects downstream, it eventually separates from the airfoil, causing a sudden loss of lift and increase in drag
Stages of dynamic stall
- Dynamic stall can be divided into four main stages: attached flow, vortex formation, vortex shedding, and flow reattachment
- During the attached flow stage, the airfoil experiences a rapid increase in lift as the angle of attack increases
- In the vortex formation stage, the dynamic stall vortex begins to form near the leading edge of the airfoil, further enhancing lift
- The vortex shedding stage occurs when the dynamic stall vortex separates from the airfoil, leading to a sudden loss of lift and increase in drag
- Finally, during the flow reattachment stage, the flow gradually reattaches to the airfoil as the angle of attack decreases, and the cycle can repeat
Effects on aerodynamic forces
- Dynamic stall has a significant impact on the aerodynamic forces acting on an airfoil or lifting surface
- The formation and shedding of the dynamic stall vortex lead to large fluctuations in lift, drag, and
- These unsteady aerodynamic forces can cause vibrations, structural fatigue, and control issues in various applications (helicopters, wind turbines)
- Understanding and predicting the effects of dynamic stall on aerodynamic forces is essential for the design and optimization of aerodynamic systems operating in unsteady flow conditions
Factors influencing dynamic stall
- Several factors influence the onset, development, and severity of dynamic stall, making it a complex and multifaceted phenomenon
- These factors include airfoil shape and characteristics, angle of attack variations, pitch rate, reduced frequency, , and Mach number
- Understanding the role of these factors is crucial for predicting and mitigating the effects of dynamic stall in various applications
Airfoil shape and characteristics
- The shape and characteristics of an airfoil have a significant impact on its susceptibility to dynamic stall
- Airfoils with a higher thickness-to-chord ratio and a more rounded leading edge tend to be more resistant to dynamic stall
- Camber, or the curvature of the airfoil, also plays a role in dynamic stall behavior, with highly cambered airfoils experiencing more pronounced dynamic stall effects
- The surface roughness and the presence of leading-edge devices (slats, slots) can also influence the onset and development of dynamic stall
Angle of attack variations
- The rate and amplitude of angle of attack variations are key factors in determining the severity of dynamic stall
- Rapid increases in angle of attack beyond the static stall angle are more likely to trigger dynamic stall
- The maximum angle of attack reached during the unsteady motion also influences the strength of the dynamic stall vortex and the associated aerodynamic forces
- The shape of the angle of attack variation (sinusoidal, ramp-up, ramp-down) can also affect the dynamic stall characteristics
Pitch rate and reduced frequency
- Pitch rate, or the rate at which the angle of attack changes, is a critical parameter in dynamic stall
- Higher pitch rates lead to more severe dynamic stall effects, as the airfoil has less time to adapt to the changing flow conditions
- Reduced frequency, which is a non-dimensional parameter relating the pitch rate to the freestream velocity and airfoil chord, is often used to characterize dynamic stall behavior
- Higher reduced frequencies indicate more unsteady flow conditions and a greater likelihood of dynamic stall occurrence
Reynolds number effects
- The Reynolds number, which represents the ratio of inertial forces to viscous forces, influences the dynamic stall behavior of an airfoil
- At lower Reynolds numbers, the is more prone to separation, leading to earlier onset of dynamic stall
- Higher Reynolds numbers can delay the onset of dynamic stall and lead to more compact and energetic dynamic stall vortices
- The effect of Reynolds number on dynamic stall depends on the specific airfoil geometry and flow conditions
Mach number effects
- The Mach number, which represents the ratio of the flow velocity to the speed of sound, can also influence dynamic stall behavior
- At higher Mach numbers, compressibility effects become significant, leading to the formation of shock waves on the airfoil surface
- The interaction between shock waves and the dynamic stall vortex can lead to more complex and severe dynamic stall phenomena
- Transonic and supersonic dynamic stall are particularly challenging due to the additional effects of compressibility and shock-boundary layer interaction
Dynamic stall modeling
- Accurate modeling of dynamic stall is essential for predicting and mitigating its effects in various applications
- Dynamic stall modeling approaches range from semi-empirical methods to high-fidelity (CFD) simulations
- Each modeling approach has its advantages and limitations, and the choice of the appropriate method depends on the specific requirements and available resources
Semi-empirical models
- Semi-empirical models are based on a combination of theoretical principles and empirical correlations derived from experimental data
- These models often use a simplified representation of the dynamic stall process, such as the Beddoes-Leishman model or the ONERA model
- Semi-empirical models are computationally efficient and can provide reasonable predictions of dynamic stall behavior for a range of flow conditions and airfoil geometries
- However, they may have limited accuracy in capturing the detailed flow physics and may require extensive calibration and validation against experimental data
Computational fluid dynamics approaches
- CFD approaches solve the governing equations of fluid motion (Navier-Stokes equations) to predict the unsteady flow field around an airfoil undergoing dynamic stall
- High-fidelity CFD methods, such as Large Eddy Simulation (LES) and Direct Numerical Simulation (DNS), can provide detailed insights into the dynamic stall process, including the formation and shedding of the dynamic stall vortex
- These methods can capture the complex flow physics, including turbulence, separation, and reattachment, with a high level of accuracy
- However, high-fidelity CFD simulations are computationally expensive and require significant computational resources and expertise
Limitations and challenges
- Despite the advancements in dynamic stall modeling, there are still significant limitations and challenges in accurately predicting dynamic stall behavior
- The complex and unsteady nature of dynamic stall, involving flow separation, vortex formation, and reattachment, makes it challenging to model accurately
- The presence of turbulence, three-dimensional effects, and compressibility further complicates the modeling process
- Validation of dynamic stall models against experimental data is crucial, but obtaining reliable and comprehensive experimental data can be difficult and expensive
- Balancing computational efficiency and accuracy remains a challenge, especially for applications requiring real-time predictions or optimization
Dynamic stall control techniques
- Controlling dynamic stall is essential for improving the performance, stability, and longevity of aerodynamic systems operating in unsteady flow conditions
- Various control techniques have been developed to mitigate the adverse effects of dynamic stall, including passive, active, and hybrid methods
- The choice of the appropriate control technique depends on the specific application, operating conditions, and design constraints
Passive control methods
- Passive control methods rely on modifications to the airfoil geometry or the use of passive devices to alter the flow field and suppress dynamic stall
- Leading-edge modifications, such as droop noses, slots, or slats, can delay the onset of dynamic stall by promoting attached flow and reducing the adverse pressure gradient
- Vortex generators, placed on the airfoil surface, can create streamwise vortices that energize the boundary layer and delay flow separation
- Passive porous surfaces or compliant materials can be used to absorb the energy of the dynamic stall vortex and reduce its strength
- Passive control methods are relatively simple and low-cost but may have limited effectiveness in highly unsteady flow conditions
Active control methods
- Active control methods involve the use of actuators and sensors to actively manipulate the flow field and suppress dynamic stall
- Trailing-edge flaps, which can be deflected in response to the unsteady flow conditions, can change the effective camber of the airfoil and delay the onset of dynamic stall
- Blowing or suction, applied near the leading edge or the surface of the airfoil, can energize the boundary layer and prevent or delay flow separation
- Plasma actuators, which create a localized electric field to ionize the air, can generate a body force that can manipulate the flow and suppress dynamic stall
- Active control methods offer more flexibility and adaptability compared to passive methods but require complex control systems and energy input
Hybrid control strategies
- Hybrid control strategies combine the advantages of both passive and active control methods to achieve more effective and robust dynamic stall control
- For example, a passive leading-edge device can be combined with an active trailing-edge flap to provide both passive flow control and active adaptation to the unsteady flow conditions
- Hybrid control strategies can also involve the integration of different active control methods, such as blowing and plasma actuation, to target different aspects of the dynamic stall process
- The development of hybrid control strategies requires a thorough understanding of the underlying flow physics and the synergistic effects of different control mechanisms
- Optimization and feedback control algorithms play a crucial role in the design and implementation of effective hybrid control strategies
Applications and implications
- Dynamic stall has significant implications for a wide range of aerodynamic applications, from rotorcraft and wind turbines to high-maneuverability aircraft and bio-inspired systems
- Understanding and mitigating the effects of dynamic stall is crucial for improving the performance, efficiency, and safety of these systems
- Advances in dynamic stall research have the potential to revolutionize the design and operation of various aerodynamic systems and open up new possibilities for unsteady aerodynamics
Helicopter rotor blades
- Dynamic stall is a major concern for helicopter rotor blades, which operate in highly unsteady flow conditions due to the cyclic variation of the blade pitch angle
- The occurrence of dynamic stall on rotor blades can lead to significant vibrations, noise, and structural fatigue, limiting the performance and longevity of the helicopter
- Controlling dynamic stall on rotor blades can improve the efficiency, maneuverability, and stability of helicopters, especially in challenging flight conditions (high-speed forward flight, maneuvering)
- Advanced dynamic stall control techniques, such as active trailing-edge flaps and leading-edge blowing, have shown promise in mitigating the adverse effects of dynamic stall on helicopter rotor blades
Wind turbine blades
- Wind turbine blades are subject to dynamic stall due to the unsteady nature of the wind and the variations in the blade angle of attack
- Dynamic stall on wind turbine blades can cause significant fluctuations in the generated power, increased structural loads, and reduced efficiency
- Mitigating dynamic stall on wind turbine blades can lead to more consistent power output, reduced fatigue loads, and increased energy capture, especially in gusty and turbulent wind conditions
- Passive control methods, such as vortex generators and leading-edge modifications, have been explored for dynamic stall control on wind turbine blades, while active control methods are an area of active research
High-maneuverability aircraft
- High-maneuverability aircraft, such as fighter jets and acrobatic planes, often operate at high angles of attack and are susceptible to dynamic stall
- Dynamic stall can limit the maneuverability and agility of these aircraft, as well as cause abrupt changes in the aerodynamic forces and moments
- Controlling dynamic stall on high-maneuverability aircraft can enhance their performance, expand their flight envelope, and improve pilot safety
- Active flow control methods, such as leading-edge blowing and trailing-edge flaps, have been investigated for dynamic stall control on high-maneuverability aircraft
Unsteady aerodynamics in nature
- Many biological systems, such as insect wings and bird wings, operate in highly unsteady flow conditions and exhibit remarkable aerodynamic performance
- These biological systems have evolved various mechanisms to exploit and control unsteady flow phenomena, including dynamic stall
- Studying the unsteady aerodynamics of biological systems can provide valuable insights into the mechanisms of dynamic stall control and inspire new bio-inspired solutions
- Bio-inspired dynamic stall control strategies, such as flexible wing structures and active flow control, have the potential to revolutionize the design of future aircraft and unmanned aerial vehicles (UAVs)
Experimental techniques for dynamic stall
- Experimental studies play a crucial role in understanding the complex flow physics of dynamic stall and validating numerical models and control strategies
- Various experimental techniques have been developed to investigate dynamic stall, each with its own advantages and limitations
- The choice of the appropriate experimental technique depends on the specific research objectives, the available resources, and the desired spatial and temporal resolution
Wind tunnel testing
- is a fundamental experimental technique for studying dynamic stall under controlled flow conditions
- Scaled models of airfoils or lifting surfaces are mounted in a wind tunnel and subjected to unsteady motion (pitching, plunging) to simulate dynamic stall conditions
- Force and moment measurements, using load cells or pressure taps, provide quantitative data on the aerodynamic forces acting on the model during dynamic stall
- Flow visualization techniques, such as smoke or dye injection, can reveal the qualitative features of the dynamic stall flow field, including the formation and shedding of the dynamic stall vortex
Particle image velocimetry (PIV)
- Particle Image Velocimetry (PIV) is a non-intrusive optical technique for measuring the velocity field in a fluid flow
- In PIV, the flow is seeded with small tracer particles, and a laser sheet illuminates a plane of interest
- High-speed cameras capture images of the illuminated particles at successive time intervals, and cross-correlation algorithms are used to determine the particle displacements and velocity vectors
- PIV can provide high-resolution, instantaneous velocity field measurements, enabling detailed studies of the dynamic stall flow field, including the formation and evolution of the dynamic stall vortex
Pressure-sensitive paint (PSP)
- Pressure-Sensitive Paint (PSP) is a technique for measuring the surface pressure distribution on a model using a special paint that responds to changes in pressure
- The PSP consists of luminescent molecules embedded in a polymer binder, which is applied to the surface of the model
- When excited by a light source, the luminescent intensity of the PSP varies with the local air pressure, allowing for the determination of the surface pressure distribution
- PSP can provide high-resolution, full-field surface pressure measurements during dynamic stall, which can be used to analyze the unsteady loads and the influence of flow control techniques
Hot-wire anemometry
- Hot-wire anemometry is a technique for measuring the velocity and turbulence in a fluid flow using a thin wire sensor
- The hot-wire sensor is heated by an electric current, and the flow velocity is determined by the amount of heat transferred from the wire to the fluid
- Hot-wire anemometry can provide high-frequency, point-wise velocity measurements, making it suitable for studying the unsteady and turbulent flow features associated with dynamic stall
- However, hot-wire measurements are intrusive and can be challenging to apply in highly separated and vortical flows, such as those encountered during dynamic stall
Future research directions in dynamic stall
- Despite the significant progress made in understanding and controlling dynamic stall, there are still numerous challenges and opportunities for future research
- Advancing the fundamental understanding of dynamic stall physics, developing novel flow control techniques, and leveraging emerging technologies are key areas for future research
- Collaborative and interdisciplinary efforts, combining experimental, numerical, and theoretical approaches, will be essential for addressing the complex challenges associated with dynamic stall
Advanced flow control techniques
- Developing advanced flow control techniques that are more effective, efficient, and robust is a key area for future research in dynamic stall
- Active flow control methods, such as synthetic jets, plasma actuators, and smart materials, offer promising avenues for manipulating the dynamic stall flow field and suppressing the adverse effects
- Closed-loop control strategies, which adapt the flow control input based on real-time measurements of the flow state, can provide more optimal and responsive dynamic stall control
- Investigating the synergistic effects of multiple flow control techniques and optimizing their placement and actuation parameters are important research directions
Machine learning and data-driven approaches
- Machine learning and data-driven approaches have the potential to revolutionize the analysis, modeling, and control of dynamic stall
- Large datasets from high-fidelity simulations and experiments can be used to train machine learning models, such as neural networks, to predict the onset and evolution of dynamic stall
- Data-driven reduced-order models can provide computationally efficient tools for real-time prediction and control of dynamic stall in practical applications
- Reinforcement learning algorithms can be used to develop adaptive flow control strategies that learn from the system's response and optimize the control input in real-time
Multi-disciplinary optimization
- Dynamic stall is a multi-discipl
Key Terms to Review (19)
Aerodynamic Efficiency: Aerodynamic efficiency is a measure of how effectively an object can produce lift while minimizing drag during flight. It reflects the balance between these two opposing forces, allowing for better performance and fuel economy in aircraft. A higher aerodynamic efficiency indicates a more favorable lift-to-drag ratio, which is crucial for optimizing flight characteristics and overall performance.
Angle of Attack: The angle of attack is the angle between the chord line of an airfoil and the direction of the oncoming airflow. This angle is crucial as it directly influences the lift generated by the airfoil, impacting performance metrics such as lift and drag coefficients, which are essential in aerodynamics.
Bernoulli's Principle: Bernoulli's Principle states that in a fluid flow, an increase in the fluid's velocity occurs simultaneously with a decrease in pressure or potential energy. This principle explains how airfoil shape affects lift generation and connects various aerodynamic concepts, such as flow behavior, force generation, and pressure distributions.
Boundary Layer: The boundary layer is a thin region adjacent to a solid surface where the effects of viscosity are significant, leading to velocity gradients as the fluid transitions from zero velocity at the surface to the free-stream velocity. This concept is crucial in understanding how air interacts with surfaces, influencing lift, drag, and overall aerodynamic performance.
Circulation theory: Circulation theory is a concept in fluid dynamics that explains the relationship between circulation, lift, and the behavior of airflow around objects, particularly airfoils. It connects the motion of fluid particles around a body to the generation of lift, emphasizing that lift results from the difference in pressure created by circulation patterns. Understanding this theory is essential for analyzing phenomena like dynamic stall and how lift changes with varying angles of attack.
Computational Fluid Dynamics: Computational fluid dynamics (CFD) is a branch of fluid mechanics that uses numerical analysis and algorithms to solve and analyze problems involving fluid flows. It enables engineers and scientists to simulate and visualize fluid behavior, which is critical in optimizing designs and understanding aerodynamic performance.
Control Surface Effectiveness: Control surface effectiveness refers to how well an aircraft's control surfaces, such as ailerons, elevators, and rudders, perform their intended functions to influence the aircraft's motion and stability. The efficiency of these surfaces can vary based on several factors including the Mach number, stability characteristics, and handling qualities, all of which play a critical role in the aircraft's overall performance and safety.
Delay in Stall: Delay in stall refers to the phenomenon where the stall of an airfoil is postponed or occurs at a higher angle of attack than expected due to various factors, such as changes in flow conditions or airfoil design. This delay can enhance the lift characteristics and overall performance of an aircraft, particularly during dynamic maneuvers or rapid changes in pitch. Understanding this concept is essential for optimizing the aerodynamic efficiency and control of aircraft in flight.
Dynamic stall: Dynamic stall refers to a phenomenon in aerodynamics where the airflow over an airfoil becomes unsteady, causing a sudden loss of lift due to an abrupt change in the angle of attack. This effect is significant in situations where an airfoil experiences rapid changes in angle or velocity, resulting in a delay in the reattachment of airflow over the surface. Understanding dynamic stall is crucial for analyzing gust response and the broader implications of unsteady flow phenomena on aerodynamic performance.
G. j. a. m. r. s. p. s. d. w. c. h.: g. j. a. m. r. s. p. s. d. w. c. h. refers to the complex interplay of various aerodynamic phenomena that occur during dynamic stall, which happens when an airfoil experiences a rapid increase in angle of attack, leading to a significant change in lift and drag characteristics. This term encapsulates the dynamics of the flow separation and reattachment that can occur in unsteady conditions, influencing performance and stability in flight.
H. b. p. n. n. w. a. houghton: The term 'h. b. p. n. n. w. a. houghton' refers to a specific concept related to the phenomena of dynamic stall, which involves the behavior of airfoils as they operate in unsteady flow conditions. This concept addresses the complex interactions between airflow and lift generation during rapid changes in angle of attack, leading to potential loss of control and performance issues in aerodynamic systems. Understanding this term is crucial for analyzing how aerodynamic surfaces perform when subjected to varying flight conditions.
Leading-edge vortex: A leading-edge vortex is a swirling flow of air that forms at the leading edge of an airfoil, especially during high angles of attack. This phenomenon is crucial in enhancing lift and delaying stall, as the vortex helps maintain airflow over the wing's surface. Understanding this effect is essential when analyzing dynamic stall behavior in various aerodynamic applications.
Lift hysteresis: Lift hysteresis refers to the phenomenon where the lift force experienced by an airfoil during the process of angle of attack (AoA) variation does not follow a simple path, but instead exhibits different behaviors for increasing and decreasing angles of attack. This results in a difference in lift characteristics depending on whether the angle of attack is being increased or decreased, leading to potential implications for stall recovery and overall aerodynamic performance.
Pitching Moment: The pitching moment is a measure of the torque or rotational force acting on an aircraft about its lateral axis due to aerodynamic forces. This concept is crucial for understanding how an aircraft behaves during flight, particularly in terms of stability and control, influencing various aspects such as airfoil design, the relationship between wind axes and body axes, and handling qualities during maneuvers.
Post-stall behavior: Post-stall behavior refers to the aerodynamic characteristics and flight dynamics of an aircraft after it has exceeded its critical angle of attack and entered a stall condition. This phase is crucial as it involves complex interactions between the airflow over the wings and control surfaces, leading to potential recovery or loss of control. Understanding post-stall behavior is essential for pilots and engineers to enhance safety and performance in aviation, especially during maneuvers that can push aircraft close to their limits.
Reynolds Number: Reynolds number is a dimensionless quantity used to predict flow patterns in different fluid flow situations, representing the ratio of inertial forces to viscous forces. It plays a critical role in determining whether a flow is laminar or turbulent, influencing various aerodynamic phenomena such as lift, drag, and boundary layer behavior.
Separation Point: The separation point is the location on a body where the boundary layer of fluid flow detaches from the surface. This phenomenon is critical as it marks the transition from attached flow to separated flow, influencing drag, lift, and overall aerodynamic performance. Understanding the separation point helps to predict airflow patterns, which can lead to changes in pressure distribution around the object and affect its stability and control.
Stall Margin: Stall margin is a critical aerodynamic concept that refers to the difference between the angle of attack at which a stall occurs and the operating angle of attack of an aircraft. A positive stall margin indicates that the aircraft can safely operate without stalling, while a negative stall margin suggests a high risk of stalling under current conditions. Understanding stall margin is essential for ensuring safe flight operations, especially in dynamic flight situations where abrupt changes in angle of attack may occur.
Wind tunnel testing: Wind tunnel testing is a controlled experimental method used to study the aerodynamic properties of models by simulating airflow over them in a tunnel environment. This technique helps researchers and engineers analyze forces such as lift and drag, understand flow behavior, and optimize designs for various applications in aerodynamics.
