5.5 Aerodynamic coefficients

Aerodynamic coefficients let you take real forces and moments acting on a body in a flow and convert them into dimensionless numbers. That's powerful because it means you can compare the aerodynamic performance of a wind tunnel model to a full-scale aircraft, or compare two completely different designs, without worrying about differences in speed, altitude, or size. This section covers the main coefficients (lift, drag, moment, pressure, friction), how they vary with flow conditions, and how they're measured or predicted.

Aerodynamic coefficient fundamentals

Definition of aerodynamic coefficients

Aerodynamic coefficients quantify forces and moments on a body in a standardized, dimensionless form. The most commonly used ones are the lift coefficient ($C_L$), drag coefficient ($C_D$), and moment coefficients ($C_M$, $C_l$, $C_n$). Each is formed by dividing the relevant force or moment by the product of dynamic pressure and an appropriate reference dimension.

Dimensionless nature of coefficients

The whole point of making these coefficients dimensionless is that they strip away the effects of size, speed, and air density. Two geometrically similar bodies at the same angle of attack and Reynolds number will share the same coefficients, even if one is a 1/10th scale model in a wind tunnel and the other is the real thing at cruise altitude.

You obtain a dimensionless force coefficient by dividing the force by dynamic pressure ($q_\infty = \frac{1}{2} \rho V^2$) times a reference area $S$. For moment coefficients, you also divide by a reference length (chord $c$ or wingspan $b$).

Coefficients vs. aerodynamic forces and moments

Actual aerodynamic forces and moments depend on velocity, density, size, and shape all at once. Coefficients isolate the shape- and attitude-dependent part of the aerodynamics. Once you know a coefficient, you can recover the dimensional force or moment for any flight condition:

$L = C_L \cdot \frac{1}{2} \rho V^2 \cdot S$

This separation is what makes coefficients so useful in design and analysis.

Lift coefficient ($C_L$)

Definition and equation

The lift coefficient represents how effectively a body generates lift, normalized by dynamic pressure and reference area:

$C_L = \frac{L}{\frac{1}{2} \rho V^2 S}$

where $L$ is the lift force, $\rho$ is air density, $V$ is freestream velocity, and $S$ is the reference planform area (typically the wing area).

Factors affecting lift coefficient

• Angle of attack: $C_L$ increases roughly linearly with angle of attack in the pre-stall region. Beyond the stall angle (typically 12°–18° for conventional airfoils), the flow separates and $C_L$ drops sharply.

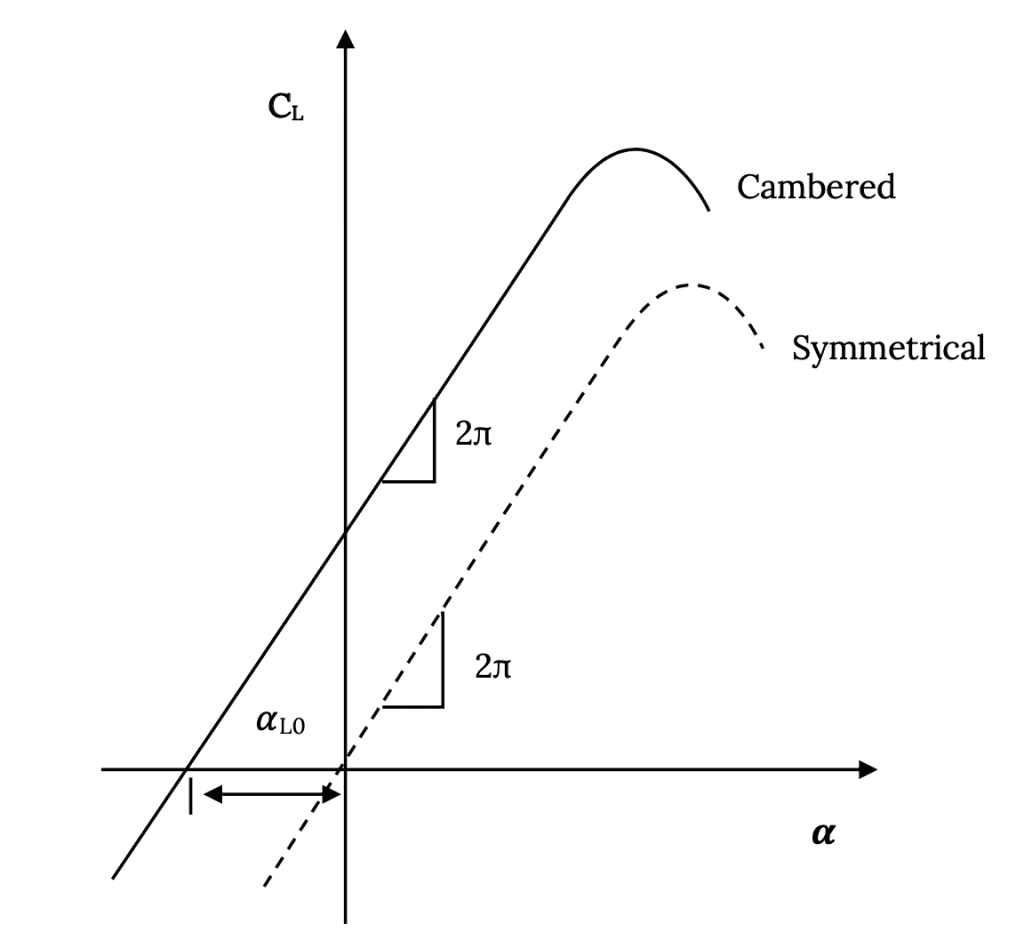

• Airfoil shape: Greater camber shifts the $C_L$ vs. $\alpha$ curve upward, giving more lift at zero angle of attack. Thickness distribution affects the pressure gradients and stall behavior.
• Aspect ratio: Higher aspect ratio wings produce less induced drag for a given $C_L$, and their lift-curve slope is closer to the 2D theoretical value.
• High-lift devices: Flaps and slats reshape the effective airfoil geometry and can increase $C_{L,\text{max}}$ by 50% or more.

Typical lift coefficient values

• Clean subsonic airfoils reach a maximum $C_L$ of roughly 1.5 to 2.0.
• With flaps and slats deployed, $C_{L,\text{max}}$ can exceed 3.0 on transport aircraft.
• Supersonic airfoils tend to have lower $C_L$ values (around 0.5 to 1.0) because of thinner profiles and the presence of shock waves.

Drag coefficient ($C_D$)

Definition and equation

The drag coefficient quantifies a body's resistance to motion through a fluid:

$C_D = \frac{D}{\frac{1}{2} \rho V^2 S}$

where $D$ is the total drag force.

Factors affecting drag coefficient

• Streamlining: A well-streamlined shape delays flow separation and keeps pressure drag low. Blunt shapes create large wake regions and much higher $C_D$.
• Surface roughness: Rougher surfaces increase skin friction drag by promoting earlier transition to turbulent flow and thickening the turbulent boundary layer.
• Flow separation: Separated flow creates a low-pressure wake behind the body, significantly increasing pressure drag.
• Compressibility effects: As the freestream Mach number approaches 1 (transonic regime), shock waves form on the surface and $C_D$ rises dramatically. This sharp increase is called drag divergence.

Typical drag coefficient values

• Streamlined airfoils at low angle of attack: $C_D$ on the order of 0.005 to 0.02. A full aircraft (including fuselage, tail, etc.) might see $C_D$ of 0.02 to 0.05.
• Blunt objects like spheres or cylinders: $C_D$ of 0.4 to 1.2, depending on Reynolds number.
• Supersonic vehicles carry additional wave drag, pushing $C_D$ above subsonic values.

Moment coefficients

Pitching moment coefficient ($C_M$)

The pitching moment coefficient captures the nose-up or nose-down tendency about a chosen reference point:

$C_M = \frac{M}{\frac{1}{2} \rho V^2 S \, c}$

where $M$ is the pitching moment and $c$ is the reference chord length (usually the mean aerodynamic chord). This coefficient is central to longitudinal stability and trim analysis.

Rolling moment coefficient ($C_l$)

$C_l = \frac{\mathcal{L}}{\frac{1}{2} \rho V^2 S \, b}$

Here $\mathcal{L}$ is the rolling moment about the longitudinal (x) axis and $b$ is the wingspan. Note the lowercase $l$ to distinguish it from lift. This coefficient governs lateral stability and aileron effectiveness.

Yawing moment coefficient ($C_n$)

$C_n = \frac{N}{\frac{1}{2} \rho V^2 S \, b}$

where $N$ is the yawing moment about the vertical (z) axis. $C_n$ is key to directional (weathercock) stability and rudder control authority.

Pressure coefficient ($C_p$)

Definition and equation

The pressure coefficient describes how the local static pressure at a point on a surface compares to the freestream pressure:

$C_p = \frac{p - p_\infty}{\frac{1}{2} \rho_\infty V_\infty^2}$

A positive $C_p$ means the local pressure is above freestream; a negative $C_p$ means it's below freestream (suction).

Relationship between $C_p$ and velocity

For incompressible flow, Bernoulli's equation gives a direct link:

$C_p = 1 - \left(\frac{V}{V_\infty}\right)^2$

So where the flow speeds up ($V > V_\infty$), $C_p$ goes negative. Where the flow stagnates ($V = 0$), $C_p = 1$. That value of 1 is the maximum possible $C_p$ in incompressible flow and occurs at the stagnation point.

$C_p$ distribution over airfoils and wings

Plotting $C_p$ vs. chordwise position is one of the most informative tools in aerodynamics:

• A sharp suction peak (strongly negative $C_p$) appears near the leading edge on the upper surface, corresponding to high local velocity.
• Downstream of the suction peak, pressure gradually recovers toward the trailing edge. This pressure recovery region is where the boundary layer is most vulnerable to separation.
• On the lower surface, $C_p$ is generally higher (less negative or positive), and the difference between upper and lower $C_p$ distributions represents the local contribution to lift.
• Sudden jumps in the $C_p$ distribution can indicate shock waves (in transonic flow) or flow separation.

Coefficient of friction ($C_f$)

Definition and equation

The skin friction coefficient relates the local wall shear stress to the dynamic pressure:

$C_f = \frac{\tau_w}{\frac{1}{2} \rho V^2}$

where $\tau_w$ is the shear stress at the wall. This coefficient quantifies viscous drag at each point on the surface.

Laminar vs. turbulent friction coefficients

Laminar boundary layers produce significantly less friction than turbulent ones. The scaling with Reynolds number differs:

• Laminar: $C_f \propto Re^{-1/2}$ (Blasius solution for a flat plate gives $C_f = 0.664 / \sqrt{Re_x}$)
• Turbulent: $C_f \propto Re^{-1/5}$ (empirical correlations give values roughly 5–10 times higher than laminar at the same $Re_x$)

This is why maintaining laminar flow over as much of the surface as possible is a major goal in low-drag design.

$C_f$ distribution over surfaces

• $C_f$ is highest near the leading edge where the boundary layer is thinnest.
• It decreases along the surface as the boundary layer thickens.
• A sudden jump in $C_f$ signals the transition point from laminar to turbulent flow.
• In separated flow regions, $C_f$ drops to zero (or can become slightly negative, indicating reversed flow near the wall).

Aerodynamic center and moment reference point

Definition of aerodynamic center

The aerodynamic center (AC) is the special point on a body where $C_M$ does not change with angle of attack. In other words, $dC_M/d\alpha = 0$ at the AC.

• For thin airfoils in subsonic flow, theory places the AC at the quarter-chord point (25% of chord from the leading edge).
• In supersonic flow, the AC shifts rearward toward approximately the half-chord (50% chord).

Significance of moment reference point

The moment reference point is the location about which you choose to calculate moments. Common choices include:

• Leading edge: convenient for theoretical derivations
• Quarter-chord point: often close to the AC, simplifying stability analysis
• Center of gravity (CG): directly relevant for flight dynamics and trim

The choice of reference point changes the numerical value of $C_M$ but doesn't change the actual physical moment on the aircraft.

Relationship between coefficients and reference point

You can transfer the moment coefficient from one reference point to another using the lift coefficient. If you shift the reference point by a distance $\Delta x$ along the chord:

$C_{M,\text{new}} = C_{M,\text{old}} - C_L \cdot \frac{\Delta x}{c}$

Lift and drag coefficients are independent of the moment reference point since they represent forces, not moments.

Coefficient variations

Coefficient changes with angle of attack

• $C_L$ increases approximately linearly with angle of attack (slope $\approx 2\pi$ per radian for a thin 2D airfoil) until stall, where it drops.
• $C_D$ increases gradually at low angles of attack (mostly due to growing induced drag) and then rises sharply after stall as massive flow separation occurs.
• $C_M$ variation with $\alpha$ determines static longitudinal stability. A negative $dC_M/d\alpha$ (about the CG) means the aircraft is statically stable.

Mach number effects on coefficients

• Below about Mach 0.3, compressibility effects are negligible and coefficients depend mainly on angle of attack and Reynolds number.
• In the transonic regime (roughly Mach 0.7–1.2), shock waves form on the surface. $C_D$ increases sharply (drag divergence), and $C_L$ can decrease. The AC shifts aft.
• In supersonic flow, wave drag becomes a dominant component of $C_D$. The Prandtl-Glauert rule and its extensions describe how coefficients scale with Mach number in linearized theory.

Reynolds number effects on coefficients

Reynolds number ($Re = \rho V L / \mu$) represents the ratio of inertial to viscous forces.

• Higher $Re$ produces thinner boundary layers, delays separation, and generally increases $C_{L,\text{max}}$.
• $C_D$ tends to decrease with increasing $Re$ because the relative importance of skin friction diminishes.
• At very low $Re$ (e.g., small UAVs, insect flight), viscous effects dominate and coefficients can behave quite differently from high-$Re$ flows.

Experimental determination of coefficients

Wind tunnel testing

Wind tunnels provide a controlled environment where you set the freestream velocity, density, and turbulence level, then measure the resulting forces and moments on a model. Testing at the correct Reynolds number and Mach number is critical for the results to be representative of full-scale conditions.

Force balance and pressure measurement techniques

• Force balances (internal or external) directly measure the total forces and moments on the model through strain gauges or load cells.
• Pressure taps are small holes drilled into the model surface, connected to pressure transducers. They measure the local static pressure at discrete points.
• Integrating the measured pressure distribution over the surface yields the pressure-related forces and moments. Skin friction must be accounted for separately (or estimated).

Data reduction and coefficient calculations

1. Record raw force/moment data or pressure distributions at each test condition.
2. Apply corrections for wind tunnel effects: wall interference (the tunnel walls alter the flow around the model), blockage (the model occupies a fraction of the test section), and support interference (the sting or strut holding the model affects the flow).
3. Normalize the corrected forces and moments by $\frac{1}{2} \rho V^2 S$ (and reference length for moments) to obtain the aerodynamic coefficients.

Computational methods for coefficient prediction

CFD simulations

Computational Fluid Dynamics (CFD) numerically solves the governing equations of fluid flow (Navier-Stokes equations) on a discretized domain. From the computed flow field, you extract pressure and shear stress distributions, then integrate them to get forces, moments, and their corresponding coefficients. CFD is especially valuable in early design stages where building and testing physical models would be too slow or expensive.

Turbulence modeling and mesh considerations

• RANS (Reynolds-Averaged Navier-Stokes) models are the workhorse for engineering applications. They model all turbulent scales and are computationally affordable but less accurate for complex separated flows.
• LES (Large Eddy Simulation) resolves the large turbulent structures and models only the smallest scales. More accurate for unsteady and separated flows, but much more expensive.
• DES (Detached Eddy Simulation) is a hybrid that uses RANS near walls and LES in separated regions.
• Mesh quality matters enormously. You need fine resolution in boundary layers ($y^+ \approx 1$ for wall-resolved simulations), near shock waves, and in wake regions. Grid convergence studies (running the same case on progressively finer meshes) help confirm that results aren't artifacts of insufficient resolution.

Validation and verification of CFD results

• Verification confirms that the code solves the equations correctly (code bugs, numerical errors, convergence).
• Validation compares CFD predictions against experimental data to assess physical accuracy.
• Both are necessary. A verified code can still give wrong answers if the turbulence model or boundary conditions are inappropriate. Always check CFD-derived coefficients against wind tunnel or flight test data when available.
