4.6 Skin friction and heat transfer

Skin friction fundamentals

Skin friction is the tangential force a fluid exerts on a surface as it flows past. In aerodynamics, it's a major contributor to drag, and it's tightly linked to heat transfer through the boundary layer. This section covers the physics behind both phenomena and the methods used to predict and manage them.

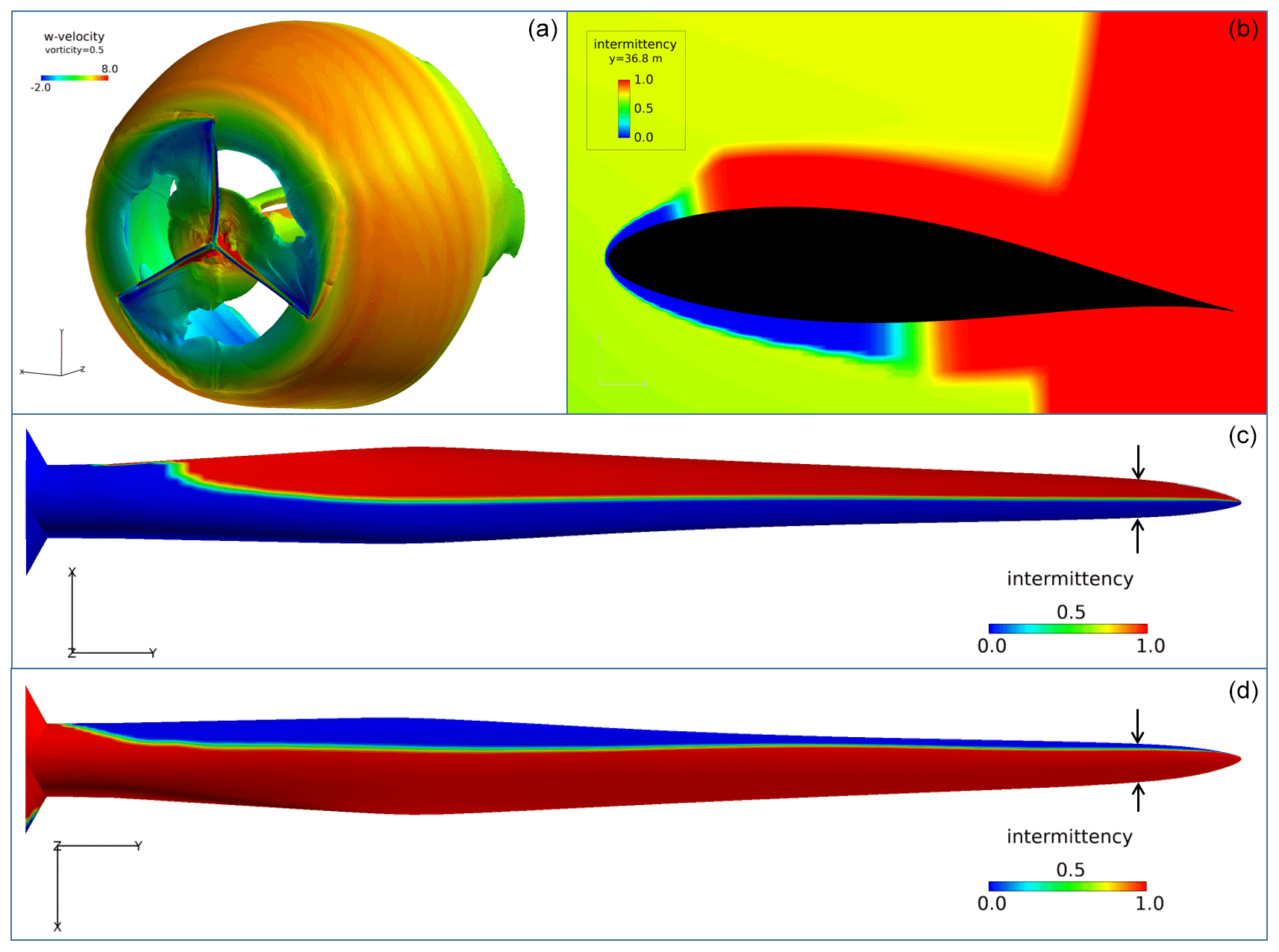

Boundary layer concept

The boundary layer is the thin region of fluid right next to a surface where viscous effects dominate. At the surface itself, the fluid velocity is zero (the no-slip condition), and it increases with distance until it reaches the freestream value. The outer edge of this region defines the boundary layer thickness.

Boundary layers come in two flavors: laminar and turbulent. Each produces very different skin friction and heat transfer behavior. The thickness of the boundary layer grows along the surface and depends on the Reynolds number, surface roughness, and pressure gradients.

Laminar vs. turbulent flow

• Laminar flow occurs at lower Reynolds numbers. Fluid moves in smooth, parallel layers with very little mixing between them. Skin friction is relatively low.
• Turbulent flow occurs at higher Reynolds numbers. The motion becomes chaotic with swirling eddies that dramatically increase mixing, energy dissipation, and skin friction.
• Transition from laminar to turbulent can be triggered by surface roughness, adverse pressure gradients, or external disturbances like acoustic waves. On a flat plate in a quiet freestream, transition typically occurs around $Re_x \approx 5 \times 10^5$, though this value shifts depending on conditions.

Velocity gradients near surfaces

The velocity profile within the boundary layer rises from zero at the wall to the freestream velocity at the boundary layer edge. In laminar flow, this profile is smooth and roughly parabolic. In turbulent flow, the profile is much fuller, with a steep gradient very close to the wall and a more uniform region farther out.

The steepness of the velocity gradient at the wall directly determines the shear stress. A steeper gradient means a larger velocity change over a shorter distance, which produces higher skin friction.

Shear stress and skin friction

Wall shear stress ($\tau_w$) is the force per unit area acting tangent to the surface, caused by viscosity and the velocity gradient at the wall:

$\tau_w = \mu \left(\frac{\partial u}{\partial y}\right)_{y=0}$

where $\mu$ is the dynamic viscosity and $\frac{\partial u}{\partial y}$ is the velocity gradient evaluated at the surface.

The skin friction coefficient ($C_f$) non-dimensionalizes this shear stress using the freestream dynamic pressure:

$C_f = \frac{\tau_w}{\frac{1}{2} \rho_\infty u_\infty^2}$

This coefficient lets you compare skin friction across different flow conditions and geometries.

Factors affecting skin friction

Reynolds number effects

The Reynolds number ($Re$) is the ratio of inertial forces to viscous forces:

$Re = \frac{\rho u L}{\mu}$

Higher Reynolds numbers push the flow toward turbulence, which generally increases skin friction. The critical Reynolds number ($Re_{cr}$) marks where transition begins. For a smooth flat plate in a quiet freestream, $Re_{cr}$ is around $5 \times 10^5$, but surface roughness, freestream turbulence, and pressure gradients can shift this value significantly in either direction.

Surface roughness impact

Surface roughness refers to microscopic irregularities on a surface. Even small protrusions can trip the boundary layer into turbulence earlier than it would on a smooth surface, increasing skin friction.

The equivalent sand grain roughness ($k_s$) is the standard parameter for characterizing roughness effects. A polished metal surface might have $k_s$ on the order of a few micrometers, while a painted surface could be an order of magnitude rougher. When $k_s$ is small compared to the boundary layer thickness, the surface is considered "hydraulically smooth" and roughness has negligible effect. As $k_s$ grows relative to the viscous sublayer thickness, skin friction increases.

Pressure gradients and separation

Pressure gradients along a surface have a strong influence on the boundary layer:

• A favorable pressure gradient (pressure decreasing in the flow direction) accelerates the flow, thins the boundary layer, and stabilizes it against transition. This is typical on the forward portion of an airfoil.
• An adverse pressure gradient (pressure increasing in the flow direction) decelerates the flow near the wall. If the adverse gradient is strong enough, the boundary layer separates from the surface, creating a recirculation zone that dramatically increases drag and can cause loss of lift (airfoil stall).

Compressibility and Mach number

Compressibility effects become significant roughly above $M \approx 0.3$. As Mach number increases, density and temperature vary substantially across the boundary layer, altering the velocity profile and shear stress.

At supersonic speeds, shock waves can form on surfaces, causing abrupt jumps in pressure, density, and temperature. Shock-boundary layer interaction can thicken or separate the boundary layer, sharply changing the local skin friction. These effects are central to the design of supersonic aircraft and rocket nozzles.

Skin friction calculation methods

Empirical formulas and charts

For quick estimates, classical formulas relate $C_f$ to $Re$:

• Laminar flow (Blasius solution): $C_f = \frac{0.664}{\sqrt{Re_x}}$ for a flat plate, valid for $Re_x < Re_{cr}$.
• Turbulent flow (Prandtl-Schlichting or Schultz-Grunow): $C_f \approx \frac{0.0592}{Re_x^{1/5}}$ is a common approximation for moderate Reynolds numbers.

The Moody diagram is more commonly used in internal flows (pipes), plotting friction factor against Reynolds number and relative roughness. These empirical tools are best suited for preliminary design and sanity-checking more detailed analyses.

Computational fluid dynamics (CFD)

CFD solves the Navier-Stokes equations numerically to predict the full flow field, including skin friction, over complex geometries. Modern CFD can account for compressibility, turbulence, and heat transfer simultaneously.

The accuracy of CFD skin friction predictions depends heavily on the turbulence model chosen (e.g., $k$-$\omega$ SST, Spalart-Allmaras) and the grid resolution near the wall. Resolving the viscous sublayer requires very fine mesh spacing ($y^+ \approx 1$), which drives up computational cost. For aircraft wings and turbomachinery, high-fidelity CFD provides detailed friction distributions that empirical methods cannot.

Experimental techniques and wind tunnels

Skin friction can be measured directly or indirectly in experiments:

• Direct methods: Force balances and floating-element sensors measure the tangential force on a small surface element.
• Indirect methods: Hot-wire anemometry measures velocity profiles near the wall, from which shear stress is inferred. Pressure sensors (Preston tubes) correlate surface pressure to wall shear.
• Non-intrusive methods: Particle image velocimetry (PIV) and laser Doppler anemometry (LDA) measure velocity fields without disturbing the flow.

Wind tunnel tests on scaled models provide validation data for both empirical correlations and CFD simulations.

Heat transfer basics

Heat transfer in aerodynamics governs how thermal energy moves between a vehicle surface and the surrounding flow. At high speeds, aerodynamic heating can threaten structural integrity, making heat transfer prediction just as important as drag prediction.

Conduction, convection, and radiation

• Conduction transfers heat through a material via molecular collisions, driven by temperature gradients. Fourier's law gives the heat flux: $q = -k \frac{dT}{dx}$, where $k$ is thermal conductivity.
• Convection transfers heat between a surface and a moving fluid. It combines conduction at the wall with bulk fluid transport. This is the dominant mechanism in most aerodynamic heating problems.
• Radiation transfers energy via electromagnetic waves and requires no medium. It becomes significant at very high surface temperatures, such as during atmospheric re-entry. Heat shields and insulation must account for radiative exchange.

Thermal boundary layers

Just as a velocity boundary layer develops near a surface, a thermal boundary layer develops where the temperature transitions from the surface value to the freestream temperature. Its thickness depends on the Prandtl number ($Pr$), the flow regime, and the surface heat flux.

For fluids with $Pr > 1$ (like air at standard conditions, where $Pr \approx 0.71$, or water, where $Pr \approx 7$), the thermal boundary layer is thinner than the velocity boundary layer. For liquid metals ($Pr \ll 1$), the thermal boundary layer is thicker.

Temperature gradients near surfaces

The temperature gradient at the wall drives convective heat transfer. Steeper gradients mean higher heat flux into or out of the surface. Turbulent flow produces steeper near-wall temperature gradients than laminar flow because turbulent mixing brings freestream-temperature fluid closer to the wall.

The direction of the gradient matters too: if the surface is hotter than the fluid, heat flows from surface to fluid (cooling the surface). If the fluid is hotter (as in high-speed aerodynamic heating), heat flows into the surface.

Heat flux and Nusselt number

Heat flux ($q$) is the rate of heat transfer per unit area, measured in $\text{W/m}^2$.

The Nusselt number ($Nu$) non-dimensionalizes the convective heat transfer coefficient:

$Nu = \frac{hL}{k}$

where $h$ is the convective heat transfer coefficient, $L$ is a characteristic length, and $k$ is the fluid's thermal conductivity. A higher $Nu$ means convection is more effective relative to pure conduction. $Nu$ is typically correlated with $Re$ and $Pr$ through empirical or theoretical relations.

Factors influencing heat transfer

Prandtl number and fluid properties

The Prandtl number ($Pr$) is the ratio of momentum diffusivity (kinematic viscosity) to thermal diffusivity:

$Pr = \frac{\nu}{\alpha} = \frac{\mu c_p}{k}$

• High-$Pr$ fluids (oils, $Pr \sim 100$-$1000$): thermal boundary layer is much thinner than velocity boundary layer, so convective heat transfer is very effective.
• Low-$Pr$ fluids (liquid metals, $Pr \sim 0.01$): thermal boundary layer is thicker, and conduction dominates near the wall.
• Air sits in between ($Pr \approx 0.71$), which is why the Reynolds analogy works reasonably well for air.

Fluid properties like thermal conductivity, specific heat, and viscosity all vary with temperature, which complicates heat transfer predictions in high-speed flows.

Surface temperature and emissivity

Higher surface temperatures increase the temperature gradient at the wall, boosting convective heat transfer. They also increase radiative heat transfer, which scales with $T^4$ (Stefan-Boltzmann law).

Surface emissivity ($\varepsilon$) ranges from 0 (perfect reflector) to 1 (perfect blackbody emitter). Polished metals have low emissivity ($\varepsilon \approx 0.05$), while oxidized or painted surfaces can approach $\varepsilon \approx 0.9$. For re-entry vehicles, high-emissivity coatings are deliberately used so the surface radiates heat away more effectively.

Flow regime and turbulence intensity

Turbulent flow transfers heat much more effectively than laminar flow. The chaotic eddies in turbulent flow transport thermal energy across the boundary layer far faster than molecular conduction alone.

Turbulence intensity, defined as the ratio of the root-mean-square velocity fluctuations to the mean velocity, quantifies how energetic the turbulence is. Higher turbulence intensity disrupts the thermal boundary layer more aggressively, increasing heat transfer. This is relevant in applications like jet impingement cooling and flow through turbine passages.

Shock waves and aerodynamic heating

At supersonic and hypersonic speeds, shock waves compress the fluid and convert kinetic energy into thermal energy. The temperature behind a strong shock can be extremely high. For example, during re-entry at Mach 25, stagnation temperatures can exceed 7,000 K.

The resulting heat transfer rates can be orders of magnitude higher than in subsonic flow. This is why hypersonic vehicles and re-entry capsules require dedicated thermal protection systems. The heat flux is most intense at stagnation points and sharp leading edges, where the shock stands closest to the surface.

Coupled skin friction and heat transfer

Skin friction and heat transfer are governed by similar boundary layer physics: both depend on how momentum and energy are transported from the freestream to the wall. This coupling allows engineers to estimate one from the other using analogy methods.

Reynolds analogy and assumptions

The Reynolds analogy directly relates the skin friction coefficient to the Stanton number ($St$), which measures convective heat transfer relative to the thermal capacity of the freestream:

$St = \frac{C_f}{2}$

This holds under specific assumptions:

1. The velocity and thermal boundary layers have the same thickness and shape.
2. The Prandtl number equals 1.
3. There is no pressure gradient.

For air ($Pr \approx 0.71$), the Reynolds analogy gives a reasonable first approximation. It's most useful when you have skin friction data and need a quick heat transfer estimate, or vice versa.

Chilton-Colburn analogy for Prandtl numbers

The Chilton-Colburn analogy extends the Reynolds analogy to fluids where $Pr \neq 1$ by introducing a correction factor:

$St \cdot Pr^{2/3} = \frac{C_f}{2}$

This is often written using the Colburn j-factor: $j_H = St \cdot Pr^{2/3}$. The analogy works well for $0.6 < Pr < 60$ and is widely used in engineering practice for air, water, and oils. It's one of the most practical tools for estimating heat transfer coefficients from friction data.

Limitations and advanced analogies

Both the Reynolds and Chilton-Colburn analogies break down in certain conditions:

• High Mach numbers where compressibility alters the boundary layer structure
• Strong pressure gradients or separated flows
• Fluids with very high or very low Prandtl numbers
• Flows with significant property variations across the boundary layer

For these cases, advanced methods exist. The Von Karman analogy accounts for the buffer layer between the viscous sublayer and the turbulent core. The Spalding-Chi method incorporates compressibility corrections for high-speed flows. In practice, CFD and experiments are often needed to capture the full complexity of coupled skin friction and heat transfer in realistic aerodynamic configurations.

Thermal protection systems (TPS)

Vehicles that fly at hypersonic speeds or re-enter the atmosphere face extreme aerodynamic heating. Thermal protection systems keep the vehicle structure and payload within survivable temperature limits. TPS design is driven by the peak heat flux, total integrated heat load, and exposure duration.

Ablative vs. non-ablative materials

Ablative materials protect the structure by sacrificing themselves. As the surface heats up, the material undergoes phase changes (melting, sublimation) and chemical decomposition (pyrolysis). These processes absorb large amounts of energy. The charred surface layer also acts as an insulator, and outgassing from the decomposing material creates a cooler gas layer that reduces convective heating. Examples include phenolic resins and carbon-carbon composites, used on re-entry capsules (Apollo, Orion) and solid rocket nozzles.

Non-ablative materials maintain their structural form throughout the heating event. They rely on high melting points and low thermal conductivity to resist the heat. The reinforced carbon-carbon (RCC) panels on the Space Shuttle's nose and wing leading edges, and the silica-based ceramic tiles on its underside, are classic examples. Non-ablative TPS is preferred for reusable vehicles but requires careful inspection and maintenance between flights.

Insulation and heat sink approaches

• Insulation materials like ceramic fibers, aerogels, and multi-layer insulation (MLI) reduce heat conduction from the hot outer surface to the cooler structure beneath. They work by having very low thermal conductivity.
• Heat sink approaches use materials with high thermal capacitance (like beryllium or copper) to absorb incoming heat without excessive temperature rise. The absorbed energy is either radiated away later or simply stored for the duration of the heating event.

The choice depends on mission profile. Short, intense heating events (ballistic re-entry) may favor heat sinks. Longer exposures (hypersonic cruise) typically require insulation or active cooling.

Active cooling techniques

When passive methods can't handle the heat load, active cooling circulates a coolant to remove heat from the surface:

• Transpiration cooling injects coolant through a porous wall, creating a protective film on the surface that reduces both heat transfer and skin friction.
• Regenerative cooling routes the vehicle's own fuel or oxidizer through channels in the structure before it enters the combustion chamber. This simultaneously cools the structure and preheats the propellant, improving engine efficiency. Most liquid rocket engines (RS-25, Merlin) use this approach.
• Film cooling injects coolant through discrete slots or holes to form a protective layer downstream, commonly used in gas turbine blades and some rocket engine components.

TPS design considerations

TPS design involves balancing thermal performance against weight, structural integrity, cost, and reusability. Key factors include:

• Vehicle geometry and trajectory (determines the heating profile)
• Peak heat flux vs. total heat load (different materials excel at each)
• Structural loads during flight (TPS must withstand aerodynamic forces and vibration)
• Reusability requirements (ablative systems are single-use; non-ablative and active systems can be reused)

Ongoing research into ultra-high temperature ceramics (UHTCs), such as zirconium diboride and hafnium carbide, aims to push the temperature limits of non-ablative TPS for future scramjets and reusable launch vehicles.

Applications in aerodynamics

Aircraft drag reduction strategies

Skin friction drag accounts for roughly 50% of total drag on a typical subsonic transport aircraft, so even small reductions yield significant fuel savings.

• Laminar flow control aims to delay transition by using boundary layer suction, favorable pressure gradients (via airfoil shaping), or compliant surfaces. Natural laminar flow (NLF) airfoils are designed so that the pressure distribution keeps the boundary layer laminar over a large fraction of the chord.
• Riblets are tiny streamwise grooves (typically 20-100 micrometers deep) that reduce turbulent skin friction by 5-8% by disrupting the near-wall turbulent structures. The concept is inspired by the texture of shark skin.
• Surface quality control ensures that manufacturing imperfections, paint thickness, and joint steps don't trip the boundary layer prematurely.

Hypersonic vehicle challenges

At Mach 5 and above, aerodynamic heating dominates the design. Stagnation temperatures can reach thousands of kelvin, and heat fluxes at leading edges can exceed $10 \text{ MW/m}^2$.

Designing effective TPS while keeping the vehicle light enough to fly is the central challenge. Vehicles like the X-43 (Mach 9.6) and X-51 (Mach 5.1) used combinations of active cooling, ablative materials, and high-temperature alloys. Sharp leading edges, which are aerodynamically desirable at hypersonic speeds, concentrate heating and require the most robust thermal protection.

Rocket nozzle and combustion chamber

Combustion gas temperatures in rocket engines can exceed 3,500 K, and the high-velocity flow through the nozzle creates intense convective heating. Regenerative cooling is the standard solution for liquid-propellant engines: the fuel (or oxidizer) flows through channels in the nozzle and chamber walls before being injected into the combustion chamber.

Solid rocket nozzles can't use regenerative cooling, so they rely on ablative materials. Graphite and carbon-carbon composites are common choices because they maintain strength at extreme temperatures while gradually eroding in a controlled manner. The Space Shuttle's solid rocket boosters and the Ariane 5 boosters both used ablative nozzle liners.

Turbomachinery and gas turbines

Modern gas turbine engines operate with turbine inlet temperatures above 1,700 K, which exceeds the melting point of the blade alloys. Blades survive through sophisticated cooling:

• Internal cooling channels route compressor bleed air through serpentine passages inside the blade.
• Film cooling ejects this air through small holes on the blade surface, forming a protective cool-air layer.
• Thermal barrier coatings (TBCs), typically yttria-stabilized zirconia, add an insulating ceramic layer on the blade surface.

These techniques work together to keep blade metal temperatures 200-300 K below the gas temperature. Advances in cooling design and materials are a primary driver of improved engine efficiency and thrust.
