6.1 Static stability

Fundamentals of static stability

Static stability describes how an aircraft initially responds to a disturbance from its equilibrium flight condition. If a gust pushes the nose up, does the aircraft tend to pitch back down, stay where it is, or keep pitching further up? That initial tendency is static stability, and it's one of the first things designers must get right.

This section covers the three axes of static stability (longitudinal, lateral, directional), the key derivatives and margins used to quantify it, the design factors that influence it, and how it's tested and validated.

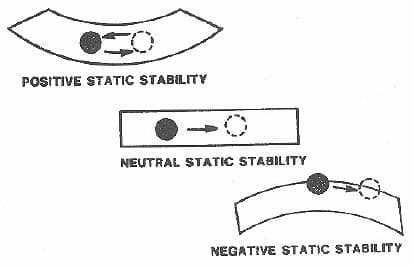

Equilibrium and stability concepts

Equilibrium exists when the sum of all forces and moments on the aircraft equals zero, so there's no linear acceleration or rotation. An aircraft in steady, unaccelerated flight is in equilibrium.

Stability is what happens after that equilibrium gets disturbed:

• Positive (stable): The aircraft generates forces/moments that push it back toward equilibrium.
• Neutral: The aircraft stays in whatever new state the disturbance put it in. No restoring tendency, but no diverging tendency either.
• Negative (unstable): The aircraft diverges further from equilibrium after the disturbance.

Static stability only looks at the initial tendency right after a disturbance. It doesn't account for whether the aircraft oscillates, overshoots, or how long it takes to settle. That's the domain of dynamic stability.

Stability derivatives and coefficients

Stability derivatives are partial derivatives of aerodynamic forces and moments with respect to small changes in aircraft states (angle of attack, sideslip angle, control deflections, etc.). They quantify how much a force or moment changes per unit change in a given state variable.

The three most important stability derivatives for static stability are:

• $C_{m_\alpha}$ — Pitching moment coefficient derivative with respect to angle of attack. Governs longitudinal static stability.
• $C_{l_\beta}$ — Rolling moment coefficient derivative with respect to sideslip angle. Governs lateral static stability.
• $C_{n_\beta}$ — Yawing moment coefficient derivative with respect to sideslip angle. Governs directional static stability.

These derivatives are already in non-dimensional (coefficient) form because they're derived from non-dimensional moment coefficients. The normalization uses reference quantities like wing area $S$, mean aerodynamic chord $\bar{c}$, and wingspan $b$.

Longitudinal static stability

Longitudinal static stability deals with the aircraft's behavior in the pitch plane. The central question: if the angle of attack increases, does a nose-down (restoring) pitching moment develop?

Pitching moment characteristics

The pitching moment coefficient $C_m$ plotted against angle of attack $\alpha$ is the primary tool for assessing longitudinal stability.

For positive longitudinal static stability, the slope must be negative: $C_{m_\alpha} < 0$. This means an increase in $\alpha$ produces a nose-down moment that pushes the aircraft back toward its trimmed angle of attack.

The overall $C_m$ vs. $\alpha$ curve is built from contributions of three main components:

• Wing: Cambered airfoils and wing twist typically produce a nose-down pitching moment contribution, though a wing alone (without a tail) is often unstable or marginally stable.
• Horizontal tail: Located aft of the CG, the tail provides the dominant stabilizing (nose-down) contribution. This is why conventional aircraft have tails.
• Fuselage: Generally contributes a destabilizing nose-up moment, particularly at higher angles of attack, because the fuselage forward of the CG generates lift that acts to pitch the nose up.

For the aircraft to be trimmable, the $C_m$ vs. $\alpha$ curve must cross zero ($C_m = 0$) at some positive angle of attack, and the intercept $C_{m_0}$ (at $\alpha = 0$) should be positive.

Center of gravity effects

The location of the CG relative to the aerodynamic center (AC) of the entire aircraft is the single most important factor in longitudinal static stability.

The AC is the point where $C_{m_\alpha} = 0$, meaning the pitching moment coefficient doesn't change with angle of attack. For a wing alone, the AC sits near the quarter-chord point (25% MAC). For the whole aircraft, the AC shifts aft due to the tail's contribution and is often called the neutral point in that context.

• CG forward of the AC: Positive static stability. A nose-up disturbance increases $\alpha$, which increases lift ahead of the CG more than behind it, creating a restoring nose-down moment.
• CG at the AC: Neutral stability. No restoring or diverging tendency.
• CG aft of the AC: Negative static stability (unstable). Disturbances grow rather than correct.

Moving the CG forward increases stability but also increases the tail downforce needed to trim, which raises trim drag and reduces maneuverability. There's always a trade-off between stability and performance.

Longitudinal control surfaces

Two main types of pitch control surfaces exist:

• Elevator: A hinged surface at the trailing edge of the horizontal stabilizer. Upward deflection (trailing edge up, conventionally negative $\delta_e$) reduces tail lift, creating a nose-down moment. Downward deflection does the opposite.
• Stabilator (all-moving tail): The entire horizontal tail pivots as one piece. Stabilators are more effective than elevators at high angles of attack because they don't suffer from flow separation over a fixed stabilizer ahead of the elevator.

These surfaces serve two roles: trimming the aircraft for a desired equilibrium condition, and providing pitch control for maneuvering.

Stick-fixed vs. stick-free stability

• Stick-fixed stability assumes the pilot (or autopilot) holds the control column in a fixed position. The elevator doesn't move in response to aerodynamic forces. Stability depends purely on the aircraft's $C_{m_\alpha}$.
• Stick-free stability allows the elevator to float in response to aerodynamic hinge moments. If the elevator floats in a way that reduces its stabilizing effect, stick-free stability is less than stick-fixed stability.

For positive stick-free stability, the elevator hinge moment derivative $C_{h_{\delta_e}}$ should be negative. This means that when the elevator deflects, the hinge moment tends to push it back toward its neutral position, preserving the tail's stabilizing contribution.

Stick-free stability is always less than or equal to stick-fixed stability, and it's what the pilot actually feels through the control forces.

Lateral-directional static stability

Roll and yaw are coupled motions. A sideslip ($\beta \neq 0$) produces both rolling and yawing moments simultaneously, so lateral and directional stability are analyzed together.

Roll and yaw moment characteristics

The sign conventions for the two key derivatives are different, which is a common source of confusion:

• Lateral stability: $C_{l_\beta} < 0$ (negative). A positive sideslip (nose left of the velocity vector, wind coming from the right) should produce a negative (left-wing-down) rolling moment that rolls the aircraft away from the sideslip. This is the restoring tendency.
• Directional stability: $C_{n_\beta} > 0$ (positive). A positive sideslip should produce a positive (nose-right) yawing moment that turns the nose back into the wind. This is sometimes called weathercock stability because the aircraft acts like a weathervane.

Both derivatives are shaped by contributions from the wing, vertical tail, and fuselage.

Dihedral and sweep effects

Dihedral is the upward angle of the wings relative to horizontal. During a sideslip, the upwind wing sees a higher effective angle of attack than the downwind wing, generating more lift. This creates a restoring rolling moment, contributing a negative $C_{l_\beta}$.

Wing sweep produces a similar effect. On a swept-back wing in sideslip, the upwind wing's effective sweep angle decreases (making it produce more lift) while the downwind wing's effective sweep increases (less lift). This "effective dihedral" adds to lateral stability.

Both effects strengthen lateral stability, but too much can cause problems:

• Excessive $C_{l_\beta}$ (too much lateral stability) can make the aircraft sluggish in roll and more susceptible to Dutch roll oscillations, where the aircraft wobbles in a combined yaw-roll motion.
• High-wing configurations inherently have a dihedral effect from fuselage interference, which is why many high-wing aircraft use zero or even negative dihedral (anhedral).

Directional stability and control

The vertical tail is the primary source of directional stability. It works like a weathervane: in a sideslip, the vertical tail generates a side force that creates a restoring yawing moment.

Vertical tail effectiveness depends on:

• Size (area): Larger vertical tail = stronger restoring moment.
• Moment arm: Greater distance from the CG to the vertical tail's aerodynamic center = more yawing moment per unit of side force.
• Aspect ratio and airfoil: Affect how much side force the tail generates per degree of sideslip.

A dorsal fin (a forward extension of the vertical tail) helps maintain directional stability at high angles of attack by preventing the vertical tail from stalling in sideslip. A ventral fin (below the fuselage) serves a similar purpose.

The rudder, a hinged surface on the trailing edge of the vertical tail, provides directional control. Left rudder deflection produces a nose-left yawing moment; right rudder produces nose-right.

Lateral control surfaces

• Ailerons are the primary roll control surfaces, located near the wingtips at the trailing edge. Deflecting one up and the other down creates a differential lift that rolls the aircraft. The roll is toward the wing with the upward-deflected aileron (reduced lift side).
• Spoilers are panels on the wing's upper surface that pop up to disrupt airflow and reduce lift on that wing. Deploying a spoiler on one side rolls the aircraft toward that side. Spoilers are often used on large transport aircraft where ailerons alone may not provide enough roll authority.
• Elevons combine elevator and aileron functions on a single surface, used on tailless and flying wing designs. Symmetric deflection controls pitch; differential deflection controls roll.

Static margin and stability

Definition and significance

The static margin quantifies longitudinal static stability as a single number. It's the distance from the CG to the neutral point, expressed as a percentage of the mean aerodynamic chord:

$SM = \frac{x_{NP} - x_{CG}}{\bar{c}} \times 100\%$

where $x_{NP}$ is the neutral point location, $x_{CG}$ is the CG location, and $\bar{c}$ is the MAC. Both positions are measured from the same reference point (typically the leading edge of the MAC).

• Positive SM: CG is forward of the NP. The aircraft is statically stable. Typical transport aircraft have static margins of 5–15% MAC.
• Zero SM: CG is at the NP. Neutral stability.
• Negative SM: CG is aft of the NP. The aircraft is statically unstable and requires artificial stabilization (fly-by-wire) to fly safely.

A larger positive static margin means stronger stability but also means more elevator deflection (and more trim drag) to change the flight condition.

Neutral point and aerodynamic center

The neutral point (NP) is the CG location at which the aircraft would have neutral static stability ($C_{m_\alpha} = 0$). Think of it as the aerodynamic center of the complete aircraft, not just the wing.

• For an isolated wing, the AC is near the 25% chord point.
• Adding a horizontal tail shifts the whole-aircraft NP aft, because the tail adds a stabilizing contribution that effectively moves the "balance point" rearward.
• The fuselage shifts the NP forward (destabilizing effect).

The NP is determined by the combined contributions of all components: wing, tail, fuselage, nacelles, and their interference effects.

Static margin calculation

To find the static margin:

1. Determine CG location by weighing the aircraft (or computing component weights and positions during design) and calculating the weighted average position.

2. Determine NP location using one of these methods:

   • Analytical estimation from component contributions (wing AC, tail volume coefficient, fuselage destabilizing term)
   • Wind tunnel testing of a scaled model at varying angles of attack
   • Flight testing, where the CG is systematically varied and $C_{m_\alpha}$ is measured until neutral stability is found

3. Apply the formula: $SM = \frac{x_{NP} - x_{CG}}{\bar{c}} \times 100\%$

Positive vs. negative static margin

Factors affecting static stability

Wing and tail design parameters

Wing parameters:

• Airfoil camber: More camber shifts the wing's zero-lift pitching moment more negative (nose-down), affecting trim but not stability slope directly.
• Wing incidence angle: Sets the wing's angle relative to the fuselage reference line, influencing the trim angle of attack.
• Planform shape and sweep: Aft sweep increases effective dihedral (lateral stability) and shifts the wing AC aft.

Tail parameters:

• Tail volume coefficient $\bar{V}_H = \frac{S_H \cdot l_H}{S \cdot \bar{c}}$: A larger value (bigger tail area $S_H$ or longer moment arm $l_H$) provides stronger longitudinal stability.
• Tail moment arm: The distance from the CG to the tail AC. A longer arm means the tail is more effective per unit area.
• Tail incidence ($i_t$): Adjusting this trims the aircraft without elevator deflection, reducing trim drag.

The balance between wing and tail sizing is one of the most fundamental decisions in aircraft configuration design.

Fuselage and nacelle contributions

Fuselage effects:

• Long, slender fuselages produce less destabilizing pitching moment than short, wide ones.
• Fuselage upsweep (common on military transports for rear cargo doors) can add a nose-up pitching moment.
• The fuselage ahead of the wing acts like a lifting body at angle of attack, contributing a destabilizing moment.

Nacelle effects:

• Engine nacelles mounted on pylons below or above the wing can shift the local aerodynamic center and create additional pitching moments.
• Nacelle-wing interference alters the local flow field, which can change both lift distribution and stability.

Careful placement and shaping of these components minimizes their destabilizing contributions.

Power effects on stability

Longitudinal effects:

• Thrust line offset: If the thrust line passes below the CG, increasing thrust creates a nose-up moment. Above the CG, it creates nose-down. This is why thrust changes require pitch retrimming.
• Propwash/jet wash: The slipstream increases dynamic pressure over the tail, changing its effectiveness. On propeller aircraft, this effect can be significant at low speed and high power (e.g., during go-around).

Lateral-directional effects:

• Asymmetric thrust (engine failure) creates large yawing and rolling moments. The rudder must be sized to handle the critical engine-out case, typically at low speed with maximum thrust on the remaining engine.
• Propeller slipstream swirls around the fuselage and hits the vertical tail asymmetrically, creating a yawing moment even with all engines running. This is called P-factor in combination with other propeller asymmetry effects.

High vs. low speed stability

High-speed considerations:

• Compressibility: As Mach number increases, shock waves form and the AC shifts aft (from ~25% chord subsonically toward ~50% chord supersonically). This aft shift increases static margin and causes a nose-down trim change known as Mach tuck.
• Aeroelastic effects: High dynamic pressure can twist the wing, changing its effective angle of attack distribution and altering stability. Wing twist-induced changes can reduce aileron effectiveness (aileron reversal at extreme cases).
• Trim changes: Large control deflections may be needed to compensate for compressibility-driven shifts, reducing control margin.

Low-speed considerations:

• Stall behavior: Near the stall angle of attack, flow separation can dramatically change pitching moment characteristics. A wing that stalls at the tips first (common with swept wings) loses the stabilizing effect of outboard lift, potentially causing pitch-up.
• Control effectiveness: Control surfaces lose effectiveness at low dynamic pressure, reducing the pilot's ability to correct disturbances.
• Ground effect: Near the ground, downwash on the tail is reduced, which can change the trim and stability characteristics during takeoff and landing.

Static stability testing and analysis

Wind tunnel testing techniques

Wind tunnel tests use scaled models to measure aerodynamic forces and moments under controlled, repeatable conditions.

For static stability, the key tests are:

1. Pitch sweeps: Mount the model on a balance and vary the angle of attack while measuring all six force and moment components. The slope of $C_m$ vs. $\alpha$ gives $C_{m_\alpha}$ directly.
2. Yaw sweeps: Vary the sideslip angle $\beta$ and measure $C_l$ and $C_n$ to determine $C_{l_\beta}$ and $C_{n_\beta}$.
3. Control effectiveness tests: Deflect control surfaces at fixed $\alpha$ or $\beta$ to measure their moment increments.

Wind tunnel results need corrections for wall interference, support interference, and Reynolds number scaling effects before they can be applied to the full-scale aircraft.

Flight testing and data analysis

Flight testing validates stability in the real operating environment. Common static stability flight test techniques include:

• Steady-heading sideslips: The pilot establishes a steady sideslip at various $\beta$ values and records the control deflections (rudder, aileron) and aircraft attitudes needed to maintain equilibrium. This directly reveals lateral-directional stability characteristics.
• Pitch and yaw doublets: Short, sharp control inputs excite the aircraft's response. The initial response direction and magnitude indicate static stability, while the subsequent motion reveals dynamic characteristics.
• Stick-fixed and stick-free tests: Comparing aircraft behavior with controls held versus controls released shows the difference between stick-fixed and stick-free stability and reveals hinge moment characteristics.

Flight test data is reduced to extract stability derivatives, which are then compared against wind tunnel predictions and certification requirements.

Computational methods for stability

CFD (Computational Fluid Dynamics) simulates the airflow around the aircraft numerically:

• Steady-state solutions at multiple angles of attack or sideslip angles yield stability derivatives without building a physical model.
• Higher-fidelity methods (RANS, LES) can capture flow separation and compressibility effects that simpler methods miss.
• CFD is most valuable early in design when physical models don't yet exist.

FEA (Finite Element Analysis) models structural flexibility:

• Aeroelastic coupling between aerodynamic loads and structural deformation can change effective stability derivatives.
• FEA combined with CFD (aeroelastic analysis) predicts how the flexible aircraft's stability differs from the rigid-body assumption.

Computational methods don't replace wind tunnel or flight testing, but they significantly reduce the number of physical tests needed and allow rapid design iteration.

Stability and control diagrams

These diagrams are the standard way to visualize and communicate stability characteristics:

• $C_m$ vs. $\alpha$ plots: Show the pitching moment curve for different CG positions and elevator deflections. The slope gives $C_{m_\alpha}$, the zero-crossing gives the trim angle of attack, and the spacing between curves for different $\delta_e$ shows elevator effectiveness.
• $C_l$ and $C_n$ vs. $\beta$ plots: Show lateral and directional stability. The slopes give $C_{l_\beta}$ and $C_{n_\beta}$, and curves for different rudder or aileron deflections show control power.
• CG envelope diagrams: Plot allowable CG range against aircraft weight, showing forward and aft CG limits. The forward limit is set by control power (enough elevator to flare for landing), and the aft limit is set by minimum acceptable static margin.

These diagrams are used throughout design, certification, and operations.

Design considerations for static stability

Stability and controllability trade-offs

Stability and maneuverability pull in opposite directions. A very stable aircraft resists changes in attitude, which is great for a passenger airliner cruising hands-off but terrible for a fighter that needs to pull rapid pitch changes.

• Transport aircraft are designed with comfortable positive static margins (typically 5–15% MAC) to minimize pilot workload and provide safe, predictable handling.
• Fighter aircraft often use reduced or even negative static margins to maximize agility. The F-16, for example, was one of the first production fighters designed with a negative static margin, relying entirely on its fly-by-wire system for stability.
• General aviation aircraft typically fall in between, with moderate positive static margins that balance ease of handling with reasonable maneuverability.

The designer's job is to choose the right static margin for the aircraft's mission and then provide enough control authority to trim and maneuver across the entire flight envelope.

Relaxed static stability

Relaxed static stability (RSS) deliberately reduces the static margin below what would be acceptable without artificial augmentation. The benefits are significant:

• Reduced trim drag: With the CG closer to the NP (or aft of it), less tail downforce is needed to trim, which directly reduces drag.
• Smaller tail surfaces: Less stability contribution is needed from the tail, so it can be made smaller, saving weight and drag.
• Improved maneuverability: Lower stability means less control force and deflection needed to change the flight condition.

The trade-off is that RSS requires a reliable flight control computer to provide artificial stability. If the flight control system fails on an aircraft with negative static margin, the aircraft becomes unflyable. Redundancy in the flight control system is therefore critical.

Artificial stability augmentation

Stability Augmentation Systems (SAS) use sensors, computers, and actuators to artificially improve stability:

1. Sensors (gyroscopes, accelerometers, air data probes) measure the aircraft's state.
2. A flight control computer compares the measured state to the desired state.
3. The computer commands control surface deflections to generate corrective moments.
4. The loop runs continuously, many times per second.

Modern fly-by-wire systems go beyond simple augmentation. They can provide:

• Artificial static stability for aircraft with negative static margins
• Envelope protection (preventing the pilot from exceeding structural or aerodynamic limits)
• Gust alleviation to improve ride quality
• Consistent handling qualities across the flight envelope

Tailless and flying wing configurations

Tailless aircraft (deltas, flying wings) present unique static stability challenges because they lack a conventional horizontal tail:

• Longitudinal stability must come from the wing itself. This is achieved through reflexed airfoils (with upward-curved trailing edges) or by placing the CG well forward of the wing's AC. Both approaches incur aerodynamic penalties.
• Pitch control uses elevons (combined elevator-ailerons) on the trailing edge of the wing.
• Directional stability is reduced without a vertical tail. Flying wings may use winglet-mounted rudders, split drag rudders, or differential thrust for yaw control.

The B-2 Spirit bomber is a notable example: it's a flying wing with no vertical surfaces, relying entirely on its fly-by-wire system and split elevons/drag rudders for stability and control. The aerodynamic efficiency gains from eliminating the tail and vertical surfaces are significant, but the control system complexity is substantial.
