5.4 Aerodynamic center

Definition of aerodynamic center

The aerodynamic center is the point on an airfoil or wing where the pitching moment coefficient does not change as angle of attack varies. In other words, you can increase or decrease the angle of attack, and the moment about this specific point stays the same.

This matters because it gives engineers a single, reliable reference point for stability analysis. Instead of tracking a moment that shifts with every change in flight condition, they can work with a constant value at the aerodynamic center.

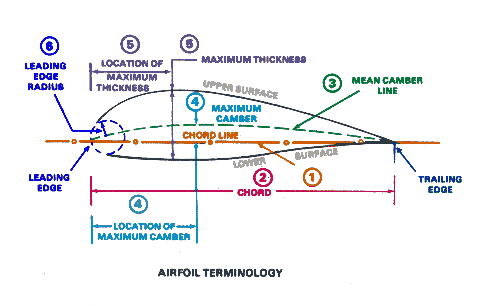

Location of aerodynamic center

• For a symmetric airfoil, the aerodynamic center sits at the quarter-chord point (25% of the chord length from the leading edge).
• For a cambered airfoil, it's typically located slightly aft of the quarter-chord point, because the camber creates an asymmetric pressure distribution even at zero lift.
• On a finite wing, the aerodynamic center location also depends on the wing's planform shape, aspect ratio, and sweep angle.

Importance of aerodynamic center

The aerodynamic center's position relative to the center of gravity (CG) controls whether an aircraft is statically stable.

• If the aerodynamic center is aft of the CG, the aircraft is statically stable: a gust that increases angle of attack produces a nose-down restoring moment.
• If the aerodynamic center is forward of the CG, the aircraft is statically unstable: disturbances get amplified rather than corrected.

Proper placement reduces pilot workload and ensures predictable handling qualities.

Calculation of aerodynamic center

Finding the aerodynamic center means figuring out where the pitching moment stays constant across different angles of attack. You can do this analytically, with CFD, or through wind tunnel experiments.

Aerodynamic center formula

For a symmetric airfoil, the result is straightforward:

$x_{ac} = 0.25c$

where $c$ is the chord length.

For a cambered airfoil, the aerodynamic center shifts from the quarter-chord. The general formula (referenced to the leading edge, in fractions of chord) is:

$\bar{x}_{ac} = 0.25 - \frac{C_{m,0}}{C_{L_\alpha}}$

where:

• $C_{m,0}$ is the pitching moment coefficient at zero lift (negative for positive camber)
• $C_{L_\alpha}$ is the lift curve slope (change in lift coefficient per radian of angle of attack)

Because $C_{m,0}$ is typically negative for conventionally cambered airfoils and $C_{L_\alpha}$ is positive, the subtraction of a negative number pushes $\bar{x}_{ac}$ slightly aft of 0.25, which is consistent with what we'd expect.

Variables in aerodynamic center calculation

The key inputs are:

• Chord length ($c$): sets the physical scale
• Zero-lift pitching moment coefficient ($C_{m,0}$): driven by the airfoil's camber distribution
• Lift curve slope ($C_{L_\alpha}$): influenced by airfoil geometry, Reynolds number, and Mach number

Example aerodynamic center calculation

Given: A symmetric NACA 0012 airfoil with $c = 1 \text{ m}$.

1. Since the airfoil is symmetric, $C_{m,0} = 0$.
2. Apply the symmetric formula: $x_{ac} = 0.25c = 0.25 \times 1 \text{ m} = 0.25 \text{ m}$
3. The aerodynamic center is 0.25 m from the leading edge.

For a cambered airfoil (say $C_{m,0} = -0.05$ and $C_{L_\alpha} = 2\pi \text{ per rad} \approx 6.28 \text{ per rad}$), you'd get:

$\bar{x}_{ac} = 0.25 - \frac{-0.05}{6.28} = 0.25 + 0.008 = 0.258$

That's 25.8% chord from the leading edge, slightly aft of the quarter-chord, as expected.

Aerodynamic center vs center of pressure

These two points are easy to confuse, but they describe different things and behave differently.

Definition of center of pressure

The center of pressure (CP) is the point where the total resultant aerodynamic force effectively acts. If you summed all the distributed pressure forces into a single force vector, it would pass through this point, producing zero moment about it.

The critical difference: the CP location moves as angle of attack changes.

Differences between aerodynamic center and center of pressure

Relationship between aerodynamic center and center of pressure

The two points are related through the moment balance. As angle of attack increases and lift grows, the CP migrates toward the aerodynamic center. At very high lift coefficients, the CP and AC are nearly coincident because the zero-lift moment becomes a small fraction of the total moment.

At low lift coefficients (near zero lift), the CP can be very far from the airfoil or even at infinity, which is why the CP is less useful as a fixed reference for stability work.

Factors affecting aerodynamic center

Several geometric and flow parameters shift the aerodynamic center's location.

Effect of wing shape on aerodynamic center

• Aspect ratio: Higher aspect ratio wings behave more like 2D airfoils, so their aerodynamic center stays closer to the quarter-chord.
• Sweep angle: Wing sweep shifts the aerodynamic center aft. This is one reason swept wings are common on high-speed aircraft; the aft AC position contributes to stability at cruise.
• Taper ratio: Taper changes the spanwise lift distribution, which in turn affects where the overall wing AC falls.

Impact of angle of attack on aerodynamic center

By definition, the aerodynamic center is the point where the moment doesn't change with angle of attack, so for attached flow at moderate angles, the AC stays essentially fixed. At very high angles of attack (approaching stall), flow separation disrupts the pressure distribution and the concept of a fixed AC starts to break down.

Influence of Mach number on aerodynamic center

Mach number has a significant effect:

• Subsonic (below about Mach 0.7): The AC stays near the quarter-chord.
• Transonic (around Mach 0.8 to 1.2): As local supersonic regions and shocks form on the wing, the AC shifts noticeably aft.
• Supersonic: The AC moves to approximately the half-chord point (50% chord). This is a well-known result from supersonic thin airfoil theory and represents a major shift from the subsonic quarter-chord location.

This aft shift with increasing Mach number is a key design challenge. It changes the aircraft's stability characteristics and trim requirements as it accelerates through the transonic regime.

Significance of aerodynamic center in aircraft design

Role of aerodynamic center in stability

The static margin quantifies how stable the aircraft is:

$\text{Static Margin} = \bar{x}_{ac} - \bar{x}_{cg}$

where both positions are expressed as fractions of the mean aerodynamic chord. A positive static margin (AC aft of CG) means the aircraft is statically stable. Typical transport aircraft have static margins of 5% to 15% of the mean aerodynamic chord.

Too much static margin makes the aircraft overly stable and hard to maneuver. Too little (or negative) makes it unstable, requiring augmented stability systems like fly-by-wire.

Aerodynamic center and control surface effectiveness

Control surfaces generate moments about the CG to maneuver the aircraft. Their effectiveness depends on the moment arm between the control surface and the CG, but the overall stability picture is set by the AC-CG relationship. A well-placed AC ensures that control inputs produce predictable responses without excessive deflections.

Design considerations for aerodynamic center placement

Designers balance competing demands:

• Enough static margin for safe, predictable handling
• Not so much stability that the aircraft resists maneuvering or requires large trim forces
• Minimizing trim drag (the drag penalty from deflecting control surfaces to maintain steady flight)

Fighter aircraft often have very small or even negative static margins to maximize agility, relying on flight control computers for artificial stability. Transport aircraft prioritize positive static margins for passenger comfort and safety.

Aerodynamic center in airfoil theory

Thin airfoil theory and aerodynamic center

Thin airfoil theory assumes the airfoil is a thin curved line (the camber line) with small perturbations to the freestream. Under these assumptions:

1. The lift varies linearly with angle of attack.
2. The moment about the quarter-chord is independent of angle of attack.
3. Therefore, the aerodynamic center is at the quarter-chord ($\bar{x}_{ac} = 0.25$).

This result holds for any camber distribution within the thin airfoil assumptions. The camber changes the value of $C_{m,ac}$ but not the location of the AC.

Aerodynamic center in symmetric vs cambered airfoils

• Symmetric airfoils: AC at the quarter-chord, and $C_{m,ac} = 0$ (no moment about the AC at any angle of attack).
• Cambered airfoils: AC still very close to the quarter-chord per thin airfoil theory, but $C_{m,ac} \neq 0$. The camber produces a constant (typically nose-down) moment about the AC regardless of angle of attack.

In practice, real viscous effects and thickness can shift the AC slightly from the ideal quarter-chord prediction, which is why the formula with $C_{m,0}$ and $C_{L_\alpha}$ is used for more accurate estimates.

Aerodynamic center in finite vs infinite wings

Moving from a 2D airfoil (infinite wing) to a 3D finite wing introduces additional effects:

• Wingtip vortices create downwash that varies along the span, modifying the local effective angle of attack.
• Spanwise lift distribution (often approximated as elliptical) means different sections contribute differently to the overall moment.
• The net result is that the finite wing's AC is typically slightly aft of the 2D quarter-chord location, and its exact position depends on aspect ratio, taper, and sweep.

Experimental determination of aerodynamic center

Wind tunnel testing for aerodynamic center

Wind tunnel tests use scaled models instrumented with force balances. The procedure is:

1. Mount the model on a multi-component balance that measures lift, drag, and pitching moment.
2. Sweep through a range of angles of attack at a fixed Reynolds and Mach number.
3. Plot $C_m$ vs. $C_L$ (or vs. $\alpha$). The slope $dC_m/dC_L$ about different reference points reveals the AC location.
4. The AC is the reference point where $dC_m/d\alpha = 0$ (or equivalently, where $C_m$ vs. $C_L$ is a horizontal line).

Wind tunnels allow controlled isolation of variables, but corrections for wall effects, model support interference, and scale effects are needed.

Flight testing for aerodynamic center

Flight tests measure forces and moments on the full-scale aircraft using onboard instrumentation (strain gauges, pressure taps, inertial measurement units, air data probes). Flight test data captures real-world effects that wind tunnels and CFD may not fully replicate, including aeroelastic deformation and propulsion interactions. These results are used to validate and refine predictions from earlier design stages.

Computational methods for aerodynamic center prediction

CFD solves the governing fluid flow equations (Navier-Stokes or simplified forms) numerically over a discretized domain. It provides detailed surface pressure distributions from which forces and moments can be integrated.

CFD is especially valuable for:

• Analyzing complex 3D geometries that are difficult to test experimentally
• Running parametric studies (varying sweep, camber, Mach number) quickly
• Complementing wind tunnel data where instrumentation is limited

Higher-fidelity approaches (RANS, LES, or DNS turbulence models) improve accuracy but increase computational cost. In practice, designers use a combination of CFD, wind tunnel, and flight test data to converge on the true AC location.
