6.4 Lateral-directional stability

Lateral-directional stability fundamentals

Lateral-directional stability governs how an aircraft behaves around its roll and yaw axes simultaneously. These two axes are treated together because rolling and yawing motions are aerodynamically coupled: a disturbance in one almost always affects the other. Getting this stability right is what keeps an aircraft tracking a steady heading with level wings, and it depends on wing geometry, vertical tail design, and often electronic augmentation systems.

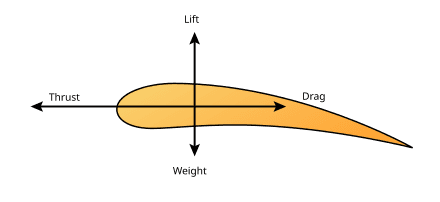

Static vs dynamic stability

Static stability is the aircraft's initial tendency after a disturbance. If you nudge the nose to the left with a gust, does the aircraft generate a moment that pushes it back to the right? If yes, it's statically stable in yaw.

Dynamic stability is what happens next. A statically stable aircraft might oscillate back and forth before settling down, or those oscillations might grow. Dynamic stability describes whether those oscillations decay over time (stable), stay constant (neutrally stable), or diverge (unstable). You need both: static stability to start the correction, and dynamic stability to finish it.

Stability derivatives

Stability derivatives are the coefficients that quantify how aerodynamic forces and moments change with aircraft motion variables. They're the building blocks of the equations of motion used to predict flight behavior.

Two of the most important for lateral-directional analysis:

• $C_{l_\beta}$ (roll moment due to sideslip): Measures how much rolling moment the aircraft generates per degree of sideslip. A negative value means the aircraft rolls away from the sideslip, which is stabilizing.
• $C_{n_\beta}$ (yaw moment due to sideslip): Measures how much yawing moment the aircraft generates per degree of sideslip. A positive value means the aircraft yaws back toward the wind, which is the weathercock effect.

These derivatives feed into linearized equations of motion that engineers use to predict mode shapes, frequencies, and damping ratios.

Roll stability

Roll stability is the aircraft's tendency to return to a wings-level attitude after a lateral disturbance. The key stability derivative here is $C_{l_\beta}$, and several geometric features contribute to it.

Dihedral effect

Dihedral is the upward angle of the wings relative to the horizontal. When an aircraft with dihedral enters a sideslip (say, slipping to the right), the right wing meets the oncoming airflow at a higher effective angle of attack than the left wing. This generates more lift on the right wing, creating a rolling moment back toward wings-level.

The magnitude of this restoring moment is what "dihedral effect" refers to, and it's one of the primary contributors to a negative (stabilizing) $C_{l_\beta}$.

Sweepback effect

Wing sweep also contributes to roll stability. During a sideslip, the wing moving into the airflow (the "leading" wing) has its effective sweep angle reduced, increasing its lift. The trailing wing sees increased effective sweep, reducing its lift. This asymmetry produces a stabilizing roll moment, similar to dihedral.

Sweep pulls double duty: it provides roll stability and delays compressibility drag rise at transonic speeds, which is why most transport aircraft use swept wings.

Roll damping

Roll damping (captured by the derivative $C_{l_p}$) is the aerodynamic resistance to rolling motion itself. When an aircraft rolls, the descending wing sees a higher local angle of attack and the ascending wing sees a lower one. The resulting lift difference opposes the roll, acting like aerodynamic friction.

Roll damping is almost always stabilizing and is the dominant factor in the roll subsidence mode discussed later.

Directional stability

Directional stability is the aircraft's tendency to maintain a steady heading. The key derivative is $C_{n_\beta}$, and the vertical tail is the primary contributor.

Weathercock effect

The weathercock effect is the tendency of the aircraft to align its nose with the relative wind, just like a weathervane. When the aircraft develops a sideslip angle, the vertical tail generates a side force that produces a yawing moment back toward zero sideslip.

A larger vertical tail, or one placed farther aft of the center of gravity, produces a stronger weathercock effect and a larger positive $C_{n_\beta}$.

Dorsal fin effect

A dorsal fin is a small triangular surface on top of the fuselage, just forward of the vertical tail. It serves two purposes:

• It increases the effective side area and aspect ratio of the vertical tail assembly, boosting $C_{n_\beta}$ at moderate sideslip angles.
• More critically, it delays flow separation over the vertical tail at high sideslip angles, preventing a sudden loss of directional stability right when you need it most.

Yaw damping

Yaw damping ($C_{n_r}$) resists yawing motion in the same way roll damping resists rolling. When the aircraft yaws, the vertical tail sweeps through the air with a changing local angle of attack, generating a side force that opposes the yaw rate. This damping is essential for suppressing Dutch roll oscillations, though it's often insufficient on its own at high altitudes, which is why yaw dampers exist.

Lateral-directional coupling

Rolling and yawing motions are inherently coupled. A disturbance in one axis almost always produces a response in the other, and understanding this coupling is central to lateral-directional analysis.

Roll-yaw coupling

The most familiar example is adverse yaw. When you deflect ailerons to roll right, the left wing (going up) produces more lift and therefore more induced drag, while the right wing (going down) produces less. The drag difference yaws the nose to the left, opposite to the intended turn. Pilots counter this with coordinated rudder input.

The reverse coupling also occurs: a yawing disturbance produces a rolling moment through the dihedral effect, which is exactly how Dutch roll oscillations sustain themselves.

Inertial vs aerodynamic coupling

• Inertial coupling arises from the aircraft's mass distribution. An aircraft with most of its mass concentrated in the fuselage (high $I_x$ relative to $I_y$ and $I_z$) can experience pitch-yaw or pitch-roll coupling during rapid rolls, because gyroscopic and centrifugal effects transfer energy between axes.
• Aerodynamic coupling comes from the flow interactions described above: sideslip producing roll (dihedral effect), roll producing yaw (adverse yaw), and so on.

Both types must be accounted for in the equations of motion, and they can combine to create handling difficulties, especially at high angles of attack or during aggressive maneuvering.

Stability augmentation systems

When the bare airframe doesn't provide adequate damping or handling qualities, stability augmentation systems (SAS) fill the gap. These are automatic flight control subsystems that sense aircraft motion and apply small, rapid control surface deflections.

Yaw dampers

Yaw dampers are the most common lateral-directional SAS. They sense yaw rate using rate gyros and command small rudder deflections to oppose it. Their primary job is suppressing Dutch roll, which tends to be lightly damped at high altitude where air density is low and aerodynamic damping weakens.

On most transport aircraft, the yaw damper runs continuously and is essentially transparent to the pilot. Modern implementations use feedback control laws that can adapt to different flight conditions.

Roll dampers

Roll dampers work on the same principle but in the roll axis, sensing roll rate and commanding aileron deflections to oppose it. They're less universally required than yaw dampers, but they improve ride quality in turbulence and reduce pilot workload during precision tasks.

Some advanced flight control systems combine roll and yaw damping with turn coordination logic, handling much of the lateral-directional workload automatically.

Aircraft design considerations

The lateral-directional stability characteristics of an aircraft are largely set by its geometry. Designers balance several competing factors during configuration development.

Wing geometry effects

• Dihedral angle directly sets the dihedral effect. Too much makes the aircraft overly sensitive to gusts; too little leaves it sluggish in returning to wings-level.
• Sweep angle adds dihedral effect, so highly swept wings may need reduced geometric dihedral or even anhedral (downward wing angle) to avoid excessive roll sensitivity.
• Aspect ratio influences roll damping: higher aspect ratio wings produce more roll damping.
• Wing position matters significantly. High-wing configurations get a natural dihedral effect from the fuselage interference (the fuselage acts like a "pendulum" below the wing), so they often use zero or even negative dihedral. Low-wing configurations lack this benefit and typically need more geometric dihedral.

Vertical tail sizing

The vertical tail must be large enough to provide adequate $C_{n_\beta}$ and yaw damping, but oversizing it adds weight and drag. Key parameters include:

• Tail area and moment arm (distance from CG to the tail's aerodynamic center): Together these define the tail volume coefficient, the primary sizing parameter.
• Aspect ratio and taper ratio of the vertical tail affect its lift-curve slope and therefore its effectiveness per unit area.
• The vertical tail must also handle the asymmetric thrust case (engine failure on a multi-engine aircraft), which often drives the minimum size.

Fuselage shape influence

The fuselage generally contributes a destabilizing yawing moment because the center of pressure of the fuselage side force typically acts forward of the CG. Longer, more slender fuselages reduce this destabilizing contribution. External stores, podded engines, or cargo containers mounted on the fuselage can shift the side-force center of pressure and alter $C_{n_\beta}$, sometimes requiring a larger vertical tail or additional dorsal fin area to compensate.

Flight dynamics modes

The lateral-directional equations of motion produce three characteristic modes. Each has distinct physical behavior and different implications for handling qualities.

Dutch roll mode

Dutch roll is an oscillatory mode involving coupled yawing and rolling, with some sideslip. Picture the nose tracing a figure-eight pattern while the wings rock side to side. The frequency is typically 0.5 to 2 Hz, depending on the aircraft.

Dutch roll arises from the interaction between directional stability ($C_{n_\beta}$, which drives the yaw oscillation) and dihedral effect ($C_{l_\beta}$, which couples it into roll). If the ratio of roll-to-yaw in the mode is large, passengers feel an uncomfortable wallowing motion. Adequate damping (often augmented by a yaw damper) is required for certification.

Spiral mode

The spiral mode is a slow, non-oscillatory mode. It describes the aircraft's long-term tendency when slightly banked:

• Stable spiral mode: The aircraft slowly returns to wings-level on its own.
• Unstable spiral mode: The bank angle gradually increases, leading to a tightening descending turn if the pilot doesn't correct.

Most aircraft have a mildly unstable spiral mode, which is acceptable as long as the time to double amplitude is long enough for the pilot to notice and correct. Spiral stability improves with stronger dihedral effect and weakens with stronger directional stability, so there's a direct tradeoff with Dutch roll characteristics.

Roll subsidence mode

Roll subsidence is a heavily damped, non-oscillatory mode that describes how quickly a roll rate decays after the ailerons are returned to neutral. It's governed almost entirely by roll damping ($C_{l_p}$).

The mode is characterized by its time constant $\tau_r$: a smaller time constant means the roll rate decays faster. For good handling qualities, you want a short time constant so the aircraft responds crisply to aileron inputs and stops rolling promptly when the stick is released.

Handling qualities

Handling qualities describe how the aircraft feels to the pilot and how precisely it can be controlled. Lateral-directional handling qualities depend on the dynamic modes above, the control power available, and how these interact.

Pilot ratings

The Cooper-Harper rating scale is the standard tool for quantifying handling qualities. Pilots fly specific tasks and rate the aircraft from 1 (excellent) to 10 (major deficiencies) based on workload and achievable precision.

• Levels 1 through 3 correspond to satisfactory, adequate, and controllable-but-unsatisfactory.
• Ratings of 4 or higher indicate deficiencies that need to be addressed.

These ratings are subjective by design, since the pilot's experience of workload and controllability is ultimately what matters for safety.

Lateral-directional requirements

Certification authorities (FAA, EASA) specify quantitative requirements that map to acceptable handling qualities:

• Dutch roll: Minimum damping ratio and minimum product of damping ratio and natural frequency ($\zeta_{dr} \cdot \omega_{n_{dr}}$).
• Spiral mode: Minimum time to double amplitude for an unstable spiral (e.g., at least 20 seconds for Level 1 in certain flight phases).
• Roll subsidence: Maximum time constant.
• Cross-coupling limits: Restrictions on the ratio of sideslip-to-bank or roll-to-yaw excursions during specific maneuvers.

These requirements vary by aircraft category and flight phase (e.g., cruise vs. approach).

Testing and certification

Lateral-directional characteristics must be verified through a combination of analysis, simulation, and flight testing before an aircraft can be certified.

Flight test techniques

Common test maneuvers include:

1. Steady heading sideslips: The pilot establishes a constant sideslip angle and measures the control deflections required to hold it. This directly reveals $C_{n_\beta}$ and $C_{l_\beta}$.
2. Rudder doublets: A sharp rudder input followed by a reversal excites the Dutch roll mode. The resulting oscillation is recorded and analyzed to extract damping ratio and frequency.
3. Bank-to-bank rolls: Rolling from one bank angle to the other measures roll performance and reveals roll-yaw coupling characteristics.

Parameter identification methods (such as output-error or equation-error techniques) are applied to flight test data to extract stability derivatives, which are then compared against predictions from wind tunnel data and computational models.

Certification standards

• FAR Part 23 (now ASTM-based for small aircraft) and FAR Part 25 (transport category) define the lateral-directional requirements.
• Manufacturers compile a certification basis, conduct the required analyses and tests, and submit the evidence to the certification authority.
• The authority reviews the data, may witness key flight tests, and grants type certification once compliance with all applicable requirements is demonstrated.
