Pitching moment describes the tendency of aerodynamic forces to rotate an aircraft about its lateral axis (the axis running wingtip to wingtip). This rotation controls whether the nose pitches up or down, making it central to longitudinal stability and control.

The pitching moment arises from the distribution of lift and drag forces across the wings, fuselage, and tail surfaces. Where those forces act relative to the aircraft's center of gravity determines both the magnitude and direction of the moment. Getting this right is what keeps an aircraft trimmed and stable throughout its flight envelope.

Center of pressure

The center of pressure (CP) is the single point on an airfoil or wing where you can treat the entire aerodynamic force as acting, with zero moment about that point.

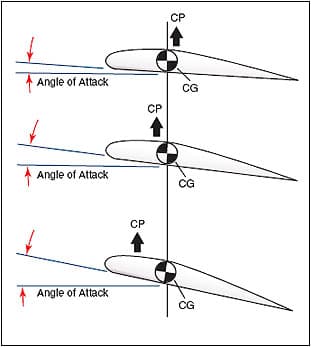

CP location shifts with angle of attack: it moves forward as angle of attack increases and aft as it decreases.
Because CP moves around, the pitching moment about the center of gravity changes too. This makes CP an inconvenient reference point for stability analysis, which is why the aerodynamic center is often preferred.

Aerodynamic center

The aerodynamic center (AC) is the point where the pitching moment coefficient stays constant regardless of angle of attack. Unlike the center of pressure, it doesn't wander.

For subsonic airfoils, the AC sits at approximately 25% of the mean aerodynamic chord (the quarter-chord point).
For supersonic flow, it shifts aft to roughly 50% chord.
Because $C_m$ about the AC doesn't change with angle of attack, the AC serves as the standard reference point for pitching moment calculations and longitudinal stability analysis.

Factors affecting pitching moment

Angle of attack

The angle of attack ( $\alpha$ ) is the angle between the chord line and the freestream velocity vector. Changes in $\alpha$ shift the pressure distribution over the airfoil, which directly alters the pitching moment.

Increasing $\alpha$ generally shifts the center of pressure forward and increases the nose-up tendency.
Decreasing $\alpha$ moves CP aft and produces a more nose-down tendency.
The relationship between $\alpha$ and pitching moment is roughly linear at moderate angles but becomes nonlinear near stall.

Airfoil shape

Three geometric features of the airfoil profile drive its pitching moment behavior:

Camber: Cambered airfoils produce lift even at zero angle of attack, which creates a nose-down pitching moment about the AC. The more camber, the more negative $C_{m_0}$ (the zero-lift moment coefficient). Symmetric airfoils have $C_{m_0} \approx 0$ .
Thickness: Thicker airfoils tend to produce slightly more positive (less nose-down) pitching moments due to changes in the pressure distribution around the leading edge.
Leading-edge radius: A larger leading-edge radius smooths the pressure peak near the nose, which can shift the moment in the positive direction and delay leading-edge stall.

Wing planform

The three-dimensional shape of the wing modifies the spanwise lift distribution, which in turn affects pitching moment.

Aspect ratio: Higher aspect ratio wings have weaker wingtip vortices and a more uniform lift distribution, resulting in smaller pitching moments.
Taper ratio: Tapered wings (taper ratio less than 1.0) shift more lift inboard, which generally produces a more negative pitching moment compared to untapered (rectangular) wings.
Sweep angle: Swept wings shift the AC aft and alter the spanwise load distribution, typically producing more negative pitching moments. Sweep also introduces coupling between pitch and other axes at high angles of attack.

Freestream velocity

Pitching moment scales with dynamic pressure, $q = \frac{1}{2}\rho V^2$ . Since dynamic pressure depends on velocity squared, doubling the airspeed quadruples the pitching moment (assuming the same $C_m$ ).

This means an aircraft must maintain acceptable moment characteristics across its entire speed range. A design that trims easily at cruise speed could face large, hard-to-manage moments at high speed if $C_m$ isn't well controlled.

Pitching moment coefficient

The pitching moment coefficient ( $C_m$ ) is a dimensionless number that lets you compare pitching moment behavior across different airfoils, wings, and aircraft regardless of size or speed. It strips out the effects of dynamic pressure, wing area, and chord length so you're left with pure aerodynamic shape effects.

Definition and equation

$C_m = \frac{M}{qS\bar{c}}$

where:

$M$ = pitching moment (N·m or ft·lbf)
$q$ = dynamic pressure, $\frac{1}{2}\rho V^2$
$S$ = wing reference area
$\bar{c}$ = mean aerodynamic chord

$C_m$ is always referenced to a specific point. The most common choices are the quarter-chord point (which approximates the aerodynamic center for subsonic flow) or the aircraft's center of gravity.

Typical values

Symmetric airfoils: $C_m \approx 0$ about the AC
Cambered airfoils: $C_m$ is negative about the AC, often in the range of $-0.01$ to $-0.10$ depending on camber
Stable aircraft configurations (about the CG): typically $C_m$ values between $-0.1$ and $-0.5$ at trim
A slightly negative $C_m$ at the design lift coefficient is desirable because it means the tail is producing a downforce that contributes to stability

Moment coefficient vs. angle of attack

The $C_m$ vs. $\alpha$ curve is one of the most important plots in longitudinal stability analysis.

For most conventional airfoils, $C_m$ becomes more negative as $\alpha$ increases, reflecting a growing nose-down moment.
The slope of this curve, $\frac{dC_m}{d\alpha}$ $\frac{d C _{m}}{d α}$ , determines static longitudinal stability:
- Negative slope → statically stable. If a gust pitches the nose up (increasing $\alpha$ ), the resulting nose-down moment pushes it back. This is what you want.
- Positive slope → statically unstable. A nose-up disturbance produces a further nose-up moment, driving the aircraft away from equilibrium.
- Zero slope → neutrally stable. The aircraft stays wherever it's disturbed to.
The $C_m$ intercept at $\alpha = 0$ (called $C_{m_0}$ ) must be positive for a stable aircraft to be able to trim at a positive lift coefficient.

Pitching moment calculation

Pressure distribution integration

The most direct way to find pitching moment is to integrate the pressure distribution over the airfoil or wing surface.

Obtain the pressure coefficient ( $C_p$ ) at many points along the upper and lower surfaces. This data comes from wind tunnel measurements, CFD, or pressure-sensitive paint.
At each point, compute the local force contribution from $C_p$ and the local surface area element.
Calculate the moment arm from each point to your chosen reference point (e.g., the quarter-chord).
Integrate (sum) all the individual moment contributions to get the total pitching moment.

This method is highly accurate but requires detailed surface pressure data, making it computationally or experimentally expensive.

Thin airfoil theory

Thin airfoil theory provides a closed-form analytical estimate of pitching moment for airfoils with small camber and thickness.

It represents the airfoil camber line as a distribution of vortices along the chord.
For a thin airfoil, the moment coefficient about the quarter-chord depends only on the camber distribution, not on $\alpha$ . This is consistent with the quarter-chord being the aerodynamic center.
The result for the moment about the AC is: $C_{m_{AC}} = -\frac{\pi}{2}(A_1 - A_2)$ , where $A_1$ and $A_2$ are Fourier coefficients of the camber line.
Works well for thin, lightly cambered airfoils at low $\alpha$ . Accuracy drops for thick airfoils, high-camber sections, or angles near stall.

Computational fluid dynamics (CFD)

CFD solves the Navier-Stokes equations numerically to predict the full flow field around an airfoil or wing.

Can handle complex geometries, high angles of attack, and compressibility effects that thin airfoil theory cannot.
Pitching moment is extracted by integrating computed pressure and shear stress distributions over the surface.
Requires significant computational resources and careful mesh generation, turbulence model selection, and convergence checks.
Widely used in industry for design optimization and for cases where wind tunnel testing is impractical or too costly.

Pitching moment effects

Center of pressure, terminology - What is the difference between centre of pressure, aerodynamic centre and neutral ...

Aircraft trim

Trim is the condition where all moments about the center of gravity sum to zero, so the aircraft holds a steady pitch attitude without control input.

The wing's pitching moment (usually nose-down for cambered airfoils) must be balanced by the moment from the horizontal stabilizer and elevator.
The trim condition changes with airspeed, altitude, CG location, and configuration (flaps, landing gear, fuel load).
Proper trim reduces pilot workload. If the aircraft is out of trim, the pilot must hold constant stick force, which is fatiguing and impractical for long flights.

Longitudinal stability

Longitudinal (pitch) stability is the aircraft's tendency to return to its trimmed angle of attack after a disturbance.

Static stability requires $\frac{dC_m}{d\alpha} < 0$ . This ensures that any increase in $\alpha$ produces a restoring nose-down moment.
The CG must be ahead of the neutral point (the whole-aircraft aerodynamic center) for static stability. The distance between the CG and neutral point, expressed as a fraction of $\bar{c}$ , is the static margin.
Too much stability (large static margin) makes the aircraft sluggish in pitch. Too little makes it twitchy or uncontrollable. Designers balance stability against maneuverability based on the aircraft's mission.

Stall characteristics

When the wing exceeds its critical angle of attack, flow separates and lift drops abruptly. Pitching moment behavior at stall determines how safely the aircraft can recover.

A nose-down pitching moment at stall is desirable because it naturally reduces $\alpha$ , helping the wing regain attached flow.
Some wing designs (e.g., highly swept wings) can experience a nose-up pitch at stall ("pitch-up"), which drives $\alpha$ even higher and makes recovery difficult or impossible.
Wing twist (washout), vortex generators, and stall strips are design tools used to ensure the inboard sections stall before the tips, preserving aileron control and promoting a nose-down pitch break.

Pitching moment control

Horizontal stabilizer

The horizontal stabilizer is a fixed (or adjustable) surface at the tail that provides the balancing moment to counteract the wing's pitching moment.

It typically operates at a negative angle of attack relative to the local flow, generating a downward force ("download") that creates a nose-down moment about the CG.
Stabilizer size and moment arm (distance from the CG) are chosen to provide adequate stability and trim authority.
Some aircraft use an all-moving stabilizer (stabilator) or trim tabs to adjust the stabilizer's effective incidence in flight, allowing the pilot to re-trim as speed or configuration changes.

Elevator deflection

The elevator is a hinged surface on the trailing edge of the horizontal stabilizer that the pilot uses for direct pitch control.

Upward deflection (trailing edge up) reduces the stabilizer's local lift (or increases its download), producing a nose-down pitching moment.
Downward deflection (trailing edge down) increases stabilizer lift, producing a nose-up pitching moment.
Elevator effectiveness depends on deflection angle, airspeed (higher speed = more authority), and the size of the elevator relative to the stabilizer.
At very low speeds (near stall), elevator authority decreases, which is why adequate control power at minimum speed is a key design requirement.

Canard configuration

A canard is a small lifting surface mounted ahead of the main wing, used instead of (or in addition to) a conventional tail.

The canard generates lift (not download), producing a nose-up moment that balances the main wing's nose-down moment. This means both surfaces contribute to total lift, which can improve efficiency.
Canards can be designed to stall before the main wing, naturally limiting the aircraft's angle of attack and providing built-in stall protection.
Trim drag can be lower than in a conventional layout because the canard produces positive lift rather than a download.
The main challenge is ensuring proper aerodynamic interaction between the canard wake and the main wing, especially at high angles of attack. Poor integration can lead to unpredictable pitching moment behavior.

Experimental determination

Wind tunnel testing

Wind tunnel tests use scaled models to measure aerodynamic forces and moments under controlled, repeatable conditions.

A force balance (internal or external) directly measures lift, drag, and pitching moment on the model.
Pressure taps or pressure-sensitive paint (PSP) can map the surface pressure distribution, from which pitching moment is calculated by integration.
Advantages: controlled conditions, systematic parameter sweeps (varying $\alpha$ , Mach number, etc.), and relatively quick turnaround.
Limitations: Reynolds number scaling is a persistent challenge. The model operates at a lower Reynolds number than the full-scale aircraft unless a pressurized or cryogenic tunnel is used. Support structures (stings, struts) can also interfere with the flow near the model.

Flight testing

Flight tests measure pitching moment on the actual aircraft in real atmospheric conditions.

Instrumentation includes strain gauges on structural members, accelerometers, angle-of-attack vanes, and air data probes to capture loads and aircraft state.
Pitching moment is typically inferred from measured accelerations and known inertia properties rather than measured directly.
Flight tests provide the most realistic data but are expensive, weather-dependent, and carry inherent risk.
Results validate wind tunnel and CFD predictions, assess handling qualities, and demonstrate compliance with certification standards (e.g., FAR Part 25 for transport aircraft).
