11.3 Jet noise
11 min read•august 20, 2024
Jet noise, a critical concern in aviation, stems from turbulent mixing of exhaust gases with ambient air. Understanding its sources is crucial for developing effective noise reduction strategies and meeting stringent regulations. This topic explores various jet noise sources and factors affecting them.
The chapter delves into jet noise prediction methods, reduction techniques, and regulations. It also examines measurement techniques, comparing military and commercial jet noise characteristics. This knowledge is essential for designing quieter aircraft and minimizing environmental impact.
Jet noise sources
- Jet noise is the acoustic radiation generated by turbulent mixing of exhaust gases with the ambient air, as well as various other noise generation mechanisms in the jet flow
- Understanding the different sources of jet noise is crucial for developing effective noise reduction strategies and meeting stringent noise regulations in the aviation industry
Turbulent mixing noise
Top images from around the web for Turbulent mixing noise
AMT - Estimation of the height of the turbulent mixing layer from data of Doppler lidar ... View original
Is this image relevant?

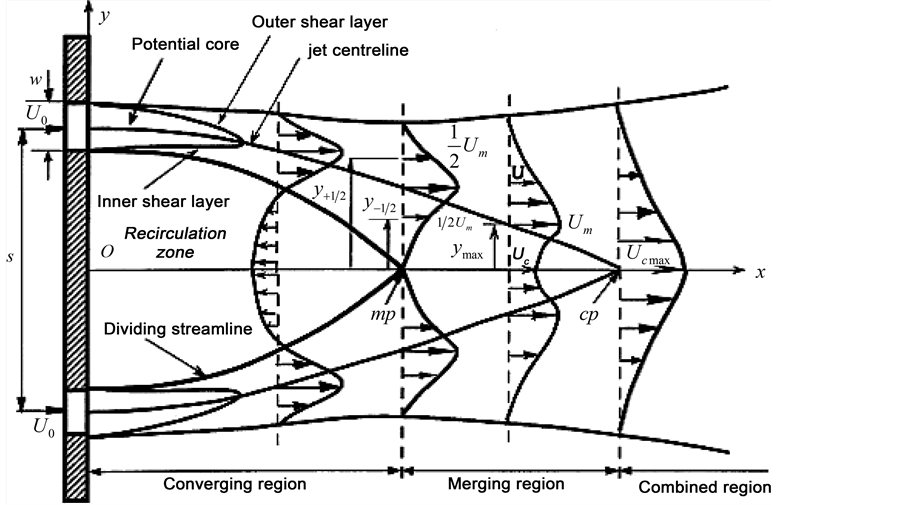

Prediction on Turbulent Flow of Two Parallel Plane Jets Using κ-ε Model View original
Is this image relevant?
AMT - Estimation of the height of the turbulent mixing layer from data of Doppler lidar ... View original
Is this image relevant?
Prediction on Turbulent Flow of Two Parallel Plane Jets Using κ-ε Model View original
Is this image relevant?
1 of 2
Top images from around the web for Turbulent mixing noise
AMT - Estimation of the height of the turbulent mixing layer from data of Doppler lidar ... View original
Is this image relevant?
Prediction on Turbulent Flow of Two Parallel Plane Jets Using κ-ε Model View original
Is this image relevant?
AMT - Estimation of the height of the turbulent mixing layer from data of Doppler lidar ... View original
Is this image relevant?
Prediction on Turbulent Flow of Two Parallel Plane Jets Using κ-ε Model View original
Is this image relevant?
1 of 2
- is the dominant source of jet noise, especially at subsonic jet velocities
- Generated by the turbulent mixing of the high-speed jet exhaust with the surrounding ambient air
- Characterized by a broadband spectrum with a peak frequency that depends on the jet velocity and diameter
- Influenced by factors such as jet temperature, density, and intensity
- Increases with higher jet velocities and temperatures
Shock-associated noise
- occurs in supersonic jets when the jet velocity exceeds the local speed of sound
- Generated by the interaction of turbulent structures with the present in the jet plume
- Characterized by a broadband spectrum with distinct peaks at multiples of the shock cell spacing frequency
- Influenced by factors such as the nozzle pressure ratio, jet temperature, and shock cell structure
- Can be a significant contributor to the overall noise levels in supersonic aircraft (Concorde)
Screech tones
- are discrete high-frequency tones that occur in imperfectly expanded supersonic jets
- Generated by a feedback loop between the nozzle lip and the shock cell structure in the jet plume
- Characterized by a narrow-band spectrum with a fundamental frequency and its harmonics
- Influenced by factors such as the nozzle geometry, jet velocity, and ambient conditions
- Can lead to increased noise levels and structural fatigue in aircraft components (tailfin)
Factors affecting jet noise
- Several key factors influence the generation and propagation of jet noise, which need to be considered when designing low-noise aircraft engines and optimizing flight procedures
- Understanding the effects of these factors is essential for developing accurate noise prediction models and implementing effective noise reduction strategies
Nozzle geometry effects
- Nozzle geometry plays a significant role in determining the characteristics of jet noise
- Convergent-divergent nozzles can reduce noise levels compared to simple convergent nozzles by promoting a more uniform jet velocity profile
- Nozzle aspect ratio affects the directivity and spectral shape of jet noise, with higher aspect ratios leading to more pronounced azimuthal variations
- Nozzle lip thickness and shape influence the initial turbulence levels and shock cell structure, impacting noise generation
- Chevrons and tabs can be added to the nozzle to enhance mixing and reduce low-frequency noise (Boeing 787)
Jet velocity and temperature
- Jet velocity is the primary factor affecting jet noise levels, with noise intensity scaling with the eighth power of velocity
- Increasing jet temperature leads to higher noise levels due to increased jet velocity and density
- The ratio of jet velocity to ambient speed of sound (Mach number) determines the presence of shock waves and shock-associated noise
- High-temperature jets (afterburning engines) exhibit additional noise sources due to combustion and flow inhomogeneities
- Reducing is a key strategy for noise reduction (geared turbofans)
Flight effects on noise
- Forward flight of an aircraft can significantly alter the characteristics of jet noise compared to static conditions
- The relative velocity between the jet and the ambient air is reduced, leading to lower noise levels and a shift in the peak frequency
- The motion of the aircraft causes a Doppler shift in the observed noise frequency, depending on the observer location
- The aircraft wing and fuselage can shield or reflect jet noise, affecting its directivity and propagation
- Flight effects need to be accounted for in noise certification tests and noise contour predictions around airports
Jet noise prediction methods
- Accurate prediction of jet noise is essential for designing low-noise aircraft engines, optimizing flight procedures, and assessing the environmental impact of aviation
- Various empirical and analytical models have been developed to estimate jet noise levels and spectra based on key flow parameters and engine operating conditions
Empirical vs analytical models
- Empirical models () rely on extensive experimental data to establish correlations between noise levels and engine parameters
- Provide quick estimates of jet noise based on a limited set of input variables, such as jet velocity, temperature, and diameter
- Limited in their ability to capture the effects of novel nozzle geometries or complex flow phenomena
- Analytical models (Lighthill's acoustic analogy) are based on fundamental fluid dynamics principles and aim to predict noise from first principles
- Offer more flexibility in terms of nozzle geometry and flow conditions but require more computational resources and detailed flow information
- Can provide insights into the underlying noise generation mechanisms and guide the development of noise reduction strategies
ANOPP vs SAE ARP876
- (Aircraft Noise Prediction Program) is a comprehensive tool developed by NASA for predicting aircraft noise, including jet noise
- Incorporates various empirical and semi-empirical models for different noise sources, such as jet mixing noise, shock-associated noise, and turbine noise
- Allows for the integration of noise sources and propagation effects to estimate the overall aircraft noise levels and contours
- SAE ARP876 is a widely used empirical model for jet noise prediction, based on a large database of static engine test data
- Provides a simple method for estimating jet noise levels and spectra based on key engine parameters, such as jet velocity, temperature, and diameter
- Limited in its ability to account for flight effects, novel nozzle geometries, or complex flow phenomena
CFD-based noise prediction
- Computational Fluid Dynamics (CFD) simulations can be used to predict jet noise by directly resolving the turbulent flow field and acoustic sources
- High-fidelity methods, such as Large Eddy Simulation (LES), can capture the unsteady flow dynamics and noise generation mechanisms in detail
- Coupled with acoustic propagation models (Ffowcs Williams-Hawkings equation), CFD can provide far-field noise predictions
- Allows for the investigation of novel nozzle geometries, flow control strategies, and
- Requires significant computational resources and expertise in flow modeling and acoustic analysis
- Emerging as a powerful tool for jet noise prediction and reduction, complementing experimental and empirical approaches
Jet noise reduction techniques
- Reducing jet noise is a critical challenge for the aviation industry, driven by increasingly stringent noise regulations and the need to minimize the environmental impact of aircraft
- Various passive and active noise reduction techniques have been developed to target different noise sources and mechanisms in jet engines
Nozzle chevrons and tabs
- Chevrons are serrated or scalloped extensions added to the nozzle lip to enhance mixing and break up large-scale turbulent structures
- Promote faster mixing of the jet with the ambient air, reducing low-frequency mixing noise
- Can be designed with variable geometry to optimize noise reduction at different operating conditions
- Tabs are small protrusions added to the nozzle lip to generate streamwise vortices and enhance mixing
- Effective in reducing shock-associated noise and screech tones in supersonic jets
- Commonly used in modern commercial aircraft engines (Boeing 787, Airbus A320neo) to meet noise regulations
Fluid injection and microjets
- Fluid injection involves the introduction of secondary air or water streams into the jet plume to modify the flow and acoustic fields
- Can be used to reduce turbulent mixing noise by altering the jet velocity profile and promoting faster mixing
- Water injection has been shown to be effective in reducing noise levels, particularly during takeoff and climb phases
- Microjets are small, high-velocity air jets injected into the main jet flow to disrupt the noise generation mechanisms
- Can target specific noise sources, such as shock-associated noise or screech tones, by modifying the shock cell structure
- Require a compressed air source and careful design to optimize noise reduction while minimizing thrust losses
Noise absorbing materials
- , such as , can be used to attenuate jet noise within the engine nacelle
- Consist of perforated panels backed by honeycomb cavities tuned to absorb specific frequency ranges
- Effective in reducing high-frequency turbine noise and but have limited impact on low-frequency jet mixing noise
- Can be optimized for different engine operating conditions and noise spectra using variable impedance or adaptive control
- Commonly used in modern aircraft engines (CFM LEAP, Pratt & Whitney GTF) to meet noise regulations and improve passenger comfort
Jet noise regulations and metrics
- Jet noise is subject to stringent regulations set by aviation authorities to minimize the environmental impact of aircraft and protect communities near airports
- Various noise metrics and standards are used to quantify jet noise levels and assess compliance with regulations
FAA vs ICAO standards
- The Federal Aviation Administration (FAA) and the International Civil Aviation Organization (ICAO) set noise certification standards for aircraft
- FAA regulations (FAR Part 36) specify maximum noise levels for aircraft based on their weight and number of engines
- ICAO standards (Annex 16) define noise limits for aircraft based on their maximum takeoff weight and classify them into different chapters (Chapter 3, 4, 14)
- Both organizations use similar noise metrics (EPNdB) but have different measurement procedures and noise limits
- Aircraft manufacturers must demonstrate compliance with these standards through noise certification tests conducted under specific conditions
EPNdB vs OASPL metrics
- Effective Perceived Noise Level (EPNdB) is the primary noise metric used for aircraft noise certification and regulation
- Accounts for the frequency content, duration, and tonal content of the noise, weighted according to human hearing sensitivity
- Calculated from noise measurements taken at three reference points (approach, sideline, and flyover) during noise certification tests
- Overall Sound Pressure Level (OASPL) is a simpler noise metric that represents the total sound energy across all frequencies
- Does not account for the frequency weighting or tonal corrections of EPNdB but provides a basic measure of noise intensity
- Used for noise contour mapping, community noise assessment, and research purposes, often in conjunction with spectral information
Airport noise restrictions
- Airports may impose additional noise restrictions beyond the FAA and ICAO standards to mitigate the impact of aircraft noise on surrounding communities
- , such as preferential runway use, noise preferential routes, and reduced thrust takeoffs, can be implemented to minimize noise exposure
- Night curfews or operating quotas can be used to restrict the number or timing of flights to reduce noise during sensitive hours
- Noise budgets or noise envelope concepts allocate a limited amount of noise "credits" to airlines, encouraging the use of quieter aircraft and procedures
- Airport noise monitoring systems track noise levels and help identify areas for improvement in noise management strategies
Jet noise measurement techniques
- Accurate measurement of jet noise is essential for assessing compliance with regulations, validating noise prediction models, and evaluating the effectiveness of noise reduction techniques
- Various measurement techniques and array configurations are used to capture the complex spatial and temporal characteristics of jet noise
Far-field vs near-field arrays
- Far-field microphone arrays are used to measure jet noise at a distance, typically in an anechoic chamber or an outdoor test facility
- Provide data on the overall noise levels, directivity, and spectra, representative of the noise perceived by observers on the ground
- Require corrections for atmospheric absorption, ground reflections, and background noise to obtain free-field noise levels
- Near-field arrays are placed in the jet plume or in close proximity to the nozzle to capture the noise generation mechanisms and flow-acoustic interactions
- Provide insights into the noise source distribution, turbulent structures, and shock cell dynamics
- Require specialized high-temperature and high-flow microphones or pressure transducers to withstand the harsh jet environment
Phased arrays and beamforming
- Phased arrays consist of multiple microphones arranged in a specific pattern (spiral, cross, or random) to enable spatial filtering and noise source localization
- Beamforming algorithms process the signals from the array microphones to create a "noise map" of the jet, identifying the dominant noise sources and their relative strengths
- Conventional beamforming methods (delay-and-sum) provide a basic noise source image but suffer from limited resolution and dynamic range
- Advanced beamforming techniques (deconvolution, adaptive, or eigenvalue-based methods) improve the resolution and sidelobe suppression of the noise maps
- Phased arrays are particularly useful for studying the noise generation mechanisms, evaluating noise reduction concepts, and validating noise prediction models
Engine test stands
- are facilities designed for measuring the noise and performance of jet engines under controlled conditions
- Consist of a thrust frame to mount the engine, a noise measurement arena with microphone arrays, and a data acquisition system
- Allow for the testing of full-scale engines or nozzle configurations under various operating conditions (power settings, flow rates, temperatures)
- Provide data on the noise levels, spectra, and directivity of the engine, as well as its thrust and fuel consumption
- Used for noise certification tests, research and development of new engine designs, and evaluation of noise reduction technologies
- Examples include the Pratt & Whitney test stand in West Palm Beach, FL, and the GE Aviation test stand in Peebles, OH
Military vs commercial jet noise
- Military and commercial jet aircraft have different noise characteristics and requirements due to their distinct missions, engines, and operating conditions
- Understanding the specific noise sources and reduction strategies for each category is essential for effective noise management and environmental impact mitigation
Supersonic vs subsonic jets
- Supersonic military jets (fighter aircraft) generate significantly higher noise levels than subsonic commercial jets due to the presence of shock waves and shock-associated noise
- The noise spectra of supersonic jets are characterized by broad peaks at high frequencies, as well as discrete tones (screech) related to the shock cell structure
- Subsonic commercial jets have noise spectra dominated by turbulent mixing noise, with a broad peak at lower frequencies and a gradual decrease towards higher frequencies
- The directivity of supersonic jet noise is more pronounced, with higher noise levels in the aft quadrant and a more focused radiation pattern compared to subsonic jets
Afterburning noise sources
- Afterburning (reheat) is used in military jet engines to provide additional thrust by injecting fuel into the exhaust and burning it
- Afterburning significantly increases the jet velocity and temperature, leading to higher noise levels and altered noise spectra
- The noise generated by afterburning jets includes additional sources, such as combustion noise, turbulent mixing noise, and shock-associated noise
- The rapid temperature fluctuations and flow inhomogeneities in the afterburning plume contribute to the overall noise levels and directivity
- Noise reduction strategies for afterburning jets focus on optimizing the nozzle geometry, mixing enhancement, and flow control techniques to minimize the impact of the additional noise sources
Stealth and noise reduction
- Stealth technology in military aircraft aims to reduce the radar cross-section and infrared signature to avoid detection
- Noise reduction is also a critical aspect of stealth design, as acoustic detection can compromise the aircraft's mission effectiveness
- Stealth aircraft (F-35, B-2) employ various noise reduction strategies, such as optimized nozzle shaping, noise-absorbing materials, and low-observable engine inlets and nozzles
- The noise reduction requirements for stealth aircraft may limit the use of certain noise reduction technologies (chevrons, tabs) that can increase the radar cross-section
- The trade-off between noise reduction and stealth performance needs to be carefully considered in the design and operation of military aircraft
- Advances in materials, flow control, and signature management techniques continue to drive the development of quieter and more stealthy military aircraft
Key Terms to Review (38)
Acoustic liners: Acoustic liners are specialized materials or structures designed to absorb sound energy and reduce noise levels in various applications, particularly in jet engines and aircraft. They are crucial for managing jet noise, which is a significant concern in aviation, as they help minimize the impact of engine noise on the environment and nearby communities. By using acoustic liners, engineers can enhance the acoustic performance of aircraft while maintaining efficiency.
Active Noise Control: Active noise control (ANC) is a technology that uses sound waves to cancel out unwanted noise, creating a quieter environment. It operates on the principle of destructive interference, where sound waves are generated to match and counteract the noise from various sources, including engines and airframes, effectively reducing overall noise levels experienced in different situations.
Afterburning noise sources: Afterburning noise sources refer to the specific sounds generated by the combustion process that occurs in the afterburner of a jet engine, particularly during the operation of supersonic and high-performance aircraft. This phenomenon is a significant contributor to the overall jet noise, which includes noise from both the engine core and the exhaust flow. The unique characteristics of afterburning, such as the mixing of hot exhaust gases with cooler ambient air, create complex turbulence and additional noise levels that are crucial for understanding aircraft acoustics.
Airport noise restrictions: Airport noise restrictions refer to the regulations and measures implemented to control and mitigate the impact of noise generated by aircraft operations at airports. These restrictions aim to minimize disturbances to surrounding communities, enhance the quality of life for residents, and comply with environmental standards while balancing the operational needs of airports and airlines.
Anopp: Anopp, short for 'acoustic non-linear pressure perturbations,' refers to the sound generated by jet flows in aerodynamics, particularly focusing on noise associated with turbulent jets. This phenomenon occurs when high-speed jet streams interact with surrounding air, producing pressure fluctuations that manifest as sound waves. Anopp is crucial in understanding the impact of jet noise on environments and communities surrounding airports and busy air traffic routes.
Bernoulli's Principle: Bernoulli's Principle states that in a fluid flow, an increase in the fluid's velocity occurs simultaneously with a decrease in pressure or potential energy. This principle explains how airfoil shape affects lift generation and connects various aerodynamic concepts, such as flow behavior, force generation, and pressure distributions.
Cfd-based noise prediction: CFD-based noise prediction refers to the use of computational fluid dynamics (CFD) techniques to estimate and analyze noise generated by fluid flows, particularly in cases like jet noise. This method allows for a detailed understanding of how airflow interacts with surfaces and generates sound, making it crucial in engineering applications aimed at reducing noise pollution and improving design efficiency.
Community Noise Equivalent Level: The Community Noise Equivalent Level (CNEL) is a measure of environmental noise that accounts for variations in sound levels over a specified time period, typically 24 hours. It is particularly relevant in assessing the impact of noise on communities, as it incorporates both day and nighttime noise levels, giving more weight to noise during the evening hours. This metric helps identify potential disturbances caused by sources such as jet noise, ensuring that appropriate measures can be taken to mitigate adverse effects on public health and well-being.
Decibel levels: Decibel levels are a logarithmic measure of sound intensity, commonly used to quantify the loudness of sounds in various environments. They are particularly important in understanding noise produced by jet engines, where high decibel levels can indicate potentially harmful noise pollution, and in assessing the effectiveness of various noise reduction techniques that aim to minimize these levels.
Empirical vs Analytical Models: Empirical models are based on observed data and experiments, allowing researchers to create relationships that describe phenomena without necessarily understanding the underlying physics. Analytical models, on the other hand, use mathematical equations derived from fundamental principles to predict behavior and outcomes. In the context of jet noise, these models help in understanding noise generation mechanisms and their impacts on the environment.
Engine test stands: Engine test stands are specialized structures used for the testing and evaluation of aircraft engines under controlled conditions. They allow engineers to assess engine performance, efficiency, and emissions while providing a safe environment for both personnel and equipment during testing procedures. These stands are crucial for understanding engine behavior, particularly regarding noise levels generated during operation, which is essential for compliance with regulatory standards and public safety.
Epndb vs oaspl metrics: Epndb (Effective Perceived Noise Level in decibels) and OASPL (Overall Sound Pressure Level) metrics are crucial measurements used to quantify the noise produced by jet engines, particularly in the context of jet noise. These metrics help engineers and researchers assess how sound is perceived by human observers and provide insights into the overall noise environment around an aircraft. Understanding these two metrics is essential for addressing noise pollution and improving aircraft design to minimize acoustic impact.
FAA vs ICAO Standards: FAA vs ICAO standards refer to the differing regulations and guidelines established by the Federal Aviation Administration (FAA) in the United States and the International Civil Aviation Organization (ICAO) for the safety and operation of aviation. These standards are critical for maintaining safety in air travel and are particularly relevant when considering jet noise regulations, as they outline acceptable limits and practices that vary between national and international contexts.
Fan noise: Fan noise refers to the sound produced by fans, which are commonly used in various engineering applications, particularly in aerospace and industrial settings. This noise is primarily generated by the interaction of air with the fan blades and other components, and it can significantly affect overall system performance, passenger comfort, and regulatory compliance.
Far-field vs Near-field Arrays: Far-field and near-field arrays refer to two distinct regions of sound propagation that are significant in understanding jet noise generation and measurement. The far-field region is where sound waves have propagated sufficiently far from the source, allowing them to be treated as plane waves, while the near-field region is close to the source where the sound waves are still developing and may exhibit complex, non-planar characteristics. This distinction is crucial for accurately predicting and analyzing noise levels produced by jet engines during operation.
Flight effects on noise: Flight effects on noise refer to the various ways in which aircraft operations contribute to noise pollution during takeoff, landing, and cruising phases. The nature of jet noise is influenced by factors such as engine design, flight altitude, and atmospheric conditions. Understanding these effects is crucial for developing strategies to mitigate noise impact on communities surrounding airports and flight paths.
Fluid injection and microjets: Fluid injection and microjets refer to the technique of introducing small, controlled streams of fluid into a flow field to manipulate the characteristics of that flow. This method is often used to enhance mixing, improve aerodynamic performance, or reduce noise generated by jet flows. By strategically injecting fluid, microjets can alter pressure distributions and streamline airflow, which is particularly relevant when addressing challenges like jet noise.
Frequency spectrum: The frequency spectrum is a representation of the different frequencies of sound waves produced by various sources, displaying the intensity of each frequency in relation to the others. It helps in understanding how sound energy is distributed across a range of frequencies, which is crucial for analyzing and interpreting acoustic phenomena like jet noise and using techniques such as the acoustic analogy.
G. d. mcgowan: G. D. McGowan is a prominent figure in the study of jet noise, specifically known for his contributions to understanding the mechanisms and characteristics of noise generated by jet engines. His research has been instrumental in developing analytical methods to predict and analyze jet noise, which is crucial for designing quieter aircraft and minimizing environmental impacts. McGowan's work bridges aerodynamics and acoustics, providing insights that help engineers tackle the challenges associated with aircraft noise pollution.
Jet exhaust noise: Jet exhaust noise refers to the sound produced by the high-speed jet of exhaust gases expelled from aircraft engines, particularly turbojet and turbofan engines. This noise is primarily generated from the turbulent mixing of the jet with the surrounding air and is a significant contributor to overall aircraft noise during takeoff, landing, and flight.
Jet velocity and temperature: Jet velocity refers to the speed of a jet stream, which is the rapid flow of air in the atmosphere or the exhaust flow from an aircraft engine. Temperature in this context pertains to the thermal state of the jet, which can significantly affect its properties and behavior. The interplay between jet velocity and temperature is crucial as it influences phenomena such as jet noise, mixing, and overall aerodynamic performance.
NASA studies: NASA studies refer to research and investigations conducted by the National Aeronautics and Space Administration focused on various aspects of aerodynamics, including jet noise, aircraft performance, and environmental impacts. These studies aim to enhance the understanding of noise generation mechanisms in jet engines, develop quieter aircraft technologies, and assess the implications of noise on communities near airports.
Navier-Stokes Equations: The Navier-Stokes equations are a set of nonlinear partial differential equations that describe the motion of viscous fluid substances. They form the foundation for fluid dynamics and are crucial for understanding various phenomena, including turbulence and boundary layer behavior, making them essential in aerodynamics and related fields.
Noise abatement procedures: Noise abatement procedures are strategies implemented to reduce the impact of noise generated by aircraft during their operation, especially during takeoff, landing, and taxiing phases. These procedures aim to minimize the disturbance to communities near airports while ensuring that aircraft operate safely and efficiently. By focusing on both jet noise and airframe noise, these measures help in maintaining regulatory compliance and improving overall public perception of aviation activities.
Noise absorbing materials: Noise absorbing materials are substances designed to reduce sound reflections and minimize noise levels in an environment. These materials work by converting sound energy into a small amount of heat, thereby preventing sound waves from bouncing off surfaces and creating echoes. They are essential in controlling jet noise, as they help to mitigate the impact of sound generated during aircraft operations.
Noise Barriers: Noise barriers are structures designed to reduce noise pollution by obstructing the path of sound waves, particularly in environments affected by high levels of noise from sources like highways and airports. They are essential in controlling jet noise, which can significantly impact nearby communities, especially those close to airports where aircraft take off and land. These barriers can be made from various materials and are strategically placed to provide maximum sound reduction while minimizing visual impact.
Nozzle chevrons and tabs: Nozzle chevrons and tabs are aerodynamic features placed on the exit of jet nozzles to reduce noise generated by high-speed jet flows. These structures disrupt the airflow, leading to a more uniform mixing of jet and ambient air, which helps to decrease the intensity of jet noise. Their design can significantly influence the acoustic characteristics of jet propulsion systems and plays a vital role in modern aircraft design aimed at reducing environmental noise pollution.
Nozzle geometry effects: Nozzle geometry effects refer to the influence that the design and shape of a nozzle have on the behavior of the jet flow exiting from it, which is critical for determining performance characteristics such as thrust, efficiency, and noise generation. The configuration of a nozzle can significantly impact the velocity distribution, pressure drop, and turbulence levels in the jet, which in turn affects the acoustic properties and noise levels produced during operation. Understanding these effects is essential for optimizing engine performance and minimizing environmental noise.
Phased Arrays and Beamforming: Phased arrays are groups of antennas or sensors that work together to create a directional signal by varying the phase of the signals at each element. This technique allows for beamforming, which is the ability to control the directionality of the transmitted or received signals. These technologies are crucial in applications such as radar, communication systems, and also in mitigating jet noise by focusing sound energy in specific directions to reduce overall noise levels.
Quiet technology: Quiet technology refers to advancements and designs in aviation that aim to reduce the noise produced by aircraft, particularly during takeoff and landing. This term is crucial in understanding how modern engineering practices focus on minimizing jet noise while maintaining performance, ultimately improving the environmental impact of aviation and enhancing community acceptance of airports.
SAE ARP876: SAE ARP876 is a standard developed by the Society of Automotive Engineers that provides guidelines for the measurement and assessment of jet noise produced by aircraft engines. This standard is essential for understanding and quantifying the noise generated during operation, which is vital for compliance with regulatory requirements and for the development of quieter engine technologies.
Screech tones: Screech tones are high-frequency noise phenomena typically associated with the unsteady flow conditions around jet engines, particularly during their operation at specific angles or velocities. These tones arise from the interaction between turbulent airflows and the engine's components, producing a distinct sound that can contribute significantly to overall noise levels generated by aircraft.
Shock Waves: Shock waves are abrupt changes in pressure, temperature, and density that propagate through a medium, typically occurring when an object moves faster than the speed of sound in that medium. These waves are significant in understanding various fluid dynamics phenomena, especially in compressible flows where the conservation of mass, momentum, and energy plays a critical role.
Shock-associated noise: Shock-associated noise refers to the sound generated when an object travels through a fluid at a speed greater than the speed of sound, resulting in the formation of shock waves. These shock waves produce a sudden change in pressure and temperature, causing a distinct noise that can be disruptive and significant in various applications, particularly in aerospace engineering.
Stealth and Noise Reduction: Stealth and noise reduction refer to techniques and technologies used to minimize the detection of aircraft, particularly jet engines, by reducing the noise they produce. These methods are crucial in military aviation to enhance survivability and operational effectiveness, as they make it difficult for enemy radar and acoustic sensors to detect or track an aircraft. Effective stealth and noise reduction can significantly impact tactical advantages in combat scenarios.
Supersonic vs subsonic jets: Supersonic jets are aircraft that travel faster than the speed of sound, which is approximately 343 meters per second (1,125 feet per second) at sea level, while subsonic jets operate at speeds below this threshold. The distinction between these two categories is crucial as it influences the aerodynamic characteristics, engine performance, and environmental impact, including jet noise, associated with each type of jet.
Turbulence: Turbulence refers to the irregular or chaotic flow of fluid, characterized by the presence of eddies, vortices, and rapid changes in pressure and velocity. This phenomenon occurs when the flow becomes unstable, often leading to fluctuations that can significantly affect the performance and noise characteristics of various aerodynamic systems. Understanding turbulence is crucial for predicting how fluids behave in different scenarios, particularly in the context of jet noise generation.
Turbulent mixing noise: Turbulent mixing noise is the sound generated by the chaotic and irregular motion of fluid flow, particularly when different streams of air interact with each other. This type of noise is primarily produced in jet flows, where the mixing of high-velocity jet exhaust with the surrounding slower-moving air leads to fluctuating pressures and sound waves. The intensity and frequency of this noise can significantly affect the overall noise profile of jet engines and is influenced by factors such as turbulence intensity and jet velocity.
