11.4 Airframe noise
12 min read•august 20, 2024
Airframe noise, generated by non-propulsive aircraft components, becomes a dominant source during approach and landing. Understanding its sources, like leading edge, trailing edge, flap side edge, and , is crucial for reducing overall aircraft noise impact on communities near airports.
Various factors affect airframe noise, including geometry, size, and flight conditions. Prediction methods range from to computational simulations. Noise reduction techniques involve modifying high-lift devices, redesigning landing gear, and using porous or serrated edges. Ongoing research explores novel materials, biomimetic designs, and integrated approaches for noise reduction and aerodynamic efficiency.
Sources of airframe noise
- Airframe noise refers to the noise generated by the non-propulsive components of an aircraft, such as the wings, fuselage, and landing gear
- It becomes a dominant source of aircraft noise during approach and landing phases, when engines are typically operating at reduced power settings
- Understanding and mitigating airframe noise is crucial for reducing the overall noise impact of aircraft on communities near airports
Leading edge noise
Top images from around the web for Leading edge noise
aircraft design - What are the different wing planforms? What are each's advantages? Where are ... View original
Is this image relevant?

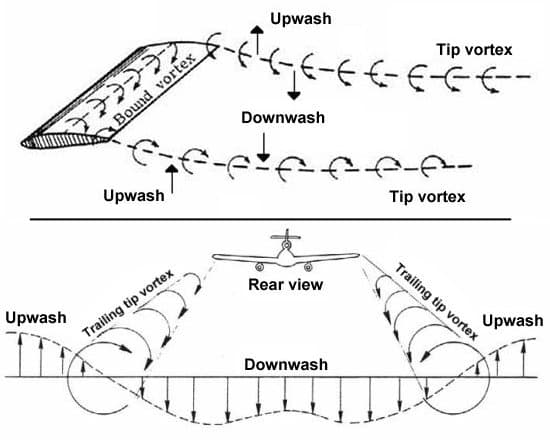

aerodynamics - Why does the vortex created by wing affects its own angle of attack? - Aviation ... View original
Is this image relevant?
aircraft design - What are the different wing planforms? What are each's advantages? Where are ... View original
Is this image relevant?
aerodynamics - Why does the vortex created by wing affects its own angle of attack? - Aviation ... View original
Is this image relevant?
1 of 2
Top images from around the web for Leading edge noise
aircraft design - What are the different wing planforms? What are each's advantages? Where are ... View original
Is this image relevant?
aerodynamics - Why does the vortex created by wing affects its own angle of attack? - Aviation ... View original
Is this image relevant?
aircraft design - What are the different wing planforms? What are each's advantages? Where are ... View original
Is this image relevant?
aerodynamics - Why does the vortex created by wing affects its own angle of attack? - Aviation ... View original
Is this image relevant?
1 of 2
- Generated by the interaction of the turbulent flow with the leading edge of wings and other lifting surfaces
- Caused by the formation and shedding of vortices at the leading edge ()
- Influenced by factors such as the leading edge geometry, angle of attack, and Reynolds number
- Example: Slats deployed during landing can significantly contribute to leading edge noise
- Example: Bird wings have serrated leading edges (tubercles) that help reduce leading edge noise
Trailing edge noise
- Produced by the interaction of the with the trailing edge of wings and other lifting surfaces
- Caused by the scattering of turbulent fluctuations at the trailing edge, resulting in acoustic radiation
- Depends on factors such as the boundary layer characteristics, trailing edge geometry, and flow velocity
- Example: Flaps and ailerons can generate significant trailing edge noise during deployment
- Example: Owl wings have serrated and fringed trailing edges that help mitigate trailing edge noise
Flap side edge noise
- Generated by the flow separation and at the side edges of deployed flaps
- Caused by the pressure difference between the upper and lower surfaces of the flap, leading to the formation of strong streamwise vortices
- Influenced by factors such as flap deflection angle, gap size, and flow velocity
- Example: Large commercial aircraft with multi-element flaps can produce significant flap side edge noise during approach
- Example: Chevrons and serrations on flap side edges can help reduce noise generation
Landing gear noise
- Generated by the complex flow interactions around the landing gear components, such as wheels, struts, and braces
- Caused by flow separation, vortex shedding, and turbulent wake interactions
- Depends on factors such as landing gear geometry, deployment configuration, and aircraft speed
- Example: Main landing gear on large aircraft can be a major source of airframe noise during approach
- Example: Perforated fairings and streamlined designs can help reduce landing gear noise
Noise generation mechanisms
- Airframe noise is generated through various fluid dynamic mechanisms that convert turbulent energy into acoustic energy
- Understanding these mechanisms is essential for developing effective noise reduction strategies and predictive models
- The main noise generation mechanisms include , vortex shedding, and
Turbulent boundary layer interaction
- Occurs when the turbulent boundary layer on an airframe surface interacts with a sharp edge or discontinuity
- Results in the scattering of turbulent fluctuations into acoustic waves, generating broadband noise
- Influenced by factors such as boundary layer thickness, surface roughness, and edge geometry
- Example: Trailing edge noise is primarily caused by turbulent boundary layer interaction
- Example: Serrated or porous trailing edges can help reduce noise by modifying the boundary layer characteristics
Vortex shedding
- Occurs when the flow separates from a bluff body or a sharp edge, forming periodic vortices in the wake
- Results in the generation of tonal noise at frequencies related to the vortex shedding frequency
- Influenced by factors such as body geometry, flow velocity, and Reynolds number
- Example: Landing gear struts and wheels can generate vortex shedding noise
- Example: Fairings and flow control devices can help suppress vortex shedding and reduce tonal noise
Bluff body flow separation
- Occurs when the flow separates from a bluff body, such as a landing gear component, creating a turbulent wake
- Results in the generation of broadband noise due to the interaction of the turbulent wake with the surrounding flow
- Influenced by factors such as body shape, flow velocity, and turbulence intensity
- Example: Main landing gear on aircraft can generate significant bluff body flow separation noise
- Example: Streamlined designs and fairings can help reduce flow separation and associated noise
Factors affecting airframe noise
- Airframe noise generation is influenced by various factors related to the aircraft design, operating conditions, and environmental parameters
- Understanding these factors is crucial for optimizing aircraft designs for reduced noise impact and developing accurate noise prediction models
- The main factors affecting airframe noise include airframe geometry and configuration, aircraft size and weight, and flight conditions and speed
Airframe geometry and configuration
- The shape and arrangement of airframe components, such as wings, flaps, and landing gear, significantly influence noise generation
- Factors such as wing sweep, aspect ratio, and high-lift device design can affect the intensity and directivity of airframe noise
- The relative positions and interactions between different components can also contribute to noise generation
- Example: High-lift devices, such as slats and flaps, can increase airframe noise when deployed
- Example: Optimizing the shape and placement of landing gear components can help reduce noise generation
Aircraft size and weight
- Larger and heavier aircraft generally produce more airframe noise due to increased surface areas and higher flow velocities
- The scaling of noise generation with aircraft size is not linear and depends on the specific noise source and mechanism
- Factors such as wing loading, thrust-to-weight ratio, and landing gear size can influence airframe noise levels
- Example: Large commercial aircraft, such as the Airbus A380 or Boeing 747, generate more airframe noise than smaller regional jets
- Example: Lightweight materials and optimized structures can help reduce aircraft weight and associated noise levels
Flight conditions and speed
- Airframe noise generation is highly dependent on the flight conditions, particularly the aircraft speed and angle of attack
- Higher speeds result in increased flow velocities and turbulence intensities, leading to higher noise levels
- The angle of attack affects the flow separation and vortex shedding characteristics, influencing noise generation mechanisms
- Example: Airframe noise is most significant during approach and landing phases, when the aircraft is flying at lower speeds and higher angles of attack
- Example: , such as delayed flap deployment or steeper approach angles, can help reduce airframe noise impact
Airframe noise prediction methods
- Accurate prediction of airframe noise is essential for aircraft design optimization, noise impact assessment, and regulatory compliance
- Various methods, ranging from empirical models to high-fidelity simulations, are used to predict airframe noise levels and characteristics
- The main airframe noise prediction methods include empirical and semi-empirical models, (CAA), and and measurements
Empirical and semi-empirical models
- Based on experimental data and simplified physical relationships to estimate airframe noise levels
- Use scaling laws and non-dimensional parameters to account for the effects of aircraft size, speed, and configuration
- Provide quick and computationally inexpensive noise estimates, but may have limited accuracy and applicability
- Example: The Fink model is a widely used empirical method for predicting airframe noise of conventional aircraft configurations
- Example: The Guo model is a semi-empirical approach that incorporates more detailed geometry and flow information for improved accuracy
Computational aeroacoustics (CAA)
- Involves high-fidelity numerical simulations of the unsteady flow field and acoustic propagation around airframe components
- Solves the governing fluid dynamics and acoustics equations, such as the Navier-Stokes equations and the Ffowcs Williams-Hawkings equation
- Provides detailed insights into noise generation mechanisms and allows for the evaluation of novel noise reduction concepts
- Example: Large Eddy Simulation (LES) is a CAA approach that resolves large-scale turbulent structures and models small-scale motions
- Example: Hybrid RANS-LES methods, such as Detached Eddy Simulation (DES), combine the advantages of RANS and LES for efficient airframe noise predictions
Wind tunnel testing and measurements
- Involves experimental measurements of airframe noise using scaled models in acoustic wind tunnels
- Provides validation data for empirical and computational models and allows for the investigation of noise reduction techniques
- Requires careful scaling and corrections to account for model size, flow conditions, and facility effects
- Example: The NASA Ames 40x80 foot wind tunnel has been used extensively for airframe noise testing of aircraft models
- Example: Phased microphone arrays and beamforming techniques are used to localize and quantify noise sources on airframe components
Airframe noise reduction techniques
- Reducing airframe noise is a key objective in the design and operation of modern aircraft to minimize their environmental impact
- Various passive and active techniques have been developed to mitigate noise generation from different airframe components
- The main airframe noise reduction techniques include , , , and
High-lift device modifications
- Involves optimizing the shape, position, and deployment settings of high-lift devices, such as slats and flaps, to minimize noise generation
- Techniques include slat cove fillers, slat gap optimization, and flap edge treatments (serrations, brushes)
- Aims to reduce the intensity of flow separation, vortex shedding, and turbulence interaction at the device edges
- Example: The Airbus A320neo incorporates a noise-reducing droop-nose device on the inboard slat to mitigate slat noise
- Example: The Boeing 787 Dreamliner features a variable camber continuous trailing edge flap system for improved noise performance
Landing gear fairings and redesign
- Involves the application of fairings, covers, and streamlined shapes to landing gear components to reduce flow separation and noise generation
- Techniques include wheel hub caps, leg-door fairings, and articulated oleo fairings
- Aims to minimize the bluff body flow separation and vortex shedding around landing gear structures
- Example: The Airbus A380 incorporates perforated fairings on the main landing gear to reduce noise
- Example: The Boeing 777X features a redesigned main landing gear with noise-reducing features, such as smaller wheel spacing and optimized fairing shapes
Porous and serrated trailing edges
- Involves the application of porous materials or serrated geometries to the trailing edges of wings and high-lift devices
- Porous materials, such as perforated plates or metal foams, allow for the dissipation of turbulent energy and the reduction of trailing edge noise
- Serrated trailing edges, inspired by owl wings, help to break up large-scale turbulent structures and reduce noise scattering
- Example: The Airbus A320neo features a noise-reducing serrated trailing edge on the outboard flap
- Example: Research studies have demonstrated the effectiveness of porous materials, such as brushes or 3D-printed structures, in reducing trailing edge noise
Active flow control methods
- Involves the use of active devices or techniques to manipulate the flow field around airframe components and suppress noise generation
- Techniques include air blowing, suction, plasma actuators, and morphing surfaces
- Aims to prevent or delay flow separation, reduce turbulence intensity, and modify the noise generation mechanisms
- Example: The AWIATOR project investigated the use of air blowing through trailing edge slots to reduce
- Example: Plasma actuators have been studied for their potential to suppress flow separation and vortex shedding on landing gear components
Certification and regulations
- Airframe noise is subject to stringent certification requirements and regulations to ensure that aircraft meet acceptable noise levels
- International and national aviation authorities have established noise standards and procedures to assess and control aircraft noise impact
- The main certification and regulations related to airframe noise include , , and noise abatement procedures
ICAO noise standards
- The International Civil Aviation Organization (ICAO) sets noise standards for aircraft certification, known as the Annex 16 "Environmental Protection, Volume I - Aircraft Noise"
- The standards define noise limits for different aircraft categories based on their maximum takeoff weight and number of engines
- Aircraft must demonstrate compliance with these limits through a combination of ground tests, flight tests, and noise modeling
- Example: ICAO Chapter 14 noise standards, applicable to new aircraft designs certified after 2017, are more stringent than the previous Chapter 4 standards
- Example: The ICAO Balanced Approach to Aircraft Noise Management provides a framework for reducing noise impact through a combination of measures, including reduction at source, land-use planning, noise abatement procedures, and operating restrictions
FAA Stage 3 and Stage 4 requirements
- The Federal Aviation Administration (FAA) in the United States has established noise certification requirements for aircraft operating in the country
- Stage 3 and Stage 4 requirements, defined in , set noise limits for aircraft based on their size and type
- Stage 4 requirements, introduced in 2006, are more stringent than Stage 3 and apply to new aircraft designs
- Example: The FAA requires all civil subsonic jet airplanes and transport category large airplanes to meet Stage 3 or Stage 4 noise levels to operate in the United States
- Example: The FAA's Continuous Lower Energy, Emissions, and Noise (CLEEN) program supports the development and demonstration of technologies for reducing aircraft noise, including airframe noise reduction techniques
Noise abatement procedures
- Noise abatement procedures are operational techniques used by airports and airlines to minimize the noise impact on surrounding communities
- These procedures include optimized flight paths, preferential runway usage, delayed flap deployment, and reduced thrust takeoffs
- The selection and implementation of noise abatement procedures depend on factors such as airport layout, aircraft performance, and local regulations
- Example: The Continuous Descent Approach (CDA) is a noise abatement procedure that involves maintaining a constant descent angle during approach, reducing the need for thrust adjustments and airframe noise generation
- Example: The Lufthansa "Low Noise Approach" procedure, used at Frankfurt Airport, combines a steeper approach angle with delayed flap and landing gear deployment to reduce airframe noise during landing
Advancements in airframe noise research
- Ongoing research efforts aim to develop new technologies, design concepts, and materials for further reducing airframe noise
- These advancements focus on innovative approaches to noise reduction, inspired by natural systems and enabled by advanced manufacturing techniques
- The main advancements in airframe noise research include novel materials and structures, biomimetic designs for noise reduction, and the integration of noise reduction and aerodynamic efficiency
Novel materials and structures
- Involves the development and application of advanced materials and structures with noise-reducing properties
- Examples include porous materials, such as metal foams or 3D-printed structures, that allow for the dissipation of turbulent energy and the reduction of noise scattering
- Composite materials with tailored properties, such as anisotropic stiffness or damping, can be used to suppress vibrations and noise transmission
- Example: NASA's Convergent Aeronautics Solutions (CAS) project investigated the use of porous materials, such as metal foams, for reducing landing gear noise
- Example: The EU-funded OPENAIR project explored the use of novel materials, such as shape memory alloys and piezoelectric composites, for on airframe components
Biomimetic designs for noise reduction
- Involves the study and application of design principles inspired by natural systems that exhibit low-noise characteristics
- Examples include the serrated leading edges of owl wings, which help to reduce leading edge noise, and the silent flight of moths, which is enabled by their furry wing surfaces
- Biomimetic designs can be applied to airframe components, such as high-lift devices, landing gear, and wing trailing edges, to mitigate noise generation mechanisms
- Example: The EU-funded SANAD project investigated the use of biomimetic designs, such as serrated leading edges and porous trailing edges, for reducing airframe noise on a regional aircraft
- Example: NASA's QUIET project explored the use of owl-inspired leading edge serrations and moth-inspired furry coatings for reducing airframe noise
Integration of noise reduction and aerodynamic efficiency
- Involves the development of design approaches that simultaneously optimize for noise reduction and aerodynamic performance
- Traditional noise reduction techniques, such as high-lift device modifications or landing gear fairings, can sometimes incur aerodynamic penalties, such as increased drag or reduced lift
- Advanced design methods, such as multidisciplinary optimization and high-fidelity simulations, can be used to find optimal trade-offs between noise reduction and aerodynamic efficiency
- Example: The NASA Environmentally Responsible Aviation (ERA) project investigated the use of multidisciplinary optimization to design a low-noise, high-performance slat for a next-generation aircraft
- Example: The EU-funded ARTEM project developed a multi-objective optimization framework for designing low-noise and aerodynamically efficient high-lift devices and landing gear components
Key Terms to Review (31)
Acoustic modeling: Acoustic modeling refers to the mathematical and computational techniques used to predict and analyze sound propagation in various environments. This involves simulating how sound waves interact with objects, surfaces, and atmospheric conditions, which is crucial for understanding airframe noise generation and propagation around aircraft.
Active flow control methods: Active flow control methods refer to techniques used to manipulate the flow of fluid around an object, enhancing aerodynamic performance and reducing adverse effects such as drag and noise. By using various devices or systems to actively adjust the flow characteristics, these methods can help delay boundary layer separation and mitigate airframe noise, leading to improved efficiency and quieter operation in aircraft design.
Active Noise Control: Active noise control (ANC) is a technology that uses sound waves to cancel out unwanted noise, creating a quieter environment. It operates on the principle of destructive interference, where sound waves are generated to match and counteract the noise from various sources, including engines and airframes, effectively reducing overall noise levels experienced in different situations.
Aerodynamic interference: Aerodynamic interference refers to the interaction effects between different components of an aircraft, which can alter the overall aerodynamic performance. These interactions can lead to unexpected changes in lift, drag, and stability due to the proximity of components like wings, fuselage, and control surfaces. Understanding aerodynamic interference is crucial for minimizing adverse effects that can contribute to increased airframe noise and reduced efficiency.
Bluff body flow separation: Bluff body flow separation occurs when the flow of fluid around a solid object, typically with a large cross-section, detaches from the surface of that object due to adverse pressure gradients. This phenomenon is significant as it contributes to increased drag and can lead to the generation of noise, particularly in airframe design where it affects the aerodynamic performance and sound levels generated during flight.
C. f. van gasteren: C. F. van Gasteren is known for his significant contributions to understanding airframe noise, particularly the mechanisms and factors influencing the noise produced by aircraft structures during flight. His work delves into the interactions between airflow and the airframe components, which are critical in developing quieter aircraft designs and improving overall environmental impact.
Community annoyance: Community annoyance refers to the negative feelings and disturbances experienced by individuals or groups within a community due to environmental factors, particularly noise pollution from aircraft operations. This term highlights how airframe noise, stemming from various components of an aircraft during flight, can lead to decreased quality of life, disruption of daily activities, and even health issues for residents living near airports or flight paths.
Computational Aeroacoustics: Computational aeroacoustics is a field that employs numerical methods and simulations to study and predict sound generated by turbulent flows around objects, particularly in aeronautics. This approach allows researchers and engineers to analyze complex interactions between fluid dynamics and acoustics, providing insights into noise generation mechanisms, especially concerning airframe noise and various acoustic phenomena. By leveraging advanced computational techniques, this field aims to optimize designs for reduced noise emissions while maintaining performance.
Empirical models: Empirical models are mathematical representations based on observed data rather than derived from first principles. They are particularly useful in understanding complex phenomena where theoretical predictions might be difficult to formulate. In the context of airframe noise, empirical models help quantify and predict noise levels by correlating them with measurable parameters such as aircraft speed, configuration, and environmental conditions.
FAA Stage 3 and Stage 4 Requirements: FAA Stage 3 and Stage 4 requirements refer to the noise regulations set by the Federal Aviation Administration for aircraft operating in the United States, aimed at reducing airframe noise pollution. These stages establish maximum noise levels that aircraft must meet during takeoff, landing, and flyover phases to minimize their impact on surrounding communities. Stage 3 requirements were implemented in the late 1990s, while Stage 4 requirements, which are even stricter, were introduced in 2006 to further lower noise emissions and improve environmental sustainability.
FAR Part 36: FAR Part 36 refers to the Federal Aviation Regulations that govern noise standards for aircraft, aiming to minimize noise pollution and its impact on communities near airports. These regulations establish maximum allowable noise levels for different categories of aircraft and outline requirements for noise measurement and certification. By setting these standards, FAR Part 36 plays a critical role in addressing airframe noise issues and implementing effective noise reduction techniques.
High-lift device modifications: High-lift device modifications refer to the alterations made to aircraft wing configurations that enhance lift during critical phases of flight, such as takeoff and landing. These modifications are essential for improving the aerodynamic performance of an aircraft, allowing it to operate effectively at lower speeds and increasing its overall safety and efficiency. By utilizing devices like flaps and slats, these modifications play a crucial role in shaping the airflow over the wings, thus significantly impacting airframe noise levels.
High-lift device noise: High-lift device noise refers to the sound produced by aerodynamic devices, such as flaps and slats, which are deployed to increase an aircraft's lift during takeoff and landing. These devices change the airflow over the wings, creating turbulence that can lead to increased noise levels, especially in urban areas near airports. Understanding high-lift device noise is crucial for designing quieter aircraft and minimizing the impact of aviation noise on surrounding communities.
Hugh A. Smith: Hugh A. Smith was a prominent figure in the field of aerodynamics, particularly known for his contributions to the understanding of airframe noise. His research has significantly influenced the design and engineering of aircraft to reduce noise pollution, focusing on the impact of airflow and structural design on sound generation during flight.
ICAO Annex 16: ICAO Annex 16 refers to the international standards and recommended practices set by the International Civil Aviation Organization for the purpose of controlling aircraft noise and emissions. It plays a crucial role in mitigating environmental impacts caused by aviation, particularly focusing on noise levels produced by airframes and engines during various phases of flight.
ICAO Noise Standards: ICAO noise standards are regulations established by the International Civil Aviation Organization (ICAO) aimed at minimizing aircraft noise pollution during takeoff, landing, and in-flight operations. These standards set permissible noise levels that aircraft must adhere to, ensuring that new aircraft designs are progressively quieter and that existing aircraft can be modified to reduce their noise impact on communities surrounding airports.
Landing Gear Fairings and Redesign: Landing gear fairings are aerodynamic structures that cover and streamline the landing gear of an aircraft, reducing drag and noise during flight. The redesign of these fairings often aims to enhance their shape and materials to further minimize airframe noise, improve fuel efficiency, and optimize the overall aerodynamic performance of the aircraft.
Landing gear noise: Landing gear noise refers to the sound generated by the landing gear system of an aircraft during various phases of flight, particularly during takeoff and landing. This noise results from aerodynamic interactions between the gear and the airflow, as well as mechanical vibrations and impacts associated with the deployment and retraction of the gear. Understanding landing gear noise is crucial for addressing noise pollution and improving overall aircraft design.
Leading edge vortices: Leading edge vortices are swirling flows that occur at the front edge of a lifting surface, such as an aircraft wing, during flight. These vortices play a significant role in enhancing lift, particularly at high angles of attack, but they can also contribute to increased airframe noise and turbulence as they interact with the surrounding airflow.
Lift-to-Drag Ratio: The lift-to-drag ratio is a measure of the efficiency of an airfoil or aircraft, defined as the ratio of lift produced to the drag experienced. A higher ratio indicates that an aircraft can generate more lift for each unit of drag, which is crucial for optimizing performance in flight.
Microphone array: A microphone array is a set of multiple microphones arranged in a specific spatial configuration to capture sound from various directions and distances. This arrangement allows for advanced sound processing techniques, enhancing the ability to identify and analyze specific sound sources while reducing unwanted noise. The use of microphone arrays is crucial in the analysis of airframe noise and acoustic measurement, enabling engineers to gather precise acoustic data for their studies.
Noise abatement procedures: Noise abatement procedures are strategies implemented to reduce the impact of noise generated by aircraft during their operation, especially during takeoff, landing, and taxiing phases. These procedures aim to minimize the disturbance to communities near airports while ensuring that aircraft operate safely and efficiently. By focusing on both jet noise and airframe noise, these measures help in maintaining regulatory compliance and improving overall public perception of aviation activities.
Passive Damping: Passive damping refers to a method of reducing vibrations and noise in structures through the use of materials and designs that dissipate energy without external control or input. This technique is particularly important in the context of managing noise emissions from various sources, as it helps to minimize disturbances caused by vibrations in airframes during flight and while on the ground. By employing passive damping techniques, engineers can enhance comfort, safety, and performance in aircraft design.
Porous and serrated trailing edges: Porous and serrated trailing edges refer to specialized designs used in aircraft wings and control surfaces to reduce aerodynamic noise. These features help to dissipate turbulent air flow and minimize the sound generated by the interaction of air with the structure of the wing, particularly during takeoff and landing.
Shape optimization: Shape optimization refers to the process of designing and refining the geometry of a structure or object to achieve optimal performance characteristics, such as reduced drag, improved lift, or minimized noise. This involves using mathematical models and algorithms to adjust the shape of an object in order to meet specific performance criteria, often linked to aerodynamic efficiency, structural integrity, and acoustic properties.
Sound intensity measurement: Sound intensity measurement refers to the quantification of the sound power per unit area, typically expressed in watts per square meter (W/m²). This concept is crucial for understanding the impact of noise generated by airframes, as it helps assess how loud a particular noise source is and its potential effects on the environment and human health.
Streamlined flow: Streamlined flow refers to the smooth and orderly movement of fluid around an object, which minimizes turbulence and drag. In aerodynamics, achieving streamlined flow is crucial for enhancing the performance of vehicles, including aircraft, by reducing resistance and improving fuel efficiency. This type of flow is characterized by parallel streamlines that are closely spaced, indicating a stable and efficient flow pattern.
Turbulent boundary layer: A turbulent boundary layer is a layer of fluid in which the flow is chaotic and characterized by small-scale fluctuations in velocity and pressure. This type of flow occurs when the inertial forces are greater than the viscous forces, leading to a mixing of the fluid particles and enhanced momentum transfer. Understanding this layer is crucial for analyzing drag forces on surfaces, predicting flow separation, and studying noise generation from airframes.
Turbulent boundary layer interaction: Turbulent boundary layer interaction refers to the complex behavior of turbulent flow as it interacts with solid surfaces, significantly affecting aerodynamic performance and noise generation. The characteristics of turbulent flow, such as increased mixing and energy dissipation, lead to variations in pressure and flow separation over surfaces, which can contribute to the formation of noise in airframe structures. Understanding this interaction is crucial for optimizing designs to reduce drag and minimize noise emissions.
Vortex Shedding: Vortex shedding is the phenomenon where a fluid flow past an object generates alternating vortices that are shed from the object's surface, resulting in fluctuating forces on the object. This process is important in various contexts, as it influences airflow behavior, stability, and noise generation in structures like airframes. Understanding vortex shedding helps in predicting how objects interact with surrounding fluids and plays a key role in unsteady flow phenomena.
Wind tunnel testing: Wind tunnel testing is a controlled experimental method used to study the aerodynamic properties of models by simulating airflow over them in a tunnel environment. This technique helps researchers and engineers analyze forces such as lift and drag, understand flow behavior, and optimize designs for various applications in aerodynamics.
