5.1 Lift and drag forces

Lift and drag forces are the two most important aerodynamic forces acting on an aircraft. Lift keeps the plane airborne by opposing gravity, while drag resists its forward motion. Every aspect of aircraft design involves balancing these two forces, and the lift-to-drag ratio is the single most important measure of how efficiently an aircraft converts its motion through the air into useful flight.

This section covers how lift and drag are generated, what factors affect each one, and how designers and pilots work to maximize lift while minimizing drag.

Components of aerodynamic forces

Aerodynamic forces arise from the interaction between an aircraft and the air it moves through. Pressure differences and friction across the aircraft's surfaces combine to produce three main force components: lift, drag, and moments. Every design decision on an aircraft traces back to managing these three.

Lift force

Lift is the force that acts perpendicular to the oncoming airflow, and for level flight, it opposes gravity. It's generated primarily by the wings.

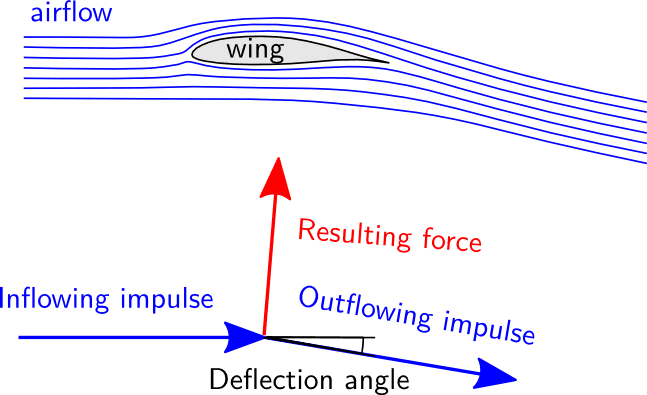

When air flows over a wing, the wing deflects it downward. By Newton's third law, this downward deflection of air produces an equal and opposite upward force on the wing. You can also think of it in terms of pressure: the wing's shape and angle create lower pressure on the upper surface and higher pressure on the lower surface, and that pressure difference pushes the wing upward.

The magnitude of lift depends on:

• Angle of attack (the angle between the wing's chord line and the oncoming air)
• Airspeed (faster air means more lift)
• Air density (denser air means more lift)
• Wing area and shape

Drag force

Drag is the force that acts parallel to the oncoming airflow, opposing the aircraft's motion. The engines must continuously produce thrust to overcome drag.

Drag comes from two broad sources: pressure differences between the front and rear of the aircraft, and friction between the air and the aircraft's surfaces. The total drag depends on the aircraft's shape, size, speed, surface roughness, and the properties of the surrounding air.

Moment force

The pitching moment is a rotational tendency about the aircraft's center of gravity. It arises because lift and drag don't always act through a single, convenient point.

If the net aerodynamic force acts ahead of the center of gravity, the aircraft tends to pitch nose-up. If it acts behind, the nose pitches down. Pilots use the elevator (on the horizontal tail) to counteract these moments and maintain the desired pitch attitude. The magnitude and direction of the moment depend on where the wings, tail, and other surfaces are positioned relative to the center of gravity.

Factors affecting lift force

Several variables control how much lift a wing produces. Designers choose wing geometry to optimize lift for a given mission, while pilots manage angle of attack and airspeed in flight.

Angle of attack

The angle of attack (often abbreviated AOA or $\alpha$) is the angle between the wing's chord line and the direction of the oncoming airflow.

Increasing the angle of attack deflects more air downward, which increases lift. But this only works up to a point. Beyond the critical angle of attack (typically around 15–20° for most airfoils), the airflow can no longer follow the wing's upper surface. It separates, lift drops sharply, and the wing stalls. This is why pilots must carefully manage angle of attack, especially during takeoff and landing when speeds are low and angles are high.

Airfoil shape

The airfoil is the cross-sectional shape of the wing. Its geometry determines how air accelerates and decelerates over the surfaces, which controls the pressure distribution and therefore the lift.

• Symmetrical airfoils have identical upper and lower surfaces. They produce zero lift at zero angle of attack and are commonly used for aerobatic aircraft and tail surfaces.
• Cambered airfoils have a curved mean line, with the upper surface more curved than the lower. These produce lift even at zero angle of attack, making them the standard choice for most aircraft wings.

The amount of camber, the thickness of the airfoil, and the shape of the leading edge all influence how much lift the airfoil generates and how it behaves near stall.

Wing planform

Wing planform is the shape of the wing as seen from above. Different planforms suit different missions:

• Rectangular wings are simple to build and have predictable stall behavior. Common on small general aviation aircraft.
• Tapered wings reduce weight and drag by narrowing toward the tip. They approximate the ideal elliptical lift distribution more closely than rectangular wings.
• Swept wings delay the onset of compressibility effects at high subsonic speeds. Used on most jet airliners and fighters.
• Delta wings provide a large wing area in a structurally strong package and perform well at supersonic speeds.

The planform affects how lift is distributed along the span, which in turn influences induced drag, stall behavior, and maneuverability.

Aspect ratio

Aspect ratio (AR) is the ratio of the wing's span to its average chord: $AR = \frac{b^2}{S}$, where $b$ is wingspan and $S$ is wing area.

High aspect ratio wings (long and narrow) are more aerodynamically efficient because they produce less induced drag for a given amount of lift. Gliders, for example, have aspect ratios of 20 or more. The tradeoff is that high aspect ratio wings experience greater bending loads and are heavier structurally.

Low aspect ratio wings (short and wide) are stronger, lighter, and more maneuverable, which is why fighter jets and high-speed aircraft use them. They do, however, produce more induced drag.

Airspeed vs lift

Lift depends on the square of airspeed. The lift equation captures this relationship:

$L = \frac{1}{2} \rho v^2 S C_L$

Where:

• $L$ = lift force
• $\rho$ = air density
• $v$ = airspeed
• $S$ = wing reference area
• $C_L$ = lift coefficient (depends on angle of attack and airfoil shape)

Because lift scales with $v^2$, doubling your airspeed quadruples the lift (all else being equal). This is why a heavily loaded aircraft needs a higher takeoff speed, and why slowing down too much can lead to a stall if the wing can't generate enough lift at the reduced speed.

Factors affecting drag force

Total drag on an aircraft is the sum of several distinct types. Each has different causes and different design solutions.

Form drag

Form drag (also called pressure drag) results from the pressure difference between the front and rear of an object. Air pushing against the front creates high pressure, while the wake behind the object has low pressure. That pressure imbalance creates a net rearward force.

Streamlined shapes minimize form drag by allowing air to close smoothly behind the object, reducing the size of the low-pressure wake. A teardrop shape, for instance, has far less form drag than a flat plate of the same frontal area.

Skin friction drag

Skin friction drag comes from the viscous interaction between the air and the aircraft's surface. As air flows over the skin, the layer of air right at the surface sticks to it (the no-slip condition), and the layers above it are slowed by viscosity. This creates the boundary layer, and the shear stress within it produces drag.

Skin friction drag increases with surface area and surface roughness. Even small imperfections like rivets, paint seams, or insect residue can measurably increase skin friction on a real aircraft.

Induced drag

Induced drag is a direct consequence of generating lift. Because the wing has finite span, high-pressure air from below the wing spills around the wingtips to the low-pressure region above. This creates wingtip vortices, which tilt the local airflow downward behind the wing (called downwash). The downwash tilts the lift vector rearward, and the rearward component of that tilted lift is induced drag.

Induced drag is highest at low speeds and high angles of attack (when the wing is working hardest to produce lift) and decreases as speed increases. High aspect ratio wings and winglets both reduce induced drag by limiting the strength of wingtip vortices.

Wave drag

Wave drag appears when an aircraft flies at transonic or supersonic speeds (near or above Mach 1). As local airflow over parts of the aircraft reaches supersonic speed, shock waves form on the surface. These shock waves cause abrupt pressure changes that dramatically increase drag.

Wave drag is negligible at low subsonic speeds but rises sharply near the critical Mach number. Designers use swept wings, thin airfoil sections, and area ruling (smoothly varying the aircraft's cross-sectional area) to delay and reduce wave drag.

Interference drag

Interference drag arises where different parts of the aircraft meet, such as the wing-fuselage junction or the engine nacelle-wing junction. The airflow patterns from each component interact and can create additional turbulence and pressure losses beyond what each component would produce alone.

Designers minimize interference drag with fairings (smooth coverings at junctions) and by carefully shaping the intersections between components. Poor integration of external stores, antennas, or engine nacelles can significantly increase interference drag.

Lift to drag ratio

The lift-to-drag ratio ($L/D$) tells you how many units of lift the aircraft produces for each unit of drag. It's the single best measure of aerodynamic efficiency.

Importance of lift to drag ratio

An aircraft's $L/D$ ratio directly determines its range, endurance, and fuel efficiency. A higher $L/D$ means the aircraft can fly farther on the same amount of fuel, or stay airborne longer, or carry more payload.

For context: a modern sailplane might achieve an $L/D$ of 40–60, meaning it produces 40–60 pounds of lift for every pound of drag. A commercial airliner like the Boeing 787 achieves roughly 20. A fighter jet in combat configuration might only reach 4–8, because its design prioritizes speed and maneuverability over efficiency.

Factors influencing lift to drag ratio

The $L/D$ ratio depends on the balance between all the lift-producing and drag-producing characteristics of the aircraft:

• Wing design is the biggest factor. High aspect ratio, optimized airfoil shapes, and efficient planforms all improve $L/D$.
• Airspeed matters because the ratio of induced drag to parasitic drag shifts with speed. At low speeds, induced drag dominates. At high speeds, parasitic drag (form + skin friction) dominates. The maximum $L/D$ occurs at the speed where these two are equal.
• Angle of attack affects $L/D$ because both $C_L$ and $C_D$ change with angle of attack. The best $L/D$ typically occurs at a moderate angle of attack, well below the stall angle.

Maximizing lift to drag ratio

Designers and pilots both play a role in maximizing $L/D$:

• Design strategies: Optimize wing geometry (high aspect ratio, efficient planform), use low-drag airfoil profiles, add winglets to reduce induced drag, minimize interference drag with clean junctions, and maintain smooth surfaces.
• Operational strategies: Fly at the speed corresponding to maximum $L/D$ for the current weight and configuration. For long-range cruise, this is the target speed. Pilots also manage weight (fuel burn reduces weight over time, changing the optimal speed) and configuration (retracting flaps and gear when not needed).
• Advanced techniques: Laminar flow control (using suction or careful surface shaping to keep the boundary layer laminar over a larger portion of the wing) and boundary layer ingestion are active areas of research for further improving $L/D$.

Boundary layer effects

The boundary layer is the thin region of air immediately adjacent to the aircraft's surface where the flow velocity transitions from zero (at the surface) to the freestream velocity. Despite being thin (often just millimeters), the boundary layer has an outsized effect on both lift and drag.

Laminar vs turbulent flow

The boundary layer can be either laminar or turbulent:

• Laminar flow: Air moves in smooth, orderly layers. Produces significantly less skin friction drag. However, laminar boundary layers are fragile and prone to separating from the surface when they encounter adverse pressure gradients (rising pressure in the flow direction).
• Turbulent flow: Air moves in chaotic, mixing eddies. Produces more skin friction drag than laminar flow, but the mixing brings high-energy air from the outer flow down to the surface. This makes turbulent boundary layers much more resistant to separation.

On a typical wing, the boundary layer starts laminar near the leading edge and transitions to turbulent at some point along the chord. The location of this transition point is a major factor in the wing's total drag.

Boundary layer separation

Separation occurs when the boundary layer detaches from the surface. This happens when the air near the surface runs out of kinetic energy (due to adverse pressure gradients) and can no longer move forward against the rising pressure.

Once the flow separates, a large wake of recirculating, low-pressure air forms behind the separation point. This causes a dramatic increase in form drag and a loss of lift. Wing stall is the most critical example of boundary layer separation.

Effects on lift and drag

The boundary layer state creates a fundamental tradeoff:

• Laminar boundary layers give you low skin friction drag but are vulnerable to separation, which can cause sudden lift loss.
• Turbulent boundary layers cost you more in skin friction but resist separation, keeping the flow attached over a wider range of conditions.

This is why vortex generators (small fins on the wing surface) are used on many aircraft. They deliberately trip the boundary layer to turbulent before a region where separation would otherwise occur, trading a small increase in skin friction for a large reduction in form drag and improved lift. The dimples on a golf ball work on the same principle: they promote turbulent flow, which keeps the boundary layer attached longer and reduces the ball's wake drag.

Stall conditions

A stall occurs when the wing exceeds its critical angle of attack and can no longer produce enough lift to sustain flight. Stalls are one of the most important safety considerations in aviation.

Critical angle of attack

The critical angle of attack is the specific angle at which the wing stalls. For most conventional airfoils, this is around 15–20°, though the exact value depends on the airfoil shape, Reynolds number, and surface condition.

As angle of attack increases toward the critical value, the adverse pressure gradient on the upper surface becomes steeper. Eventually, the boundary layer can no longer remain attached, and the flow separates over a large portion of the wing. Lift drops abruptly while drag increases sharply.

A stall is determined by angle of attack, not by airspeed. A wing can stall at any speed if the critical angle of attack is exceeded. However, at higher speeds, less angle of attack is needed to produce the required lift, so stalls most commonly occur at low speeds.

Stall speed

Stall speed is the minimum airspeed at which the aircraft can maintain level flight in a given configuration. It's derived from the lift equation by setting $L = W$ (lift equals weight) and $C_L = C_{L_{max}}$:

$V_{stall} = \sqrt{\frac{2W}{\rho S C_{L_{max}}}}$

From this equation, you can see that stall speed increases with aircraft weight and decreases with higher air density, larger wing area, or higher maximum lift coefficient. This is why deploying flaps (which increase $C_{L_{max}}$) lowers the stall speed, which is critical for safe takeoff and landing.

Stall characteristics of airfoils

Not all stalls are the same. Different airfoils stall differently:

• Gentle (progressive) stall: Lift decreases gradually past the critical angle. The aircraft gives plenty of warning (buffeting, nose drop) and is easy to recover from. Trainer aircraft are designed with airfoils that stall this way.
• Abrupt (sharp) stall: Lift drops suddenly with little warning. Recovery is more difficult and requires prompt pilot action. Some high-performance and thin airfoils exhibit this behavior.

The stall character depends on where separation begins on the wing. If separation starts at the trailing edge and moves forward gradually, the stall tends to be gentle. If separation occurs suddenly at the leading edge (common with thin airfoils), the stall is abrupt.

High-lift devices

High-lift devices are movable surfaces on the wing that increase the maximum lift coefficient ($C_{L_{max}}$), allowing the aircraft to fly at lower speeds without stalling. They're essential for takeoff and landing, where you need high lift at low speed.

Leading edge devices

Leading edge devices modify the front of the wing to delay flow separation at high angles of attack:

• Slats are small airfoil sections that extend forward from the leading edge, creating a slot. High-energy air from below the wing flows through the slot and energizes the boundary layer on the upper surface, delaying separation. Slats can increase $C_{L_{max}}$ by 40–50%.
• Krueger flaps are panels that fold out from the lower surface of the leading edge, effectively increasing the wing's camber and chord.
• Leading edge droops pivot the entire leading edge downward, increasing camber.

Most commercial airliners deploy slats during takeoff and landing. You can often see them extended as the aircraft approaches.

Trailing edge flaps

Trailing edge flaps extend from the rear of the wing and increase both camber and (in some designs) wing area:

• Plain flaps hinge downward from the trailing edge. Simple but limited in effectiveness.
• Split flaps deflect only the lower surface downward. They increase lift but also add significant drag.
• Slotted flaps create a gap between the flap and the wing, allowing high-energy air to flow over the flap surface and delay separation.
• Fowler flaps slide rearward and then deflect downward, increasing both camber and wing area. These are the most effective type and are used on most transport aircraft.

Flaps are typically deployed in stages. A small flap setting might be used for takeoff (moderate lift increase with acceptable drag), while a larger setting is used for landing (maximum lift, with the extra drag actually helping to slow down).

Boundary layer control

Beyond mechanical high-lift devices, active boundary layer control techniques can further increase $C_{L_{max}}$:

1. Blowing: High-pressure air is injected tangentially into the boundary layer through slots or jets, adding energy to prevent separation.
2. Suction: Low-energy air near the surface is removed through small holes or slots, allowing the higher-energy outer flow to stay attached.
3. Vortex generators: Small vanes mounted on the wing surface create streamwise vortices that mix high-energy air into the boundary layer.

These techniques are used on various aircraft. Vortex generators are the most common, found on everything from business jets to military transports. Blowing systems have been used on some military aircraft to achieve very high lift coefficients for short-field operations.

Compressibility effects

At low speeds, air behaves as though it's incompressible, and the standard lift and drag relationships work well. As an aircraft approaches the speed of sound, however, the air's compressibility becomes significant, and the aerodynamic forces change dramatically.

Critical Mach number

The critical Mach number ($M_{cr}$) is the freestream Mach number at which the local airflow over some part of the aircraft first reaches Mach 1. Air accelerates as it flows over curved surfaces (especially the upper surface of the wing), so the local flow can be supersonic even when the aircraft itself is flying below Mach 1.

Once the critical Mach number is exceeded, shock waves begin to form on the wing surface. These shock waves cause the boundary layer to thicken or separate, leading to increased drag and potential loss of lift or control. The phenomenon known as Mach tuck (a nose-down pitching tendency) can occur as the aerodynamic center shifts rearward due to the changed pressure distribution.

Designers increase the critical Mach number by using:

• Swept wings (the effective airflow component perpendicular to the leading edge is slower)
• Thin airfoil sections (less acceleration of the local flow)
• Supercritical airfoils (designed to keep the upper-surface flow just below sonic speed over a longer region)

Shock waves

When local flow exceeds Mach 1, shock waves form as thin regions where pressure, density, and temperature change almost instantaneously. Two main types occur on aircraft:

• Normal shocks form perpendicular to the flow direction and cause the largest losses in total pressure. These typically appear on the upper surface of the wing in the transonic regime.
• Oblique shocks form at an angle to the flow and are less severe. These are more common on supersonic aircraft, particularly at the nose and wing leading edges.

Shock waves cause a sudden increase in pressure that can separate the boundary layer, leading to shock-induced separation. They also generate the sonic boom heard on the ground when an aircraft flies supersonically.

Drag divergence

Drag divergence is the rapid, steep increase in drag that occurs as the aircraft's Mach number approaches and exceeds $M_{cr}$. The drag divergence Mach number ($M_{dd}$) is formally defined as the Mach number where the rate of drag increase with Mach number reaches 0.10 (by one common convention).

Between $M_{cr}$ and $M_{dd}$, drag rises moderately. Beyond $M_{dd}$, wave drag increases sharply, and the aircraft needs dramatically more thrust to accelerate further. This is the "transonic drag rise" that historically limited aircraft speeds before swept wings and area ruling were developed.

Design strategies to delay drag divergence include:

• Area ruling (the Whitcomb area rule): Shaping the fuselage so the aircraft's total cross-sectional area varies smoothly along its length, reducing shock strength
• Supercritical airfoils: Flattened upper surfaces that weaken the shock on the wing
• Wing sweep: Reduces the effective Mach number seen by the wing

Reducing drag

Minimizing drag is a central goal in aircraft design because lower drag means less fuel burn, longer range, and better performance. Designers attack each type of drag with specific strategies:

• Induced drag reduction: High aspect ratio wings, winglets and raked wingtips, elliptical or near-elliptical lift distributions
• Form drag reduction: Streamlined shapes, smooth contours, retractable landing gear, clean external surfaces
• Skin friction reduction: Smooth surfaces, flush rivets, laminar flow airfoils, natural or hybrid laminar flow control
• Interference drag reduction: Fairings at component junctions, careful nacelle placement, blended wing-body designs
• Wave drag reduction: Wing sweep, thin airfoils, area ruling, supercritical airfoil sections

In practice, reducing one type of drag can increase another. For example, a very high aspect ratio wing reduces induced drag but increases structural weight (which indirectly increases drag through higher required lift). Successful aircraft design finds the best overall compromise for the intended mission.
