11.5 Noise reduction techniques
9 min read•august 20, 2024
Noise reduction techniques are crucial in aircraft design, addressing various sources of aerodynamic noise. From turbulent boundary layers to jet engines, understanding these sources is key to developing effective strategies. This topic explores passive and active methods, as well as aerodynamic design principles, to minimize aircraft noise.
Operational strategies and emerging technologies further enhance noise reduction efforts. From noise abatement flight procedures to innovative materials like acoustic metamaterials, the aviation industry continues to evolve its approach to noise mitigation. These advancements aim to balance performance with environmental concerns and community impact.
Sources of aerodynamic noise
- Aerodynamic noise is generated by various flow phenomena around an aircraft, contributing to the overall noise signature
- Understanding the main sources of aerodynamic noise is crucial for developing effective noise reduction strategies in aircraft design and operation
Turbulent boundary layer noise
Top images from around the web for Turbulent boundary layer noise
ACP - The impact threshold of the aerosol radiative forcing on the boundary layer structure in ... View original
Is this image relevant?

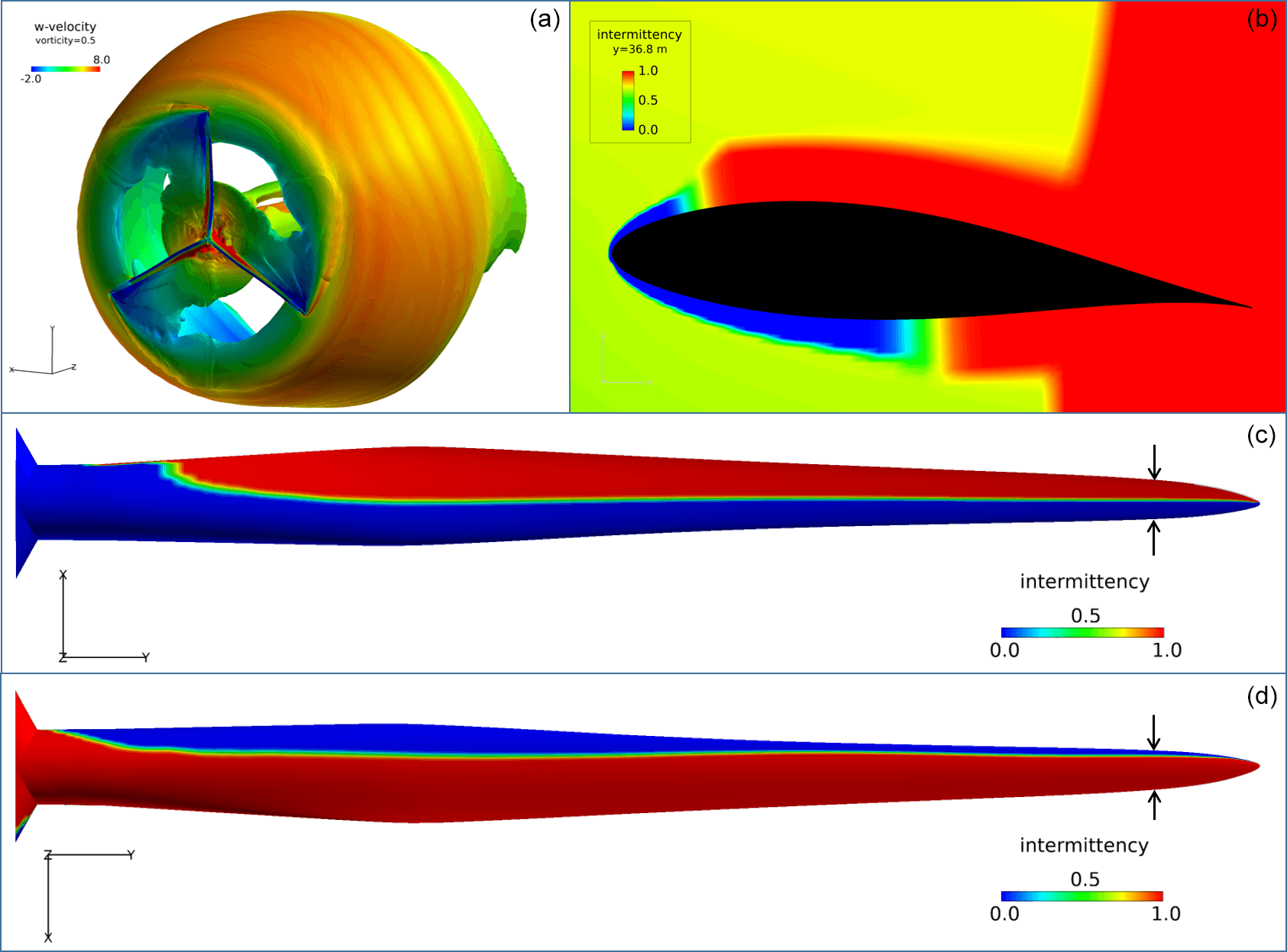

WES - Laminar-turbulent transition characteristics of a 3-D wind turbine rotor blade based on ... View original
Is this image relevant?
Frontiers | Effect of offset distances for rod-airfoil interaction noise View original
Is this image relevant?
ACP - The impact threshold of the aerosol radiative forcing on the boundary layer structure in ... View original
Is this image relevant?
WES - Laminar-turbulent transition characteristics of a 3-D wind turbine rotor blade based on ... View original
Is this image relevant?
1 of 3
Top images from around the web for Turbulent boundary layer noise
ACP - The impact threshold of the aerosol radiative forcing on the boundary layer structure in ... View original
Is this image relevant?
WES - Laminar-turbulent transition characteristics of a 3-D wind turbine rotor blade based on ... View original
Is this image relevant?
Frontiers | Effect of offset distances for rod-airfoil interaction noise View original
Is this image relevant?
ACP - The impact threshold of the aerosol radiative forcing on the boundary layer structure in ... View original
Is this image relevant?
WES - Laminar-turbulent transition characteristics of a 3-D wind turbine rotor blade based on ... View original
Is this image relevant?
1 of 3
- Generated by the interaction of turbulent airflow with the aircraft surface
- Increases with the surface area and flow velocity
- Dominant source of noise at high flight speeds (transonic and supersonic)
- Can be reduced by maintaining laminar flow over the surface (natural laminar flow airfoils, laminar flow control systems)
Trailing edge noise
- Caused by the interaction of turbulent boundary layer with the sharp trailing edge of wings, control surfaces, and high-lift devices
- Influenced by the geometry of the trailing edge (bluntness, serrations, brushes)
- Reduction techniques include trailing edge serrations, porous materials, and active flow control
Vortex shedding noise
- Generated by the periodic shedding of vortices from bluff bodies (landing gear, antennas, protuberances)
- Characterized by a distinct tonal noise at the vortex shedding frequency
- Mitigation strategies involve streamlining the geometry, using fairings, and applying vortex generators
Jet noise
- Dominant noise source for jet engines, particularly at takeoff
- Generated by the turbulent mixing of high-speed exhaust gases with the ambient air
- Influenced by the jet velocity, temperature, and nozzle geometry
- Reduction techniques include chevrons, lobed mixers, and variable geometry nozzles
Propeller and rotor noise
- Generated by the rotation of propellers and helicopter rotors
- Consists of both tonal noise (blade passing frequency and harmonics) and broadband noise (turbulent inflow, blade-vortex interaction)
- Reduced by optimizing blade geometry (sweep, taper, anhedral), using active twist control, and applying
Passive noise reduction techniques
- techniques rely on modifying the aircraft structure or using materials to absorb, dissipate, or redirect noise
- These techniques do not require external energy input and are generally simpler to implement compared to active methods
Sound absorbing materials
- Materials with high acoustic absorption coefficients, such as foams, fibers, and composites
- Used to line the interior of aircraft cabins, engine nacelles, and other noise-sensitive areas
- Absorb sound energy by converting it into heat through viscous and thermal losses
- Effectiveness depends on the material properties (porosity, flow resistivity, tortuosity) and the frequency range of interest
Acoustic liners
- Consist of a perforated face sheet, a honeycomb core, and a rigid backplate
- Tuned to specific frequency ranges by adjusting the cavity depth and perforation size
- Commonly used in engine nacelles and inlet ducts to attenuate fan and compressor noise
- Can be single-degree-of-freedom (SDOF) or multi-degree-of-freedom (MDOF) designs for broader frequency coverage
Porous surfaces
- Surfaces with interconnected pores that allow sound waves to penetrate and dissipate energy
- Examples include metallic foams, sintered metals, and porous ceramics
- Used in exhaust nozzles, trailing edges, and other noise-generating regions
- Effectiveness depends on the porosity, pore size distribution, and material properties
Perforated panels
- Panels with a regular array of small holes or perforations
- Act as a distributed Helmholtz resonator, absorbing sound energy at specific frequencies
- Used in combination with acoustic liners or as standalone noise reduction elements
- Perforations can be straight, inclined, or tapered to improve absorption characteristics
Helmholtz resonators
- Consist of a cavity connected to the exterior through a narrow neck
- Tuned to absorb sound energy at a specific resonance frequency determined by the cavity volume and neck dimensions
- Used in engine nacelles, exhaust systems, and other confined spaces
- Can be arranged in arrays or integrated with acoustic liners for improved performance
Active noise reduction techniques
- Active noise reduction techniques involve the use of external energy input to cancel or modify the noise generated by the aircraft
- These techniques are adaptive and can be tuned to specific noise sources and operating conditions
Active noise control
- Involves generating a secondary sound field that destructively interferes with the primary noise field
- Requires sensors (microphones) to measure the noise, a control system to process the signal, and actuators (loudspeakers) to generate the canceling sound
- Effective for low-frequency noise, such as engine tones and cabin noise
- Challenges include the need for fast signal processing, robust control algorithms, and compact actuator designs
Anti-sound generation
- A specific implementation of active noise control, where the canceling sound is generated by secondary sources
- Requires precise synchronization between the primary noise source and the secondary sources
- Used in engine nacelles, exhaust nozzles, and other confined spaces
- Can be combined with passive noise reduction techniques for improved performance
Adaptive noise cancellation
- An extension of active noise control that adapts to changing noise characteristics
- Uses adaptive filters and algorithms (e.g., least mean squares, recursive least squares) to update the control system parameters in real-time
- Effective for non-stationary noise sources and varying operating conditions
- Requires robust and computationally efficient control algorithms
Active flow control
- Involves modifying the flow field around the aircraft to reduce noise generation
- Examples include active boundary layer control (suction, blowing), active vortex generators, and plasma actuators
- Can be used to delay transition, suppress flow separation, and modify turbulence structures
- Requires a deep understanding of the flow physics and the noise generation mechanisms
Aerodynamic design for noise reduction
- Aerodynamic design plays a crucial role in reducing noise generation at the source
- Involves optimizing the shape and placement of various aircraft components to minimize flow disturbances and noise radiation
Airfoil shape optimization
- Designing airfoil shapes that minimize turbulent boundary layer noise and trailing edge noise
- Involves trade-offs between aerodynamic performance (lift, drag) and noise characteristics
- Techniques include laminar flow airfoils, high-lift devices (slats, flaps) with reduced noise signatures, and trailing edge treatments (serrations, brushes)
- Aided by computational fluid dynamics (CFD) simulations and wind tunnel testing
Winglet design
- Winglets reduce induced drag and tip vortex strength, which can contribute to noise reduction
- Optimal winglet design involves balancing the aerodynamic benefits with the potential increase in wing weight and complexity
- Different winglet configurations (blended, spiroid, split-tip) offer varying levels of noise reduction
- Multidisciplinary optimization techniques are used to find the best winglet design for a given aircraft
High-lift device placement
- Proper placement and design of high-lift devices (slats, flaps) can minimize noise generation during takeoff and landing
- Slat cove fillers and slat gap optimization reduce noise from slat deployment
- Continuous mold-line link (CML) flaps and flap side-edge treatments mitigate flap side-edge noise
- Computational (CAA) simulations help predict and optimize high-lift device noise
Landing gear fairings
- Fairings and covers are used to streamline the landing gear and reduce noise generation
- Perforated fairings allow for ventilation while still providing noise shielding
- Telescopic landing gears and wheel hub caps further reduce noise
- Wind tunnel testing and flight tests are used to validate the effectiveness of landing gear fairings
Engine nacelle shaping
- Optimizing the shape of engine nacelles can reduce fan noise and improve the effectiveness of acoustic liners
- Scarf inlets, extended inlet lips, and curved throat designs help mitigate fan noise radiation
- Chevrons and lobed mixers promote faster mixing of exhaust gases, reducing jet noise
- Integrated nacelle-wing designs (over-the-wing nacelles, buried engines) offer additional noise reduction benefits
Operational strategies for noise reduction
- Operational strategies involve modifying flight procedures and airport operations to minimize the noise impact on surrounding communities
- These strategies are complementary to aircraft design and technology-based noise reduction measures
Noise abatement flight procedures
- Specific flight procedures designed to reduce noise exposure on the ground
- Examples include steeper approach angles, delayed flap deployment, and reduced thrust takeoffs
- Noise abatement departure procedures (NADP) with optimized climb profiles and power settings
- Require collaboration between airlines, airports, and air traffic control for effective implementation
Continuous descent approach
- An approach procedure where the aircraft maintains a constant descent angle, avoiding level flight segments
- Reduces noise by keeping the aircraft higher for longer and minimizing thrust changes
- Enabled by advanced navigation systems (GPS, RNP) and air traffic control coordination
- Provides additional benefits such as fuel savings and reduced emissions
Thrust management
- Techniques for reducing noise by optimizing thrust settings during different flight phases
- Delayed deceleration approaches with reduced thrust during final approach
- Reduced thrust takeoffs and climb-outs with noise-optimized power settings
- Requires pilot training and cooperation with air traffic control
Airport noise restrictions
- Operational constraints imposed by airports to limit noise exposure in surrounding areas
- Noise quotas and budgets that allocate noise allowances to airlines and aircraft types
- Preferential runway usage based on wind conditions and population density
- Noise monitoring systems and community outreach programs to ensure compliance and address concerns
Night flight bans
- Prohibiting or restricting flights during night hours to reduce noise disturbance
- Varies by airport and can be total bans, partial restrictions, or noise-based limits
- Affects airline scheduling and may result in congestion during peak daytime hours
- Requires a balance between community noise protection and the economic benefits of 24-hour airport operations
Emerging technologies in noise reduction
- Advances in materials science, manufacturing techniques, and computational tools are enabling new approaches to aircraft noise reduction
- These emerging technologies have the potential to significantly reduce noise levels beyond the capabilities of current methods
Metamaterials for acoustic cloaking
- Engineered materials with unique properties that can manipulate sound waves
- Acoustic cloaking involves guiding sound waves around an object, reducing its acoustic signature
- Potential applications in engine nacelles, landing gear, and other noise-generating components
- Challenges include the scalability, durability, and integration of metamaterials into aircraft structures
Shape-memory alloys for adaptive structures
- Alloys that can change shape in response to temperature or stress, allowing for adaptive noise reduction
- Potential applications in morphing airfoils, adaptive engine nozzles, and active acoustic liners
- Shape-memory alloys can be used to tune the resonance frequency of acoustic devices in real-time
- Challenges include the response time, fatigue life, and integration with aircraft systems
Plasma actuators for flow control
- Devices that use ionized air (plasma) to manipulate the flow field near the aircraft surface
- Can be used for active flow control, boundary layer manipulation, and noise reduction
- Potential applications in delaying transition, suppressing flow separation, and modifying turbulence structures
- Advantages include fast response times, no moving parts, and low power consumption
- Challenges include the scalability, durability, and effectiveness at high Reynolds numbers
3D-printed acoustic metamaterials
- Additive manufacturing techniques enable the creation of complex acoustic metamaterial structures
- Allows for the design and fabrication of intricate geometries with tailored acoustic properties
- Potential applications in engine nacelles, cabin interiors, and other noise-sensitive areas
- Enables the integration of acoustic functionality directly into structural components
- Challenges include the material properties, surface finish, and certification of 3D-printed parts
AI-driven noise prediction and optimization
- Machine learning and artificial intelligence techniques applied to aircraft noise prediction and reduction
- Data-driven models trained on high-fidelity simulations and experimental data
- Surrogate models for rapid design space exploration and optimization
- Inverse design techniques for generating noise-optimal geometries and configurations
- Integration with physics-based models for hybrid noise prediction and analysis approaches
- Challenges include the availability and quality of training data, model interpretability, and validation
Key Terms to Review (18)
Active Noise Control: Active noise control (ANC) is a technology that uses sound waves to cancel out unwanted noise, creating a quieter environment. It operates on the principle of destructive interference, where sound waves are generated to match and counteract the noise from various sources, including engines and airframes, effectively reducing overall noise levels experienced in different situations.
Aeroacoustics: Aeroacoustics is the study of the generation and propagation of sound produced by fluid flows, particularly in the context of aerodynamics. It explores how air movement interacts with solid surfaces to create noise, which is critical in applications like aircraft design and wind turbine performance. Understanding aeroacoustics helps engineers develop quieter designs and improve overall efficiency.
Airframe noise: Airframe noise refers to the sound generated by an aircraft's structure as it moves through the air. This noise is primarily caused by the aerodynamic interactions of airflow with various components of the aircraft, such as the wings, fuselage, and control surfaces. Understanding airframe noise is crucial for identifying sources of noise pollution and developing effective noise reduction techniques in aviation.
Community noise exposure: Community noise exposure refers to the level of noise experienced by individuals living in a specific area due to various sources, such as transportation, construction, and industrial activities. This term highlights the impact of persistent noise on the health and well-being of residents, often leading to disturbances in sleep, communication, and overall quality of life. Understanding community noise exposure is essential for implementing effective noise reduction techniques that aim to minimize these adverse effects on local populations.
D. h. w. w. j. visser: d. h. w. w. j. visser refers to a specialized framework that combines various noise reduction techniques tailored for aerodynamics and acoustic management in aviation and related fields. This approach emphasizes the importance of understanding how sound propagates in airflow, the impact of aircraft design on noise generation, and effective strategies for mitigating unwanted sound through both passive and active means.
Damping: Damping refers to the process by which oscillations or vibrations in a system are reduced or eliminated over time due to energy dissipation. It plays a critical role in noise reduction techniques, as it helps to minimize sound energy that can propagate through structures and materials, ultimately leading to quieter environments. Understanding damping is essential for designing effective solutions to control unwanted noise and vibrations in various applications.
Decibel levels: Decibel levels are a logarithmic measure of sound intensity, commonly used to quantify the loudness of sounds in various environments. They are particularly important in understanding noise produced by jet engines, where high decibel levels can indicate potentially harmful noise pollution, and in assessing the effectiveness of various noise reduction techniques that aim to minimize these levels.
Engine noise: Engine noise refers to the sound generated by an engine during its operation, which can be produced by various mechanisms including combustion, mechanical vibrations, and aerodynamic effects. This noise can impact the performance and comfort levels of aircraft and vehicles, making it essential to understand its sources and explore effective reduction techniques to improve overall efficiency and user experience.
FAR Part 36: FAR Part 36 refers to the Federal Aviation Regulations that govern noise standards for aircraft, aiming to minimize noise pollution and its impact on communities near airports. These regulations establish maximum allowable noise levels for different categories of aircraft and outline requirements for noise measurement and certification. By setting these standards, FAR Part 36 plays a critical role in addressing airframe noise issues and implementing effective noise reduction techniques.
ICAO Chapter 14: ICAO Chapter 14 refers to the International Civil Aviation Organization's regulations on aircraft noise management, which aim to mitigate the impact of aircraft noise on communities surrounding airports. This chapter outlines standards and recommended practices for noise certification of aircraft and establishes guidelines for noise reduction techniques, ensuring a balance between aviation growth and environmental concerns.
Insulation: Insulation is the material or technique used to reduce the transfer of heat, sound, or electricity between different environments. In aerodynamics, effective insulation plays a critical role in managing thermal energy during flight, minimizing skin friction and controlling noise levels generated by airflow and mechanical systems.
M. a. b. c. h. de jong: M. A. B. C. H. De Jong is a notable figure in the field of noise reduction techniques, particularly in aerodynamics. His work emphasizes innovative strategies for minimizing noise generated by aircraft, which is crucial for meeting regulatory standards and enhancing community acceptance of aviation activities. De Jong's methodologies often involve advanced mathematical modeling and experimental validation to understand sound propagation and develop effective mitigation solutions.
Noise metrics: Noise metrics refer to quantitative measures used to assess the level and impact of noise produced by various sources, particularly in contexts like aviation and transportation. These metrics help to evaluate how noise affects environments and populations, informing strategies for noise control and reduction. By providing numerical data on sound levels, these metrics are essential for implementing effective noise reduction techniques and understanding their effectiveness.
Noise pollution: Noise pollution refers to harmful or excessive levels of noise that disrupt the normal acoustic environment, often resulting from human activities such as transportation, industrial operations, and urbanization. This type of pollution can have detrimental effects on health, communication, and overall quality of life, making the development of effective noise reduction techniques essential in mitigating its impacts.
Passive noise reduction: Passive noise reduction refers to techniques that minimize sound transmission through physical barriers or materials without the use of active technology. This method relies on absorbing, blocking, or reflecting sound waves to reduce noise levels, making it a crucial aspect of designing quieter environments in various fields, including aerodynamics and engineering. By understanding how materials interact with sound, effective strategies can be implemented to enhance comfort and performance in settings where noise control is essential.
Quiet technology: Quiet technology refers to advancements and designs in aviation that aim to reduce the noise produced by aircraft, particularly during takeoff and landing. This term is crucial in understanding how modern engineering practices focus on minimizing jet noise while maintaining performance, ultimately improving the environmental impact of aviation and enhancing community acceptance of airports.
Sound Attenuation: Sound attenuation refers to the reduction of sound intensity as it travels through a medium, which can occur due to absorption, scattering, and diffusion of sound waves. This phenomenon is essential in various applications, particularly in noise reduction techniques aimed at minimizing unwanted sound and improving acoustic environments. Understanding how sound attenuates can help in designing effective barriers, insulation materials, and other strategies to control noise levels in different settings.
Sound Barriers: Sound barriers are structures designed to reduce the impact of noise pollution, primarily along highways or around urban areas. These barriers can absorb or deflect sound waves, helping to create quieter environments for nearby communities and sensitive areas. The effectiveness of sound barriers depends on their height, length, and the materials used in their construction.
