10.5 Unsteady boundary layers
6 min read•august 20, 2024
are a crucial aspect of aerodynamics, involving time-dependent velocity and pressure fields. They occur in various scenarios, from oscillating airfoils to helicopter rotor blades, and significantly impact flow behavior and aerodynamic performance.
Understanding unsteady boundary layers is essential for predicting separation, transition, and turbulence in dynamic flow conditions. This knowledge helps engineers design more efficient aircraft, wind turbines, and turbomachinery components, improving overall aerodynamic performance in real-world applications.
Unsteady flow characteristics
- Unsteady flows exhibit time-dependent velocity and pressure fields, unlike steady flows where these properties remain constant over time
- Unsteady flows can be caused by various factors such as , vortex shedding, turbulence, and external disturbances (oscillating airfoils, helicopter rotor blades)
- Understanding unsteady flow characteristics is crucial for analyzing and predicting the behavior of aerodynamic systems subjected to time-varying conditions
Boundary layer theory in unsteady flow
Prandtl's boundary layer equations for unsteady flow
Top images from around the web for Prandtl's boundary layer equations for unsteady flow
A Study of Two Dimensional Unsteady MHD Free Convection Flow over a Vertical Plate View original
Is this image relevant?

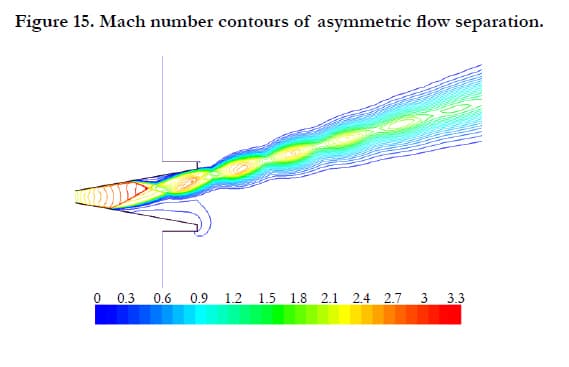

Asymmetric and Unsteady Flow Separation in High Mach Number Planar Nozzles View original
Is this image relevant?
Non-inertial forces in aero-ballistic flow and boundary layer equations View original
Is this image relevant?
A Study of Two Dimensional Unsteady MHD Free Convection Flow over a Vertical Plate View original
Is this image relevant?
Asymmetric and Unsteady Flow Separation in High Mach Number Planar Nozzles View original
Is this image relevant?
1 of 3
Top images from around the web for Prandtl's boundary layer equations for unsteady flow
A Study of Two Dimensional Unsteady MHD Free Convection Flow over a Vertical Plate View original
Is this image relevant?
Asymmetric and Unsteady Flow Separation in High Mach Number Planar Nozzles View original
Is this image relevant?
Non-inertial forces in aero-ballistic flow and boundary layer equations View original
Is this image relevant?
A Study of Two Dimensional Unsteady MHD Free Convection Flow over a Vertical Plate View original
Is this image relevant?
Asymmetric and Unsteady Flow Separation in High Mach Number Planar Nozzles View original
Is this image relevant?
1 of 3
- for unsteady flow are an extension of the steady boundary layer equations, incorporating time-dependent terms
- The unsteady boundary layer equations include the and the with additional terms for local and convective acceleration
- These equations govern the behavior of the boundary layer in unsteady flows and help predict velocity profiles, shear stress, and flow separation
- Solving the unsteady boundary layer equations requires appropriate initial and boundary conditions, as well as numerical methods capable of handling time-dependent terms
Unsteady boundary layer separation
Factors affecting unsteady separation
- Unsteady separation is influenced by various factors such as the frequency and amplitude of the external disturbance, Reynolds number, and pressure gradient
- Higher frequencies and amplitudes of the external disturbance can lead to earlier separation and more pronounced unsteady effects
- Adverse pressure gradients and low Reynolds numbers promote unsteady separation by weakening the boundary layer and making it more susceptible to flow reversal
Separation point movement in unsteady flow
- In unsteady flows, the separation point moves along the surface in response to the time-varying pressure gradient and external disturbances
- The movement of the separation point can be characterized by its amplitude and phase relative to the external disturbance
- Predicting the is essential for understanding the and moments acting on the surface
- Numerical simulations and experimental techniques (surface pressure measurements, flow visualization) are used to study the separation point movement in unsteady flows
Laminar vs turbulent unsteady boundary layers
Transition mechanisms in unsteady boundary layers
- Transition from laminar to turbulent flow in unsteady boundary layers can occur through various mechanisms such as , , and
- Unsteady flows can alter the stability characteristics of the boundary layer and influence the transition process
- Tollmien-Schlichting waves are amplified by the unsteady pressure gradient, leading to earlier transition compared to steady flows
- Bypass transition occurs when the boundary layer is subjected to high levels of free-stream turbulence or surface roughness, bypassing the linear instability stage
- Separation-induced transition occurs when the separates and undergoes transition in the separated shear layer before reattaching as a
Unsteady boundary layer control techniques
Active vs passive control methods
- Unsteady boundary layer control techniques aim to manipulate the boundary layer to delay separation, enhance mixing, or reduce drag
- involve the application of external energy to the flow, such as periodic blowing/suction, plasma actuators, or moving surfaces (oscillating flaps)
- rely on geometric modifications to the surface, such as vortex generators, riblets, or compliant walls, to influence the boundary layer behavior
- The choice between active and passive control methods depends on the specific application, available resources, and the desired level of control over the unsteady boundary layer
Numerical modeling of unsteady boundary layers
Computational challenges in unsteady boundary layer simulations
- Numerical modeling of unsteady boundary layers poses several computational challenges due to the time-dependent nature of the flow and the presence of complex phenomena (separation, transition, turbulence)
- High spatial and temporal resolution is required to capture the unsteady flow features accurately, leading to increased computational cost and memory requirements
- Turbulence modeling in unsteady boundary layers is challenging, as traditional RANS models may not adequately capture the time-dependent turbulent structures
- Advanced turbulence modeling approaches, such as (LES) or (DNS), can provide more accurate results but are computationally expensive
- Proper treatment of moving boundaries and mesh deformation is necessary for simulating unsteady boundary layers over oscillating surfaces or in turbomachinery applications
Experimental techniques for unsteady boundary layer analysis
Hot-wire anemometry in unsteady flows
- is a widely used experimental technique for measuring velocity fluctuations and turbulence in unsteady boundary layers
- The technique relies on the heat transfer from a thin wire exposed to the flow, which is related to the instantaneous velocity
- Hot-wire anemometry offers high temporal resolution, making it suitable for capturing high-frequency unsteady flow phenomena
- Challenges in hot-wire anemometry for unsteady flows include probe interference, calibration, and data interpretation in the presence of flow reversal and high turbulence intensities
Particle image velocimetry (PIV) for unsteady boundary layers
- (PIV) is a non-intrusive optical technique for measuring the velocity field in unsteady boundary layers
- PIV involves seeding the flow with tracer particles and illuminating them with a laser sheet, capturing the particle positions at two instances using a high-speed camera
- The velocity field is obtained by cross-correlating the particle images and determining the particle displacements
- PIV provides instantaneous velocity fields with high spatial resolution, enabling the study of unsteady flow structures and turbulence in boundary layers
- Challenges in PIV for unsteady boundary layers include particle seeding, laser sheet alignment, and data processing in the presence of strong velocity gradients and flow separation
Applications of unsteady boundary layer theory
Unsteady aerodynamics of oscillating airfoils
- Unsteady boundary layer theory is essential for understanding the aerodynamics of oscillating airfoils, such as those found in helicopter rotor blades, wind turbines, and flapping wing vehicles
- The unsteady motion of the airfoil leads to the formation of a , which significantly affects the lift, drag, and moment characteristics
- Predicting the onset and evolution of the dynamic stall vortex requires accurate modeling of the unsteady boundary layer and flow separation
- Unsteady boundary layer theory helps optimize the design of oscillating airfoils for improved performance and efficiency
Helicopter rotor blade unsteady boundary layers
- Helicopter rotor blades operate in a highly unsteady environment due to the periodic variation of the inflow velocity and the blade motion
- The unsteady boundary layers on rotor blades play a crucial role in determining the aerodynamic loads, vibration, and noise characteristics of the helicopter
- Unsteady boundary layer separation and dynamic stall can occur on the retreating blade, leading to a loss of lift and increased drag
- Understanding and controlling the unsteady boundary layers on rotor blades is essential for improving helicopter performance, stability, and passenger comfort
Unsteady boundary layers in turbomachinery
- Turbomachinery components, such as compressor and turbine blades, operate in an unsteady flow environment due to the relative motion between the rotor and stator
- Unsteady boundary layers in turbomachinery affect the blade loading, loss generation, and heat transfer characteristics
- Flow separation and transition in the unsteady boundary layers can lead to performance degradation and reduced efficiency
- Unsteady boundary layer theory is used to design and optimize turbomachinery blades for improved performance, considering the effects of flow unsteadiness and blade row interaction
- Numerical simulations and experimental techniques are employed to study the unsteady boundary layers in turbomachinery and develop flow control strategies for enhanced efficiency and reliability
