Groundwater systems and aquifers play a crucial role in the hydrologic cycle. These underground reservoirs store and transport water, providing a vital source for human use and sustaining ecosystems. Understanding their structure and behavior is key to managing water resources effectively.
Aquifers come in two main types: confined and unconfined. Their characteristics, like porosity and permeability, control how much water they can hold and how quickly it moves. Wells tap into these systems, and concepts like artesian wells and cones of depression show how human activity interacts with and impacts groundwater.
Aquifer Types and Characteristics

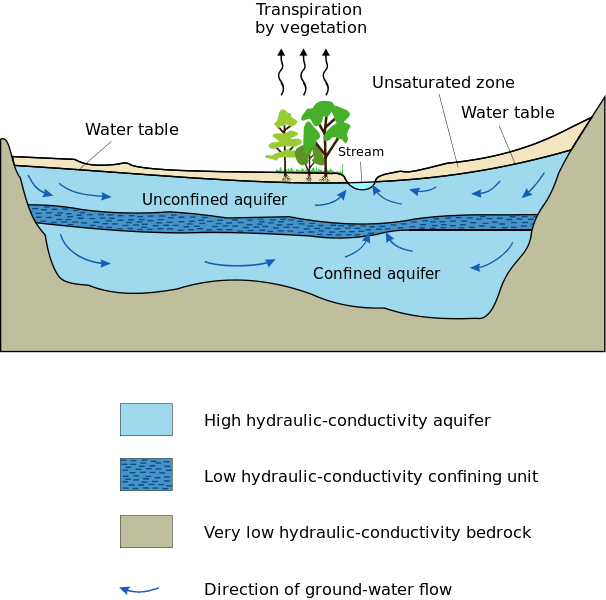

Aquifer Structure and Properties
An aquifer is a subsurface layer of rock or sediment that holds groundwater and allows water to flow through it. Not all underground rock qualifies; the material needs enough open space and enough connectivity between those spaces to actually transmit water. Aquifers are classified based on what surrounds them.
- Confined aquifer: An aquifer bounded above and below by impermeable layers (called aquitards or confining layers), which trap the water under pressure.
- Water is accessed through wells that penetrate the confining layer.
- Because the impermeable cap blocks surface water from seeping in, confined aquifers are less susceptible to contamination from surface activities.
- Unconfined aquifer: An aquifer with no confining layer above it, so water can seep directly from the surface down into the saturated zone.
- The upper boundary of the saturated zone in an unconfined aquifer is called the water table. The water table isn't fixed; it rises and falls with precipitation and pumping.
- These aquifers are more vulnerable to contamination from surface sources like agricultural runoff, septic systems, and industrial spills, since there's no impermeable barrier protecting them.
Aquifer Characteristics Affecting Water Flow
Three related properties determine how an aquifer stores and transmits water:
- Porosity: The percentage of a rock or sediment's total volume that consists of open spaces (pores). Porosity controls how much water an aquifer can hold. Sedimentary rocks like sandstone and limestone typically have higher porosity than igneous or metamorphic rocks. A well-sorted gravel might have porosity around 25–40%, while dense granite could be below 1%.
- Permeability: The ability of a material to allow fluids to pass through it. High porosity doesn't guarantee high permeability. Clay, for example, can have very high porosity (up to 50%) but extremely low permeability because its tiny pores are poorly connected. Gravel and coarse sand are highly permeable; clay and shale are not.
- Permeability depends on the size, shape, and connectivity of pores within the material.
- Hydraulic conductivity: A measure of how easily water flows through a porous medium under a hydraulic gradient (a difference in water pressure or elevation). It combines the properties of both the fluid and the material.
- Materials with high hydraulic conductivity, like karst limestone (limestone with dissolved channels) or fractured bedrock, transport water quickly. Materials with low hydraulic conductivity, like silt or unfractured granite, slow water movement significantly.
The key distinction: porosity is about storage capacity, permeability is about how connected the pore spaces are, and hydraulic conductivity is the practical measure of actual flow rate through the material.
Groundwater Flow and Wells
Groundwater Movement
Groundwater isn't static. It moves slowly through aquifer material from areas of higher hydraulic head (pressure + elevation) to areas of lower hydraulic head.
- Recharge: The process by which water is added to an aquifer, typically through infiltration of precipitation at the surface or seepage from adjacent aquifers. Recharge rates depend on precipitation amount, soil type, vegetation cover, and land use. Paved surfaces, for instance, reduce recharge by preventing infiltration. Recharge zones are often at higher elevations where permeable soils are exposed at the surface.
- Discharge: The process by which water leaves an aquifer. This happens naturally through springs, seeps, and baseflow into rivers, lakes, and wetlands, or through evapotranspiration where the water table is shallow. Human-induced discharge occurs through pumping for irrigation, industrial, or municipal water use.
When recharge and discharge are balanced, groundwater levels stay relatively stable. Problems arise when discharge (especially pumping) consistently exceeds recharge, leading to declining water tables and aquifer depletion.
Well Hydraulics
- Artesian well: A well drilled into a confined aquifer where hydrostatic pressure pushes the water level above the top of the aquifer. In some cases, the pressure is strong enough that water flows to the surface without any pumping at all (a flowing artesian well). This pressure comes from the weight of water at higher elevations in the aquifer's recharge area pushing down on the confined water below.
- Cone of depression: The localized lowering of the water table (or potentiometric surface, in a confined aquifer) around a pumping well. As water is withdrawn, the water level drops most steeply right at the well and less steeply with distance, forming a cone-shaped depression.
- The size and shape of the cone depend on pumping rate, duration of pumping, and the aquifer's hydraulic properties.
- If multiple wells are close together, their cones of depression can overlap, amplifying the drawdown and potentially causing wells to go dry. This is why well spacing and pumping rates matter for sustainable groundwater management.
