18.3 Ecosystem modeling and ecological forecasting

Ecosystem Modeling and Ecological Forecasting

Ecosystem modeling simulates how energy and matter flow through natural systems, from nutrient cycles to food webs to the services ecosystems provide to humans. Ecological forecasting builds on these models to predict future changes in populations, species ranges, and habitats. Together, they form a core toolkit for conservation planning and resource management in a world where climate, land use, and biodiversity are all shifting simultaneously.

Ecosystem Modeling

Biogeochemical Cycles and Food Web Models

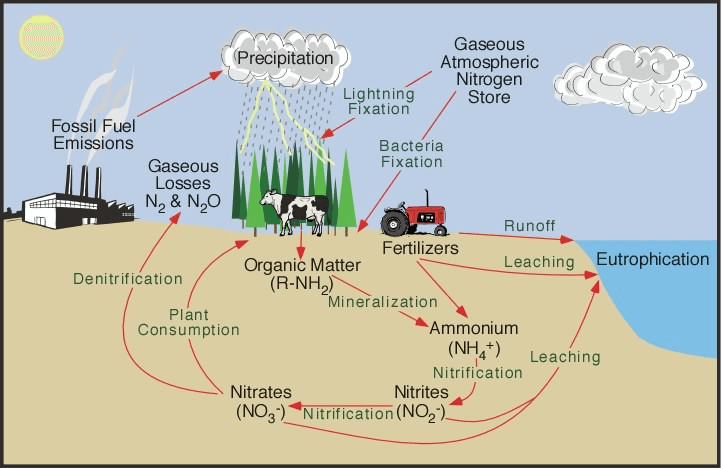

Biogeochemical cycle models track how elements like carbon, nitrogen, and phosphorus move and transform as they pass through different parts of an ecosystem. Think of an ecosystem as having compartments: the atmosphere, soil, vegetation, and water. The model simulates fluxes (flows between compartments) and stocks (how much of an element is stored in each compartment).

Key processes these models capture:

• Photosynthesis pulls $CO_2$ from the atmosphere into plant biomass
• Respiration and decomposition release carbon back to the atmosphere and soil
• Nutrient uptake moves nitrogen and phosphorus from soil into organisms
• Leaching and runoff transport dissolved nutrients into water bodies

By quantifying these fluxes, you can estimate things like how much carbon a forest sequesters per year or how nitrogen fertilizer applied to farmland ends up in a downstream river.

Food web models represent the trophic (feeding) relationships and energy flow between organisms. They map out producers (plants), consumers (herbivores and carnivores), and decomposers, showing who eats whom and how energy transfers up the chain. These models are especially useful for assessing what happens when the web gets disrupted. For example, if a top predator goes extinct or an invasive species enters the system, a food web model can help predict cascading effects on community structure and stability.

Ecosystem Services and Vegetation Dynamics Models

Ecosystem services models put a value on the benefits humans get from ecosystems. These benefits fall into three broad categories:

• Provisioning services: tangible products like food, freshwater, and timber
• Regulating services: processes like climate regulation, flood control, and water purification
• Cultural services: non-material benefits such as recreation, tourism, and aesthetic value

These models assess how services change under different scenarios of land use change, climate change, or policy intervention. A city planning department might use one to estimate how much urban tree cover reduces stormwater runoff, translating that into dollar savings on infrastructure.

Vegetation dynamics models simulate how plant communities grow, compete, and succeed one another over time. They incorporate climate variables, soil properties, disturbance regimes (fire, grazing, logging), and species interactions. The output tells you how vegetation composition, biomass, and carbon storage are likely to shift under different environmental or management scenarios.

Notable examples include:

• SORTIE: a forest growth model that tracks individual trees and their competitive interactions
• LPJ and ORCHIDEE: dynamic global vegetation models (DGVMs) that operate at continental to global scales, coupling vegetation processes with climate inputs

Ecological Forecasting

Population and Species Distribution Models

Population dynamics models predict how the abundance and age/size structure of a population changes over time. They account for birth rates, death rates, immigration, emigration, and density-dependent effects (where crowding reduces growth rates). Conservation biologists use these models to run population viability analyses, estimating the probability that a species will persist over a given time horizon.

Common approaches include:

• Matrix population models: divide a population into age or stage classes and use transition probabilities to project future numbers
• Individual-based models (IBMs): simulate the behavior and fate of each individual organism, capturing variability that averaged models miss

Species distribution models (SDMs) predict where a species can live based on environmental conditions. The basic workflow:

1. Gather occurrence records (where the species has been observed)
2. Pair those locations with environmental variables like temperature, precipitation, topography, and land cover
3. Use statistical or machine learning methods to identify the environmental conditions associated with the species' presence
4. Project that relationship onto a map to show suitable habitat, including under future climate scenarios

Popular SDM tools include MaxEnt (maximum entropy modeling), GLMs (generalized linear models), and GAMs (generalized additive models). SDMs are widely used to identify potential range shifts under climate change and to flag priority areas for conservation.

Habitat Suitability and Land Use Change Models

Habitat suitability models evaluate how well a given area meets a species' ecological needs. While SDMs focus on broad environmental tolerances, habitat suitability models zoom in on finer-scale factors:

• Vegetation structure (canopy height, understory density)
• Prey or food resource availability
• Landscape connectivity (can the species move between habitat patches?)

These models help prioritize where to invest in habitat protection or restoration. They're often combined with SDMs to refine predictions: an SDM might say the climate is suitable, but a habitat suitability model reveals the actual land cover is degraded.

Land use change models simulate how human activity reshapes the landscape over time. They incorporate drivers like population growth, economic development, agricultural expansion, and policy decisions. Two common modeling frameworks:

• Cellular automata models (e.g., SLEUTH): divide the landscape into a grid and apply rules for how each cell transitions between land use types based on neighboring cells and external drivers
• Agent-based models (ABMs): simulate the decisions of individual actors (farmers, developers, policymakers) and let landscape-level patterns emerge from those decisions

These models are critical for predicting how land use change will affect biodiversity, ecosystem services, and regional climate. For instance, projecting deforestation rates in the Amazon under different policy scenarios helps quantify both carbon emissions and habitat loss for threatened species.
