5.3 Statements of the Second Law

Statements of the Second Law

The Second Law of Thermodynamics sets fundamental limits on energy conversion processes. It explains why heat engines need temperature differences to produce work and why refrigerators require external power to move heat from cold to hot. Understanding the different statements of this law is essential for analyzing engine efficiency, determining whether a proposed process is physically possible, and grasping why natural processes have a preferred direction.

Statements of the Second Law

The Two Classical Statements

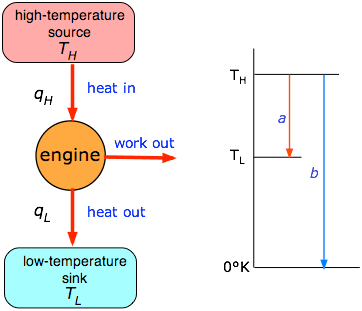

Kelvin-Planck Statement: It's impossible for a heat engine operating in a complete cycle to produce net work while exchanging heat with only a single fixed-temperature reservoir.

In practical terms, this means a heat engine must interact with both a high-temperature reservoir (the heat source) and a low-temperature reservoir (the heat sink) to produce net positive work. A car engine, for example, takes in heat from burning fuel (high-temperature source) and rejects waste heat to the environment (low-temperature sink). You can't build an engine that converts 100% of its heat input into work with no waste heat at all.

Clausius Statement: It's impossible for any device operating in a cycle to transfer heat from a cooler body to a warmer body without an external work input.

This is what you observe with refrigerators and air conditioners. They move heat from a cold interior to a warmer room, but only because a compressor does work on the refrigerant. Heat will never spontaneously flow from cold to hot on its own.

Implications for Heat Transfer

Heat naturally flows from high-temperature bodies to low-temperature bodies. Hot coffee cools down in a room; an ice cube melts in warm water. The Second Law formalizes this everyday observation: heat cannot spontaneously flow from a cold body to a hot body without external work.

This also places a hard ceiling on heat engine efficiency. The Carnot efficiency represents the theoretical maximum efficiency any heat engine can achieve when operating between two thermal reservoirs:

$\eta_{\text{Carnot}} = 1 - \frac{T_L}{T_H}$

Here, $T_L$ is the absolute temperature (in Kelvin) of the low-temperature reservoir and $T_H$ is the absolute temperature of the high-temperature reservoir.

A few things to notice about this equation:

• Efficiency increases as the temperature difference between the two reservoirs grows.
• You can never reach $\eta = 1$ (100% efficiency) unless $T_L = 0 \text{ K}$, which is unattainable.
• Real engines (gasoline engines, steam turbines) always fall below Carnot efficiency because of irreversibilities like friction, uncontrolled heat loss, and non-ideal gas behavior.

Feasibility of Thermodynamic Processes

The Second Law serves as a screening tool: it tells you whether a proposed process is physically possible before you bother analyzing it in detail.

The test is straightforward. If a proposed process violates either the Kelvin-Planck or Clausius statement, it's impossible.

Two classic examples of infeasible processes:

1. A heat engine with 100% efficiency that converts all heat input into work with zero waste heat. This violates the Kelvin-Planck statement. Such a device is sometimes called a "perpetual motion machine of the second kind."
2. A refrigerator that needs no work input yet still transfers heat from a cold body to a warm body. This violates the Clausius statement.

Both of these would be convenient if they existed, but the Second Law rules them out.

Entropy and the Second Law

Entropy is a thermodynamic property that quantifies the degree of energy dispersal (or "disorder") within a system. The Second Law can be restated in terms of entropy:

For any real (irreversible) process, the total entropy of the system plus its surroundings strictly increases. When you mix hot and cold water, for instance, the final lukewarm state has higher total entropy than the initial separated state. The process won't spontaneously reverse.

Irreversibility and entropy generation. Processes like friction, heat transfer across a finite temperature difference, and unrestrained expansion all generate entropy. The entropy generated during an irreversible process represents lost work potential. That's why waste heat from an engine, while still containing energy, can't be fully converted back into useful work.

The arrow of time. The Second Law's requirement that entropy increases gives time a preferred direction. Natural processes move from more ordered to less ordered states: heat flows from hot to cold, gases expand to fill their containers, and a broken glass doesn't spontaneously reassemble. This connection between entropy and the directionality of time is often called the "arrow of time."
