13.1 Rankine and Brayton cycles

2 min read•july 23, 2024

Power plants use two main thermodynamic cycles: Rankine and Brayton. The , used in steam power plants, involves water changing phases. The , used in , keeps air in gas form throughout.

Both cycles have similar processes but differ in working fluids and heat rejection. Rankine cycles are generally more efficient due to lower heat rejection temperatures. Understanding these cycles is key to analyzing systems.

Rankine Cycle

Components of Rankine cycle

Top images from around the web for Components of Rankine cycle

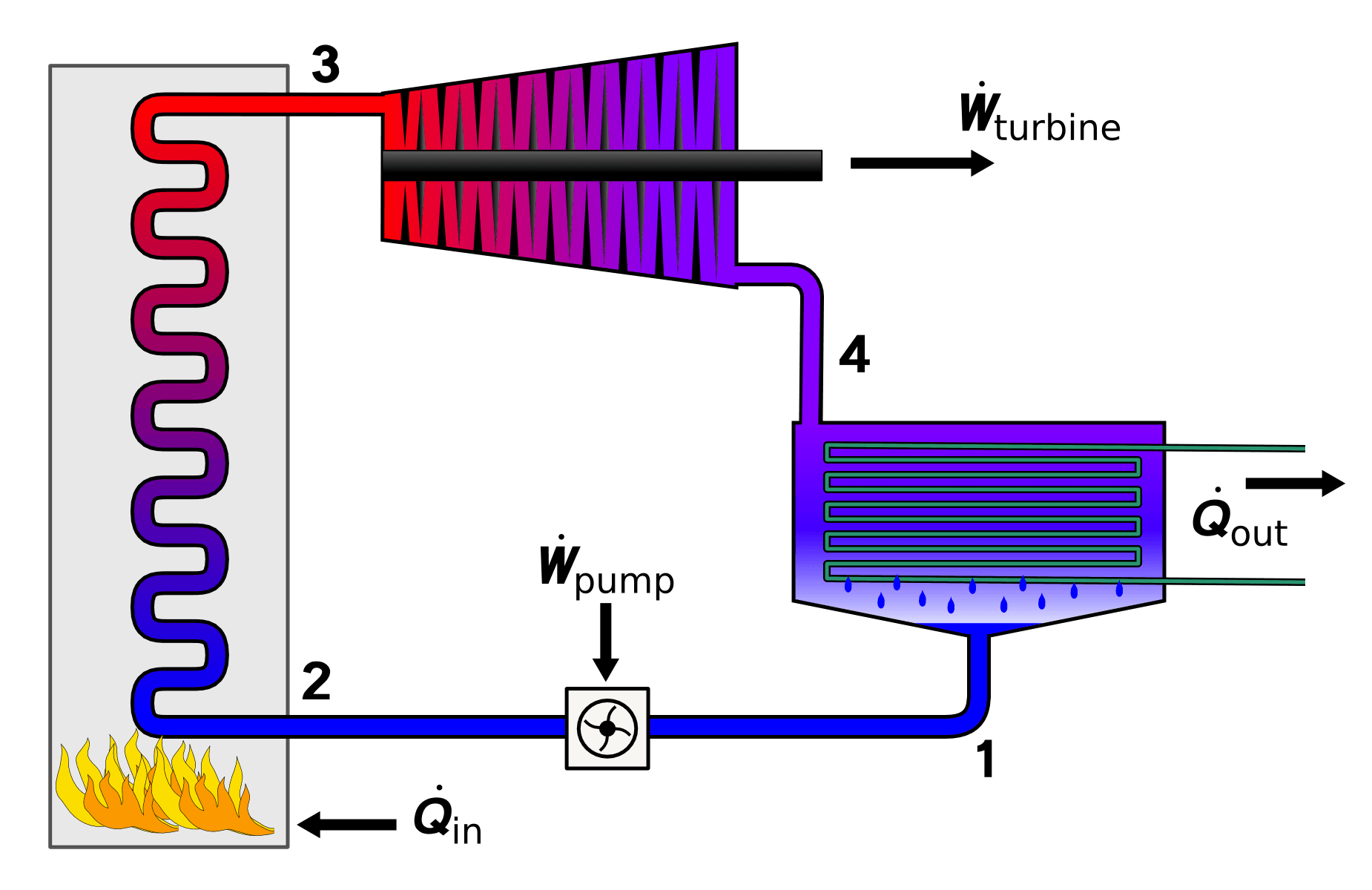

  • thermodynamics - How in Rankine cycle the turbine generates more power than the pump takes ... View original

    Is this image relevant?

  • thermodynamics - what property of steam makes it the preferable motive fluid in jet ejectors ... View original

    Is this image relevant?

  • thermodynamics - How in Rankine cycle the turbine generates more power than the pump takes ... View original

    Is this image relevant?

1 of 3

Top images from around the web for Components of Rankine cycle

  • thermodynamics - How in Rankine cycle the turbine generates more power than the pump takes ... View original

    Is this image relevant?

  • thermodynamics - what property of steam makes it the preferable motive fluid in jet ejectors ... View original

    Is this image relevant?

  • thermodynamics - How in Rankine cycle the turbine generates more power than the pump takes ... View original

    Is this image relevant?

1 of 3
  • heats working fluid (water) to produce high-pressure steam
  • expands steam converting thermal energy to mechanical work (electricity generation)
  • condenses low-pressure steam back into liquid form (heat rejection to environment)
  • pressurizes liquid working fluid and returns it to boiler completing the cycle

Processes in Rankine cycle

  1. Isentropic compression in pump pressurizes working fluid
  2. Isobaric heat addition in boiler heats working fluid at constant pressure producing steam
  3. Isentropic expansion in turbine expands steam generating mechanical work
  4. Isobaric heat rejection in condenser condenses steam back into liquid at constant pressure
  • Applications in power generation include steam power plants (coal, nuclear) using Rankine cycle as fundamental thermodynamic cycle

Brayton Cycle

Components of Brayton cycle

  • compresses working fluid (air) to high pressure
  • heats compressed air by burning fuel (natural gas, kerosene)
  • Turbine expands hot, high-pressure gases converting thermal energy to mechanical work
  • (optional) cools exhaust gases and preheats compressed air improving efficiency

Processes in Brayton cycle

  1. Isentropic compression in compressor compresses working fluid
  2. Isobaric heat addition in combustion chamber heats working fluid at constant pressure
  3. Isentropic expansion in turbine expands hot gases generating mechanical work
  4. Isobaric heat rejection to atmosphere or via heat exchanger at constant pressure
  • Applications in gas turbines include jet engines for aircraft propulsion and gas turbine power plants for electricity generation

Rankine vs Brayton cycle efficiency

  • Rankine cycle uses water undergoing phase changes, Brayton cycle uses gas (air) remaining gaseous
  • Both have isobaric heat addition, but Rankine has isobaric heat rejection while Brayton has isobaric or heat exchanger rejection
  • Both involve isentropic compression and expansion processes
  • Rankine efficiency depends on max/min fluid temperatures, Brayton on compressor pressure ratio and max/min temperatures
  • Brayton cycles generally have lower efficiencies than Rankine due to higher heat rejection temperature

Calculations for thermodynamic cycles

  • Rankine cycle
    • Net work output Wnet=Wt−WpW_{net} = W_t - W_p (turbine work minus pump work)
    • Heat input QbQ_b added in boiler
    • ηth=WnetQb=Wt−WpQb\eta_{th} = \frac{W_{net}}{Q_b} = \frac{W_t - W_p}{Q_b}
  • Brayton cycle
    • Net work output Wnet=Wt−WcW_{net} = W_t - W_c (turbine work minus compressor work)
    • Heat input QinQ_{in} added in combustion chamber
    • Thermal efficiency ηth=WnetQin=Wt−WcQin\eta_{th} = \frac{W_{net}}{Q_{in}} = \frac{W_t - W_c}{Q_{in}}
    • Pressure ratio rpr_p (compressor outlet to inlet pressures) affects efficiency
      • ηth=1−1rp(γ−1)/γ\eta_{th} = 1 - \frac{1}{r_p^{(\gamma-1)/\gamma}} where γ\gamma is specific heat ratio
