13.3 Combined cycles and cogeneration

Combined Cycles and Cogeneration

Combined cycles and cogeneration squeeze more useful energy out of every unit of fuel by integrating multiple thermodynamic cycles or by capturing waste heat for practical use. Understanding these systems is central to thermodynamic cycle analysis because they represent the most efficient large-scale power generation technologies available today.

Advantages of Combined Cycles

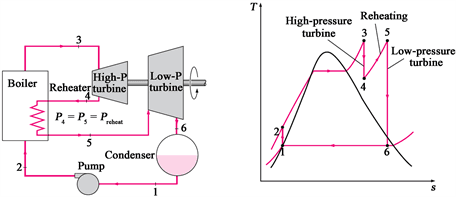

A combined cycle pairs two thermodynamic cycles so that the waste heat from one drives the other. The most common configuration is a gas turbine (Brayton cycle) on top and a steam turbine (Rankine cycle) on the bottom.

Here's how it works:

1. Fuel (typically natural gas) combusts in the gas turbine, producing electricity and hot exhaust gases (~500–600 °C).
2. Those exhaust gases pass through a heat recovery steam generator (HRSG), which produces steam.
3. The steam drives a steam turbine, generating additional electricity.
4. The combined output from both turbines is significantly greater than either cycle alone.

Why this matters for efficiency: a standalone gas turbine might reach 35–40% thermal efficiency, and a standalone steam plant around 33–38%. A combined cycle plant can exceed 60% thermal efficiency because it recovers energy that a single cycle would reject as waste heat.

Additional advantages:

• Higher power output per unit of fuel consumed
• Lower greenhouse gas emissions per kWh of electricity generated
• Fuel flexibility (natural gas, biogas, and in some designs, hydrogen blends)
• Faster startup times than conventional steam-only plants

Principles of Cogeneration

Cogeneration, also called Combined Heat and Power (CHP), simultaneously produces electricity and useful thermal energy from a single fuel source. The key distinction from a combined cycle is the end use: instead of feeding waste heat into a second power cycle, cogeneration delivers that heat directly to a thermal load.

In a conventional power plant, waste heat is dumped into the environment through cooling towers or condenser water. A CHP system captures that heat and puts it to work. This raises overall energy utilization from a typical 35–45% (electricity only) to 70–85% or higher when both electricity and heat outputs are counted.

Common applications include:

• Industrial settings — process steam, drying, chemical reactions
• Commercial buildings — space heating, hot water, absorption cooling
• District energy systems — centralized heating and cooling piped to multiple buildings

Because cogeneration displaces the need for a separate boiler or furnace, it reduces total fuel consumption and emissions even though the electrical efficiency alone may be modest.

Performance Analysis of Power Systems

Evaluating combined cycle and CHP systems relies on two core thermodynamic laws.

First Law (energy balance): Thermal efficiency measures how much of the heat input converts to net work:

$\eta = \frac{W_{net}}{Q_{in}}$

where $\eta$ is thermal efficiency, $W_{net}$ is net work output, and $Q_{in}$ is heat input from the fuel. For a CHP system, you'll often see an overall energy utilization factor that includes useful heat in the numerator:

$\eta_{CHP} = \frac{W_{net} + Q_{useful}}{Q_{in}}$

Second Law (exergy analysis): Exergetic efficiency accounts for the quality of energy, not just the quantity. It tells you how close the system comes to its theoretical best performance:

$\psi = \frac{E_{out}}{E_{in}}$

where $\psi$ is exergetic efficiency, $E_{out}$ is exergy delivered (work plus useful thermal exergy), and $E_{in}$ is exergy of the fuel input. Exergy analysis is especially useful for identifying where the largest irreversibilities occur so engineers can target improvements.

Key factors affecting performance:

1. Turbine inlet temperature and pressure — higher values generally improve cycle efficiency (limited by material constraints)
2. HRSG design and effectiveness — determines how much exhaust energy transfers to the steam cycle
3. Condenser pressure — lower condenser pressure increases the Rankine cycle's work output
4. Fuel composition and quality — affects combustion temperature and exhaust gas properties
5. Ambient conditions — higher ambient temperature reduces gas turbine output because air density drops

Benefits Compared to Traditional Generation

Economic benefits:

• Lower fuel cost per unit of combined electricity and heat
• Reduced operating and maintenance costs relative to running separate boiler and power systems
• Potential revenue from selling excess electricity or heat to the grid or nearby facilities

Environmental benefits:

• Lower $CO_2$ emissions per unit of useful energy produced
• Reduced water consumption compared to separate electricity and heat generation
• Smaller environmental footprint when paired with low-carbon fuels (biomass, hydrogen)

Performance comparison: A single-cycle gas turbine plant might achieve ~38% efficiency. A coal-fired steam plant sits around 33–37%. A combined cycle plant reaches 58–63%. A well-designed CHP system can achieve 75–85% total energy utilization. These gains translate directly into less fuel burned, fewer emissions, and lower cost per unit of useful energy delivered.
