Principles of optical instruments

Optical instruments manipulate light to extend what the human eye can do on its own. Whether it's a microscope making tiny structures visible or a telescope pulling in light from distant stars, these devices all rely on the same core optics principles you've been studying: reflection, refraction, and image formation through lenses and mirrors.

Reflection and refraction basics

Reflection occurs when light bounces off a surface. The law of reflection states that the angle of incidence equals the angle of reflection, both measured from the normal (the line perpendicular to the surface).

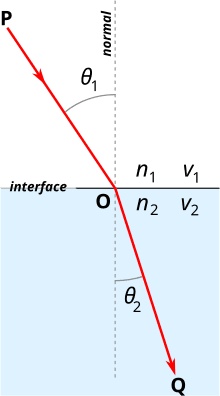

Refraction is the bending of light as it crosses from one medium into another with a different optical density. Snell's Law governs this:

$n_1 \sin \theta_1 = n_2 \sin \theta_2$

where $n_1$ and $n_2$ are the refractive indices of the two media, and $\theta_1$ and $\theta_2$ are the angles of incidence and refraction.

The refractive index ($n$) tells you how much light slows down in a medium compared to vacuum. A higher $n$ means light travels slower in that material.

Total internal reflection happens when light tries to pass from a denser medium (higher $n$) to a less dense one (lower $n$) at an angle greater than the critical angle. Instead of refracting through, all the light reflects back. This is the principle behind fiber optics.

Types of optical instruments

Microscopes

A compound microscope uses two converging lens systems in series to achieve high magnification of tiny objects:

• The objective lens (close to the specimen) creates a magnified real image inside the instrument
• The eyepiece (ocular lens) then acts like a magnifying glass on that real image, producing a further-magnified virtual image you see with your eye

The total magnification is the product of the two: $M_{total} = M_{objective} \times M_{eyepiece}$. A typical lab microscope with a 40× objective and a 10× eyepiece gives 400× total magnification.

Other types of microscopes go beyond visible light:

• Electron microscopes use electron beams instead of light, achieving far higher magnifications because electrons have much shorter wavelengths
• Fluorescence microscopes excite fluorescent molecules in a sample to produce high-contrast images of specific structures

Telescopes

Telescopes gather light from distant objects and produce magnified images. The two main designs differ in how they collect that light:

• Refracting telescopes use a large-diameter objective lens to gather light and bend it toward a focal point, where an eyepiece magnifies the image. The angular magnification is $M = \frac{f_{objective}}{f_{eyepiece}}$, so a long-focal-length objective paired with a short-focal-length eyepiece gives high magnification.
• Reflecting telescopes use a curved primary mirror instead of a lens to collect and focus light. This design avoids chromatic aberration (color fringing that plagues large lenses) because mirrors reflect all wavelengths equally.
• Radio telescopes detect radio waves from celestial objects using large dish antennas
• Space-based telescopes (like the Hubble and James Webb) operate above Earth's atmosphere, avoiding atmospheric distortion entirely

Cameras

A camera focuses light through a lens system onto a surface that records the image. In digital cameras, that surface is an electronic image sensor (CCD or CMOS chip) that converts light into electrical signals.

• DSLR cameras use a mirror and prism system so you see exactly what the lens sees through the viewfinder
• Mirrorless cameras eliminate the mirror, making the body smaller while using an electronic viewfinder instead
• Smartphone cameras integrate multiple small lenses with computational photography (software processing) to enhance image quality

Binoculars

Binoculars are two identical telescopes mounted side by side, giving you stereoscopic (3D-like) vision. The key design challenge is that a simple telescope produces an inverted image, so binoculars use prisms to flip the image upright:

• Porro prism designs use offset prisms, giving binoculars their classic wide shape
• Roof prism designs align the prisms with the lens axis, producing a slimmer, more streamlined body

Lenses in optical instruments

Convex vs. concave lenses

• Convex (converging) lenses are thicker in the middle. They bend light rays inward toward a focal point. These form real images (when the object is beyond the focal point) and are the basis of magnifying glasses, microscope objectives, and camera lenses.
• Concave (diverging) lenses are thinner in the middle. They spread light rays outward, and always produce virtual, upright, reduced images. They're used to correct nearsightedness (myopia) and are combined with convex lenses in instruments to correct aberrations.

The curvature of the lens surfaces determines the focal length. Stronger curvature means a shorter focal length and more powerful bending of light.

Focal length and magnification

Focal length ($f$) is the distance from the center of a lens to the point where parallel incoming rays converge (for a convex lens) or appear to diverge from (for a concave lens).

Lateral magnification relates image size to object size using the thin lens geometry:

$M = -\frac{d_i}{d_o}$

where $d_i$ is the image distance and $d_o$ is the object distance. The negative sign indicates that a positive $M$ (image on the same side as the object) means upright, while a negative $M$ means inverted.

Lens power is measured in diopters (D), defined as the inverse of focal length in meters:

$P = \frac{1}{f}$

A lens with $f = 0.5$ m has a power of $+2$ D. Converging lenses have positive power; diverging lenses have negative power.

For telescopes, angular magnification is what matters, since distant objects are characterized by the angle they subtend rather than their physical size at the lens.

Lens combinations

When multiple lenses are used together, their combined power equals the sum of individual powers (for thin lenses in contact): $P_{total} = P_1 + P_2$.

• Achromatic doublets pair a converging crown glass lens with a diverging flint glass lens to reduce chromatic aberration. The two glass types have different dispersion properties, so their color errors partially cancel.
• Zoom lenses move multiple lens elements relative to each other to continuously change the effective focal length
• Telephoto lenses combine positive and negative lens groups to achieve long focal lengths in a physically shorter housing

Mirrors in optical instruments

Plane vs. curved mirrors

• Plane mirrors produce virtual images that appear the same distance behind the mirror as the object is in front. The image is the same size, upright, and laterally reversed.
• Concave mirrors (curved inward) converge light. When an object is beyond the focal point, a concave mirror forms a real, inverted image. When the object is between the focal point and the mirror, the image is virtual, upright, and magnified.
• Convex mirrors (curved outward) always diverge light and produce virtual, upright, reduced images. They provide a wider field of view, which is why they're used as car side mirrors.
• Parabolic mirrors are a special shape that focuses all parallel rays to a single point, avoiding the blurring that spherical mirrors produce. They're essential in reflecting telescopes and satellite dishes.

The mirror equation is the same form as the thin lens equation:

$\frac{1}{f} = \frac{1}{d_o} + \frac{1}{d_i}$

Reflection types

• Specular reflection occurs on smooth surfaces, producing clear images (mirrors, calm water)
• Diffuse reflection scatters light in many directions from rough surfaces, which is why you can see a wall from any angle but can't see your reflection in it
• Retroreflection sends light directly back toward its source regardless of the incoming angle, used in road signs and bicycle reflectors

Mirror applications

• Astronomical reflecting telescopes use large primary mirrors (sometimes meters across) to collect faint light from distant objects
• Laser cavities bounce light back and forth between two highly reflective mirrors to amplify it through stimulated emission
• Periscopes use mirrors or prisms to redirect light so you can see around obstacles or from a concealed position

Image formation

Real vs. virtual images

This distinction comes up constantly, so make sure it's clear:

• A real image forms where light rays actually converge. You can project it onto a screen. Real images are inverted relative to the object.
• A virtual image forms where light rays appear to come from but don't actually converge there. You can't project it on a screen; you see it by looking through the optical element. Virtual images are upright.

Convex lenses produce real images when the object is beyond $f$, and virtual images when the object is closer than $f$. Concave mirrors follow the same pattern.

Magnification and resolution

Linear (lateral) magnification compares image size to object size:

$M = \frac{h_i}{h_o} = -\frac{d_i}{d_o}$

Angular magnification compares the angle the image subtends at your eye to the angle the object would subtend at your eye (viewed from a standard reference distance, typically 25 cm for near point):

$M_a = \frac{\theta_{image}}{\theta_{object}}$

Resolution is the ability to distinguish two closely spaced objects as separate. The Rayleigh criterion gives the minimum angular separation that can be resolved:

$\theta_{min} = 1.22 \frac{\lambda}{D}$

where $\lambda$ is the wavelength of light and $D$ is the aperture diameter. Larger apertures and shorter wavelengths give better resolution.

Numerical aperture (NA) quantifies a lens's light-gathering and resolving ability:

$NA = n \sin \theta$

where $n$ is the refractive index of the medium between the lens and the object, and $\theta$ is the half-angle of the maximum cone of light entering the lens.

Aberrations and corrections

Real lenses and mirrors aren't perfect. Here are the main types of image defects:

• Spherical aberration: Rays hitting the outer edges of a spherical lens or mirror focus at a different point than rays near the center. Corrected by using parabolic surfaces or combinations of lenses.
• Chromatic aberration: Different wavelengths refract by different amounts, so colors focus at slightly different points. Only affects lenses, not mirrors. Corrected with achromatic doublets.
• Coma: Off-axis point sources appear comet-shaped because magnification varies across the lens aperture.
• Astigmatism: A point source appears elongated because the lens has different focal lengths in perpendicular planes.
• Field curvature: A flat object produces an image on a curved surface rather than a flat plane. Corrected with field flattener lenses.

Light manipulation techniques

Polarization

Unpolarized light oscillates in all directions perpendicular to its travel. Polarization restricts these oscillations:

• Linear polarization confines oscillations to a single plane. Polarizing filters achieve this by absorbing light oscillating in all other directions.
• Circular polarization results from combining two perpendicular linear polarizations with a 90° phase difference between them.

Polarizing filters are used in photography to reduce glare from reflective surfaces (water, glass). Optical activity in certain materials rotates the plane of polarization and is used to measure sugar concentrations in solution.

Interference

When two or more light waves overlap, they interfere:

• Constructive interference: Waves in phase add together, producing a brighter result
• Destructive interference: Waves out of phase cancel, producing darkness

Thin film interference is what creates the colorful patterns on soap bubbles and oil slicks. Light reflects off the top and bottom surfaces of the thin film, and the path difference between these reflections determines which wavelengths constructively interfere (appear bright) and which destructively interfere (are suppressed).

Interferometers exploit interference patterns to make extremely precise measurements of distances and wavelengths.

Diffraction

Diffraction is the bending and spreading of light as it passes through narrow openings or around obstacles. It becomes significant when the opening size is comparable to the wavelength of light.

• Single-slit diffraction produces a bright central maximum flanked by alternating dark and bright fringes of decreasing intensity
• Double-slit diffraction (Young's experiment) produces an interference pattern that demonstrates the wave nature of light
• Diffraction gratings use many closely spaced slits to separate light into its component wavelengths with high precision, used in spectrometers

Optical instrument components

Apertures and diaphragms

The aperture is the opening that controls how much light enters an optical system. It affects both the brightness of the image and the depth of field (the range of distances that appear in focus).

The f-number describes the aperture size relative to focal length:

$f/\# = \frac{f}{D}$

where $f$ is the focal length and $D$ is the aperture diameter. A smaller f-number means a larger opening, more light, and shallower depth of field. Going from f/2.8 to f/5.6 cuts the light to one-quarter (since light gathered scales with area, which scales with diameter squared).

• Iris diaphragms provide continuously variable aperture sizes in camera lenses
• Field stops limit the field of view, reducing stray light and improving image contrast

Prisms and beam splitters

• Right-angle prisms redirect light by 90° using total internal reflection
• Porro prisms (used in binoculars) consist of two right-angle prisms that invert and reverse the image to make it upright
• Dispersing prisms separate white light into a spectrum because different wavelengths refract by different amounts (dispersion)
• Beam splitters divide a single beam into two, essential in interferometers and certain microscope designs

Filters and coatings

• Absorption filters transmit certain wavelengths while absorbing others (like colored glass)
• Interference filters use thin-film interference to pass only a very narrow band of wavelengths
• Anti-reflection coatings are thin layers applied to lens surfaces that use destructive interference to reduce reflections, improving light transmission. This is why camera lenses often have a faint colored sheen.
• Dichroic filters reflect certain wavelengths while transmitting others, used in fluorescence microscopy and color separation

Advanced optical technologies

Fiber optics

Optical fibers guide light along a thin glass or plastic core using total internal reflection. The core is surrounded by cladding with a lower refractive index, so light hitting the core-cladding boundary at a shallow angle reflects back into the core.

• Single-mode fibers have a very small core (~9 μm) and transmit only one mode of light, ideal for long-distance telecommunications
• Multi-mode fibers have a larger core (~50 μm), allowing multiple light paths, suitable for shorter distances
• Fiber optic endoscopes use bundles of fibers to transmit images from inside the body, enabling minimally invasive medical diagnostics

Lasers in instruments

Laser light has three properties that make it uniquely useful in optical instruments:

• Monochromatic: a single wavelength
• Coherent: all waves are in phase
• Highly directional: very low divergence

These properties enable:

• Laser interferometers that measure displacements with nanometer-scale precision
• Confocal microscopes that scan a focused laser spot across a sample to build high-resolution 3D images
• Laser-induced breakdown spectroscopy (LIBS) that vaporizes a tiny spot on a material and analyzes the emitted light to determine chemical composition

Digital imaging sensors

• CCDs (charge-coupled devices) convert photons into electrical charge at each pixel, then read the charges out sequentially. Known for low noise and high image quality.
• CMOS sensors integrate amplification and analog-to-digital conversion at each pixel, allowing faster readout and lower power consumption. These dominate modern cameras and phones.
• Back-illuminated sensors flip the chip so light hits the photodiodes directly (rather than passing through wiring layers first), improving sensitivity

Limitations and improvements

Resolving power

The diffraction limit sets the theoretical maximum resolution of any optical system. No matter how perfect your lenses are, diffraction prevents you from resolving details smaller than:

$d_{min} = \frac{0.61\lambda}{NA}$

where $\lambda$ is the wavelength and $NA$ is the numerical aperture. To improve resolution, you can use shorter wavelengths (why electron microscopes resolve more than light microscopes) or increase the NA (using oil immersion lenses, for example).

Super-resolution techniques like STED and PALM use clever tricks to beat the diffraction limit, achieving nanoscale imaging of biological structures.

Adaptive optics systems use deformable mirrors that change shape in real time to correct for atmospheric turbulence, dramatically improving ground-based telescope resolution.

Chromatic aberration correction

Since different wavelengths refract differently, a single lens focuses red and blue light at slightly different points. Correction strategies include:

• Achromatic lenses: combine crown glass (low dispersion) and flint glass (high dispersion) to bring two wavelengths to a common focus
• Apochromatic lenses: correct for three wavelengths, further reducing color fringing
• Diffractive optical elements: can counteract chromatic aberration in compact designs
• Digital post-processing: software correction can reduce residual chromatic aberration in captured images

Modern optical enhancements

• Phase contrast microscopy converts differences in refractive index (invisible in standard microscopy) into brightness differences, making transparent specimens visible without staining
• Differential interference contrast (DIC) microscopy produces pseudo-3D images of unstained samples by detecting optical path length gradients
• Optical coherence tomography (OCT) uses low-coherence interferometry to create non-invasive cross-sectional images of tissue (widely used in ophthalmology)
• Computational imaging combines optical hardware with algorithms to extract more information than traditional optics alone could capture

Applications in science and industry

Astronomy and space exploration

• Large ground-based telescopes use adaptive optics to compensate for atmospheric turbulence
• The James Webb Space Telescope operates in infrared, allowing it to peer through cosmic dust and observe very distant (highly redshifted) galaxies
• Spectroscopy reveals the chemical composition, temperature, and motion of stars and planets by analyzing their light
• Laser ranging measures distances to the Moon (and satellites) by timing how long a laser pulse takes to travel there and back

Medical imaging

• Endoscopes combine fiber optics with miniature cameras for minimally invasive diagnostics
• OCT provides high-resolution cross-sectional images of the retina, critical for diagnosing eye diseases
• Fluorescence microscopy enables real-time imaging of cellular processes in living organisms
• Photoacoustic imaging combines pulsed light and ultrasound detection to create high-contrast images of tissue vasculature

Industrial quality control

• Machine vision systems use cameras and image processing algorithms to inspect products on assembly lines
• Laser profilometry measures surface shape with micrometer-scale accuracy
• Interferometric testing detects nanoscale surface imperfections in optical components
• Spectral imaging analyzes material composition and uniformity during manufacturing
